  1. Version 1.0.0

    620 downloads

    Also available on eManualOnline 1988-2002 Kawasaki Bayou 220 Service Manual PDF The Kawasaki Bayou 220 is one of the most common all-terrain vehicles on off-road trails that is geared toward novice riders and families. It’s also one of the smallest and most inexpensive ATVs on the market, with a retail price under $3,500, as of 2010. The Bayou 220 is Kawasaki’s only ATV of its size. The 220’s sibling is the larger Bayou 250 equipped with a 228cc engine. Engine The Bayou 220’s engine is a 215cc, four-stroke, shaft-driven, air-cooled model. Its bore measures 2.6 inches and the stroke is 2.4 inches. It features a relatively high 9.3:1 compression ratio with fuel delivered through a Mikuni VM24SS carburetor. The electronic ignition is Kawasaki’s DC-CDI. It also features a recoil backup as a starting system. The clutch is an automatic wet multidisc model with power delivered to the wheels via a five-speed transmission, according to ATV Source. Chassis The steel frame supports a front suspension with single A-arms and twin shock absorbers, with the rear suspension a Quad-Link system with two shocks. Front wheel travel is 4.5 inches, while the rear wheel travel measures at 4.9 inches. Front and rear brakes are drums. Size The front tire size is AT21X8-9 with the rear tires measuring AT22X10-10. The ATV’s wheelbase is 43.9 inches, with an overall length of 68.7 inches. Ground clearance is 6.1 inches with the seat height measuring 28.7 inches. It weighs 403 lbs. and can tow up to 450 lbs. Its fuel tank can carry 2.6 gallons. Basics The Kawasaki Bayou 220 is not the fastest ATV on the market, but one reason the Bayou 220 has kept its price low is the lack of amenities. It features a brake light and dual headlamps with high/low beam. There is an auxiliary lighting terminal inside the front cover of the ATV and electrical accessory terminals under the seat. The instrument cluster atop the fuel tank features a fuel gauge, but not much else. There are no speedometer, odometer, hourmeter, tripmeter, high-beam indication or high-temperature light. It does have a reverse/neutral indicator light. The Bayou comes in two colors: hunter green and firecracker red. Features The front A-arm, twin shock and rear Quad-Link twin-shock suspension system is not a true fully independent system, but it allows for a comfortable ride over rough terrain without employing a complex and expensive, fully independent suspension system. The ATV features front and rear steel cargo racks. The ATV is rider-friendly with a limited adjustable throttle to help novices practice their riding skills without twisting the throttle too far and losing control of the vehicle.
  2. I’m looking for a 1985 Kawasaki bayou gas tank. Long shot but still worth a shot. Or any recommendations for patching it. thanks
  3. View File 1986-2006 Kawasaki Bayou 300 Service Manual This service manual is for a 1986-2006 Kawasaki Bayou 300. Adding to downloads library. Submitter Ajmboy Submitted 05/11/2018 Category Kawasaki ATV

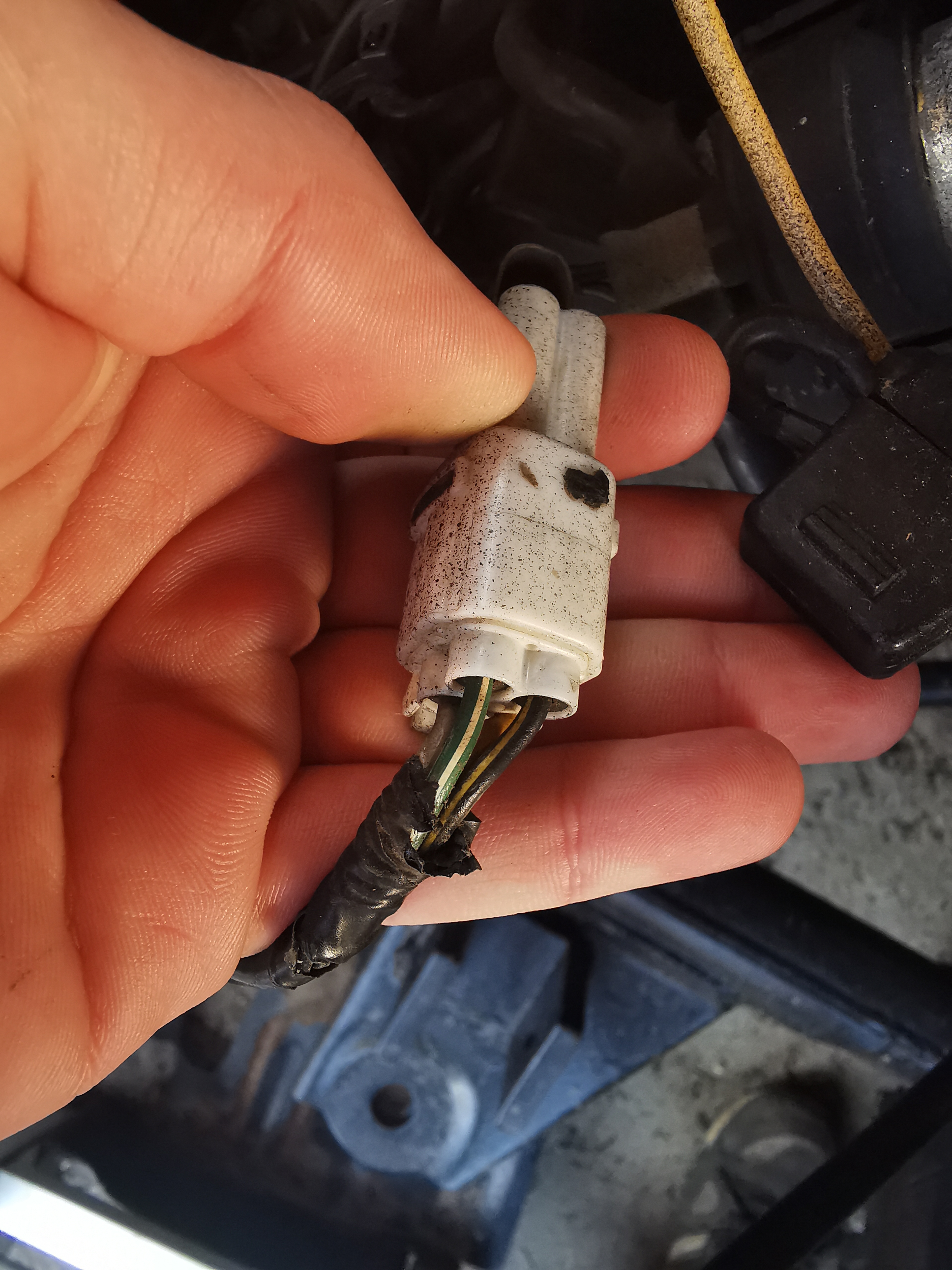

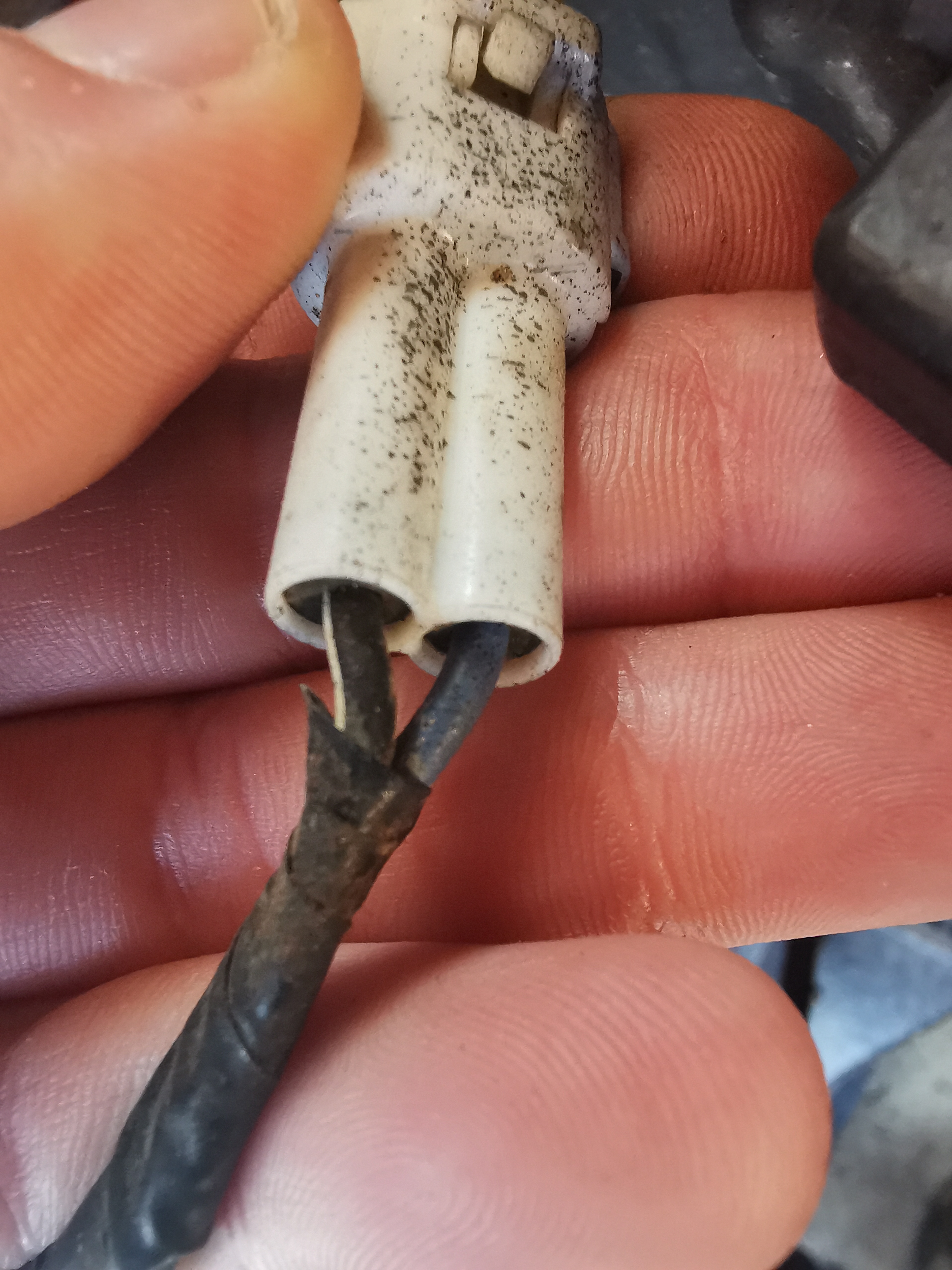

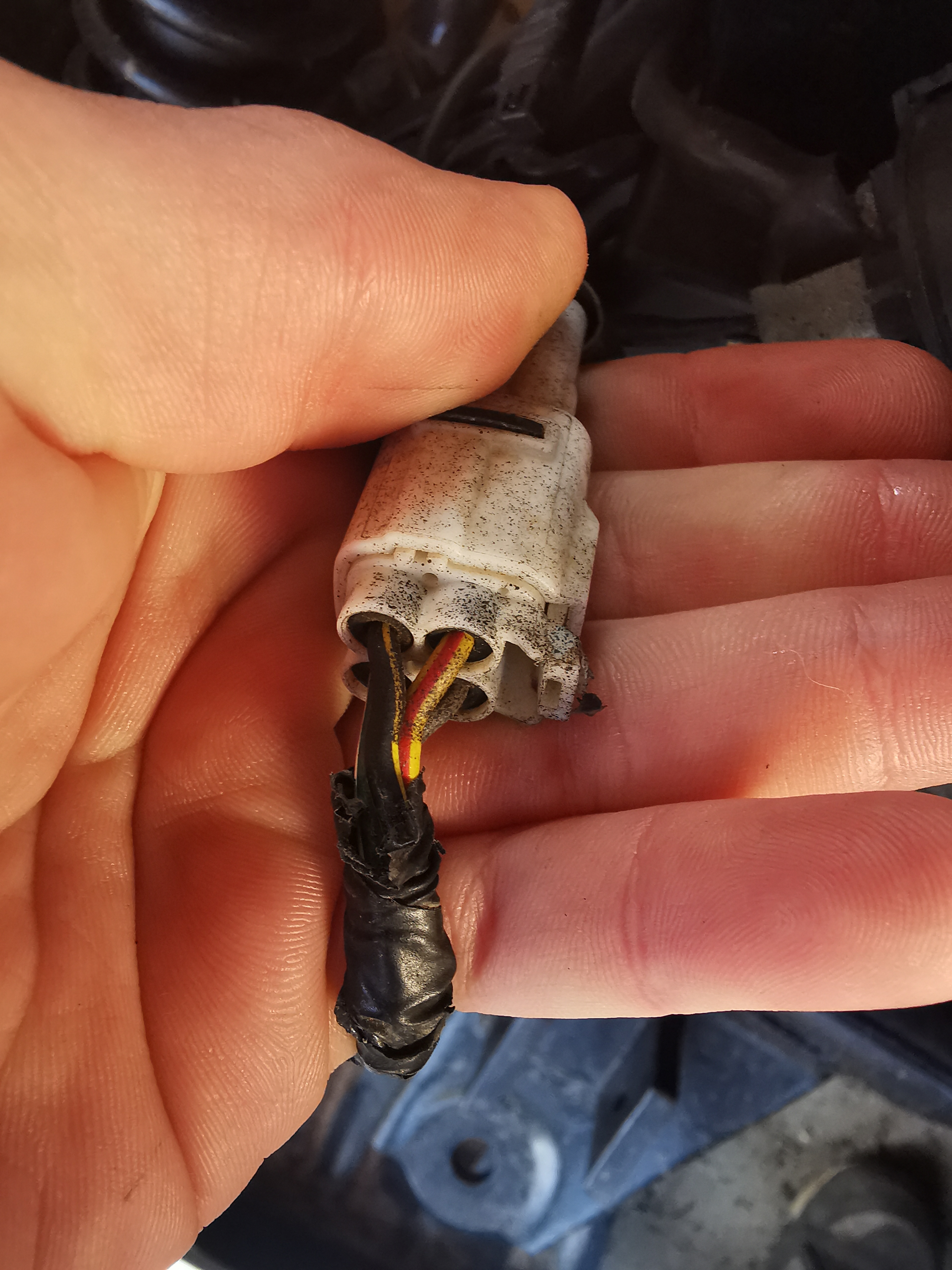

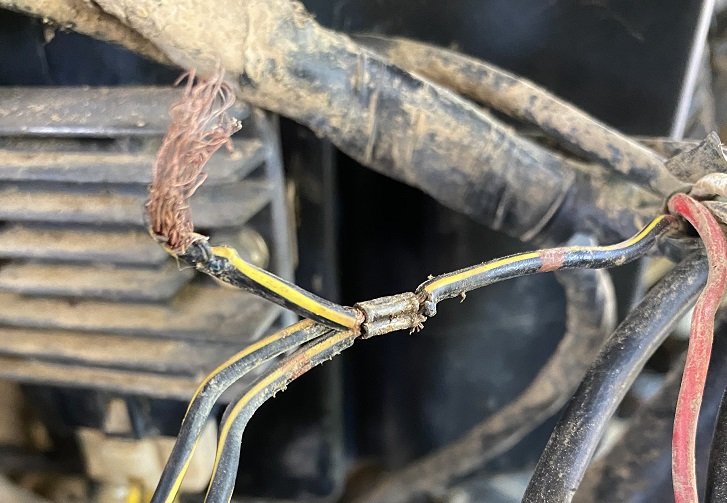

  4. I need help with wiring on a 1998 (I think, 10th digit of the VIN was W) Bayou. I'm not getting spark, I'm pretty sure it is due to grounds being off because the harness is pretty hacked as far as the electric start and charging system goes. I'm needing a good wiring schematic. I found one online and there are a few things that don't add up on it so I'm skeptical that it is really for my year and model. Any help would be appreciated. Thanks.
  5. Version 2

    209 downloads

    This service manual is for a 1986-2006 Kawasaki Bayou 300. Adding to downloads library.
  6. Motor starts right up, but when I open it up past quarter throttle it bogs way down while ridding, the longer it runs the worse it gets. If I just leave it in neutral and give it full throttle it revs up and down. Back history: Bike sat for 3 years, Installed new plug, cleaned the fuel tank, took it to a shop and had the carburetor gone though. Picked up from shop, motor bogged down first day and barely got me back to the truck an 1 mph. Took back to shop after a month I was told it had a bad plug, I told him I just replaced it. Got quad home and it is doing the same thing!!!!!!!!! Thanks in advance for your support! The carburetor has recently been gone through by a shop

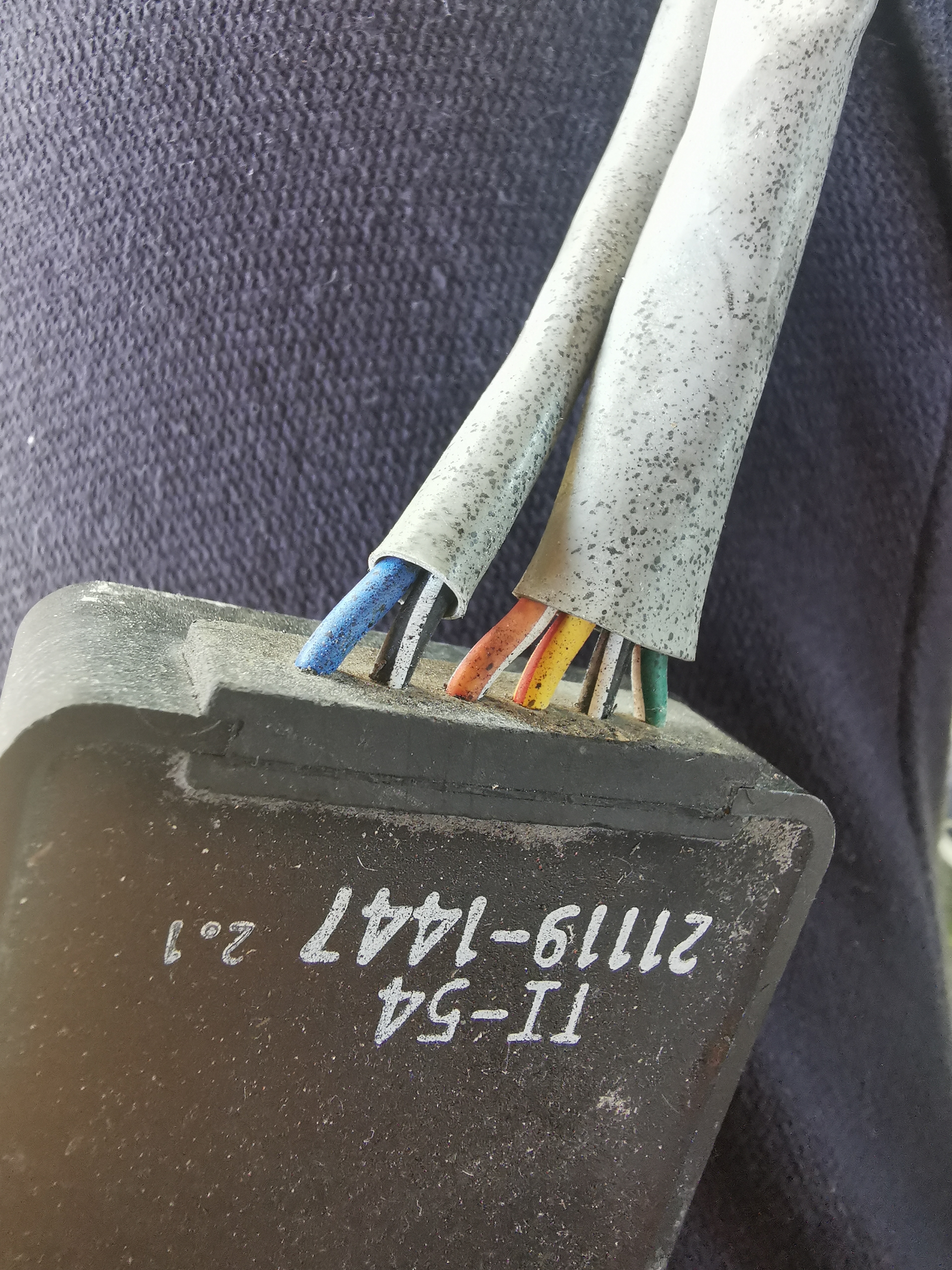

  7. Hello, I have read many forum topics on this matter but have never found a similar problem. So i bought a cheap as* quad thats got all sorts of parts on it. It's a 1997(if you look the date on frame) Kawasaki KLF(Bayou) 300 EUROPEAN Model (atleast I think, since I'm from Europe), the engine is 1988 if I'm not mistaken and the CDI is 1995.-2006. ( 21119-1447, 6pin ). My problem is that I don't have spark. I would diagnose the issue but connectors from CDI to wiring harness have almost all different colors and I'm not sure if they are connected correctly (pictures below). Pickup coil is putting out around 400 ohms and is pulsing. CDI is being fed 12v by one y/r wire that is coming to connector and with 12v to one gray wire which is coming from ignition switch ( quad actually doesn't have ignition switch so I'm not sure if gray should be supplying power or not). Stator looks good cause when crancking all three yellow wires put out around 5v AC. Neutral light is also on which means the switch should be ok, if it even matters. I know it's not the ignition coil since I get no power nor any kind of pulsing to G/W wire that is coming to it ( and I even put another one on there just to check an it ended with the same result). I'm nowhere near proffesional around this type of stuff so any help would be amazing.
  8. seems like its locked in gear, wont start any suggestions to get in neutral?
  9. kawas. bayou stuck in gear , any ideas/?
  10. have a 1996 bayou 400 with a starting problem when checking sparkplug grounded to engine -turn key on, hit starter, get one spark then nothing -turn key off and back on hit starter, get one spark then nothing Any ideas
  11. Hello, I am restoring a bayou 220 here in Brazil, I have a question regarding the rear brake activated by the lever on the left side. The ex-owner connected it in place of the reverse cable and as this is incorrect, could someone show me through pictures where I correctly connect the rear brake cable? Another thing, every time you reverse, is it necessary to activate the reverse key?
  12. I just bought a 91 and when I went to change the oil in the rear diff it had water in it (milky oil). There are no leaks in the seals so I think it's coming in the vent tube. Thing is I can't find it. Anyone know where it is. Thanks
  13. hi all first post just found forum and the manuals / wiring diagram BIG THANK YOU im struggling to find the vin number on my frame? I m told left side of frame , lower, nr. in front of the gear pedal ?? haven't found it yet , is it numbers stamped on the frame or a commission plate ?? main prob. no spark no power to coil , off to study the wiring info I've just found thanks again. tom
  14. Hey I have a Kawasaki buyou I put a new carburetor on it and a brand new spark plug coil and still firing up could you know what my problem is anyone please
  15. View File 1988-2002 Kawasaki Bayou 220 Service Manual Also available on eManualOnline 1988-2002 Kawasaki Bayou 220 Service Manual The Kawasaki Bayou 220 is one of the most common all-terrain vehicles on off-road trails that is geared toward novice riders and families. It’s also one of the smallest and most inexpensive ATVs on the market, with a retail price under $3,500, as of 2010. The Bayou 220 is Kawasaki’s only ATV of its size. The 220’s sibling is the larger Bayou 250 equipped with a 228cc engine. Engine The Bayou 220’s engine is a 215cc, four-stroke, shaft-driven, air-cooled model. Its bore measures 2.6 inches and the stroke is 2.4 inches. It features a relatively high 9.3:1 compression ratio with fuel delivered through a Mikuni VM24SS carburetor. The electronic ignition is Kawasaki’s DC-CDI. It also features a recoil backup as a starting system. The clutch is an automatic wet multidisc model with power delivered to the wheels via a five-speed transmission, according to ATV Source. Chassis The steel frame supports a front suspension with single A-arms and twin shock absorbers, with the rear suspension a Quad-Link system with two shocks. Front wheel travel is 4.5 inches, while the rear wheel travel measures at 4.9 inches. Front and rear brakes are drums. Size The front tire size is AT21X8-9 with the rear tires measuring AT22X10-10. The ATV’s wheelbase is 43.9 inches, with an overall length of 68.7 inches. Ground clearance is 6.1 inches with the seat height measuring 28.7 inches. It weighs 403 lbs. and can tow up to 450 lbs. Its fuel tank can carry 2.6 gallons. Basics The Kawasaki Bayou 220 is not the fastest ATV on the market, but one reason the Bayou 220 has kept its price low is the lack of amenities. It features a brake light and dual headlamps with high/low beam. There is an auxiliary lighting terminal inside the front cover of the ATV and electrical accessory terminals under the seat. The instrument cluster atop the fuel tank features a fuel gauge, but not much else. There are no speedometer, odometer, hourmeter, tripmeter, high-beam indication or high-temperature light. It does have a reverse/neutral indicator light. The Bayou comes in two colors: hunter green and firecracker red. Features The front A-arm, twin shock and rear Quad-Link twin-shock suspension system is not a true fully independent system, but it allows for a comfortable ride over rough terrain without employing a complex and expensive, fully independent suspension system. The ATV features front and rear steel cargo racks. The ATV is rider-friendly with a limited adjustable throttle to help novices practice their riding skills without twisting the throttle too far and losing control of the vehicle. Submitter oxidized_black Submitted 12/14/2016 Category Kawasaki ATV
  16. I had a quad fall in my lap a couple weeks ago. The only things I knew about it was it was a Kawasaki Bayou 220, was in pretty rough shape and was free. I couldn't say no to a fun little project. I've been looking a different ATV forums gathering quite a bit of info and decided this was the one I wanted to join. Thanks to this forum, I found the VIN under about an inch of mud and cross referenced it to be a '98. It had been sitting outside for at least 5 years and was told it ran when parked, but had no brakes. Squirrels or mice had been chewing on the handlebar controls and it's generally just kind of beat up. So far, I've gone through the carb (not near as bad as I expected), freed up the brakes (will probably need new cables), replaced the spark plug, air filter, petcock and put a new battery in it. The gas tank had been empty and looked clean so I put some fresh gas in it and tried to crank it today. I got a neutral light, but the starter button did nothing. I tried pull-starting it and it wouldn't fire. I checked the plug and wasn't getting a spark. I started digging and found some potential issues and some definite problems. I have a wiring diagram I found on here but it's just a picture or scan out of a book and hard to read. I don't see a reference to a black/yellow wire, which is my first problem. First, it that a factory crimp? One of those wired looks like it goes to the connector in the 2nd pic. Is that just a spade lug type connector? I pulled on it with some needle nose pliers but it didn't seem to want to come off. In the 3rd pic, should there be a fourth wire? I've read through and bookmarked the threads Andrew Baker and Arizona have going but I figured I needed to start with these obvious issues first. I have lots of pictures, so if there is something else you want to see, just ask. If I don't already have a pic, I'll take one.
  17. last year I bought led lights when I was riding my 4 wheeler the lights started getting dim shut off now my 4 wheeler will not start the battery is hot everything is dead I checked the fuse and its good would there be another fuse I am missing I'm took the led bulbs out and replaced them with the ones that was in there wonder what meh problem is
  18. just got a 99 Kawasaki bayou replace the coil because the spark was very weak still have the same issue before it would start after a while that it would start everyday as long as you started it every day but if you let it set you play hell starting it looking for information on what could possibly be wrong maybe the CDI box not sure any help would greatly be appreciated thank you
  19. Hello i was wondering if someone could help me out iv recently got a Kawasaki klf 220 it needed big end bearing changing so i rebuilt the engine and the bike has compression starts first time every time but after i have been riding for about 10 minutes oil starts to leak from the head just below the exhaust so i replaced the gasket still done it so i took it to a shop he done the same and it is still doing it any information would be great thank you
  20. Hey I have a 97 bayou 300 2x4 (klf300b) that i bought for 1000 last June and sunk another 1000 into it already. When i went to look at it, the seller had warmed it up before hand (he was riding it when I got there). it ran good so i bought it and took it home that evening... next morning it wouldn't hardly start. I discovered the carb was clogged, there was chunks of rust in the fuel valve, the choke lever was missing and other things. I have since cleaned the carb and replaced the fuel valve and gas lines and cleaned out the gas tank and cap. Enough background on it, the problem is this: It floods if i push it past half throttle in 4th and 5th gear even going downhill and shifting correctly. It also has to idle and warm up when you first start it which is really annoying now that its cold... It also smokes blue smoke for about 15 seconds when started cold- does not smoke at all once warm but the exhaust still smells like burnt metal. A friend told me that it didn't have enough compression. I also found out that the valves are a common cause for low compression on Kawasakis.. I have never adjusted valves before- the most I've ever got into a engine was a head gasket on a riding mower so I'm new to this. My goal is to get this bike running and starting cold like a top- should i tear down and rebuild the top end? What should i try first? I tore the carb apart and rebuilt it and fiddled with the air screw and nothing changed. I also ordered a compression test kit that should be coming in soon. Ive also considered just selling it for like $500 and taking the hit- Id rather not sink too much more into this machine.. lol
  21. Hi guys new to this forum and thought I’d jump on as I’ve just bought my first quad a Kawasaki bayou klf300c 89 model. It had starting issues when I bought it so I’ve gone thru and replaced the cdi, voltage regulator and starter solenoid aswell as rebuilt the starter motor after all this it was still free spinning on electric start so I pulled the stator cover off to find the fly wheel wasn’t spinning so replaced the one way clutch bearing put it all back together and still not engaging at all. I’m at a loss and looking for some ideas on we’re to look next to solve the problem cheers Ben 👍

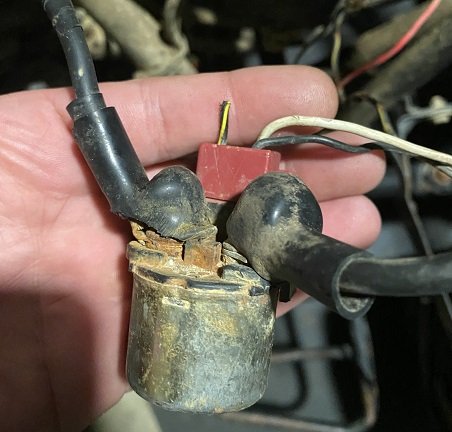

  22. Does anyone know what the 3rd item is behind the battery on this ATV ? I know 1 is the, solenoid1 is the CDI box, what is the 3rd.
  23. Help a brother four legger out Bayou300 acts like it's flooding if it's it's in the Alabama sun all day but, I've cleaned the carb. Sometimes it'll backfire even though the timing and valve lash are in spec. Thought it was sticking float but after 2 times cleaning the carb I'm lost. So
  24. 1988 Kawasaki 220 Bayou trying to remove generator/ starter 1way clutch cover to be able to replace 1way clutch. All bolts are removed case cover is dripping what oil that remains...but I can't get the cover to come off..what am I missing? Thx in advance.
×
×
