Yep, the sump screen above the drain plug is on the Right center case. What about if the gasket hangs well on the 2 alignment dowels, and I can line the rest of the cover bolts through the holes; not using ANY thing but the gasket and the pressure from the properly torques case cover bolts? 🙂 And, I know to tighten in a order similar to wheel lugs.... PS.... I do have this. I figured I didn't need gasket "maker" so I did pick this up.... https://shop.advanceautoparts.com/p/permatex-super-high-tack-gasket-sealant-1.75-oz.-80060/7160060-P?searchTerm=Permetex+gasket I assume "Tack" just helps hold the gasket while assembling? Thanks again Bruce

Thanks for replying! Yeah... I am assuming the damage that is there occurred when the previous owner put the oil filter in backwards. That caused the major breakdown where they then took it to the dealer to rebuild it. I am assuming that the dealer tore it down and redid the top end and new piston, etc maybe hand tested the starter clutch and it passed; put it all back together and then realized it was bad... recoil pulling the gears and the electric starter. Heck, maybe didn't know it was damaged or they told the owner and he said not to go back in. Never know now. Always has been a bear to pull start with the recoil, but I used the electric start majority of the time but want it better for the kids. Also... I got the new starter clutch and flywheel installed torqued to their correct ft-lbs and Loc-Tite as the Suzuki manual says. I cleaned off the old side cover gasket. I have a new gasket... is that all that is needed to seal, or do you recommend a gasket tack compound there too? The Suzuki manual just says to install gasket and reinstall the cover. On disassembly, it looks like there was some RTV along the bottom sides of the gasket... where the oil is constantly sitting. What are your recommendation? Bruce

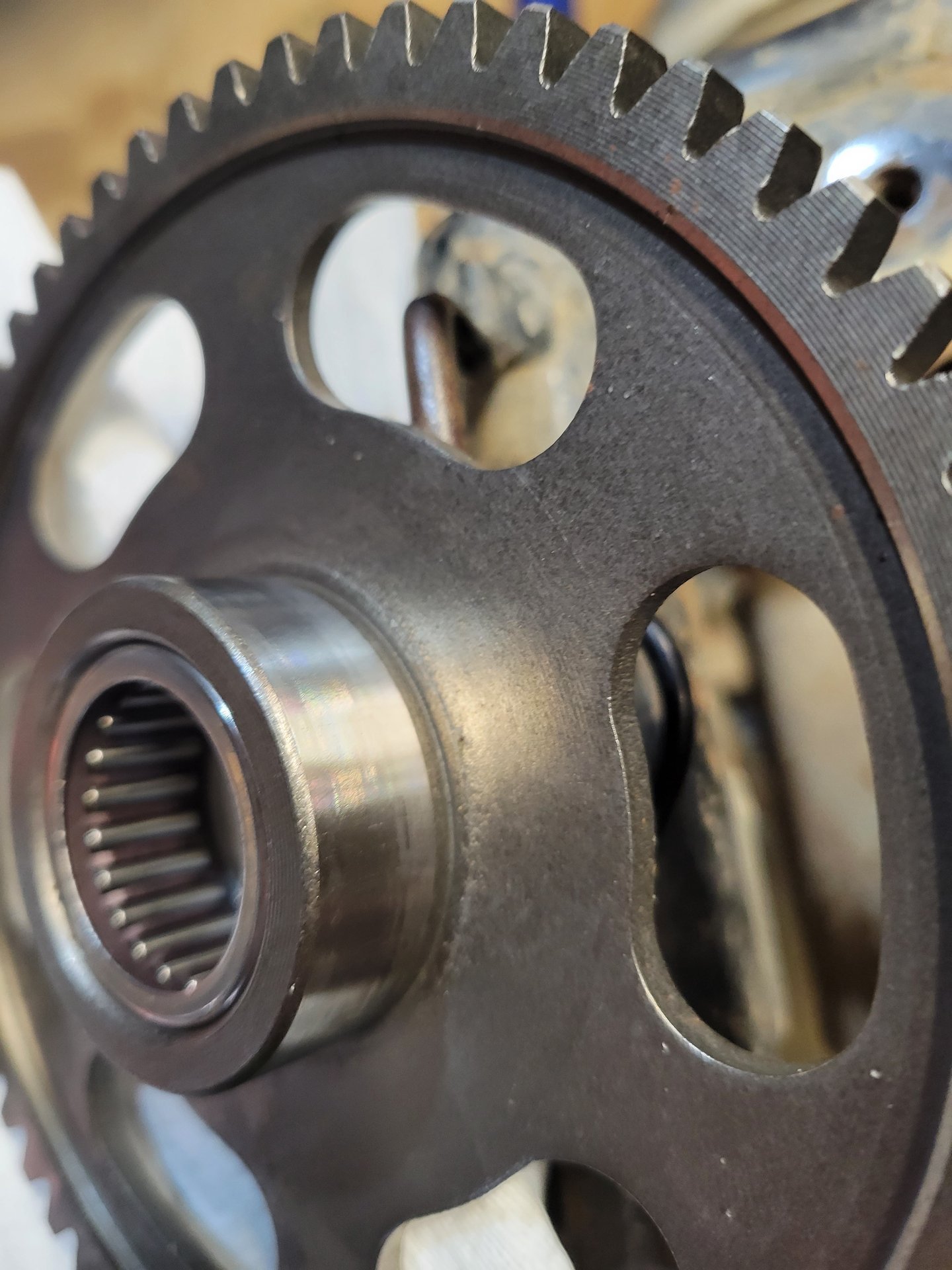

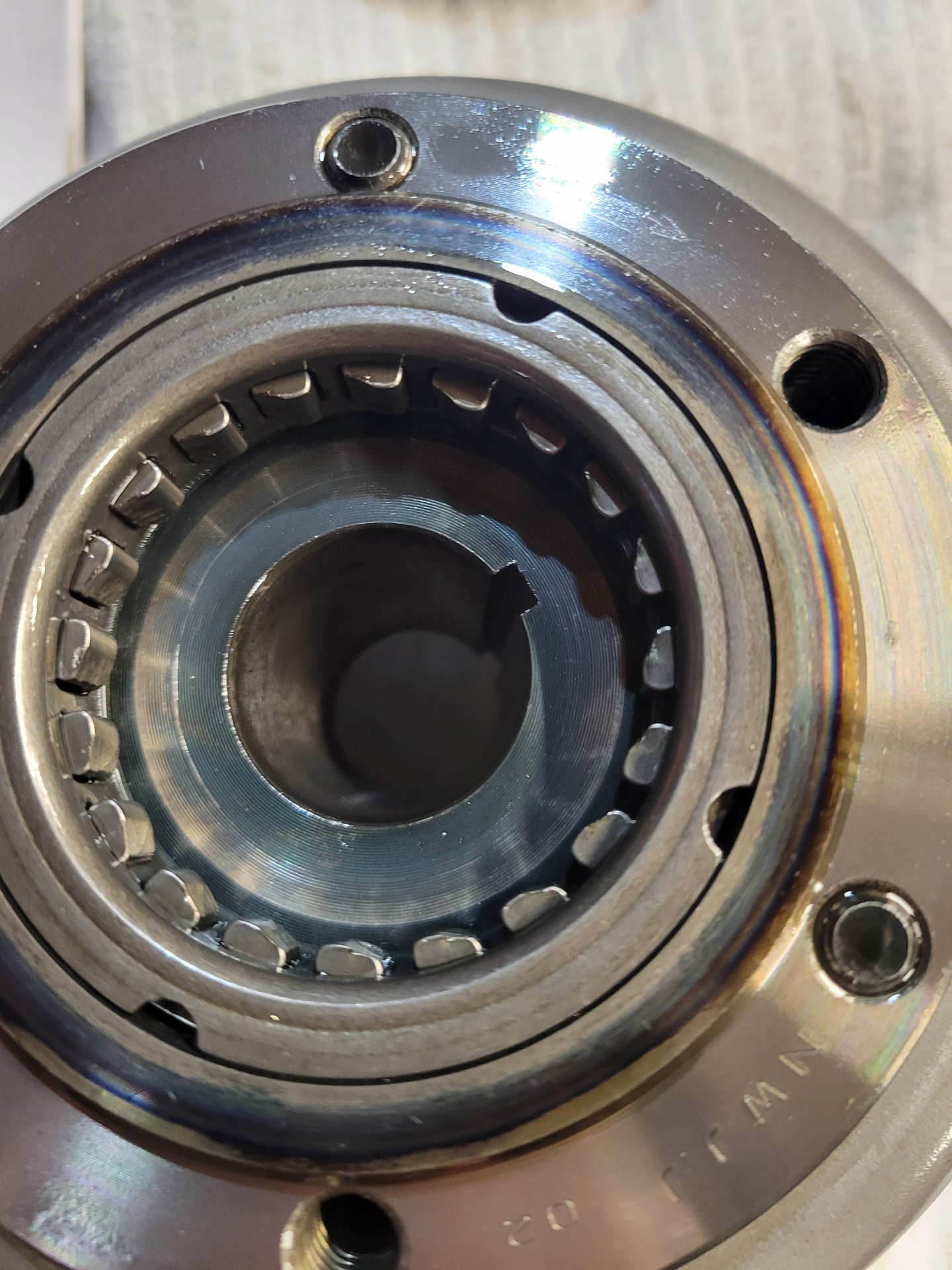

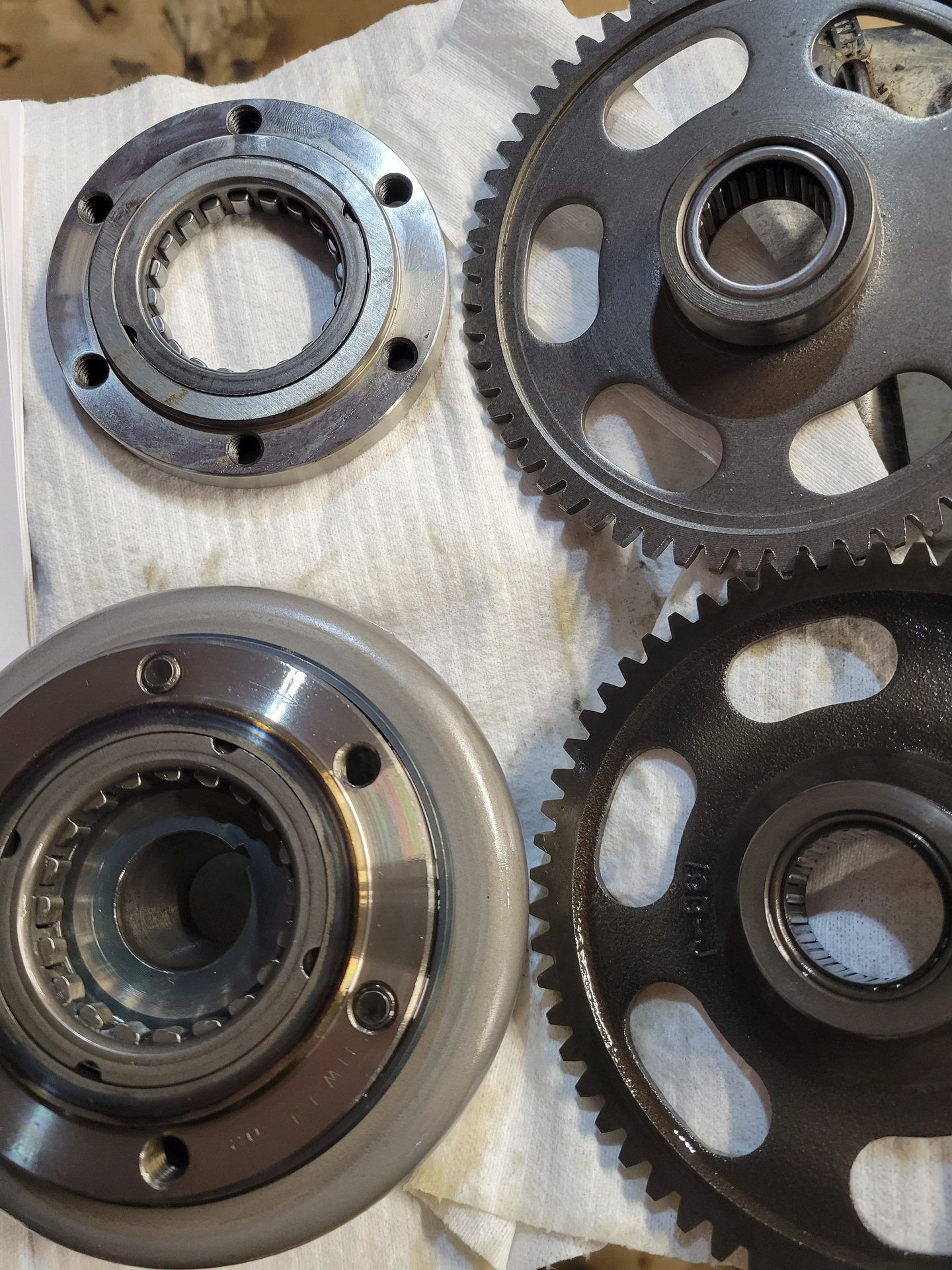

I got the side cover off, learned how to put the subtransmission back together. I took the nut off the crank. Grabbed the new flywheel puller. Put the small piece on to protect the crank shaft end, and the flywheel fell off on its own??? So that was weird. I then looked and tested the starter one way clutch. It wasn't in pieces like I had seen on others on YouTube. It only turns in the one correct direction as indicated by the arrow. However, it looks like maybe it is slipping under load? Is that possible? I know that it was very difficult to pull start since I bought it back in 2001. The guy I bought from had the receipts on a recent engine rebuild by our local Suzuki dealer in the $1200 range because they put the oil filter in backwards. Anyhow, I am trying to make it easier for my kids to ride. I think I verified that the starter clutch was bad by removing the electric starter, then it would pull start normal... I took pictures of the one way clutch and the CALTRIC replacement parts I bought off Amazon. Looking closer, appears to be heavy wear on the metal pieces in the clutch and scratches on the starter gear surface that goes inside the clutch. I am going to replace the OEM parts with the CALTRIC brand parts off Amazon. However, I found some other discerning things behind the flywheel. Looks like the center case has cracks, and one broken off tab with the other 2 worn? Also it looks like some scraping inside the case bottom right... assume from when the post broke off. The post was NOT in the case, so probably occurred prior to the Suzuki Dealer rebuild. Also some discoloring on the crankshaft and back of starter clutch. Again, putting in the CALTRIC brand replacements for the starter clutch and starter gear as a set. Thanks! Bruce
