Polaris predator 90 cdi wiring


Gadget44
 Share

Recommended Posts

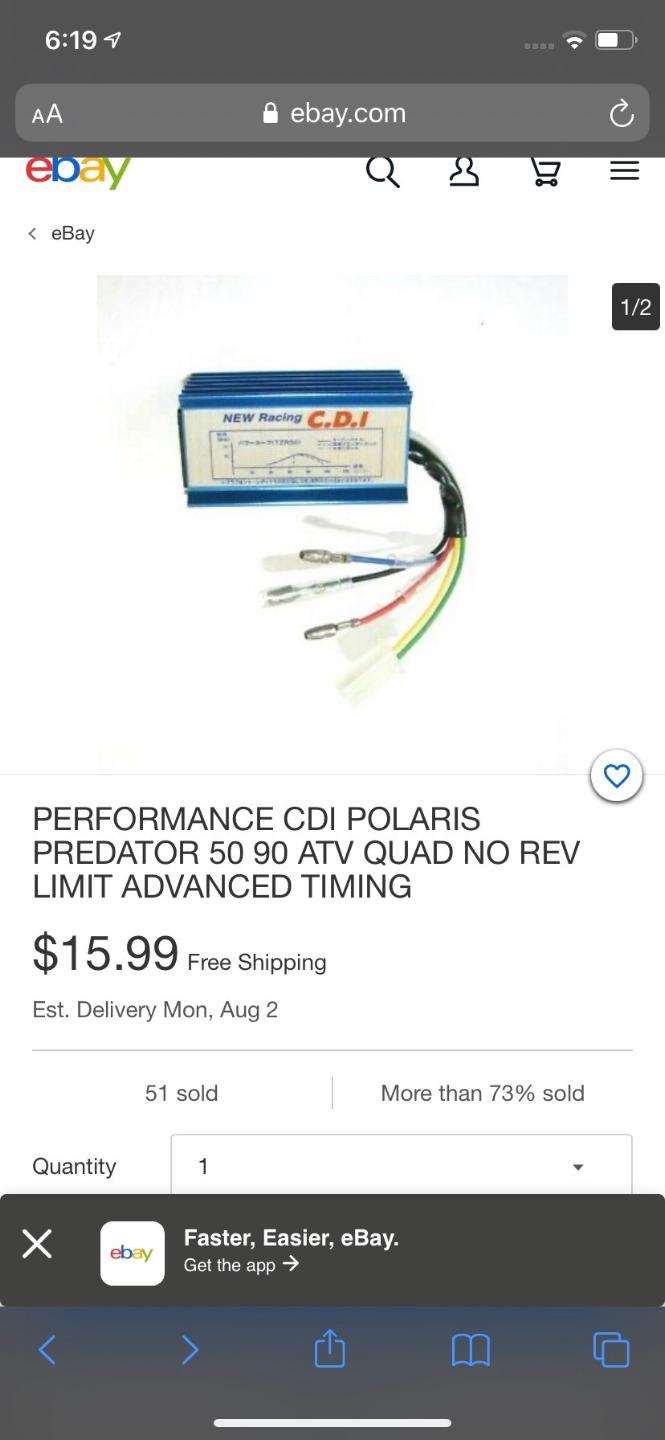

new racing cdi trz50 wiring for predator 90

cdi has a green and yellow wire going to a 2 pin plug

and has a red a black and blue with bullet connectors what wires go were on the the ate wiring harness

and how would i wire if i want to bypass the atv harness

Link to comment
Share on other sites



ok i fig it out so if any body out there is wanting to know in the future the cdi box is the new racing trz50 cdi box it has the 2 wires in the plug one is yellow and the other is green the green is the ground that the yellow goes to the coil the solid red goes the black with red stripe and the blue goes the white with red stripe and the soil black wire is the kill wire it took some digging and playing

Link to comment
Share on other sites

  • 1 year later...
  • 4 years later...

Does the Solid black wire go to Black with white stripe or the solid grey wire?

Anyone know how to wire this chinese piece of trash? So far FROM the CDI box I have attached Blue-White/Red, Red to Blk/Red, Black-Grey.

NOW...It will run but you cannot turn the quad OFF unless you stall it or you  unhook the black lead and attach it to BLK/White, THEN it will kill it....Weird


Link to comment
Share on other sites
