Found 14 results

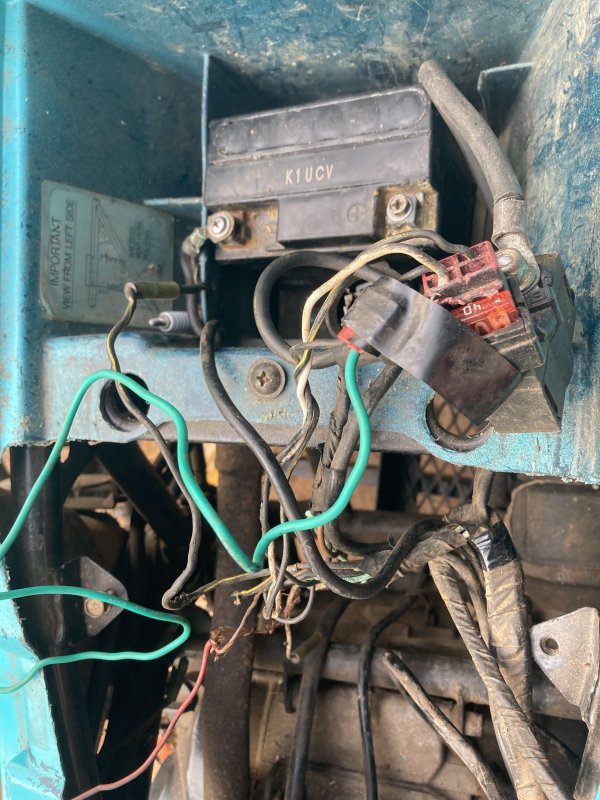

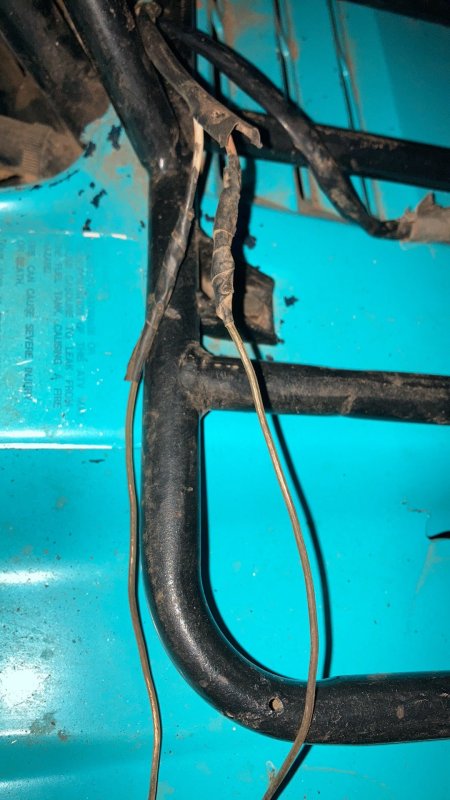

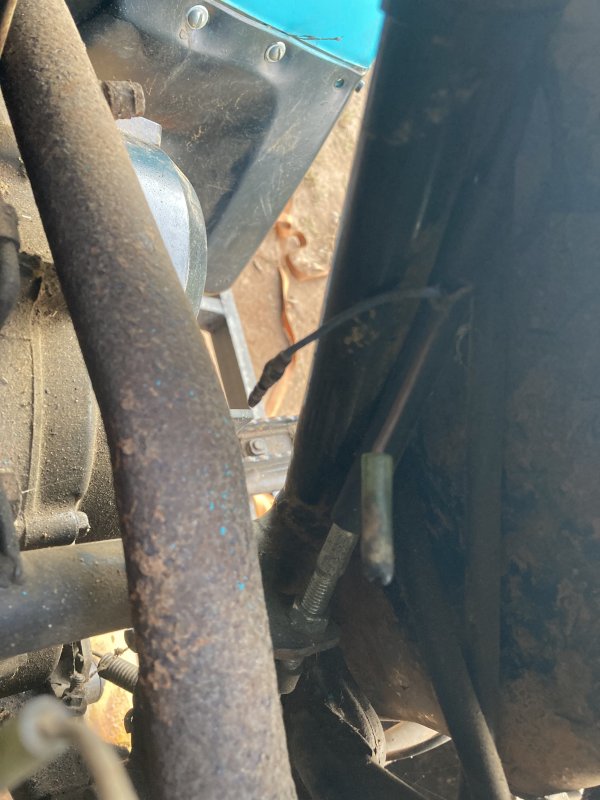

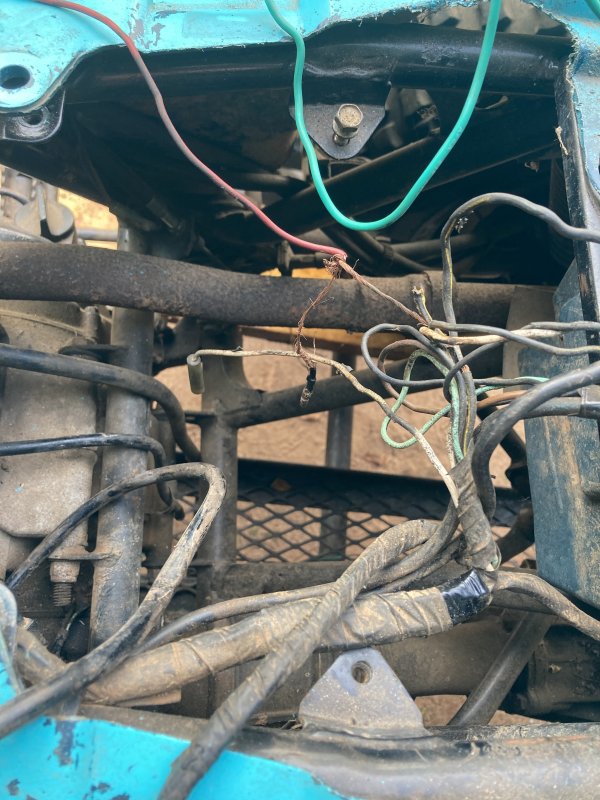

  1. I need help with wiring on a 1998 (I think, 10th digit of the VIN was W) Bayou. I'm not getting spark, I'm pretty sure it is due to grounds being off because the harness is pretty hacked as far as the electric start and charging system goes. I'm needing a good wiring schematic. I found one online and there are a few things that don't add up on it so I'm skeptical that it is really for my year and model. Any help would be appreciated. Thanks.
  2. Has anyone had any luck putting a different gauge on this machine. Would you happen to have the wiring diagram?
  3. View File 1999 Polaris Magnum 500 Wiring Diagram Wiring diagram for 1999 Polaris 500Magnum Submitter davefrombc Submitted 09/08/2019 Category Polaris ATV
  4. 3 downloads

    Wiring diagram for 1999 Polaris 500Magnum

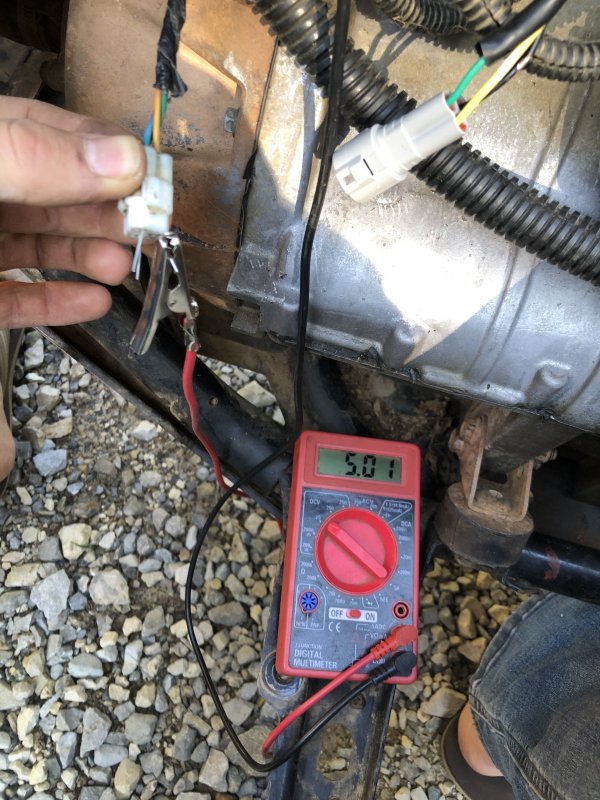

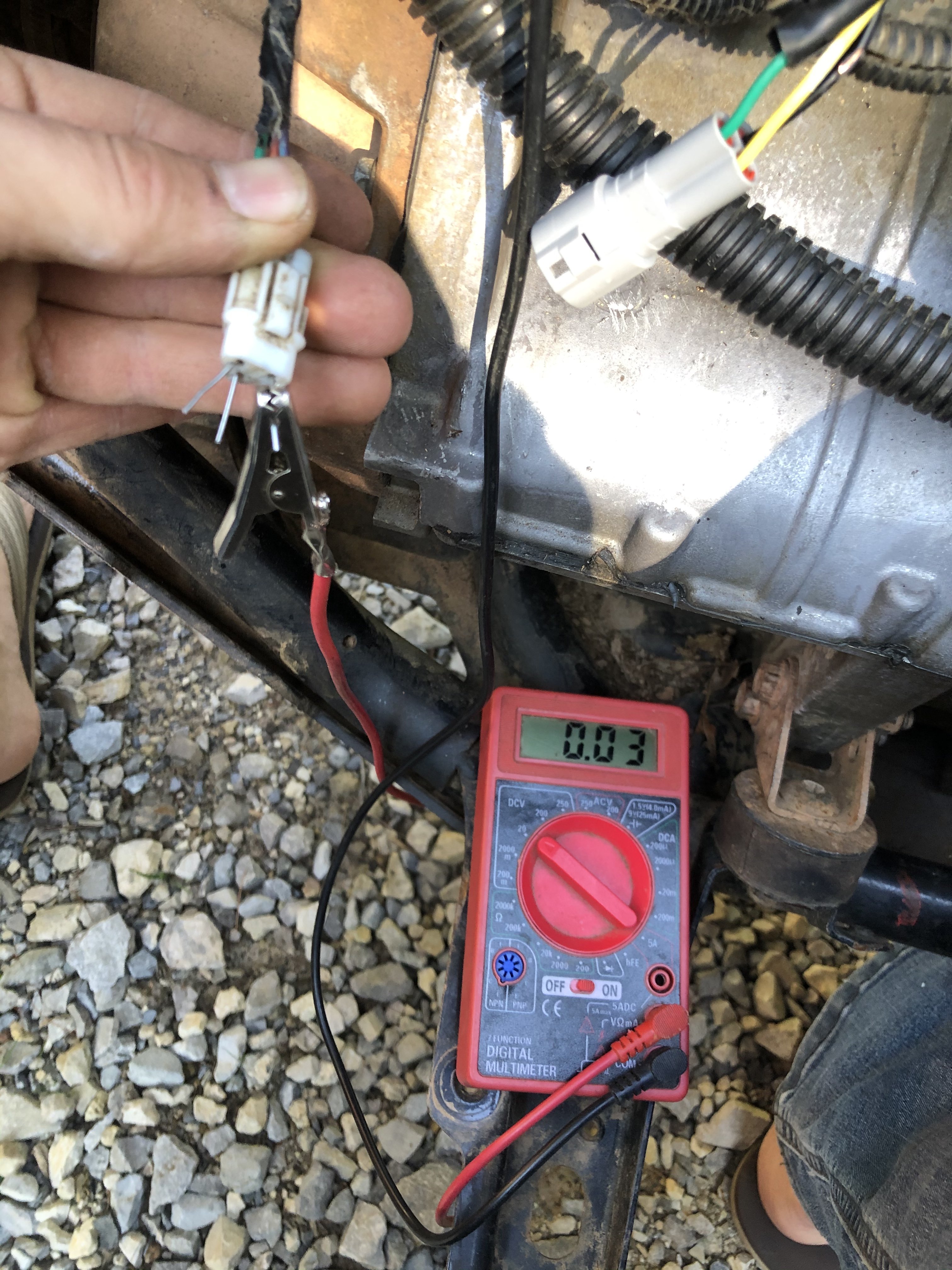

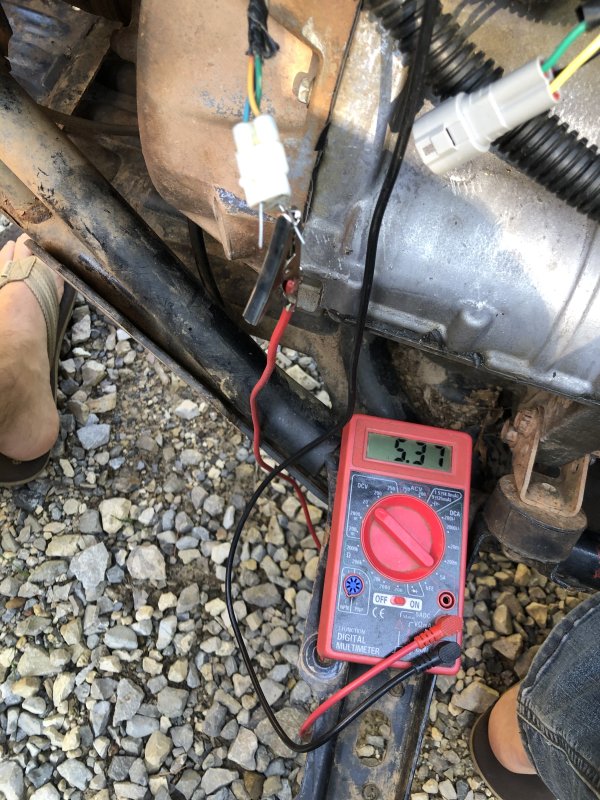

  5. New arctic cat owner, I've read alot on the gauge issues, but let me say I have power, good ground, the aux also has power, the memory has correct voltage but no output of any kind. Only the LCD color works. I have also fully removed EVERYTHING and cleaned it all... what I still possibly have a cut wire knowing that I have good power to the back of the plug and good ground to the back of the plug but no outputs of any kind?
  6. So here's my situation.i picked up a super clean 225 moto 4 but the cdi has been cut off.i have numerous different cdi units and just can't simply afford to buy anything currently.im sure I can make something work I'm just seeking a little advise or ideas or thoughts. Any help would be greatly appreciated.thank you
  7. I traded my dirt bike for a 2000 arctic cat 500 semi automatic. when i went to go pick it up the guy said it didn't get spark, so i thought it was going to be something simple like a coil. well it wasn't. first thing i did was take all the plastics off to get easy asses to every thing. so i bought a brand new battery for it seeing if it got power, it didn't. the dash wouldn't light up neither would the lights, so then i tried to see if the starter worked it didn't so i jumped the solenoid and the starter started turning over the motor. so i bought a new starter solenoid, when i installed it the electric start still wouldn't work , so i bought a new kill switch and starter switch that goes on the handle bars, when i installed it, the electric start still wouldn't work. so then i went to see if i could get spark by pull starting it, i didn't get any spark, so i bought a new spark plug, and guess what, still no spark, so then i bought a new coil for it to see if that would fix it. so i installed the new coil and guess what no spark still and still no power to the dash. so to sum it up i'm not getting any power any where to the four wheeler. so i cleaned all the leads and plugs and still nothing. so then yesterday i took the wiring apart to see if their was any frayed wires, and no their wasn't. does any one have any ideas what this could be i'm up for anything. also if any one knows how to bypass all the wiring just to get it to start i open to that to, or if someone knows where i can get a wiring diagram.

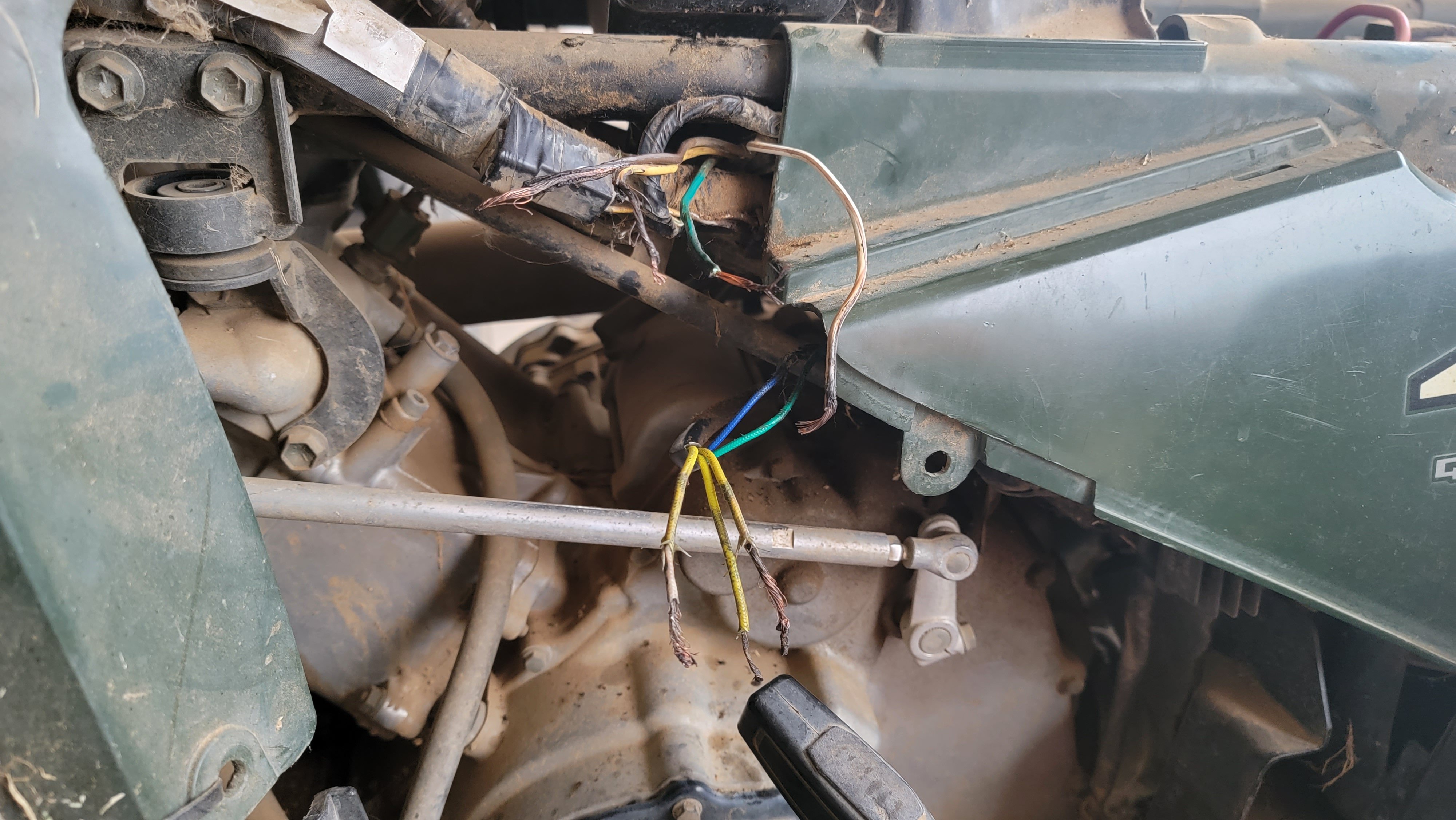

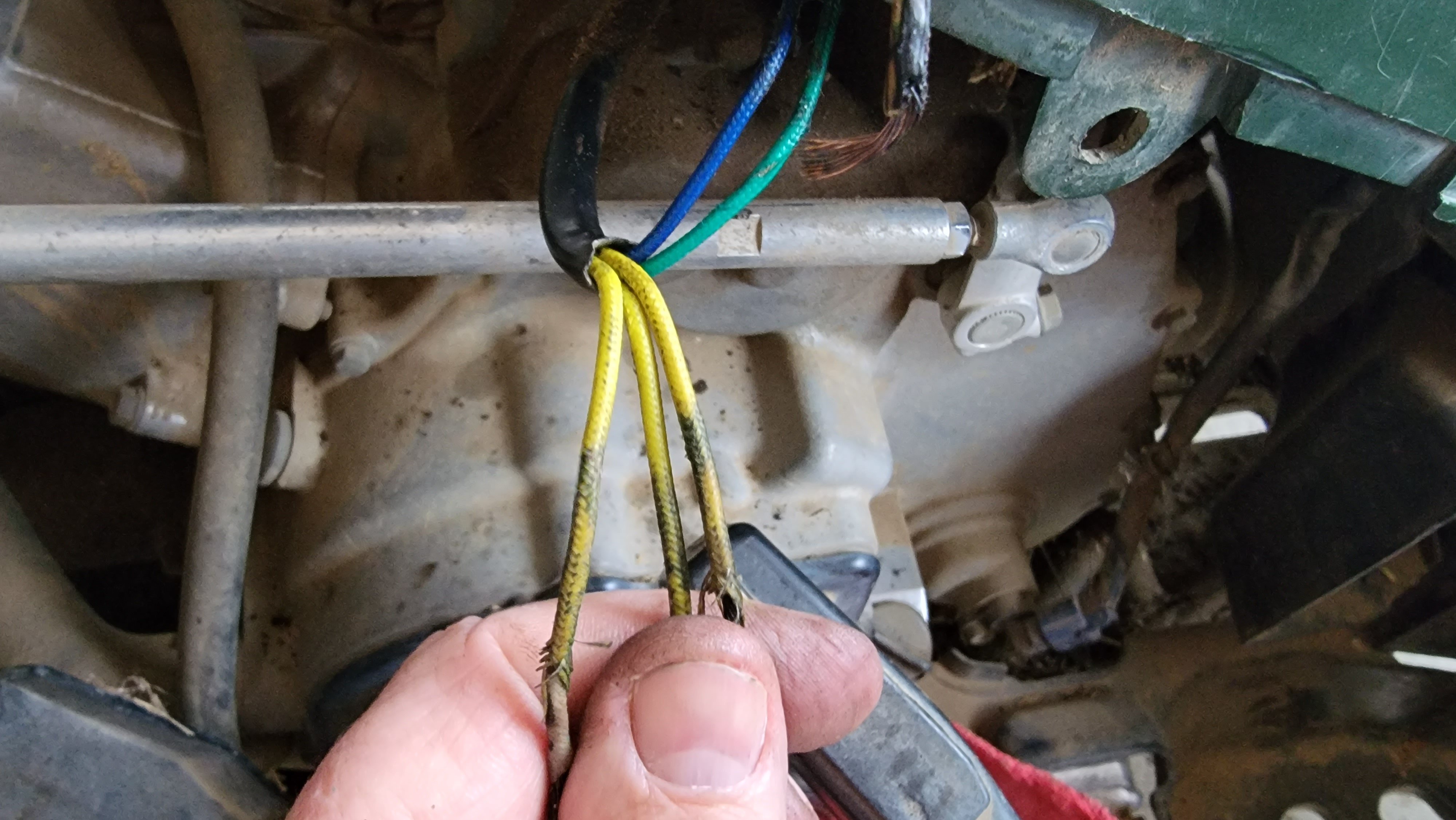

  8. Long story short, I purchased a basket case over the weekend. I spent most of last night repairing melted wires and generally tracking down everything. I am able to locate all the connectors but have a two pairs of blue and brown wires left over (one on a long pigtail, like it should be going to the back). The wiring schematic in the manual does not show them (though they are part of the factory harness) and I only find one indication of them in a US/Canada wiring schematic (Clymer, I believe) which does have them but it says they're for US only. Does anyone have an idea of what these wires are for and/or have them them hooked up to anything?
  9. View File 2005 Polaris Sportsman 700 EFI & 800 EFI Wiring Diagram This is the wiring diagram page from the service manual for a 2005 Polaris Sportsman 700 EFI & 800 EFI. Submitter quadmaniac Submitted 10/05/2017 Category Polaris ATV
  10. 27 downloads

    This is the wiring diagram page from the service manual for a 2005 Polaris Sportsman 700 EFI & 800 EFI.

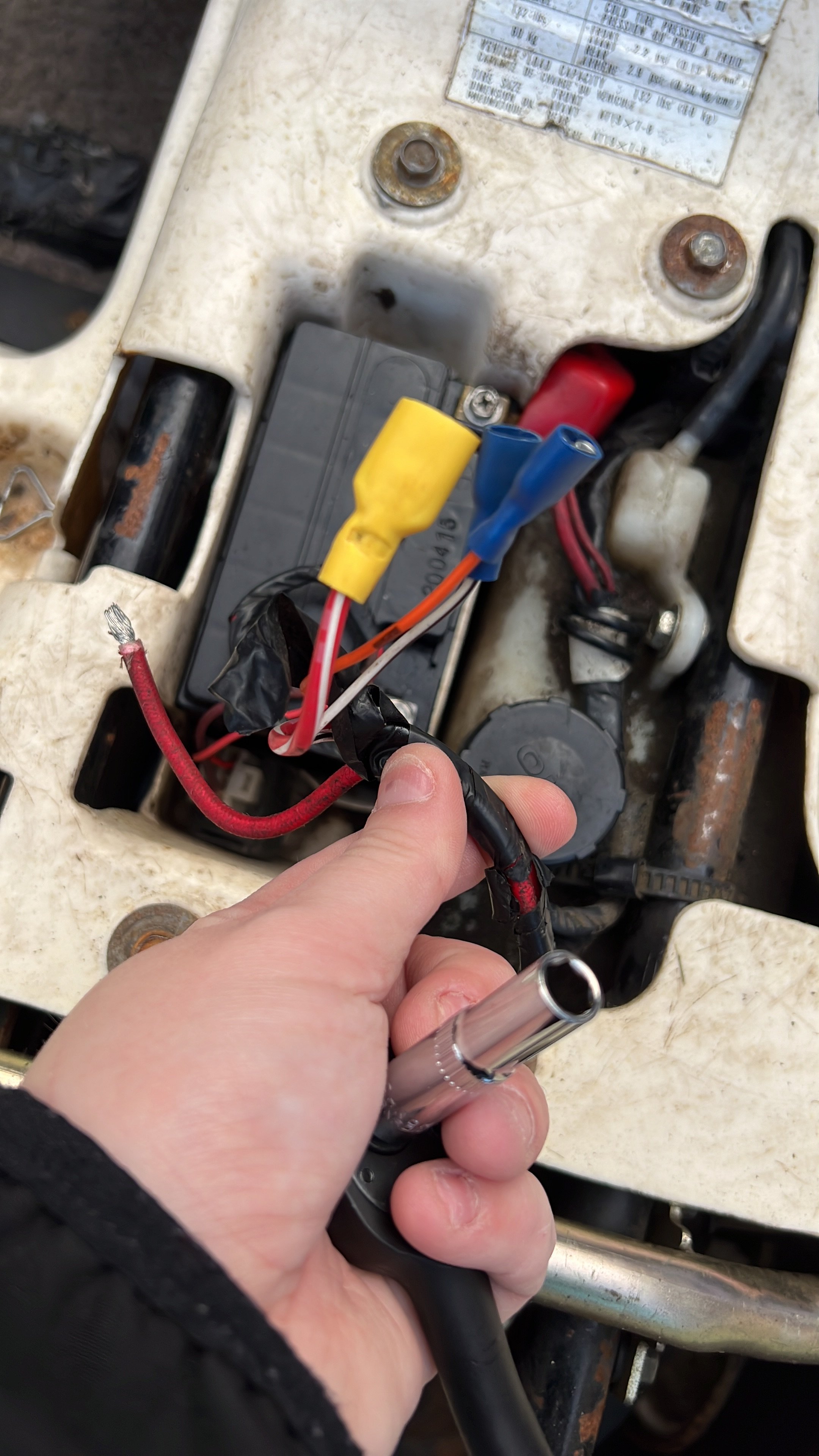

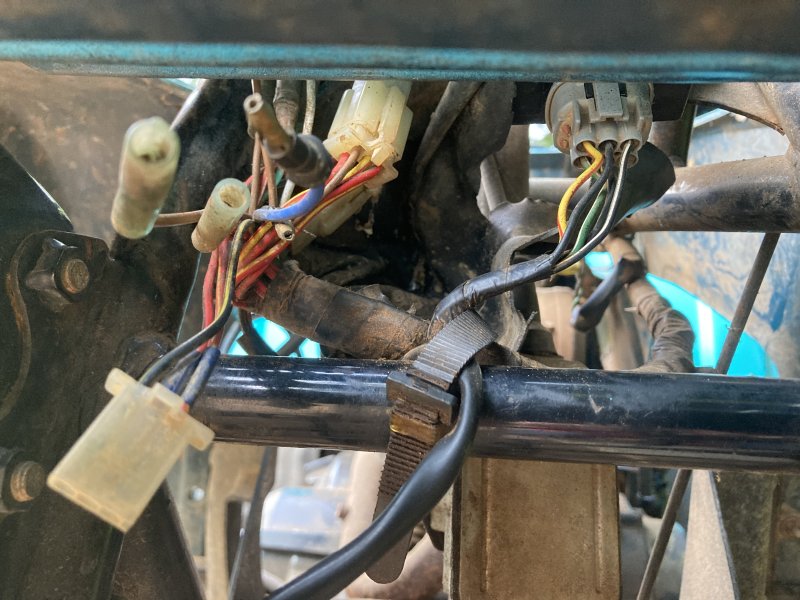

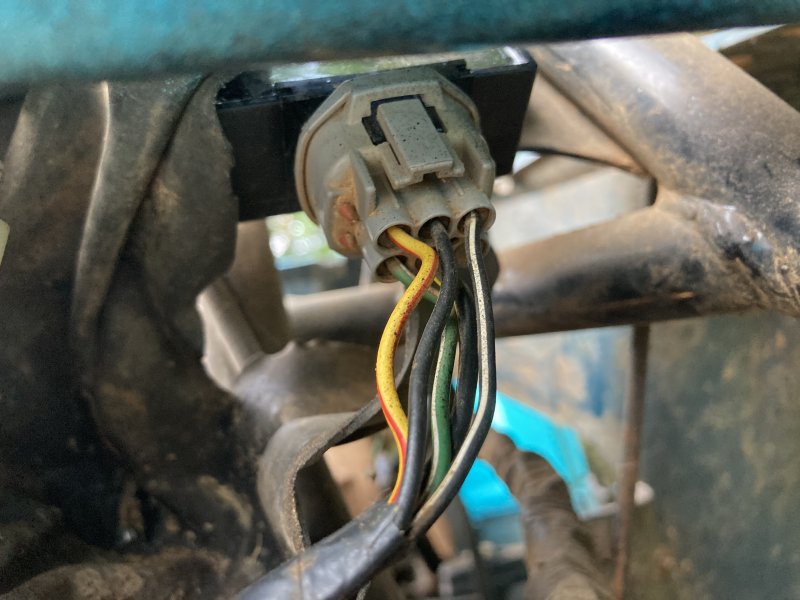

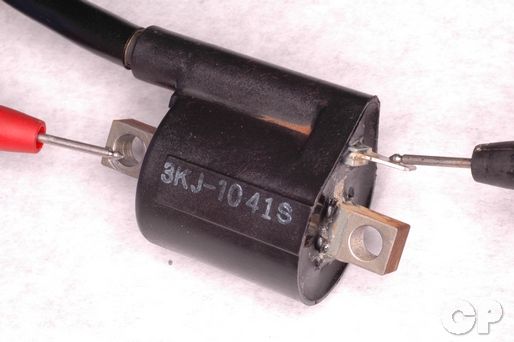

  11. Hey Guys! I have a Problem with wiring my 2007 Yamaha Warrior. i replaced the main wiring and now i don´t know, wich cabel must be conected to the spark plug coil. It´s the only Thing, that keeps me from driving, so please help me!!! (i mean the big part shown the Picture below)
  12. new racing cdi trz50 wiring for predator 90 cdi has a green and yellow wire going to a 2 pin plug and has a red a black and blue with bullet connectors what wires go were on the the ate wiring harness and how would i wire if i want to bypass the atv harness
  13. Wiring diagram for 2007 Arctic Cat 700 EFI 4x4

×
×
