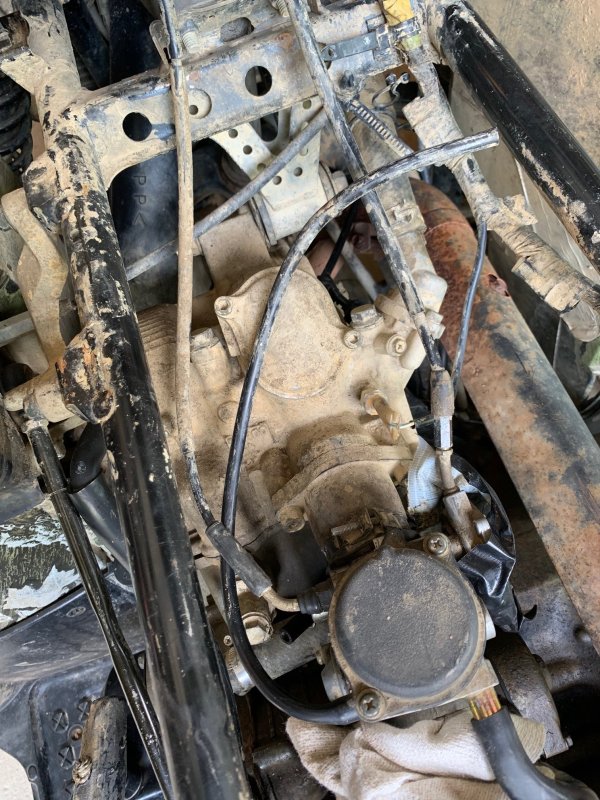

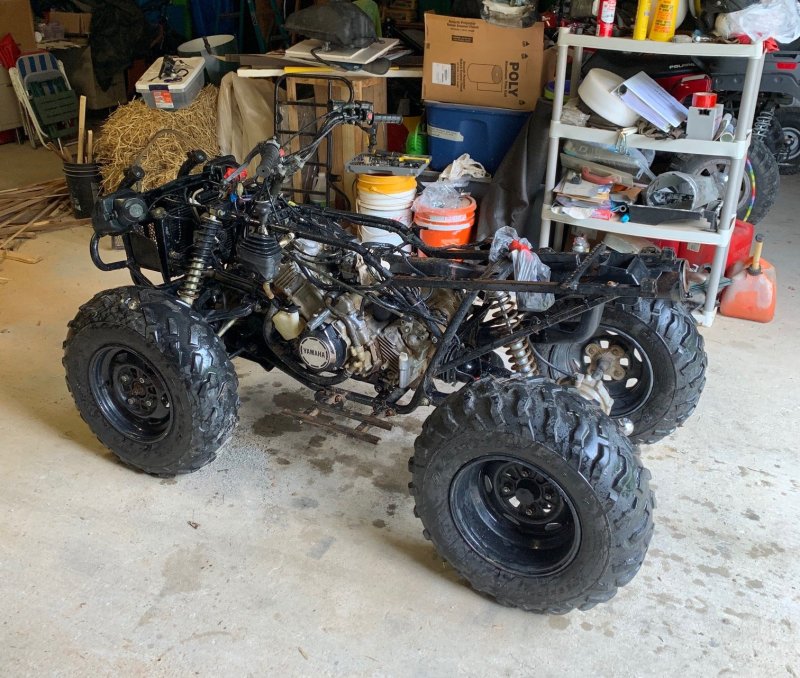

hey Frank, thanks for the reply. Yes, I located wiring diagram online; that's how I figured out what the plug that is cut is for. The air duct is the round pipe that is in 2nd picture I posted above. it runs down to the transmission case. There is also one that runs from just under the taillight and into the backside of the transmission case as well. Looks to me like the one in front should have some sort of screen over it or something. Attached is how the bike currently sits. I'm waiting on a few parts to arrive before I start putting it back together. You can kind of see the rear air duct tube that runs behind the taillight down to the backside of transmission case.

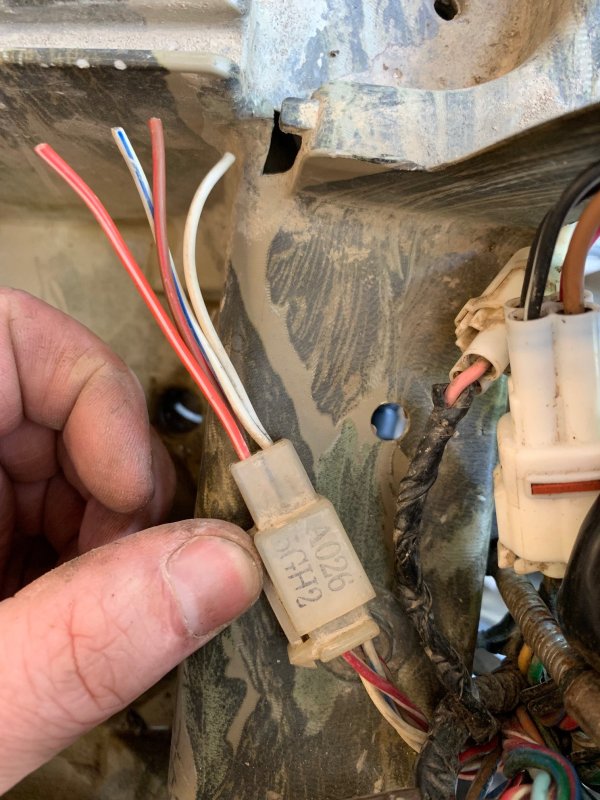

did some digging and found out the harness that was cut is actually the dash indicator lights for temperature and 4wd. Got new plug ordered so should take care of 2 questions I was asking about. Previous owner had the light plug for the speedometer plugged into the temp indicator. I couldn't find the cover I was needing for the side of the carburetor so had to order new carb. Looking through service manual it looks like the gas vent line I was asking about on the side of carb is in fact just a vent tube. Still wondering about the air duct that comes up in the front between radiator and handlebars; but I can't seem to find any details about it in service manual or parts diagrams. Been plugging away at this thing, stripping it down and cleaning it up. About time to start putting it back together and get it on the road.

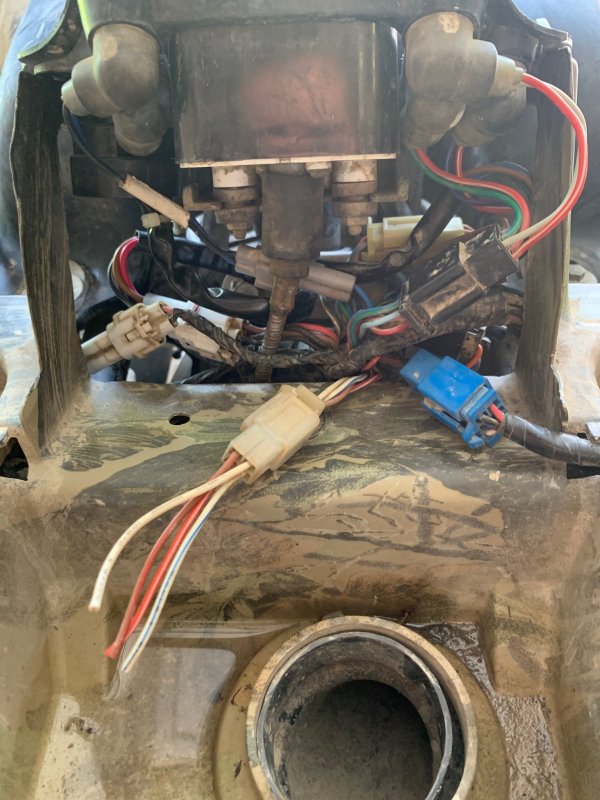

Hey guys. New guy here with my first Yamaha quad. Traded for an 01' Kodiak 400 that needs some tlc. It was running but idle is off, missing some hardware here and there, none of the lights work on instrument panel and front brakes didn't work were the main things that jumped out at me. I drug it home and have started tearing into it. Started with fresh oil change and flushed the dirty brown coolant and replaced with fresh coolant. The carburetor is missing the side cover for the throttle cable and I don't see where I can buy just that cover without buying a complete carb, so went ahead and ordered a new one (hasn't arrived yet). the Starter relay solenoid was crap and had to mess with it to get it to start half the time so replaced it. I have a few questions as I'm going through this quad that I'll list below. 1. It has a cut plug on wiring harness under the instrument panel. Can anyone tell me what this plug goes to? There currently is not a plug running to the 4wd indicator light on instrument cluster so I'm wondering if 2 of the wires are for that possibly?? 2. Also in the front, there is a air duct under the rack and black plastic panel that runs down to the engine case. Is there supposed to be some sort of cover or anything over it? I looked online at parts diagrams and couldn't even find this duct or the duct that runs up by taillight in any of the diagrams. 3. this fuel line on top left side of carburetor; is this what goes to the gas tank cap or is it just a vent line for carb? Follow up question, where does the line that comes off of the gas tank cap go to? I'm sure I'll have many more questions as I work through this thing. Thanks in advance for any replies.
