2003 Kodiak 400 brake problem.

Recommended Posts

As title says , my dad was given a 03 400. It didnt run. I got it running and got the front brakes working, new calipers and master cylinder.  The rear are drum and its my 1st time really messing with them. I replaced shoes , cam was all froze up so cam wouldnt rotate , i took it apart and cleaned it up good , my problem is,  how do i know where to line up the cam with the lever , there is no needle that shows shoe wear on this , its missing. Any pics or help appreciated.

Share this post


Link to post
Share on other sites


Not a critical thing.Slide the lever on,so that the rod(or cable,as I do not know your machine),and the adjustment should be near the end of it.If you go too far,you may not be able to adjust it up enough to have the brake pedal activate the brakes.Unless yours is hydraulic,I did not look.Bottom line,you want around 2" to push down on pedal,to activate rear brakes,unless you always wear sneakers,lol,and you want the brakes to fully release .

Share this post


Link to post
Share on other sites

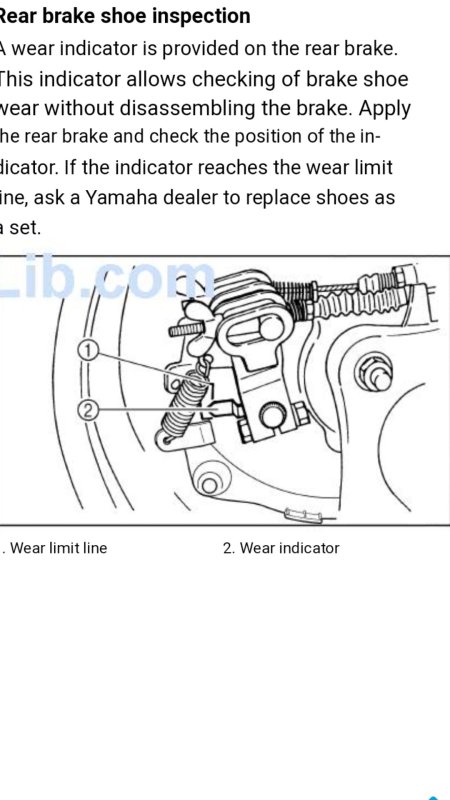

@MtBob  Here is my setup. The wear indicator for shoe wear is missing. I wonder if taking the wheel and hub off would be easiest way to get this adjusted right .
