1988 350 Yamaha Big Bear Wiring

Recommended Posts



What’s up Jordan welcome to Quadcrazy.

Were the wires cut and removed or cut and spliced or just cut and In need of splicing? Everything is color coated so if it’s splicing then it’s not to bad.

Get yourself a good splice kit in the mean time. One that seals when heated like the one I posted below.  It’s a big help. All you need to do is put the wires in and heat it up.




Share this post


Link to post
Share on other sites

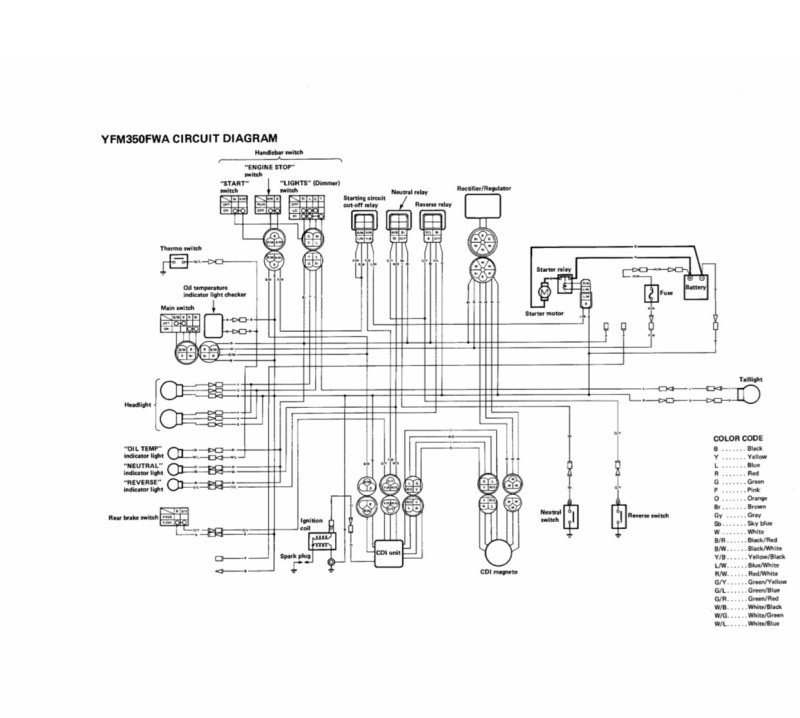

Here’s a diagram I think is for your bike.  Double check the colors on the wires to verify.  It’s best to print it out and highlight the wires in different colors to separate.
