Ryan Geiler

New to the forum--hi :) Strange first question--but can someone help identify this?

Recommended Posts

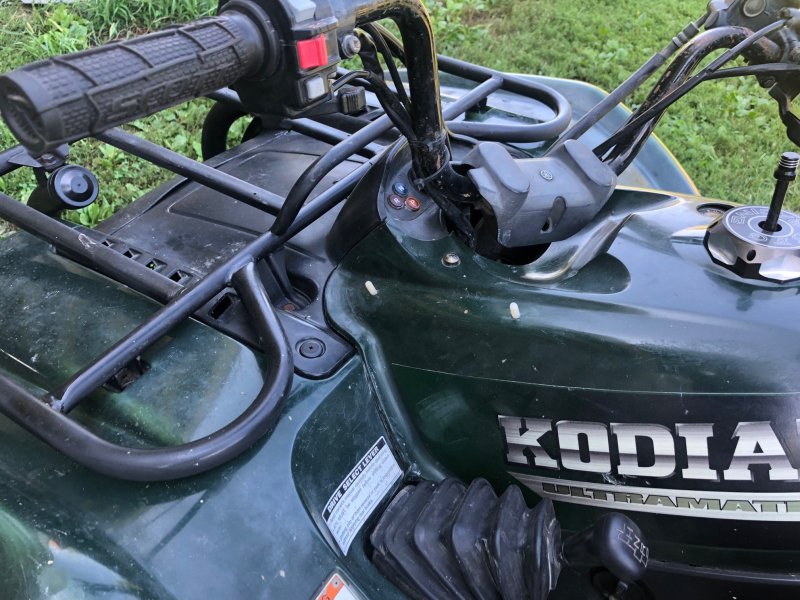

New to the ATV world, picked up a solid used Kodiak 400.  It appears the former owner did some sort of modification for a saddle bag or something along those lines--and I'd like to match it up and replace it.  Not a big deal by any means but something I thought I would give a shot at finding.

does anyone recognize what kind of luggage/bag/cargo would go where those white tabs are he drilled through that fuel fender?



Thanks again :)


Share this post


Link to post
Share on other sites

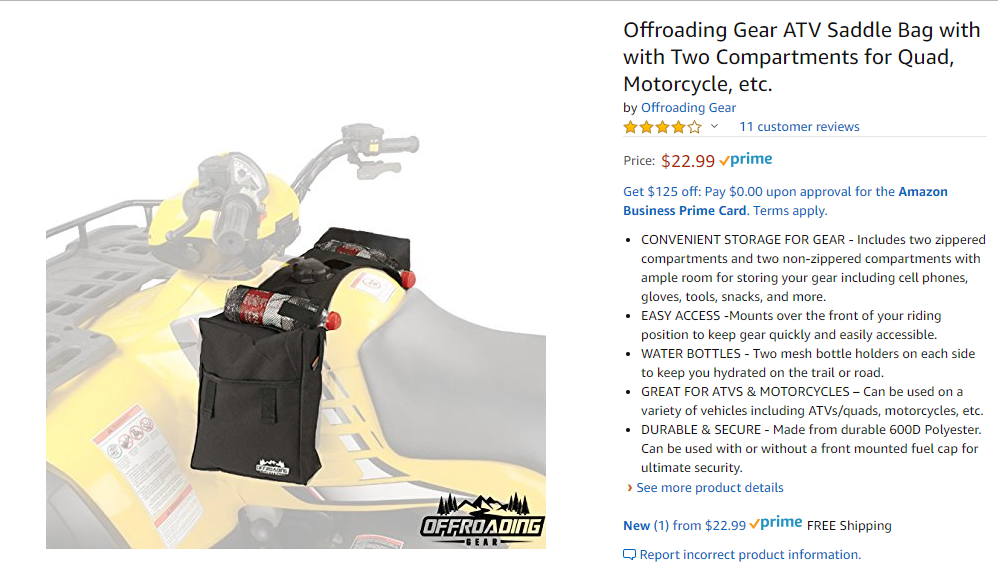

That looks like something custom that has to be mounted well. Maybe some type for radio or electronics? Most aftermarket saddlebags just mount over the gas tank like the product below:

Offroading Gear ATV Saddle Bag

  • Like 1

Share this post


Link to post
Share on other sites
9 hours ago, Frank Angerano said:

@Ryan Geiler what kind of gas cap is on that bike ? That small vent tube that’s sticking up is that flexible ?

yeah it's flexible--not sure on the brand

Share this post


Link to post
Share on other sites
