Josh Cummins

Help with part number or source

Recommended Posts

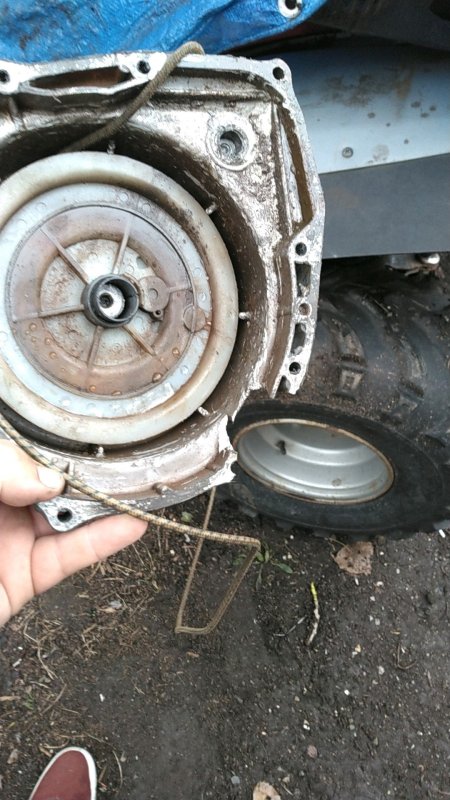

Hello, I recently bought a 1994 400l 4*4 Polaris w948140. The recoil case is broken with a nice chunk missing from the side. I am having trouble finding a new case. Does anyone know where or how I can source this?



Thanks in advance.




Share this post


Link to post
Share on other sites


It's a 400L has a model number of W948140. Outside of that I can't help much. This is my first ATV and just got it yesterday.

I have a few more questions. It started and ran fine yesterday and this morning. Now when I push the start button the solenoid clicks. Battery is good as I swap it and had same no start click. Can a ground cause this? Maybe starter crapped out. I don't know that's why I came here!



Thanks again.

Share this post


Link to post
Share on other sites

Ok got it now.  Yes that’s a tough part to find new.  I did see one on eBay but it’s a 97, I looked at the schematic and it looks right but I’m not 100%  chances are it’s prob close but the part numbers are different.  I would also explore taking that cover you have to a good heli arc welder that can patch that up and grind it into shape. It’s definitely doable.

https://rover.ebay.com/rover/0/0/0?mpre=https%3A%2F%2Fwww.ebay.com%2Fulk%2Fitm%2F362725777685



Any questions you have feel free to ask  the members here are full of knowledge.







Share this post


Link to post
Share on other sites

Thanks!

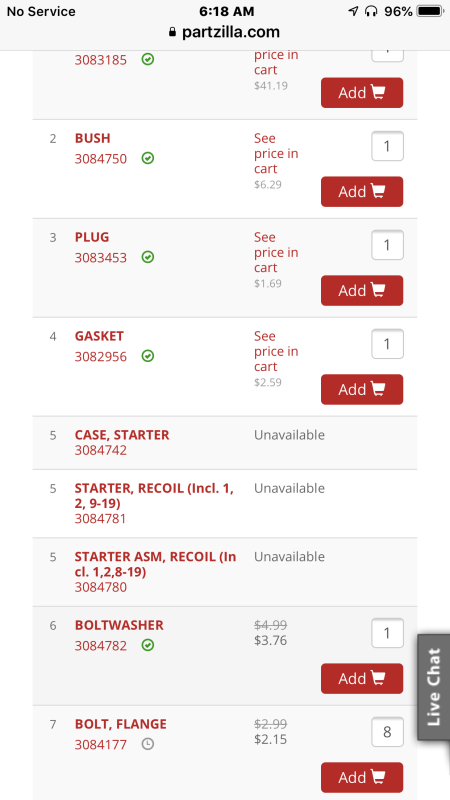

I was able to find one last night. Part number I found was 3084780. I hope this is correct as i just got confirmation of shipping this morning. Found it used for $50.

Edited by Josh Cummins

Share this post


Link to post
Share on other sites
