2004 Yamaha bear tracker wiring harness?


Recommended Posts

Does anybody know where I can buy a complete wiring harness for a Yamaha bear tracker. If not could someone send me a picture of the the colors of the wires coming out of the cdi plug and voltage rectifier. So I can get an idea of how I need to wire it. Also where can I find a wiring diagram for them?

Link to post
Share on other sites

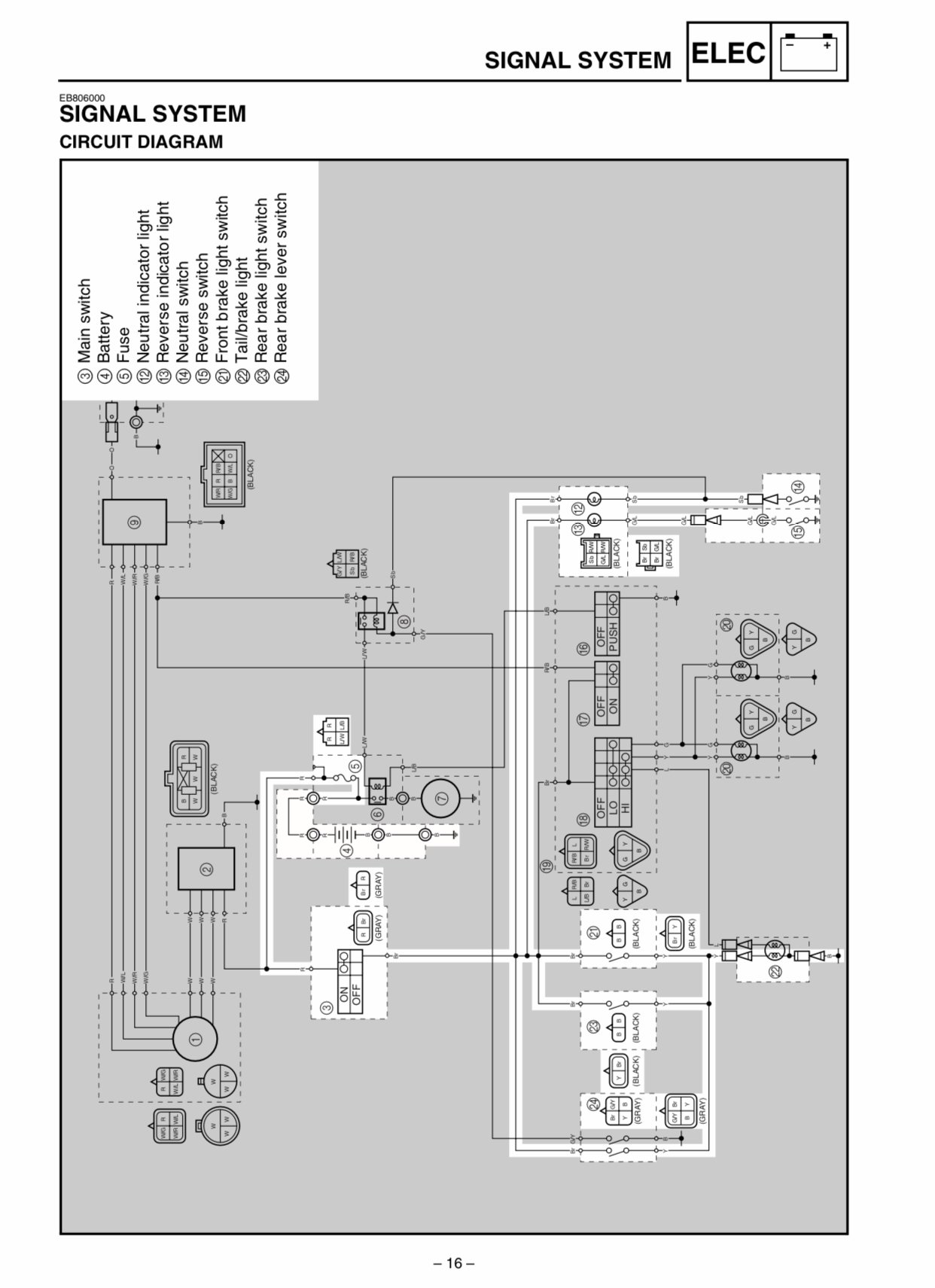

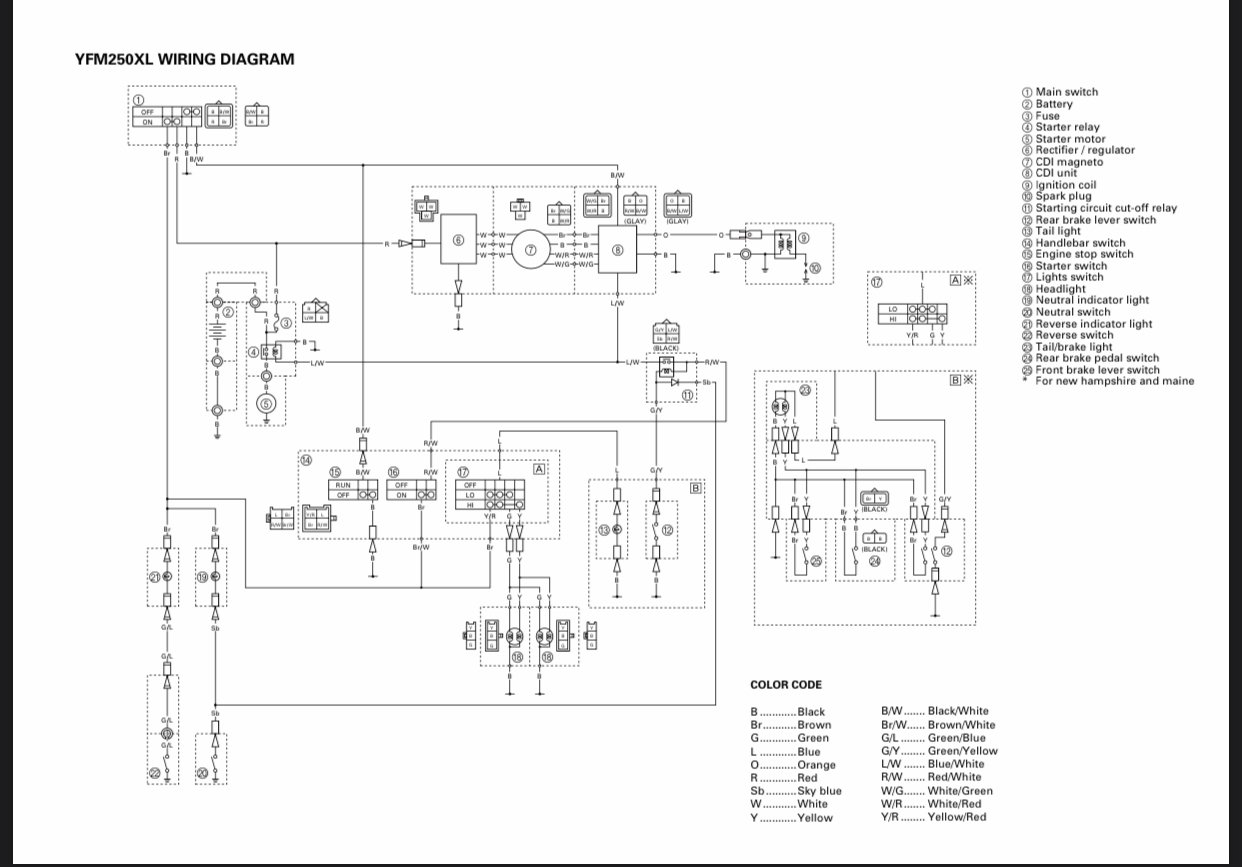

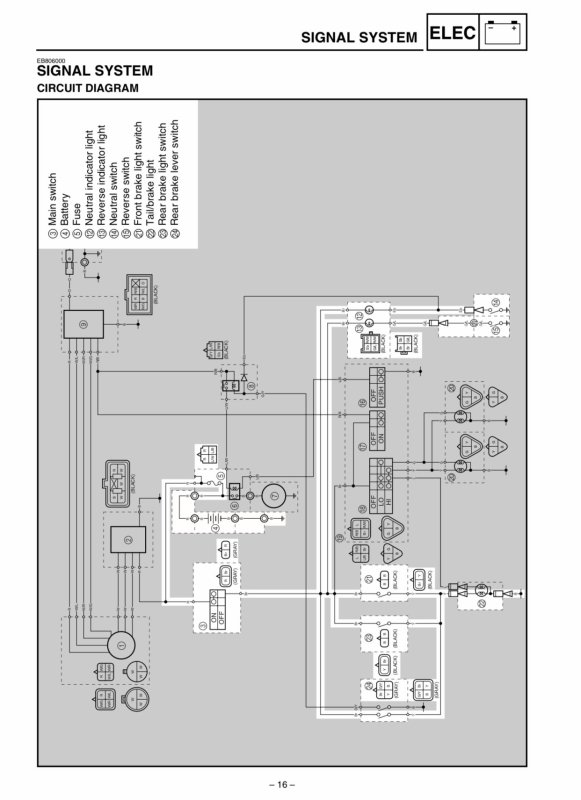

I could not find the sheets i had highlighted that really sorts the wires out so i pulled this from the library. Best bet is to print them and highlight. It helps a lot.

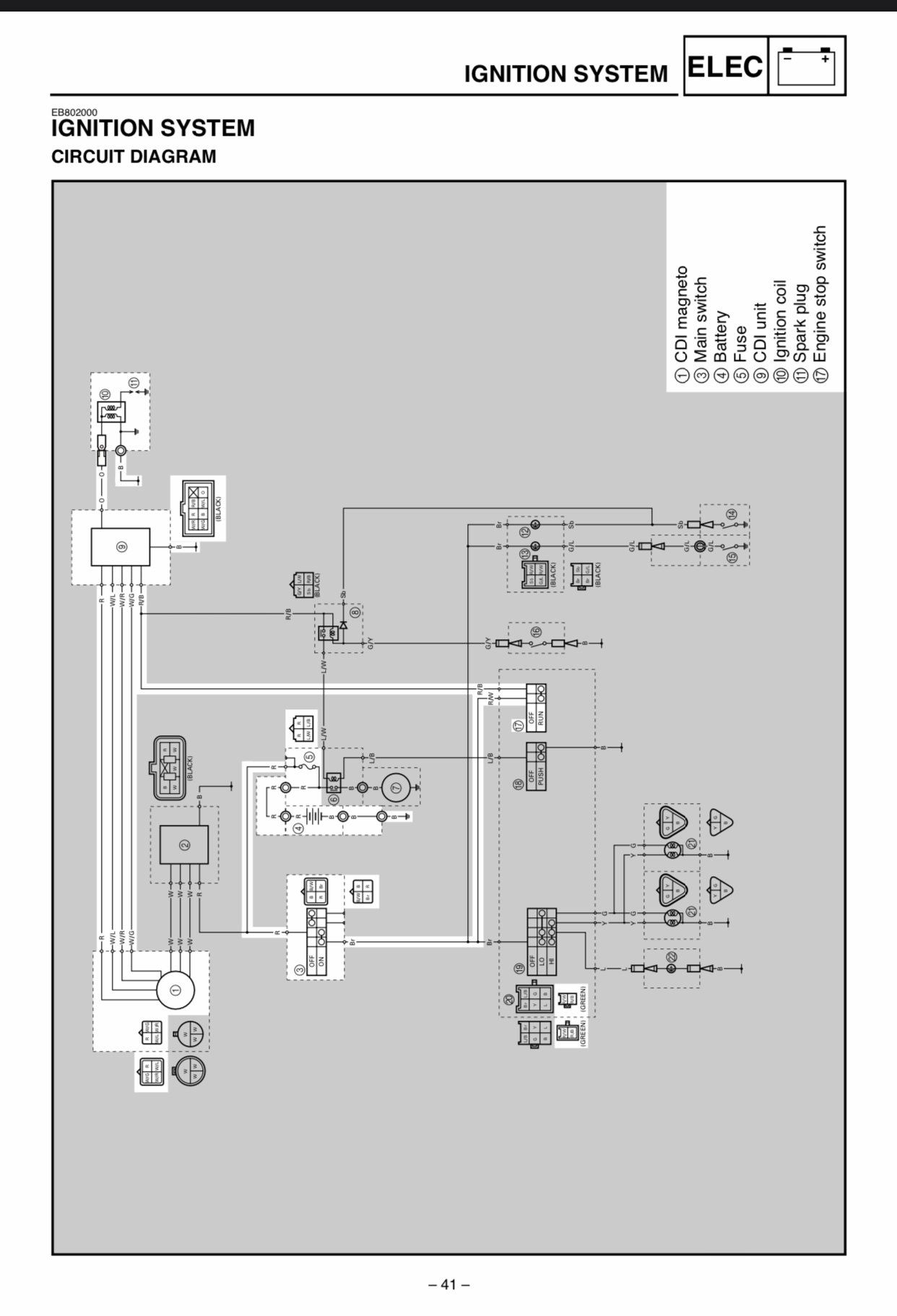

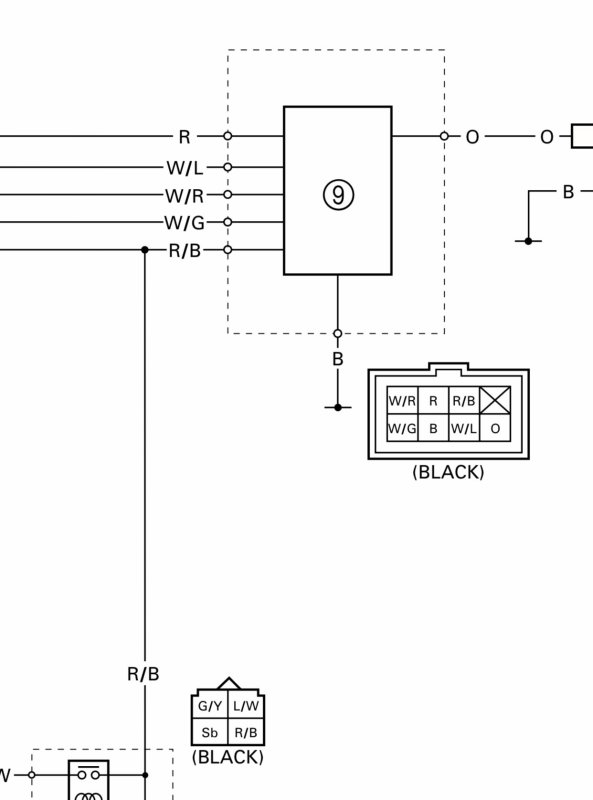

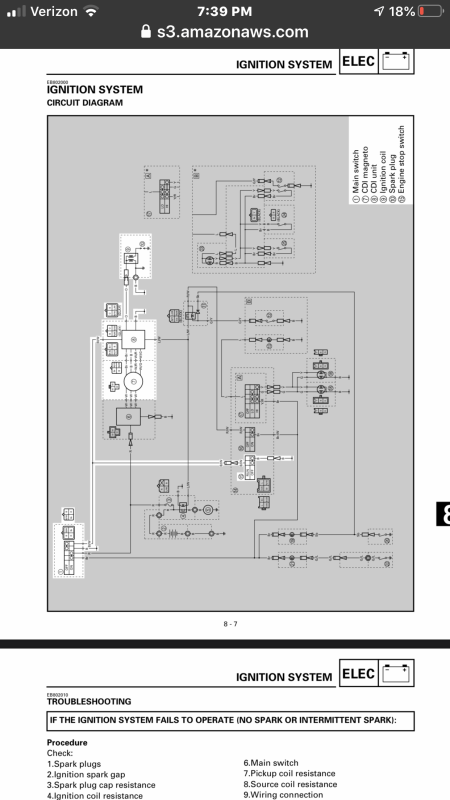

Take a look at the drawing and you will see the cdi. Next to that is the plug configuration.  Any help u need ask away. Take your time because you could kill the cdi with a mistake.
