Kawasaki Bayou 300 IDENTIFICATION


Recommended Posts

http://www.off-road.com/atv/tech/2003-kawasaki-bayou-300-atv-29516.html

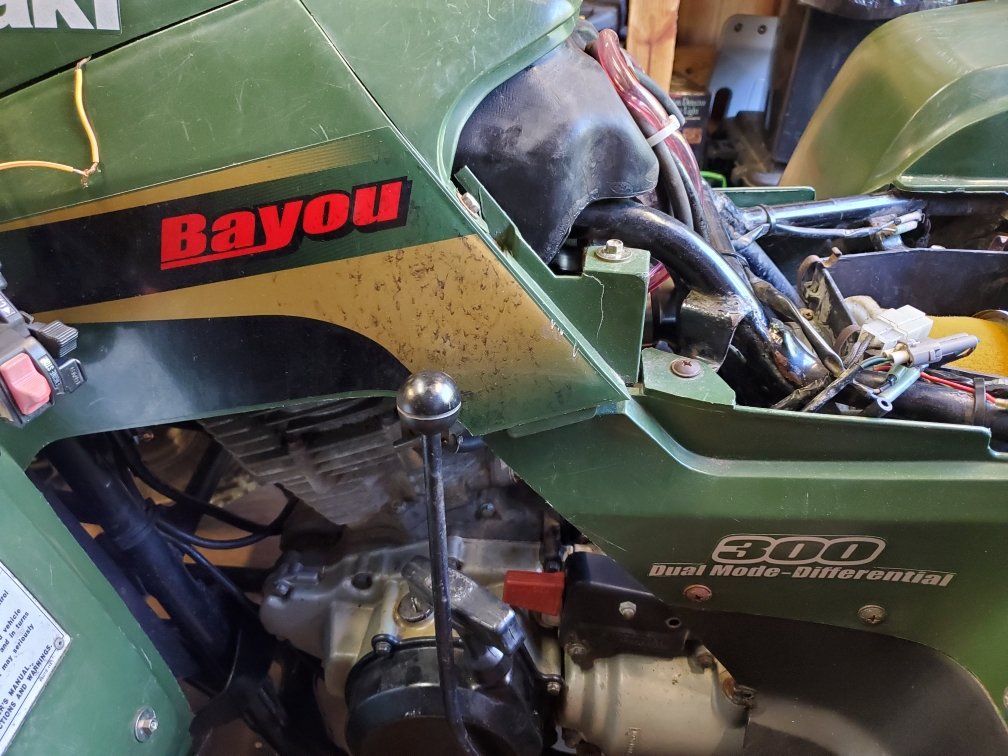

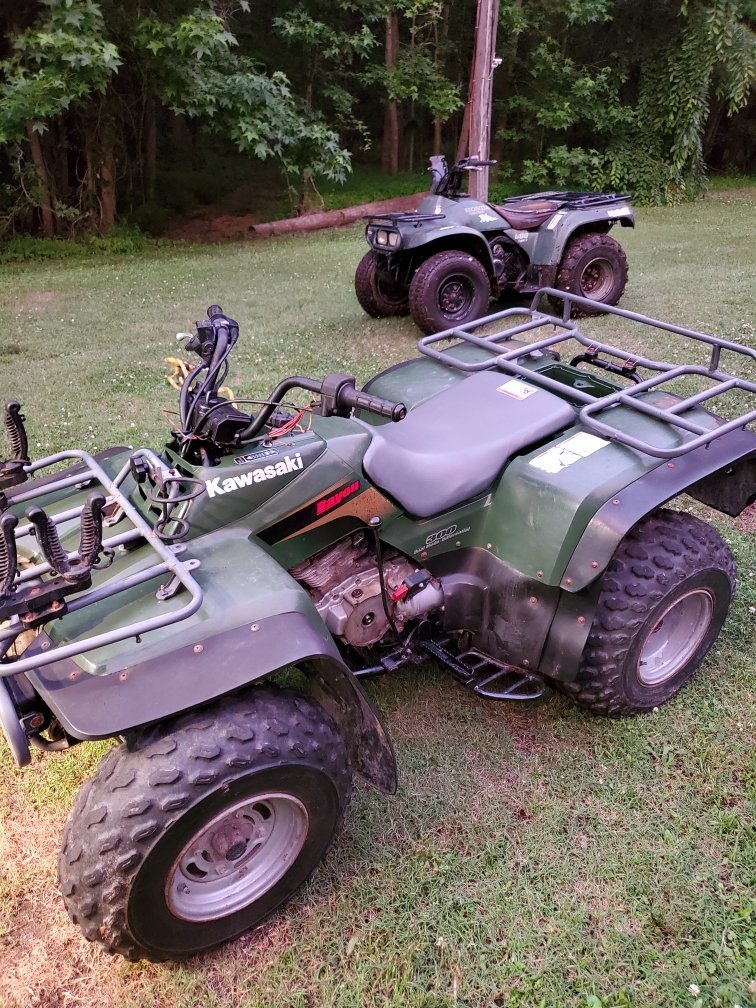

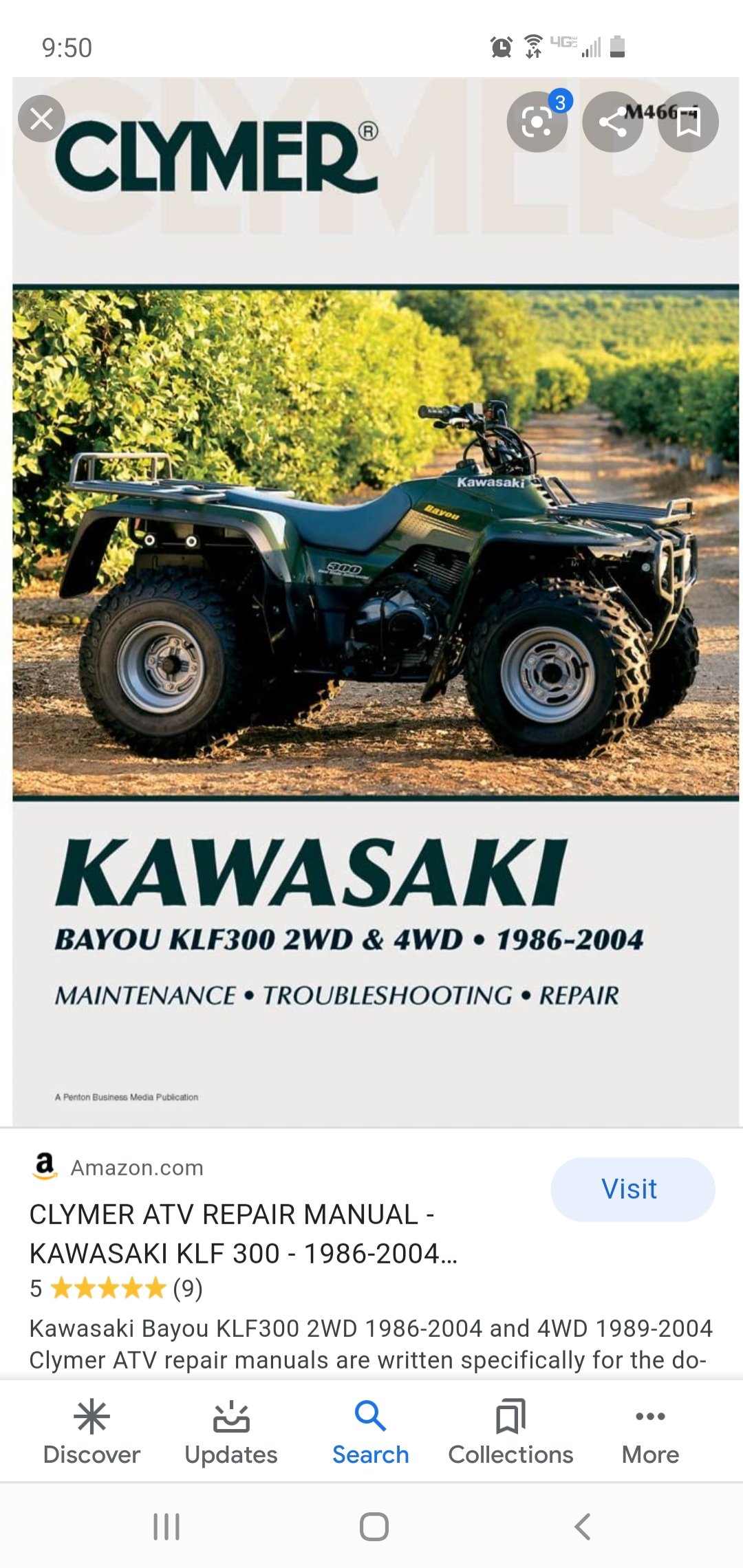

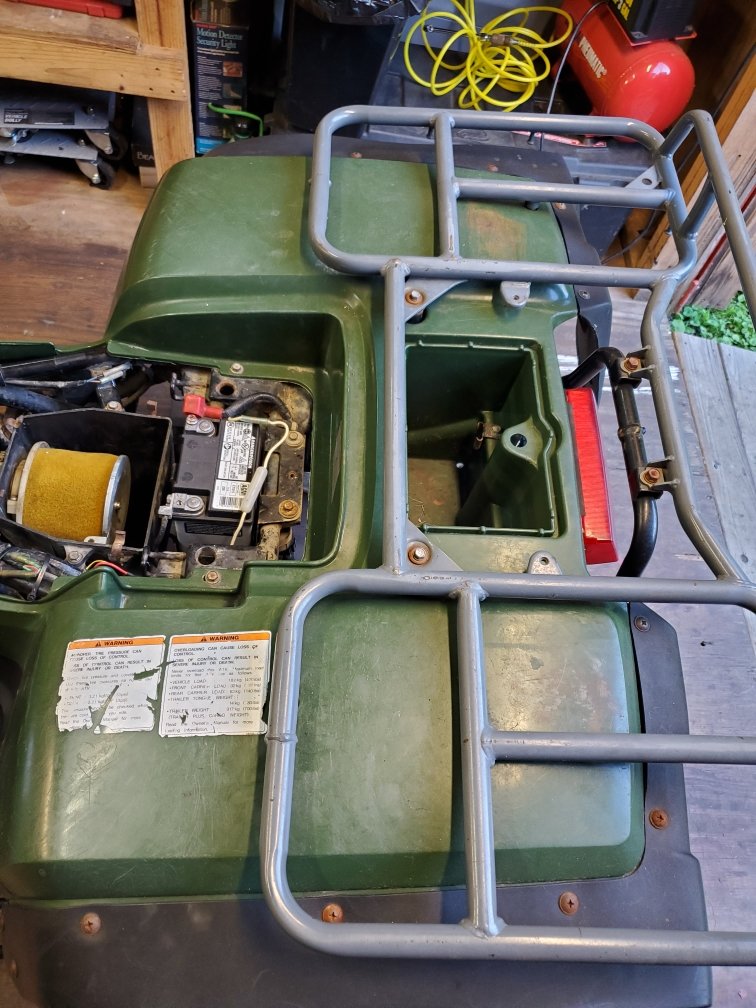

I can't find the serial number or a specific manual for this atv. It sounds like the same one in the link above. It says Kawasaki Bayou 300 Dual Mode Differential. And it has a handle lever attachment for shifting, fuel gauge, and a small storage compartment. Can anyone find me a manual? Pictures attached







Link to post
Share on other sites


Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.
Note: Your post will require moderator approval before it will be visible.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.

  • Similar Topics

    • By Leski991
      Hello,
      I have read many forum topics on this matter but have never found a similar problem. So i bought a cheap ass quad thats got all sorts of parts on it. It's a 1997(if you look the date on frame) Kawasaki KLF(Bayou) 300 EUROPEAN Model (atleast I think, since I'm from Europe), the engine is 1988 if I'm not mistaken and the CDI is 1995.-2006. ( 21119-1447, 6pin ). My problem is that I don't have spark. I would diagnose the issue but connectors from CDI to wiring harness have almost all different colors and I'm not sure if they are connected correctly (pictures below). Pickup coil is putting out around 400 ohms and is pulsing. CDI is being fed 12v by one y/r wire that is coming to connector and with 12v to one gray wire which is coming from ignition switch ( quad actually doesn't have ignition switch so I'm not sure if gray should be supplying power or not). Stator looks good cause when crancking all three yellow wires put out around 5v AC. Neutral light is also on which means the switch should be ok, if it even matters. I know it's not the ignition coil since I get no power nor any kind of pulsing to G/W wire that is coming to it ( and I even put another one on there just to check an it ended with the same result). I'm nowhere near proffesional around this type of stuff so any help would be amazing.




    • By Wagnerc
      It seems like it looses fuel prime after sitting A few days.  If you ride it every day it will fire right up. Parked for a few and you have to use either to start it.
    • By tomlad
      hi all first post  just found forum and the manuals / wiring diagram BIG THANK YOU
      im struggling to find the vin number on my frame? I m told left side of frame , lower, nr. in front of the gear pedal ?? haven't found it yet , is it numbers stamped on the frame or a commission plate ??
      main prob. no spark no power to coil , off to study the wiring info I've just found
      thanks again. tom
    • By NAVYSNIPER
      Has anyone ever attached a winch to the KFL 400, and if so how did you go about it the way the frame is configured??? I was going to attempt to attach a winch but seem to have a problem do to the frame configuration. Any ideas or suggestions from past experiences?
    • By BrunoNogueira91
      Hello, I am restoring a bayou 220 here in Brazil, I have a question regarding the rear brake activated by the lever on the left side. The ex-owner connected it in place of the reverse cable and as this is incorrect, could someone show me through pictures where I correctly connect the rear brake cable? Another thing, every time you reverse, is it necessary to activate the reverse key?
