Pred 50 Wiring Diagram Question


John Torbus

Recommended Posts

I am trying to figure out what the resistors do in this circuit.  From what I have read in the manual the head light/tail light circuit is A/C.  I am adding LED headlights/taillight so I want to convert it to D/C.  My assumption is the resistors in the circuit bleed off some power since the incandescent bulbs are low wattage.  Any input would be greatly appreciated.  I am not putting a Baja LED light kit or light bar, just LED bulbs in the stock location and a small cube flood mounted on the handle bars.  I already have the LED bulbs installed in the stock locations but they flicker badly.



Cheers,

John

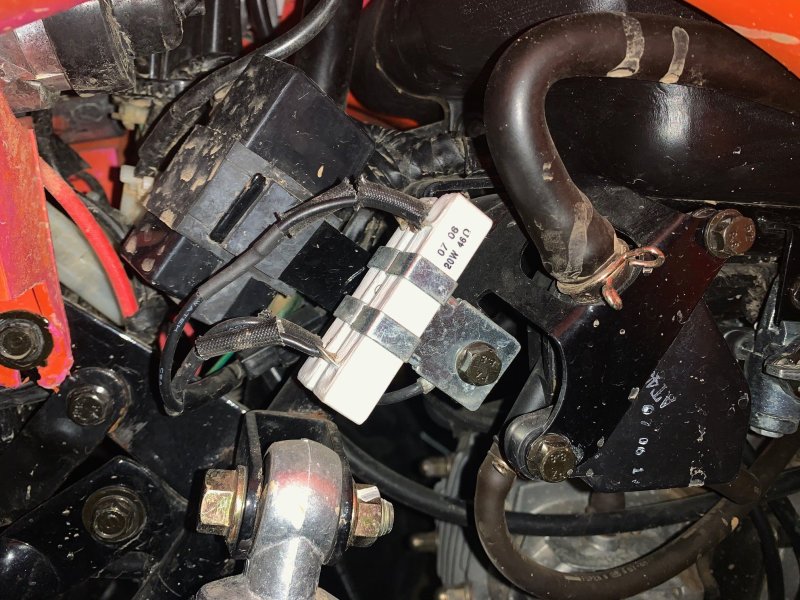

Pred 50 Resistors.jpg

Pred 50 Wiring Diagram.pdf

Edited by John Torbus
Link to comment
Share on other sites

Those are load resistors to protect the stator and voltage regulator. They will be even more useful if you start removing the lighting loads and should get nice and toasty warm. As MarkinAR mentioned you could wire in the LEDs on there own isolated battery circuit. You could add a rectifier just for the LED lighting circuit. You could modify the LED lighting to draw off the main battery. In this case you'll want to make sure your wattage doesn't exceed that provided to maintain the battery.

Link to comment
Share on other sites
