1996 Suzuki QuadRunner 250 LT-4WD Wiring

Otter9099

By Otter9099
in Suzuki ATV Forum

 Share

Recommended Posts

Otter9099 Apprentice

Otter9099

Posted
Posted

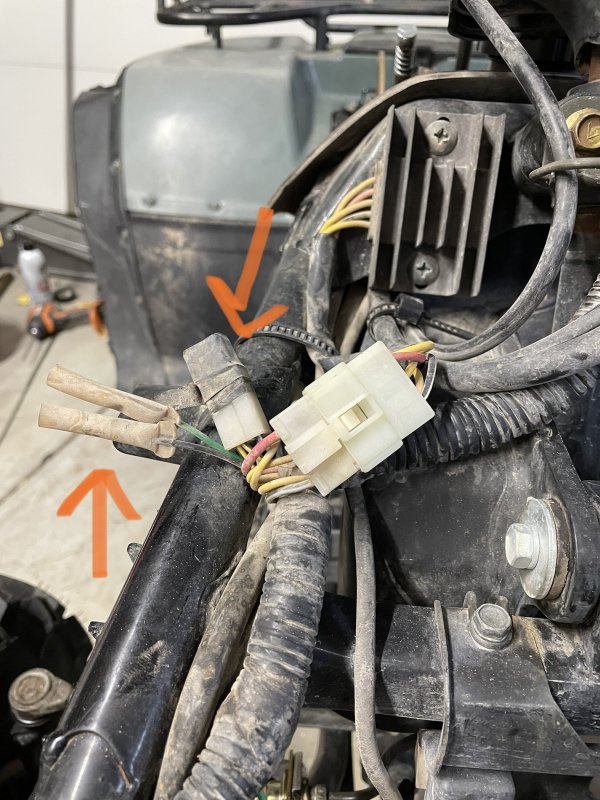

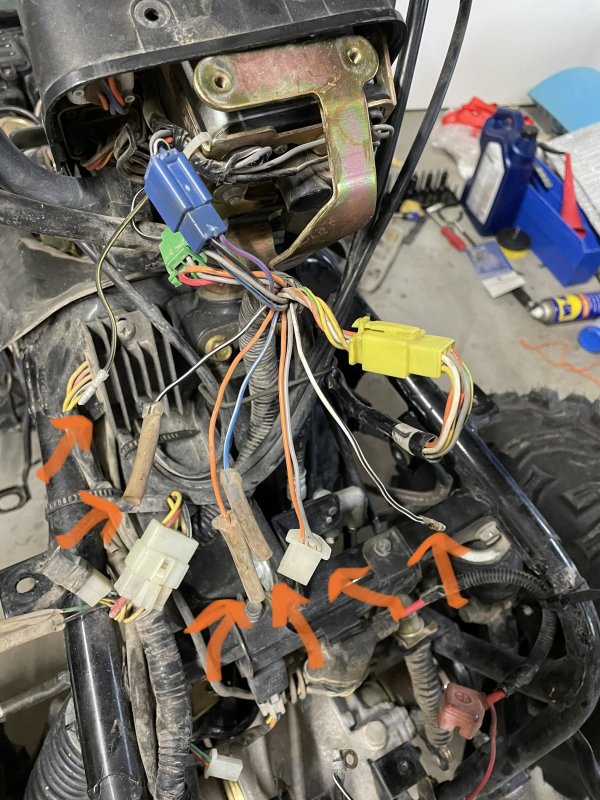

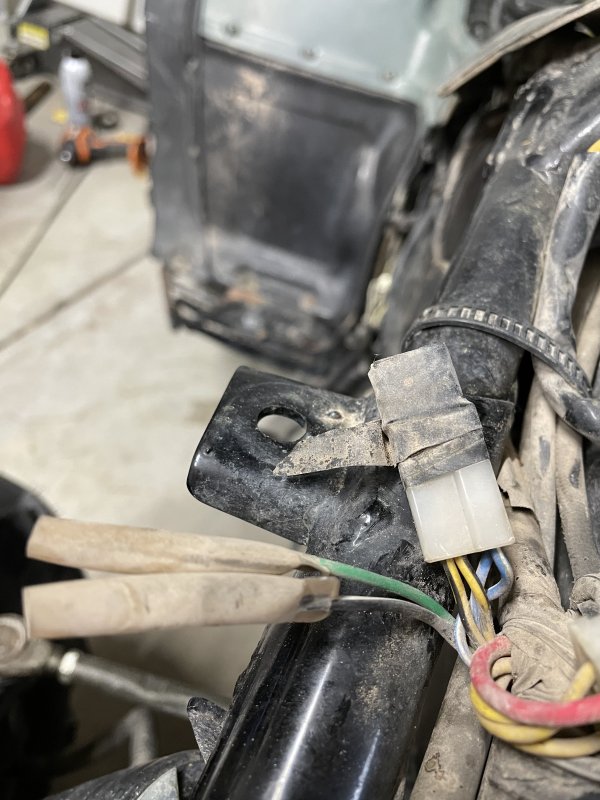

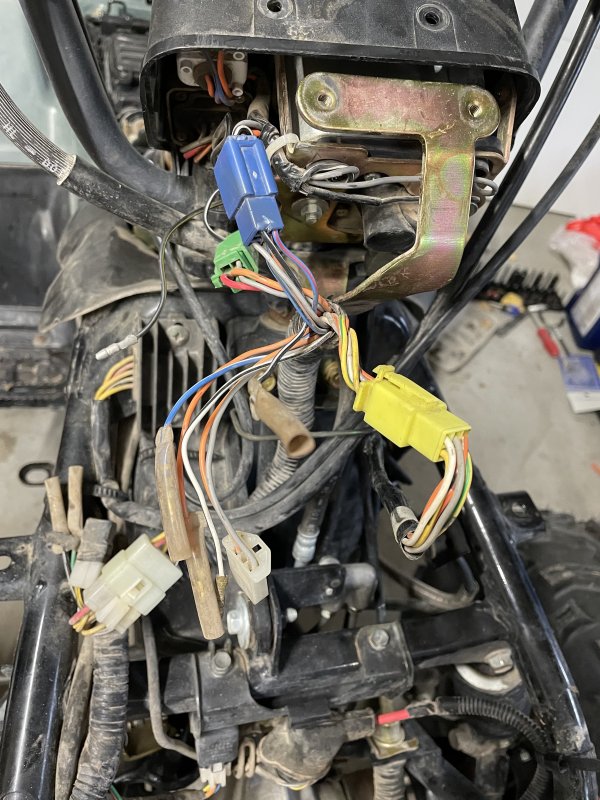

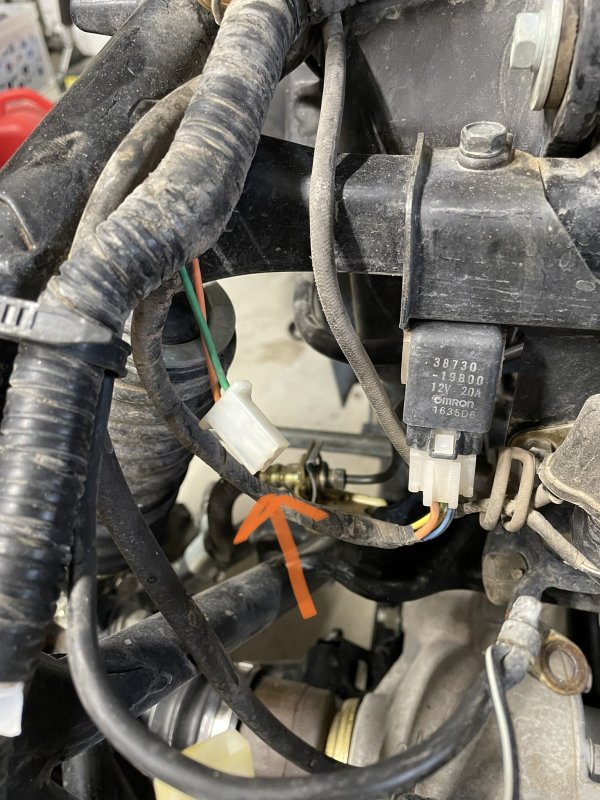

I have a 1996 Suzuki QuadRunner 250 LT-4WD I am working on. I have it running now and putting it back together and noticed there’s a number of wires and connections that don’t seem to be used but want to know what they are for. I have taken several pictures to show these on the front of the atv. Any help knowing what they are would be much appreciated.






  • 2 weeks later...
coyote56 Explorer

coyote56

Posted
Posted

I am working on one of these as well... a 1997.

While l can't tell you exactly what each plug is for, I can tell you that these bikes came with a lot of options. Some of them had the cooling fan (which I am interested in installing on mine.) and in some countries they allow them on the road so they have more lights. I am sure this is probably the same generic wiring harness that Suzuki used on the Quad Runners and the King Quads for over a decade. Only using what they needed to. Yours is looking exactly like mine with all of the missing connections.
