Super Weird Problem with Primary Sheave/Clutch (Rhino 660/Hisun 550)


Recommended Posts

So I've got a Hisun 550 (clone of a Yamaha Rhino 660) that I was doing some work on that required removing the CVT and it's housing. Upon attempting to reinstall the clutch, sheaves, etc, I found that the belt no longer fits - it's far too wide. None of the parts have been replaced, they're all OEM. Exactly the same parts as what I took off a few weeks ago.

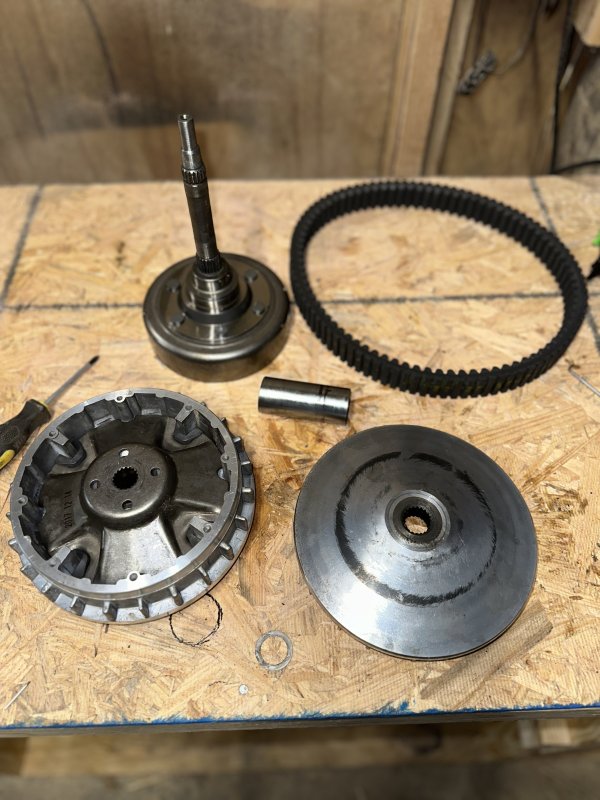

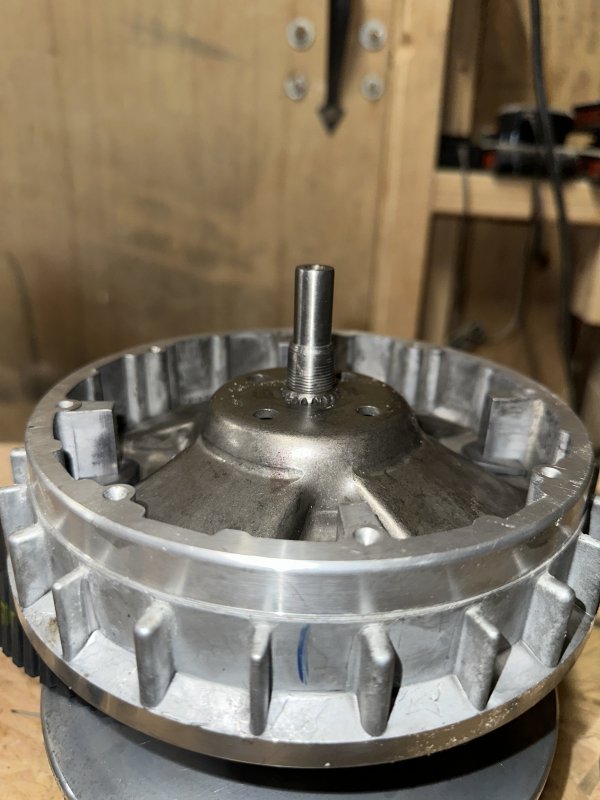

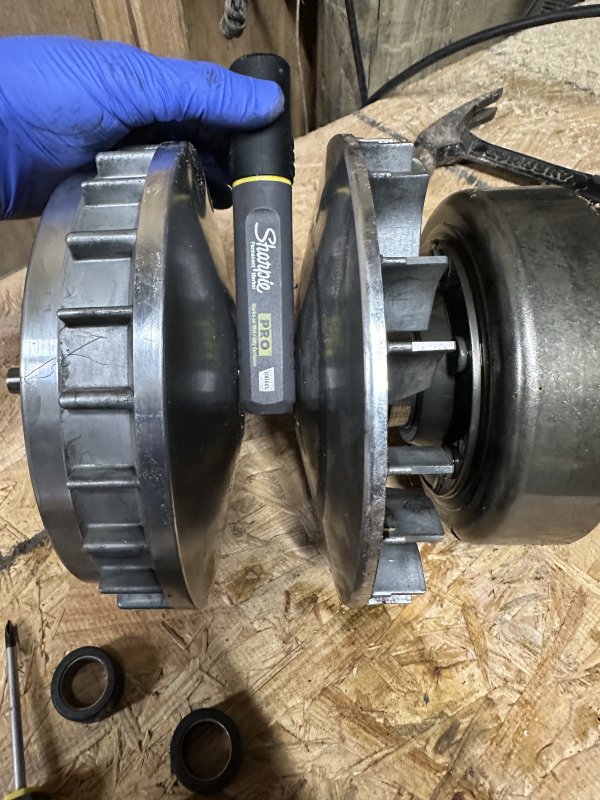

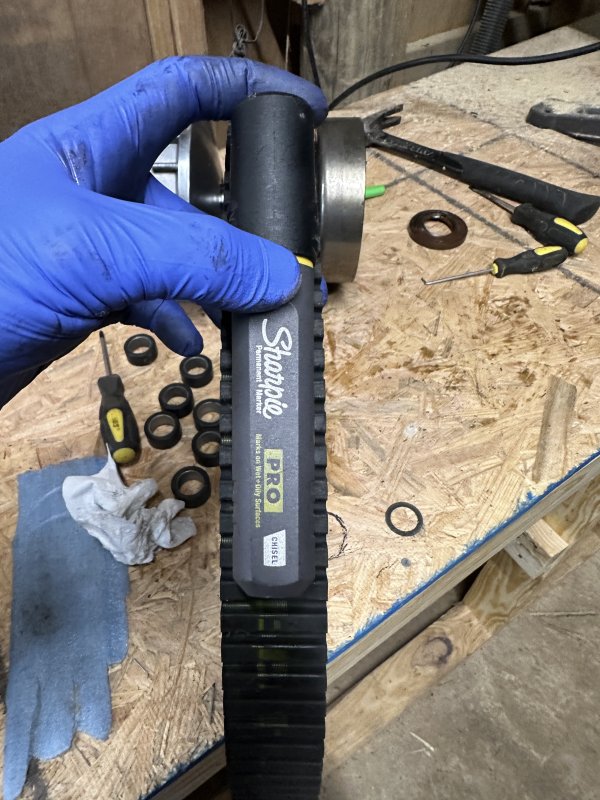

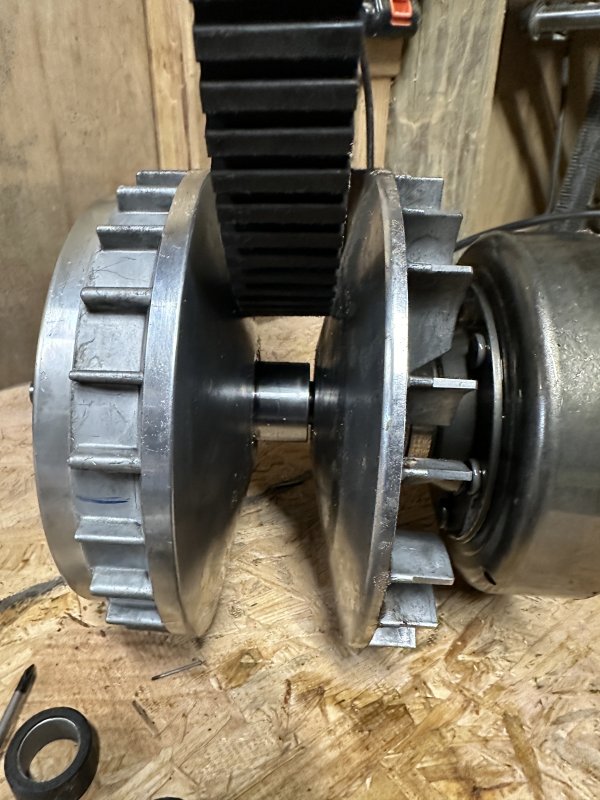

To be more specific, my belt is 1.25in wide, but the gap between the clutch and the primary sheave is only 7/8in wide. I'll include a few photos to explain.

Has anyone ever experienced such a bizarre problem? Any help at all would be appreciated, I've been stuck on this for a month. I'm open to just about any suggestion.

Photos:







  • Like 1
Link to comment
Share on other sites

Well if it's the same belt, and same parts that came off there, there's only one conclusion I can come to..

You've assembled it wrong.

Take it apart and inspect every part for wear marks that might coincide with some other wear mark and  indicate where it had sat before. There's generally some visual indication that parts have been in contact before. Then if you can't find anything, reassemble it following the diagrams. If the service manual doesn't have a very clear diagram look it up in a parts place online, they usually have good diagrams, and sometimes they say what thickness washers etc are.

Other than that, see what there is in the way of spacers or sleeves that have got muddled and  could/might account for the 3/8 discrepancy.

  • Like 1
Link to comment
Share on other sites

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.
Note: Your post will require moderator approval before it will be visible.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.
