2004 Arctic Cat 400 FIS 4x4 manual wont go in forward or reverse

Recommended Posts

I have an 04 arctic cat 400 fis 4x4 manual changed the centrifugal clutch,  changed the clutch discs and adjusted the clutch. When shifted into gear forward or reverse it will leap a little but will not go it was moving with the old centrifugal clutch but it was worn out. Any help would be appriciated

Share this post


Link to post
Share on other sites

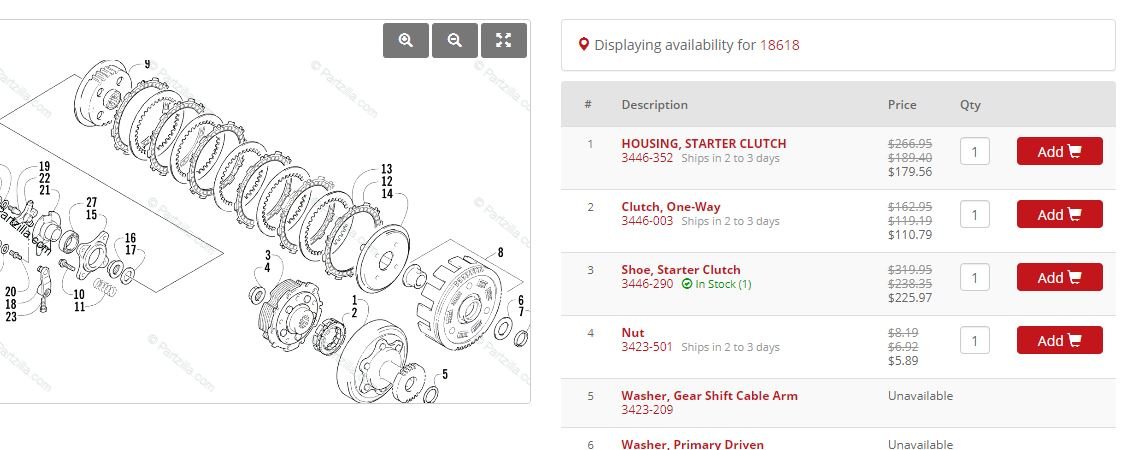

This sounds like the one way clutch is bad. Did you replace that? It's #2 in the picture. Or did you possibly put it back in backwards? It is usually stamped with a dot or etched into it "this side out".
