1993 Yamaha Big Bear 350. Swing axle rubber boot replacement

Recommended Posts

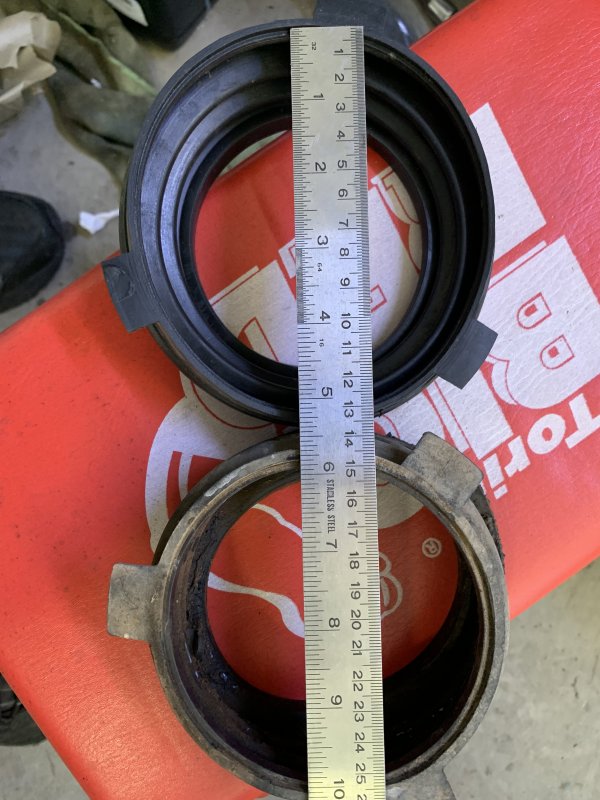

  • Guys, having trouble502095944_IMG_1782(1).thumb.JPG.8ca1c101c8d1ba91df5aa098c32ceb2b.JPG finding the correct rubber boot for my big Bear.  I've ordered 2 of them and both are wrong.  The old one was 4 inches across on the end with the tabs.  New ones are 5 inches across.  Much to big to fit properly.  TIA Hope someone has an idea.
Link to comment
Share on other sites

If the other end of the boot you have is right is right, then that 4KB might be the one.

Looking at pictures I see some boots look like the big end is closer to the small end diameter than other boots..  The 2HR looks like it's big end is quite a bit bigger than it's small end diameter. The 4Kb the two ends look similar.

Probably easiest to ask them what the diameter is before you buy though to be sure.

Link to comment
Share on other sites

Hey guys new here and just thought I'd chime in since I just finished doing this to my 88s . I ordered both boots from Babbittsonline without an issue  . I did notice that on one bike the boot seemed a little more of a struggle to get it to slip up onto the lip of the trans/engine side . but it did go . Now I didn't notice any slack in either boot on either bike but the one I did 2nd I do remember struggling with it a bit more . Is it possible that there is just an overlooked irregularity because it seems that this has  been tossed around in  another forum .

Link to comment
Share on other sites
