spencex

Help Identifying Old Yamaha Quad?

Recommended Posts

I have inherited a Yamaha quad but there is no model number on it that I can find--which I need in order to get an oil filter for it.

It has a 4-cycle, carbureted, air-cooled engine and its very basic--no speedometer, etc. A friend thinks it might be a "300."

I would appreciate any help.

Thanks,

Spence

Share this post


Link to post
Share on other sites

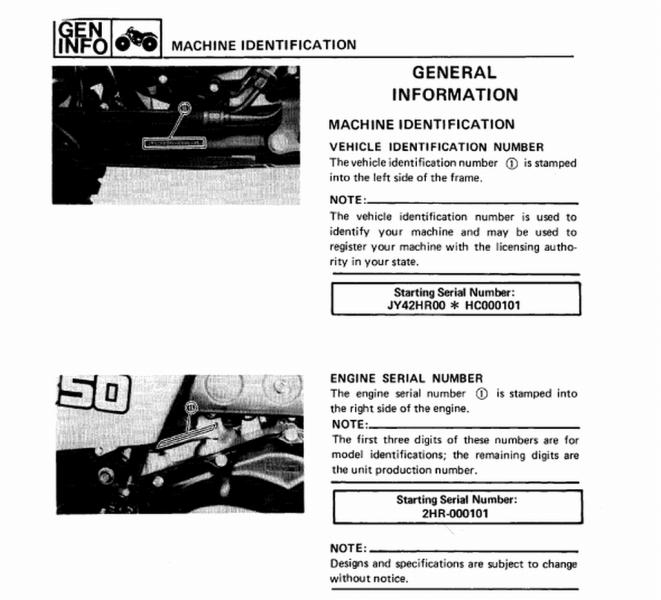

The number on the engine is 4KD112557. Still cannot find a VIN or model number, but I have uploaded two pictures. Can you access them? I cannot figure out how to put them into "my garage."

Thanks for your help.

Spence

Share this post


Link to post
Share on other sites


i would say it was a '90's big bear 350 ... is it all time 4 wheel or does it have a 2 to 4 select switch?

Always in 4-wheel drive.

Share this post


Link to post
Share on other sites

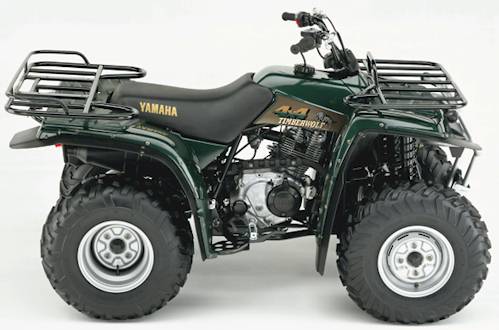

Yep, it sure looks like the same machine. Now Im curious why the word "Timberwolf" was removed from the side of my machine. Maybe someone has a wolf phobia!

Any idea what year(s) these machines were manufactured or where I might download a users manual?

Thanks again for the help.

Spence

Share this post


Link to post
Share on other sites


maybe fuel spills and knee wear took it's toll on the decals ...

the all time 4 wheel were made from '94 to 2000.

i might have a manual, i'll look ...

Share this post


Link to post
Share on other sites
