Need a little help. (Its Easy, I’m just dumb)

Recommended Posts


i need help figuring out how the thumb throttle needs to be screwed in inside the box where the throttle cable is. I can’t figure out how the spring is suppose to sit in there, is there a name for this compartment? Can some link a video or something I’d really appreciate it

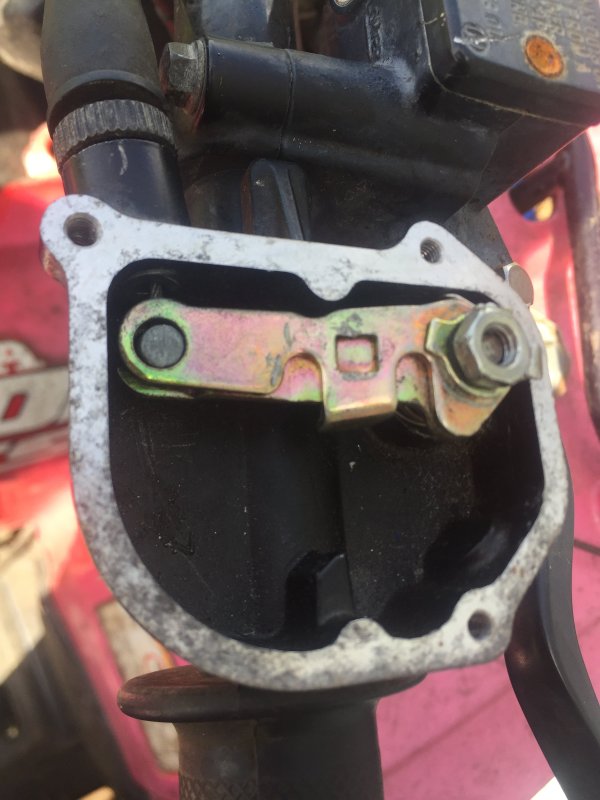

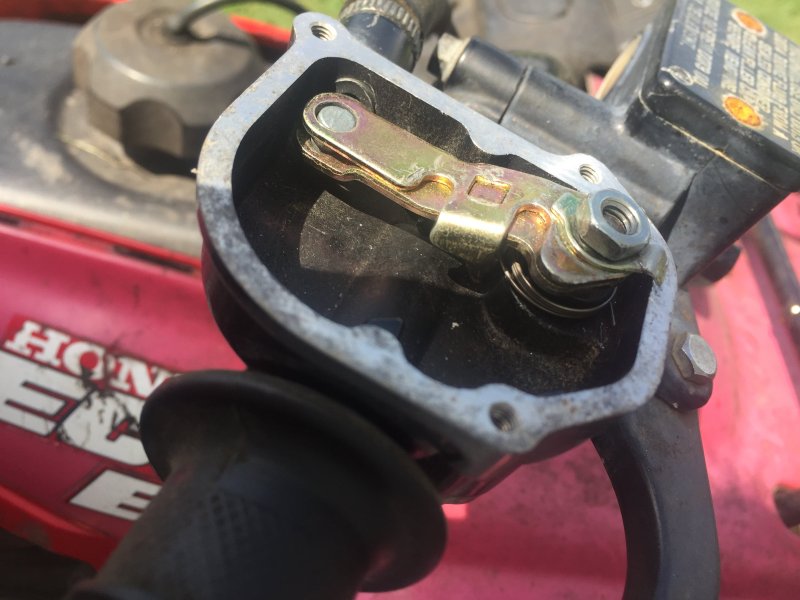

if you don’t know what I’m talking about here’s a pic



Share this post


Link to post
Share on other sites


There  should  be  a  "hook"  on the  spring  that  clips over the lower  lever  in your  pix, and the other  end  of the  spring likely  just  sits against the  case.   The  longer part with the  hook hooks over the lower lever  arm next to the  bent  down tab of the  upper lever. Here  is a drawing of the assembly :
