Recommended Posts

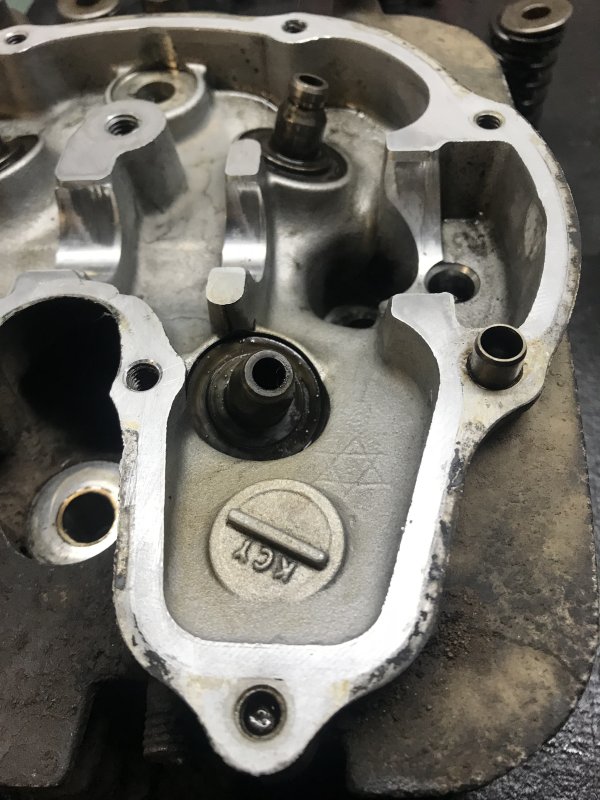

The title is for attention. I’m prepping my cylinder head off of an unknown year 400ex to install on my quad. And I’m examining it and there’s literally a Jewish start( Star of David) protruding from the metal on the camshaft side of the head. It’s not imprinted or etched/ engraved. It’s coming out of the metal. DOES ANYONE HAVE INFORMATION ON WHY ITS THERE??? I’ve attached a picture


  • Like 1

Share this post


Link to post
Share on other sites


That is so strange. Cool but strange.

Ive never heard of any parts being manufactured in iseral or by any Jewish company. I have to look into this now that my curiosity has made this interesting.

  • Like 1

Share this post


Link to post
Share on other sites

Im gonna pull my head in a couple days, Now im curious

Share this post


Link to post
Share on other sites

I have looked everyplace and cannot find one reason why that star is there! No manufacturers, nothing.  So strange.

Share this post


Link to post
Share on other sites
