Zilla28

Quadzilla XLC 500 Engine Issues

Recommended Posts

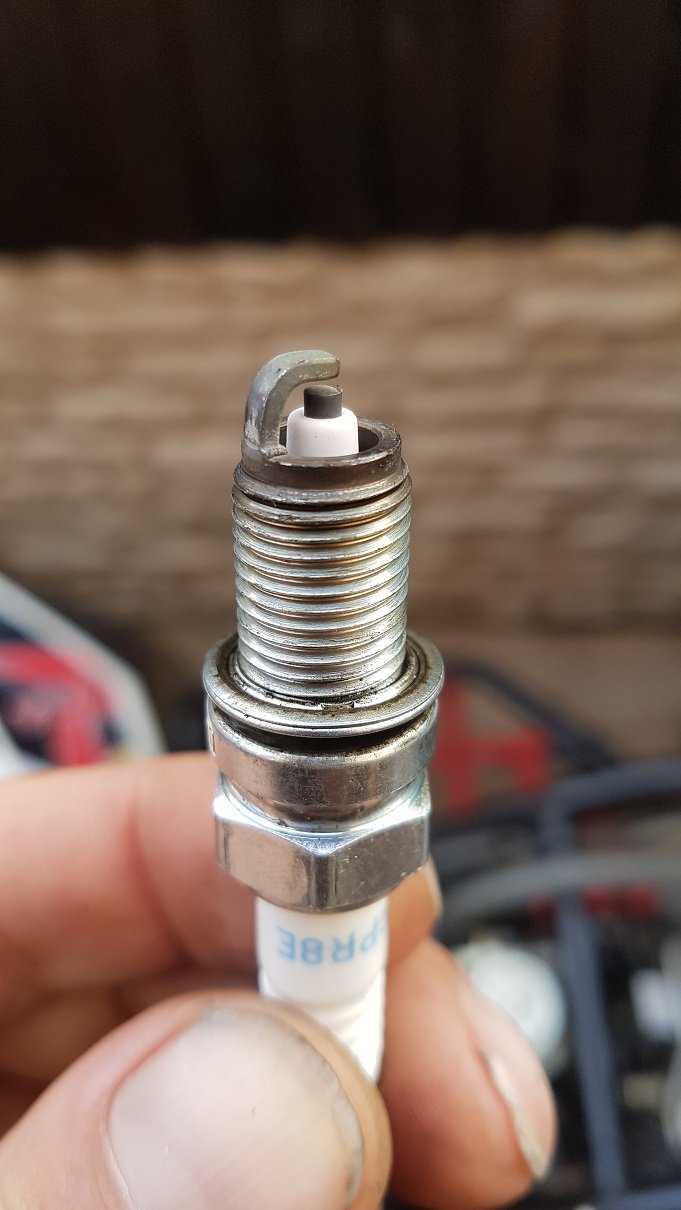

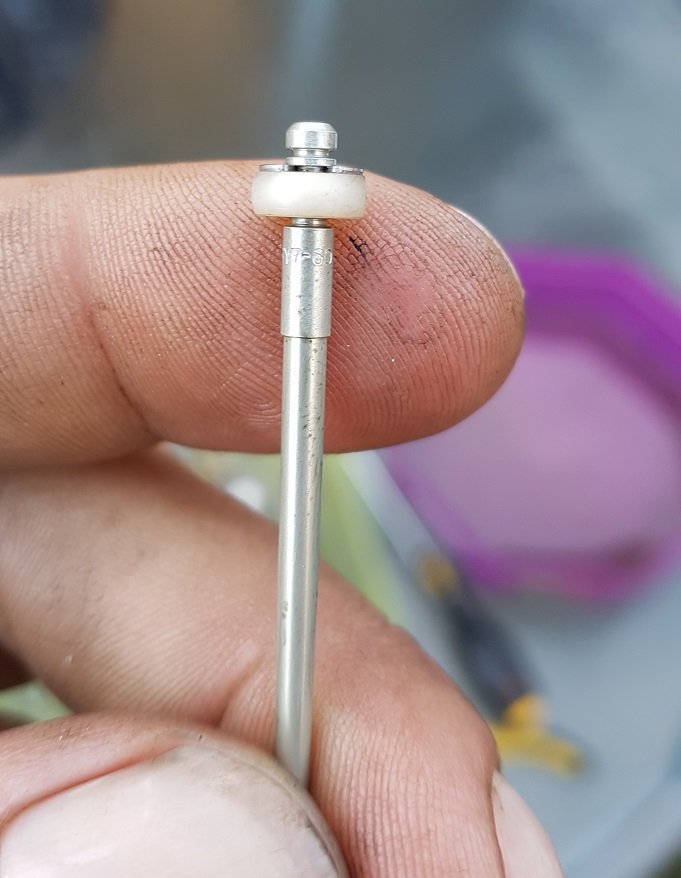

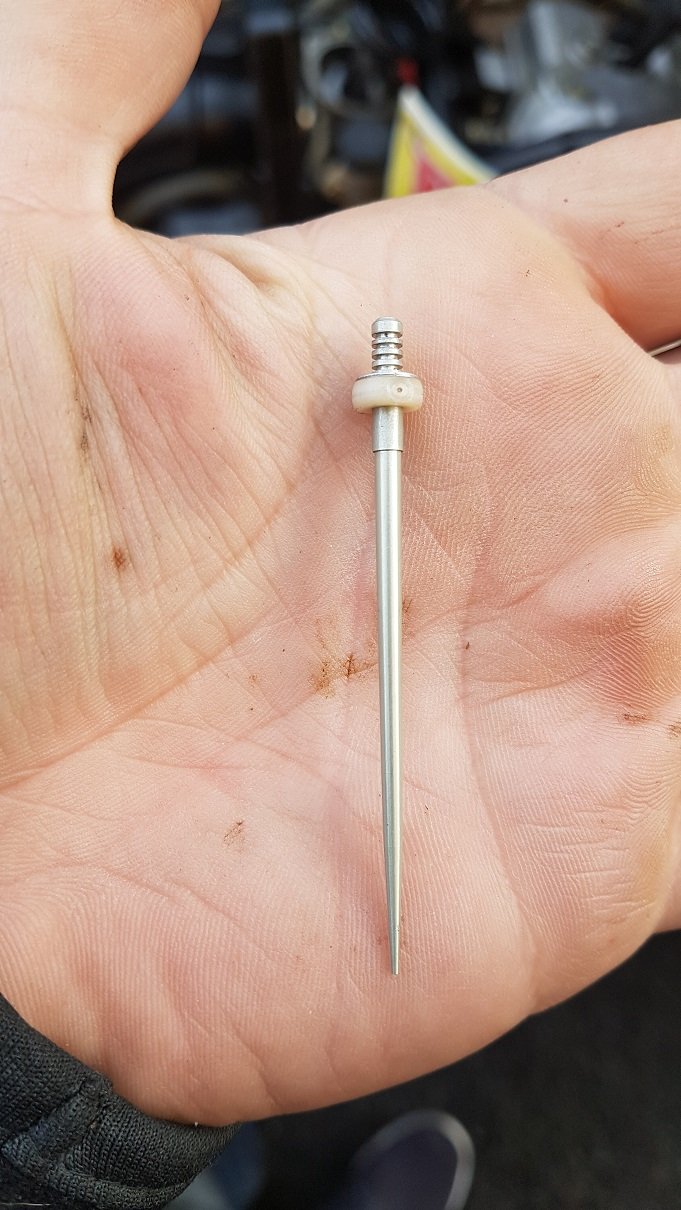

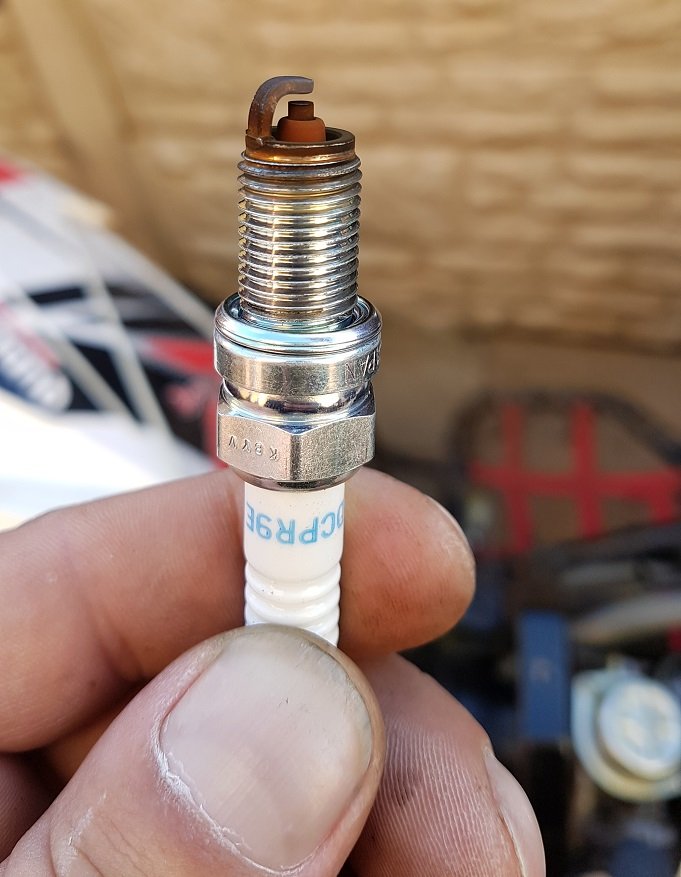

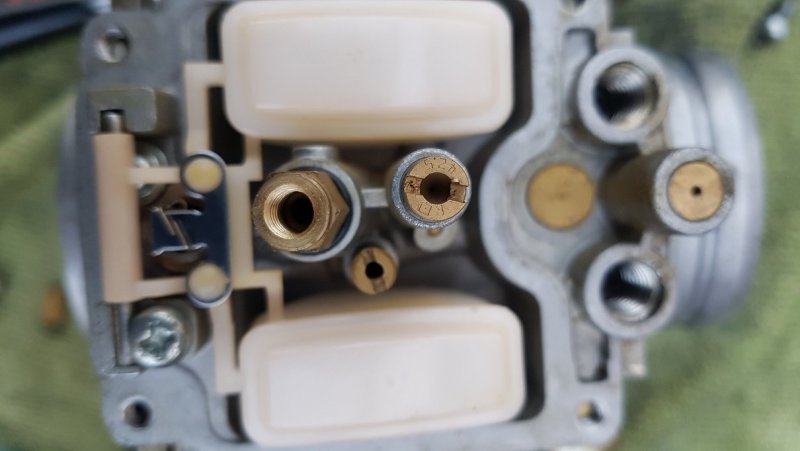

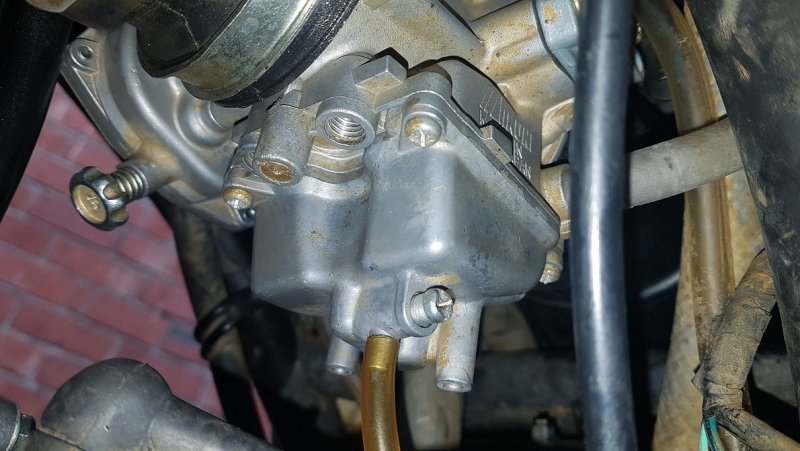

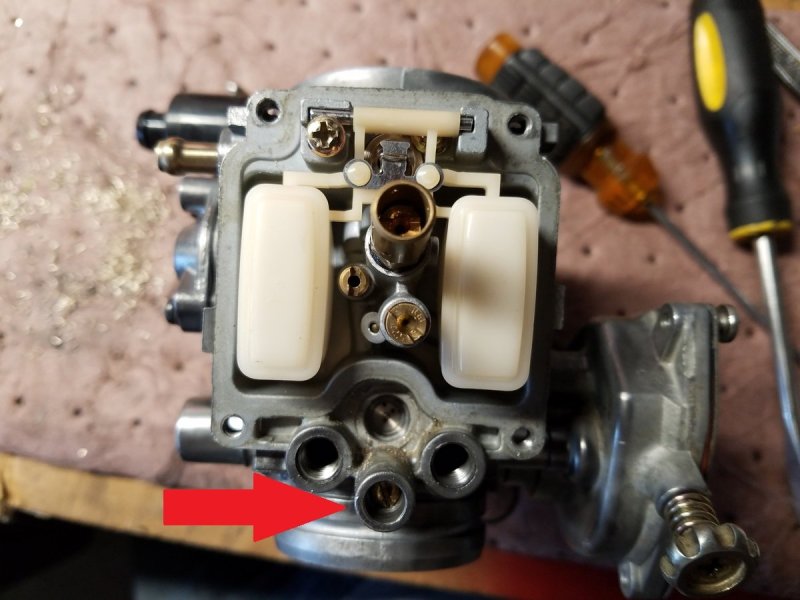

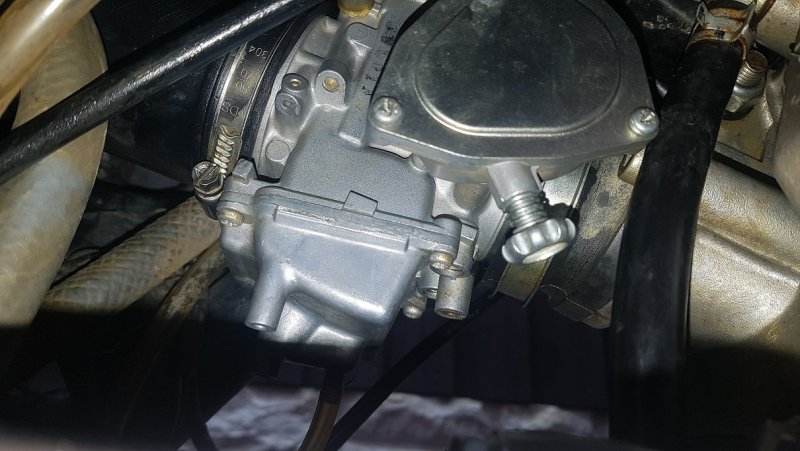

While riding my Quadzilla XLC 500 I was cruising along about 60 mph then opened it up, but once I hit 70-75 mph it died on me so I rolled to a stop and it wouldn't start for about 20-30 seconds. I then noticed the Temp light occasionally flashes on but its so quick you wouldn't notice in the day so not sure how long its been happening. The engine has started pinging when I accelerate which can be caused by many things so I drained the fuel and replaced with hi octane, fitted a new spark plug, adjusted the little washer on the high jet in the carb twice to make it run more lean which made no difference.  I tested the thermostat which opens at the correct temperature, I removed the radiator cap and started the engine and no bubbles were showing and the oil is on maximum and very clean as I have not long serviced it.

The last time I took it out I went 14 miles and the coolant in the bottle has dropped about 1/2".

I am now leaning towards a head gasket and have purchased a full gasket kit but was wondering if there's anything else it could be before taking the engine apart.

Share this post


Link to post
Share on other sites

Have you checked to see that the cooling fan is coming on ? And if so is the radiator clean ? Also look up and see if the engine shuts down on the hot side. When it’s at that point is it killing he engine. And btw dam that’s fast ! Slow down a bit brother!

Share this post


Link to post
Share on other sites
1 hour ago, Frank Angerano said:

Have you checked to see that the cooling fan is coming on ? And if so is the radiator clean ? Also look up and see if the engine shuts down on the hot side. When it’s at that point is it killing he engine. And btw dam that’s fast ! Slow down a bit brother!

Yes the fan does come on but not every time and I have not had a close inspection of the radiator but it should be clean as I pressure washed it and have only used it on the road. I have no temperature gauge on my display so I can't see how hot its running.

Share this post


Link to post
Share on other sites

Ok great.  What about the water pump it could be possible that there is no circulation? You can buy an infrared thermometer and shoot the head to see temperature under the same circumstances.

There can only be a few things going on here

1. Thermostat

2. Water pump

3. Cooling fan/temperature sensor that brings fan on.

If you have a bad head gasket the oil will be discolored (greyish) in the crank case and a lot of white smoke.



Share this post


Link to post
Share on other sites

But I don't know what its suppose to run at and what is classed as too hot. The thermostat is fine as I tested it and it opened at 71 degrees which is stamped on it. If the coolant on the tank has dropped by 1/2" after 14 miles of riding it must be going somewhere which is leading me to think the head gasket but im hoping its not.

Share this post


Link to post
Share on other sites

It’s not supposed to really go over 160 I would think on a good day. Have you checked the oil for color ? And also is there a leak you are not seeing ? And the water pump... you should see that coolant flowing with the cap off the radiator after it’s good and hot. If not I’m thinking the water pump. And the seal on the water pump as well and that’s why your loosing coolant.

Share this post


Link to post
Share on other sites

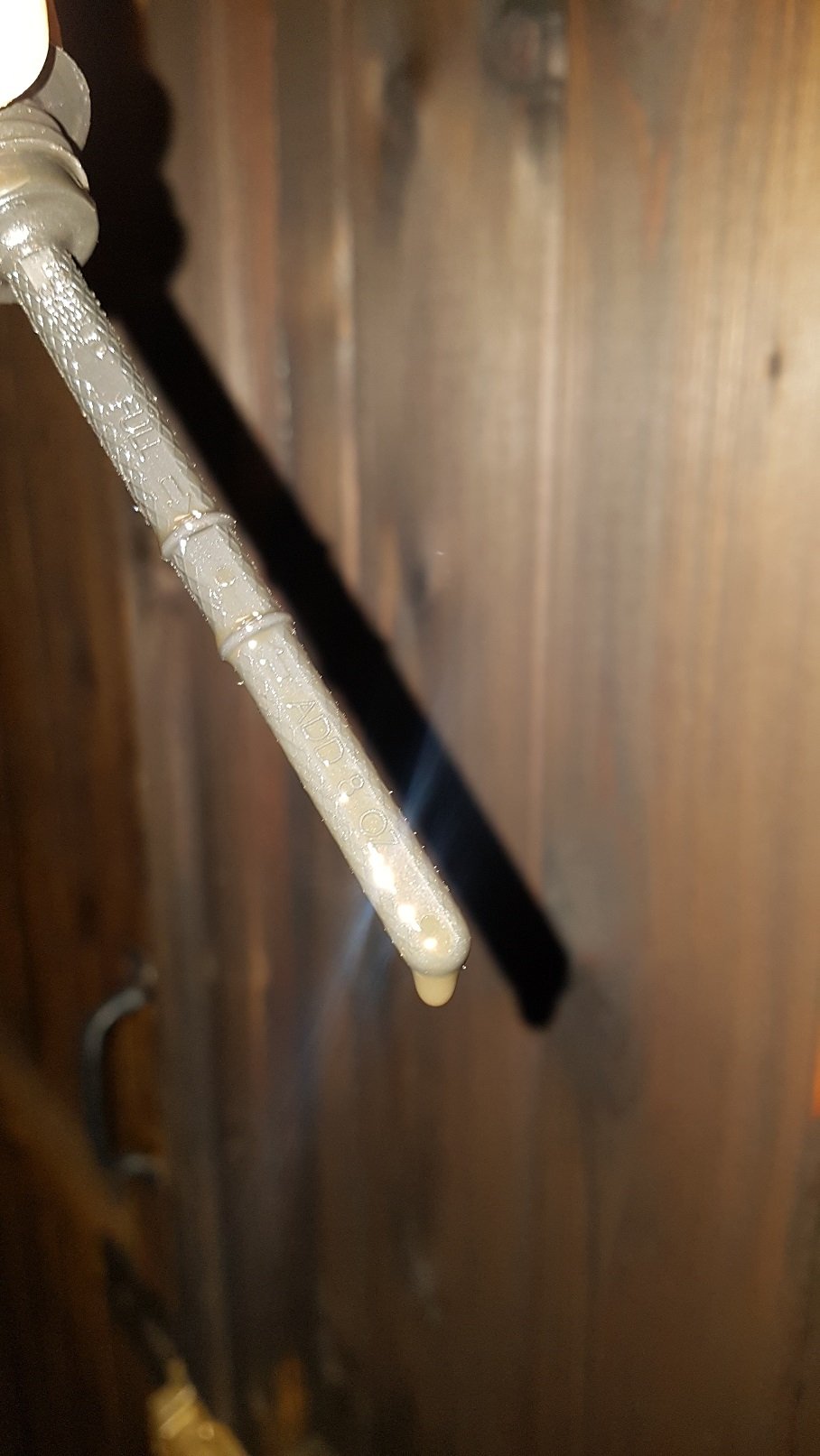

I've not checked the oil for colour, only looked at it on the dip stick. I will try and find time to check the water pump tomorrow as I do have a new water pump seal in my gasket set.

I just remembered, last time I warmed the engine up the pipe from the water pump to the bottom of the radiator was warm and I could hold it but the pipe from the top of the radiator to the engine was too hot to hold.

Share this post


Link to post
Share on other sites

Yea brother I think it’s a pump issue. Never know but that’s where my guess is. The good thing about these problems are the limited things it can be when it comes to a water cooled system so get after it and narrow it down so we can get this figured out and get back to riding!!!  Let us know how you make out.





  • Like 1

Share this post


Link to post
Share on other sites

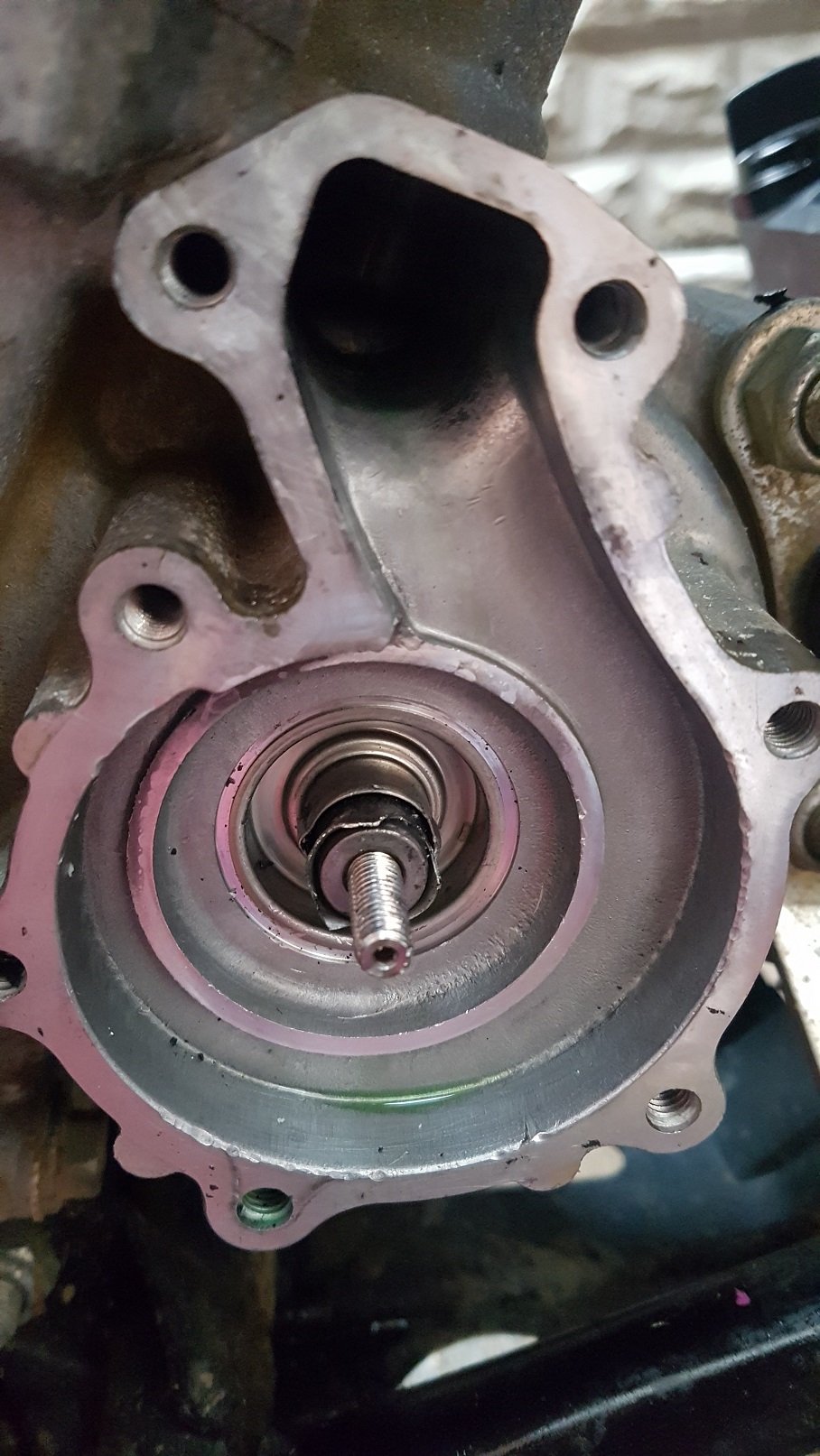

OK today I removed the water pump cover, dained the engine of coolant and turned the engine over and the impeller is spinning ok. The gasket on the cover was knackered but I didn't want to replace just that gasket as I had not seen any leak from the cover which makes me think it must be leaking internally. I have managed to remove some of the internals but cant get any further.

What I expected to take a few hours looks like its going to take much longer.

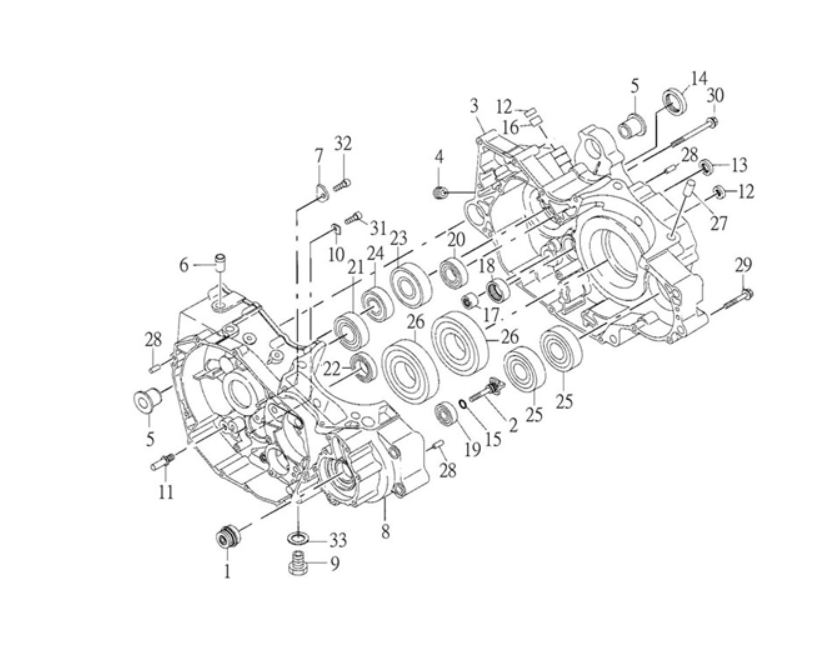

Do I need to split the crank case to remove the rest?




Edited by Zilla28

Share this post


Link to post
Share on other sites

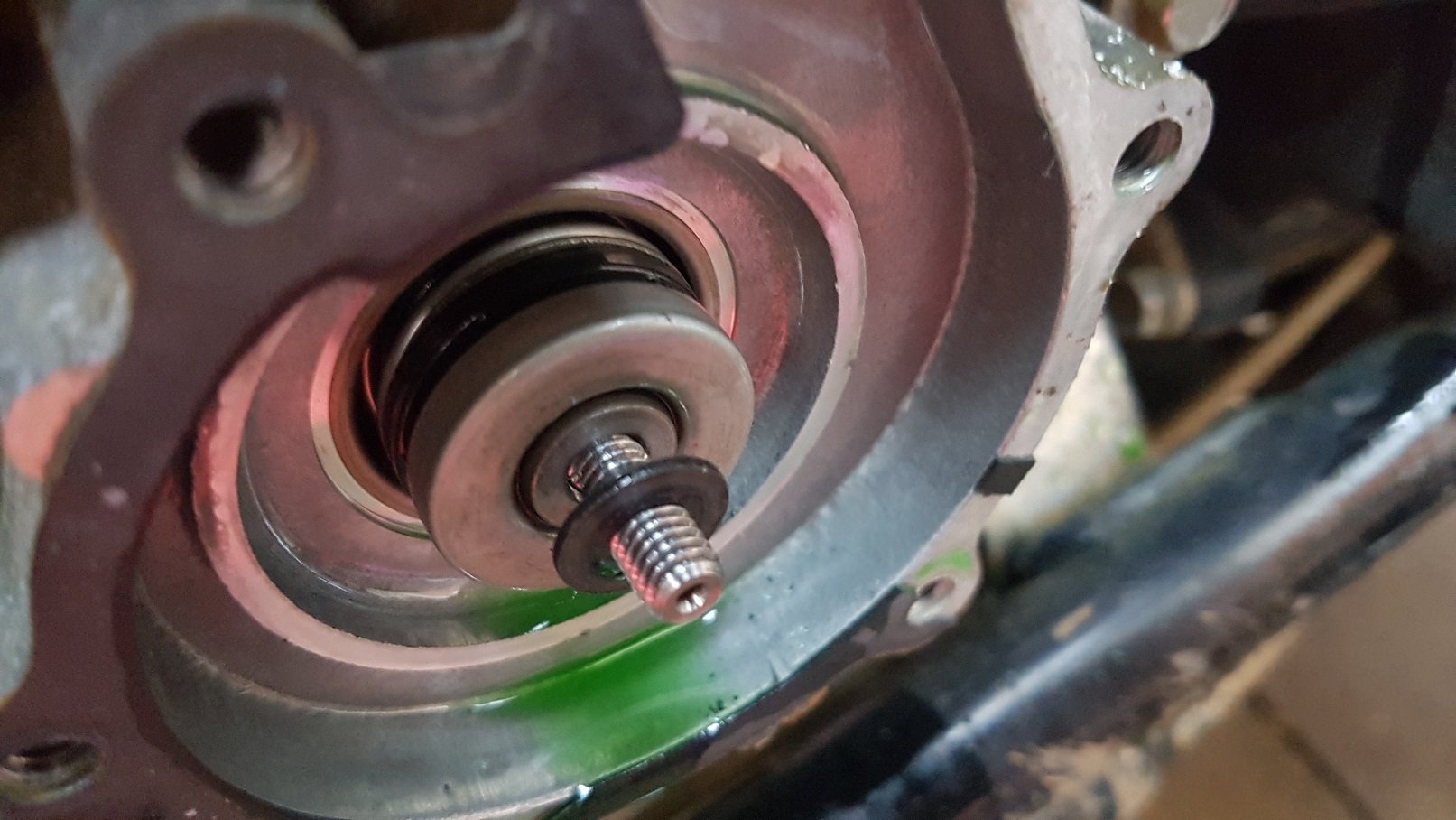

Was the impeller spinning or just the shaft?  I’ve seen the same thing and when the bike was being cranked the owner was able to hold the impeller and the shaft spun not the impeller  so make sure that the shaft and impeller are not slipping

That back end of that shaft looks chewed up. What goong on in there ?

Heve yiu checked the oil ? Any coolant in there ?

That seal on the back of that impeller looks shot and could be leaking fluid into the crank case.

Share this post


Link to post
Share on other sites

As far as I am aware the impeller was spinning with the shaft as it was locked on to the shaft, not overly tight but tight enough.

I saw some videos online of people removing the pump seal and the only way they could remove it was to prise it out with a screw driver so that's what I done, hence the reason it looks a mess.

The oil does look a little watery and I done a test with dropping the oil in a hot saucepan to see if it bubbled which it did, so this confirms there is antifreeze in the oil 😞



Share this post


Link to post
Share on other sites

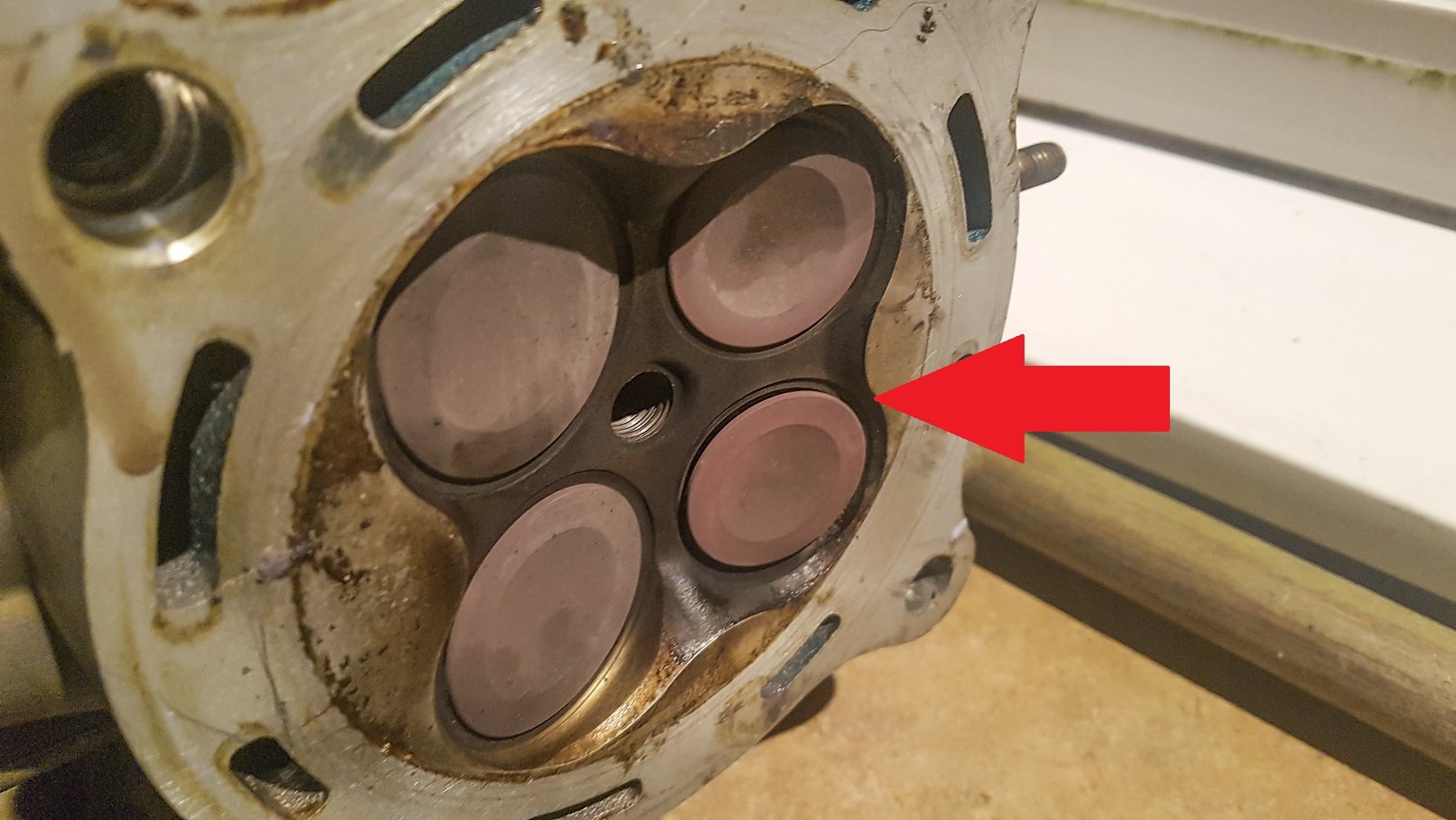

OK, I have finally got somebody to change the head gasket on my quad and also needed to have the valves seated as one wasn't closing. All is now back together but when I took it for a test ride it's still pinging and the Temp light still flashes on.

I guess the engine will need to be taken out again and to split the crank to inspect the water pump?


Share this post


Link to post
Share on other sites

You should not need to take the engine out or split it to replace the water pump.  I would have done that while the head was off just to eliminate the possibility of it being bad.  But no way should you have to pull the engine or split it open.

Share this post


Link to post
Share on other sites

The water pump seal has also been replaced after me trying to remove it and making a mess of it. I am beginning to think it's something internal within the case that's making the impeller not function but im no mechanic so have no idea. Just very frustrating having only owned it for 5 months and its been off the road for a month.

Share this post


Link to post
Share on other sites


Well the impeller was before (video posted above) but I didn't check the shaft.

I just removed the thermostat and took it for a 10 mile test ride, it's still pinging but I didn't notice the Temp light come on. I will have to check the shaft on the impeller tomorrow.

I notice the top pipe on the radiator gets very warm but the bottom pipe is hot. Surely it should be the other way around 🤔

Share this post


Link to post
Share on other sites

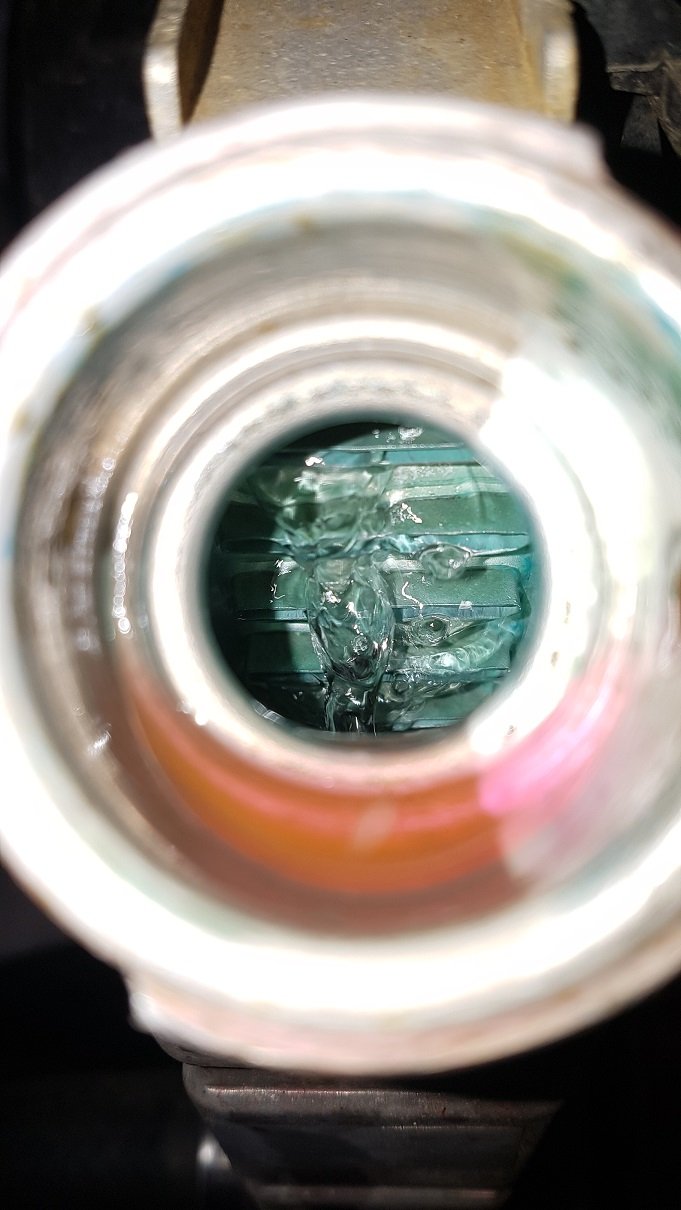

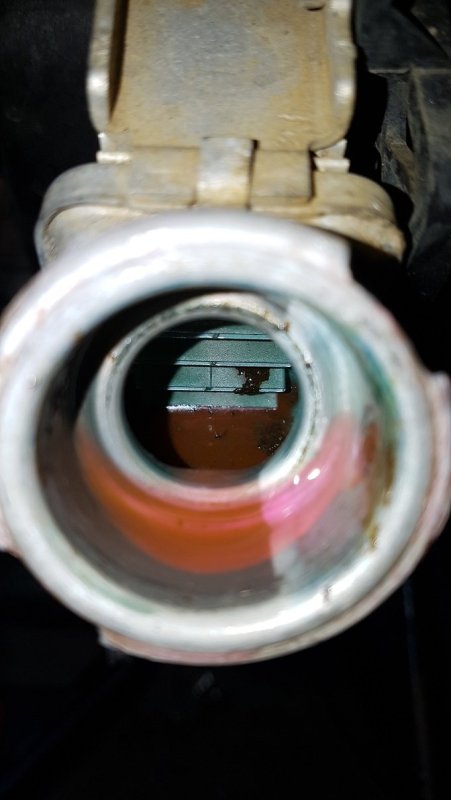

If you took that bike for a 10 mile ride and the temp light didn’t come on and the bike didn’t over heat then it should be good.  I’ve seen instances where you have what’s called an “air bound” system.   It’s essentially a stuck airball in the system that takes a big push of water pressure to push it through the system.   Much like an air bound radiator in your  house on a hot water heating system.  Only difference is that home radiators have bleeders on them to get the air out.   It’s very posable that this happened.  So just keep an eye on it and you can look inside the radiator cap for fluid movement which will only happen after the thermostat  is open.  Take the cap off and start the bike and after about 10 min or so the water should start to flow.   Is the cooling fan coming on properly also ?

  • Like 1

Share this post


Link to post
Share on other sites

I let the bike idle from cold for 6 minutes to gently warm up, took it for a 10 mile ride and turned it off when I got back. After a few minutes I started it again letting it idle and the fan kicked in so I turned the quad off and let the fan do its job but it's the engine pinging which is worrying me as I can't afford to spend much more money on it if I end up knackering something else by riding it with a pinging engine.

Share this post


Link to post
Share on other sites

What are you running as far as octane high test ? If not boost the octane.  See if it stops.  Also when you put everything back together was the timing spot on? That’s important.

Share this post


Link to post
Share on other sites

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.
Note: Your post will require moderator approval before it will be visible.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.
