Similar Topics
-
By BradF80

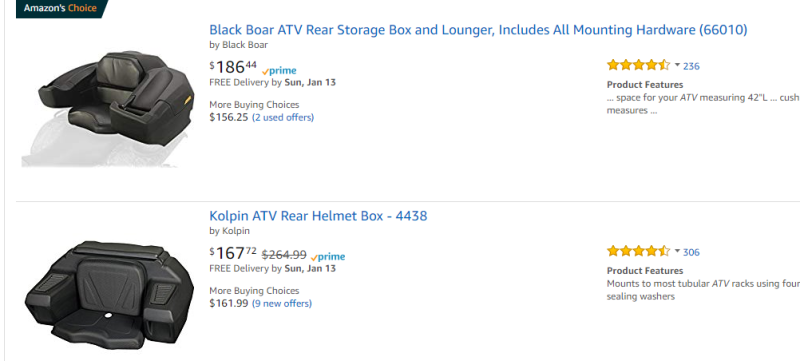

Anyone ever use a universal lawnmower seat to bolt onto the rear rack on an ATV for a passenger? I have an 2005 Bruin but I have yet to see a seat for it other than those uber expensive helmet box/seats.
-
By flyinbrian365
View File 2018 Textron Stampede 4 Passenger Service Manual
2018 Textron Stampede 4 Passenger Service Manual
Submitter flyinbrian365 Submitted 09/13/2018 Category Textron Off Road UTV
-
By Freedomflyer
I just bought a 2018 Can Am 570 Outlander and was hoping to try to find a way to convert a Can Am 2-up seat that I picked up on Craigslist to my new machine in some fashion. No way to do it without the seat sitting up 8-9 inches above the main seat. Scrapped that Idea but decided to try to convert it to my Honda Rancher. Also in a way that would allow me to remove it quickly and allow access to my battery compartment if necessary. Here's what I came up with.
Since the seat has two fork like protrusions on the front underside I needed to come up with something that they would lock into. On rear underside there is a spring loaded handle that allows it to lock onto a 3/8" round bar. I wanted the bar that the front part of the seat locked into to also be removable so I came up with a design for the bar that would slide onto the front side of the rear rack and pin into place using the rack itself as the mounting base. Then I welded a couple pieces of 3/4" pipe to the rear part of the rear rack with a piece of 3/8" solid bar stock onto the front of the two pieces of pipe that were welded to the rear section of the rack. The forks of the seat lock into the front bar, the pipes at the back not only support the rear part of the seat but act as a centering guide for the two locking mechanisms that lock onto the 3/8" bar stock. When it is locked into place it is extremely solid and has no way of coming loose except when I release the spring loaded handle. And it actually doesn't look too bad when installed either. Plus, the front side of the rear seat acts as a back rest for the small of the drivers back, pretty cool.
-
By Nik Withers
Hi I was wondering if anyone knew if there is an aftermarket seat for my quad? The OE one is way to steep and all I keep doing is sliding towards to fuel tank when I ride I want to find a flatter seat if possible!
Thanks, Nik
-
By quadcrazy
View File 2018 Textron Off Road Stampede 2 Passenger Service Manual
2018 Textron Off Road Stampede 2 Passenger Service Manual.pdf
Submitter quadcrazy Submitted 06/05/2018 Category Textron Off Road UTV
-
-
-
Similar Tagged Content
-
By jtarus
I just purchased a Yamaha Kodiak 450 2005. Looks and runs good but a couple of little issues I need help with. The gear selector lights only work part of the time. It is Neutral and Park that seem to malfunction. If you have any suggestions it would be appreciated. Also the winch will not work. I have removed the switch and it does not seem to have any power to it. Any suggestions on this? Lastly does anyone know of a free down load for the manual?
-
By Alan Callison
Hello boys and girls!:howdy:I need a little help if ya dont mind.I need to replace the rear axle bearings on my 400 but Im going at this blind having never done it before. Ive looked it up in the repair manual but it doesn't give any specific steps on how to do it. I've got the left rear brakes off already as I was replacing the shoes anyway. Can somebody give me a rundown on what Ive gotta do please?I know I need to pull the right wheel off just havent done that yet. Do I need to take anything apart in the final drive or elsewhere in order to yank the axle out for instance? Which side does the axle come out from,L or R? Any details I need to know will be greatly appreciated.Thanks ya'll!
-
By Alan Callison
OK everybody,I need some help here please. My 4 wheeler has got a bad wheel bearing I discovered while starting a brake job. Its on the left side. I've never done one and I need some knowledge how to go about it. Am I to understand I need to pull the whole axle out to do it. I've done it once on a car about 30 years ago,lol. I keep looking around for a repair manual but they're hard to find without having to buy it. I looked here on this site but apparently Im too junior a member to be able to download one right now.Bummer! One other question if I may.When I pulled the drum off the spindle a torrent of water poured out,the brake shoes were covered in mud along with everything else. I mean the drum had alot of water in it. The shoes were so locked up after I removed the springs I tried to rotate one of the shoes and it wasn't easy at all. I noticed whoever had the machine before myself had laid a bead of RTV around the back plate but apparently it didn't work. Isn't there some kind of gasket for this purpose. I saw it calls for a dust shield but surely this wont keep the brakes dry or will it. Thanks everybody.
-
By STEP MONSTER
as soon as key is turned on 30 amp fuse blows. replaced battery & starter relay. no luck.
-
By nel79
Hey guys,
Looking for some info on a 2000 Yamaha Kodiak. When I leave it sitting I get fuel leaking out of the carb drain. What causes this? Float stuck?
-
-
