Tiffany Rowland

Plug location for R and N light on 07 Honda trx400ex

Recommended Posts

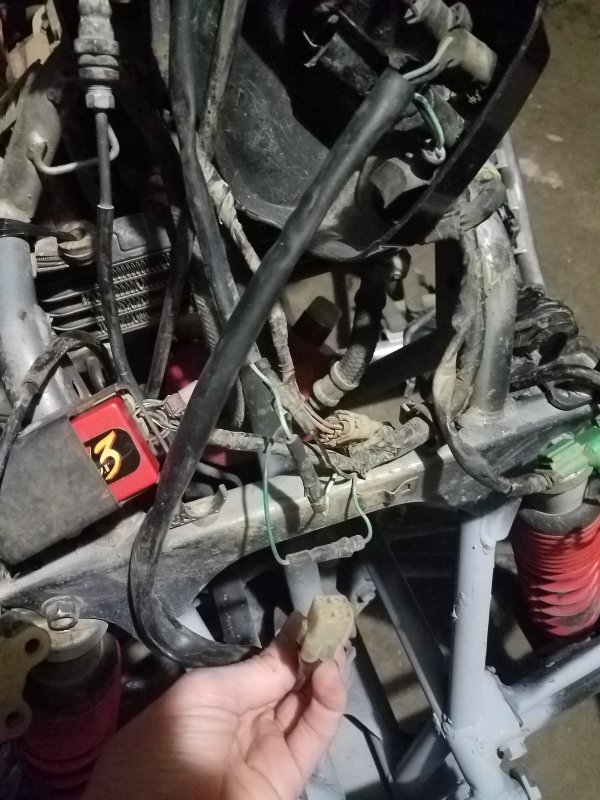

I am working on a Honda sportrax I just got my daughter for get birthday and the reverse and neutral light are not working. When I traced the wire down I saw that it wasn't plugged in but I don't see where it is supposed to connect. Does any one have a general idea of where I should look?
