Prairie 360 Diagram Doesn't Match What I Have - Help?


rebeltaz
 Share

Recommended Posts

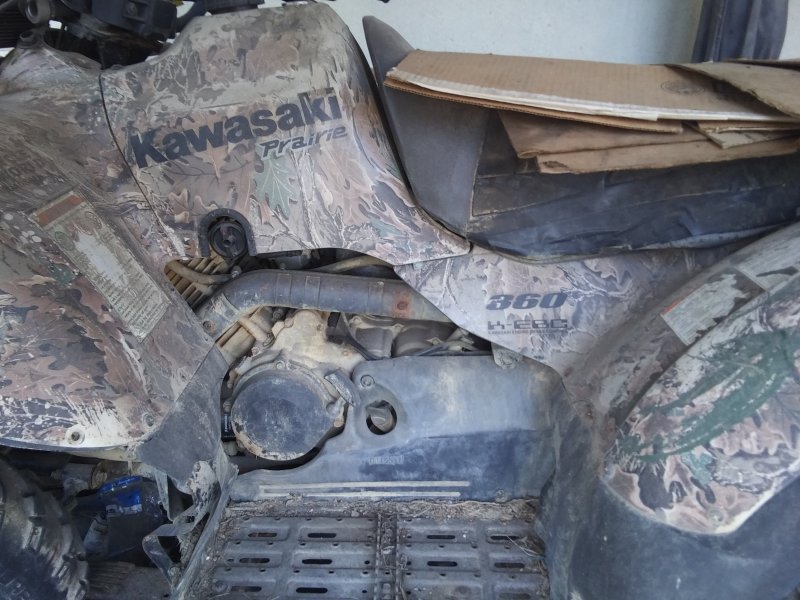

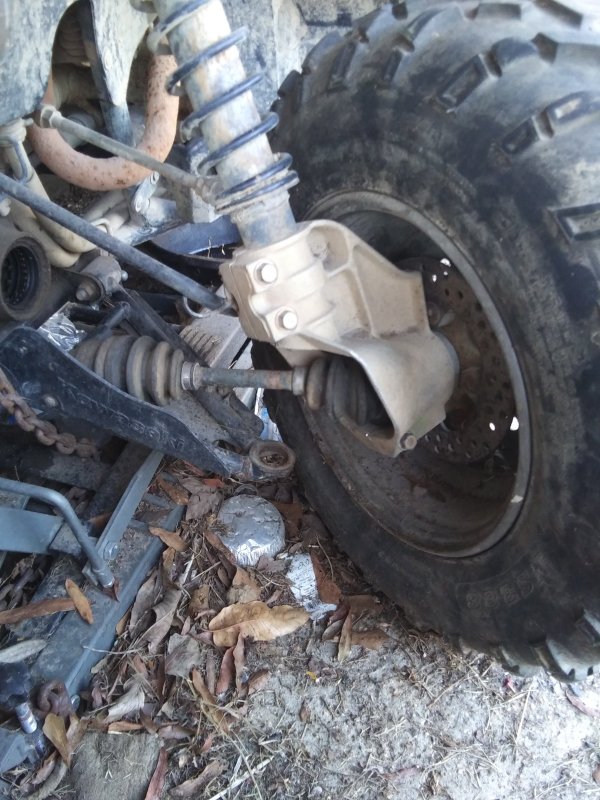

I've got an 03 Prairie 360 4x4 that needs a left front ball joint and knuckle assembly. On the diagram (from PartShark - https://www.partshark.com/oemparts/a/kaw/50a852a0f870021a9c423c20/suspension ) they show the ball joint as a part of the knuckle assembly, extending down into the lower a-arm and held on with a nut. On the four wheeler I have, the ball joint is pressed into the lower a-arm and extends upwards into the knuckle assembly and is held in place with a bolt going horizontally, clamping the ball joint in place.

Any idea on why the diagram is different and how I can find the actual parts I need?

Link to comment
Share on other sites

Ok...  There's a 360 Prairie and there's a 360 Prairie Advantage Classic..  The 360 prairie has that other sort of suspension, and your's looks like the adantage classic.
