1997 Polaris Magnum 425 Oil leak from water pump weep hole

n4cer26

By n4cer26
in Polaris ATV Forum

 Share

Recommended Posts

n4cer26 Apprentice

n4cer26

Posted
Posted

I chased down the leak on my 97 Magnum 425. I have a nice leak coming from the water pump weep hole. I am being told the oil seal inside the pump needs to be replaced. Can anyone tell me what is involved in the repair. Can it be done without pulling the motor? Thank you!f5b066d397eba1f9bcb4ed3d91d4d7da.jpg



Sent from my SM-F926U using Tapatalk





Link to comment
Share on other sites
  • Admin changed the title to 1997 Polaris Magnum 425 Oil leak from water pump weep hole
n4cer26 Apprentice

n4cer26

Posted
  • Author
Posted

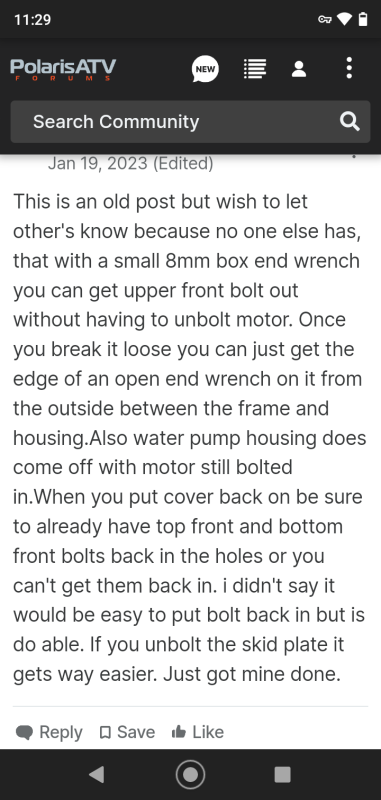

I found an old post online,I've never done it but sounds simple will try to post itScreenshot_20230709-232941.thumb.png.92a47b4a00de0ac808aa2bf41ebb044a.png
Thank you very much! The only Magnum specific video I could find the guy drilled through the frame to access front bolts with a socket and extension. Don't really wanna do that!

Sent from my SM-F926U using Tapatalk

Link to comment
Share on other sites
n4cer26 Apprentice

n4cer26

Posted
  • Author
Posted
The weep hole is for water to come out when the pump is failing, if you have oil coming out of that hole I would just replace the water pump, but that's just me , I don't mess around with water leaks or battery problems I just replace the affected parts before they put me down.
Just got my rebuilt kit delivered

Sent from my SM-F926U using Tapatalk

Link to comment
Share on other sites
n4cer26 Apprentice

n4cer26

Posted
  • Author
Posted
Good luck! Let us know how it works out.
Thanks! Kinda dreading the job (getting housing cover bolts off and back on because it's so tight with the frame so close and partially blocking. May have to fabricate an extended wrench with a bend in it to get that front bottom bolt. We will see!

Sent from my SM-F926U using Tapatalk

Link to comment
Share on other sites
