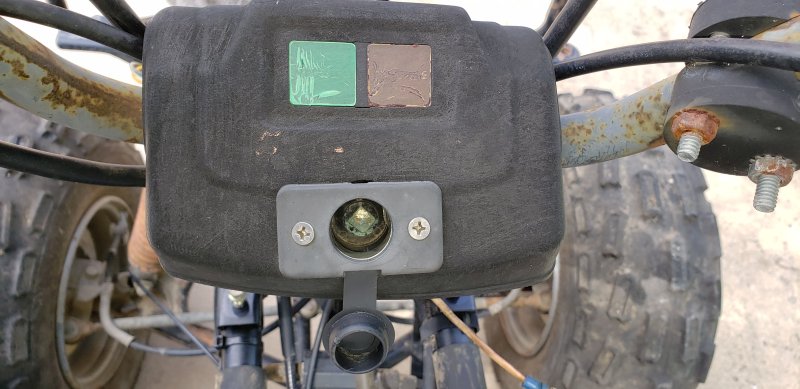

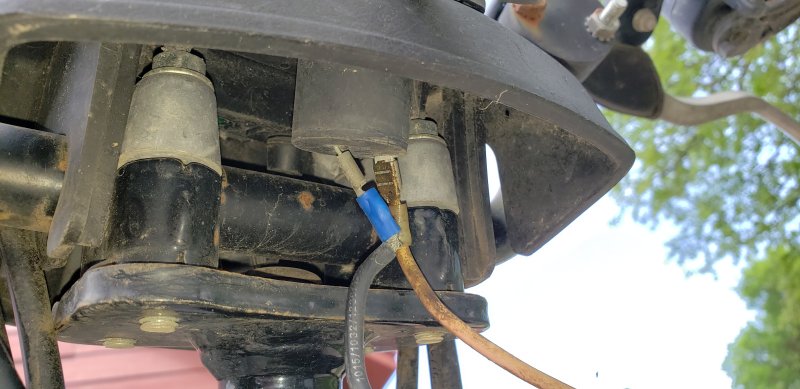

No cigarette lighter just a hole with a cover on it. Under it has 2 wires. 1 is fused and both are cut and disconnected. What about the white wire and black wire with yellow stripe by the starter relay in pic 3. are they supposed to be connected anywhere or are they test leads? After checking what you said I will start a new topic on it. I found out yesterday it is a 1995 model Bayou 220 Thanks

Ign switch is ok, just removed it out of the cowling to access wiring better. Jumped the 2 blacks like you said still no crank. Thanks for the info on starter circuit I am kinda handy with meters was in auto repair for 23 yrs but 1st atv and kinda rusty at it. Have to wait till next day off to mess with it. Any info on the wires that are disconnected? Thanks. Az

Ok Update. I was taking the starter relay off and found the 30 amp fuse under the cover when you unplug it. It was blown. I replaced it and no crank. Grounded the green wire on the other relay which you said to try still no crank. I unplugged the kill switch and jumped the starter relay and it started for a second. I was only using starting fluid. Now I know it will run. Why wont it crank at the switch? Starter relay bad? its in neutral. Also any ideas on the other wires not plugged in I showed in pic 3 white wire and black/yellow and the 2 unconnected wires under the steering wheel? Thanks in advance Az

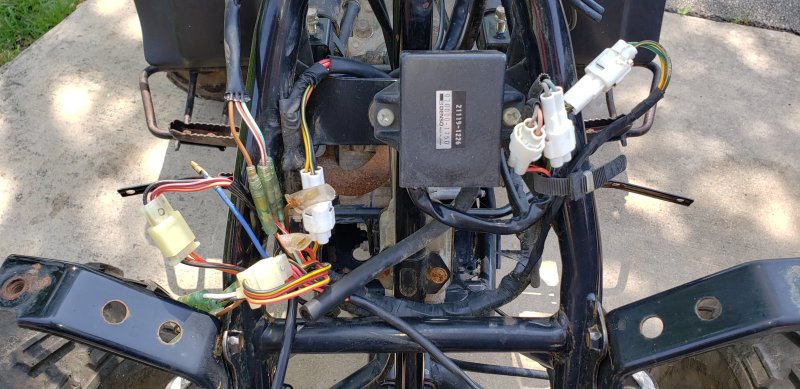

Ok, No fuse found anywhere. Power to starter relay, nothing coming out of any of the wires except the 2 you can jump. Is this also a fuse combo relay? Next I ran a fused jumper wire from Pos/Batt. to Single white wire not connected to anything by battery and get power back to combo starter/relay. Got power at key switch still no power at Pos. Ign. coil or Neg coil Does the relay/fuse have to be good to get power at coil? Next Still jumpered I disconnected kill switch still no power at coil. Last question The white wire on pic 3 is what I jumpered 12v to. that one and the one next to it are not plugged to anything. Are they supposed to be plugged in or are they both test connectors? This is under the steering wheel. both wires cut. What are they supposed to go to? Cig. lighter?

Subscribed, Same problems on mine, Any updates on this?

I recently bought a used 220 They said needs carb work, ran fine when parked (4 years ago) After looking at it. I have no power at ign. switch or coil, lights etc. Have power at starter relay which I can jump and it cranks but of course no spark. Is there a fuse I am missing? Found one under steering wheel, 2 wires connected to it which aren't there anymore. Battery fully charged just no power anywhere that I can see. Need ideas where to start.
