00 suzuki king quad 300 burnt regulator/rectifier connector
iceman posted a gallery image in ATV Repair and Modifications
-

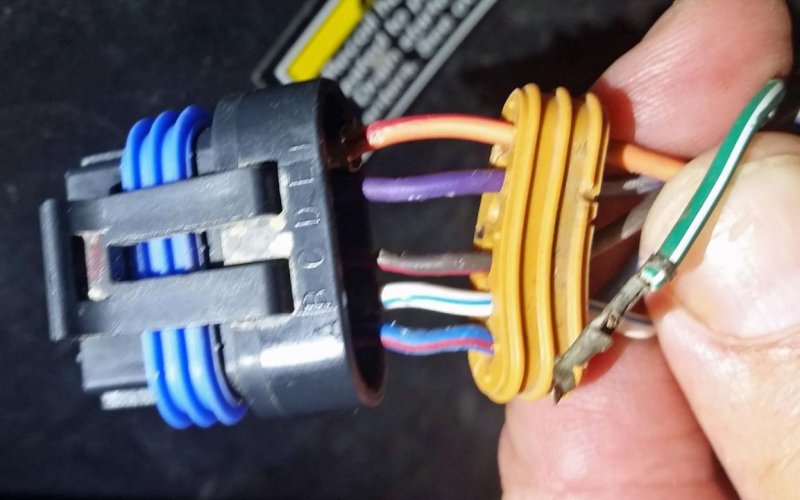

The connector that that plugs into the switch evidently was caught by something while riding (I'm guessing) and a couple of wires were pulled out of the connector. I have attached a picture. Is there any where that I can get this female end with pigtails without buying the entire wiring harness? I'm a pretty good wire splicer and solderer.
-
Hi. The starter relay has burned out on my daughters 1998 LT80 ATV. Im pretty sure the relay is bad, because if I jumper the 12v constant and the 12v switched to the starter at the relay connector, the starter will turn over. I have already ordered a new relay and a brush kit for the OEM starter I have in a box (it has a Chinese made starter installed now, and I dont know what condition it is in, other than it turns when I apply 12v as explained above). The relay will not be here until next week, and what I want to do is wire in a regular automotive 30 amp relay until the new one gets here. I will leave the connector intact and I have already made 4 male-female jumper wires. What I need to know is which wire goes where on the 5 pin relay, seeing as how the old one is not marked. Typically, the constant 12v goes to terminal 30, the push-button start wire should go to 86, the output starter wire goes to 87 and I am left with one more wire, which is the white/black tracer from the engine stop switch. I dont know where to connect this, and I also dont know if I need to hook up a ground to terminal 85. Any help with this would be ideal. I am pretty good with wiring, but its been awhile since Ive played around with relays, and I would rather have some advice before continuing. Also, the optional pull starter is not installed on her ATV, and if anyone knows where I could find one, new or used, reasonably priced, that would be nice too. Preferrably in Canada. Thanks.
