1995 Bayou 220 Reverse lever seal leak

Recommended Posts

I have a couple other topics on this Bayou but this one is the reverse lever seal is leaking.

Talked to the dealer and have no listing on the seal. Looks fairly simple but is the seal installed from

the outside of crankcase or from the inside before I remove it.

Next question where can I get the new part? I found these on ebay but not sure if they fit.

any ideas where to buy it? https://www.ebay.com/itm/Kawasaki-KLF220-88-02-Bayou-KLF250-03-10-Winderosa-822138-Engine-Oil-Seal-Kit/352356942519?fits=Year%3A1995|Model%3ABayou+220|Make%3AKawasaki&epid=209928936&hash=item520a1c42b7:g:ZKUAAOSwx6pYooaN:sc:USPSFirstClass!78006!US!-1





Share this post


Link to post
Share on other sites

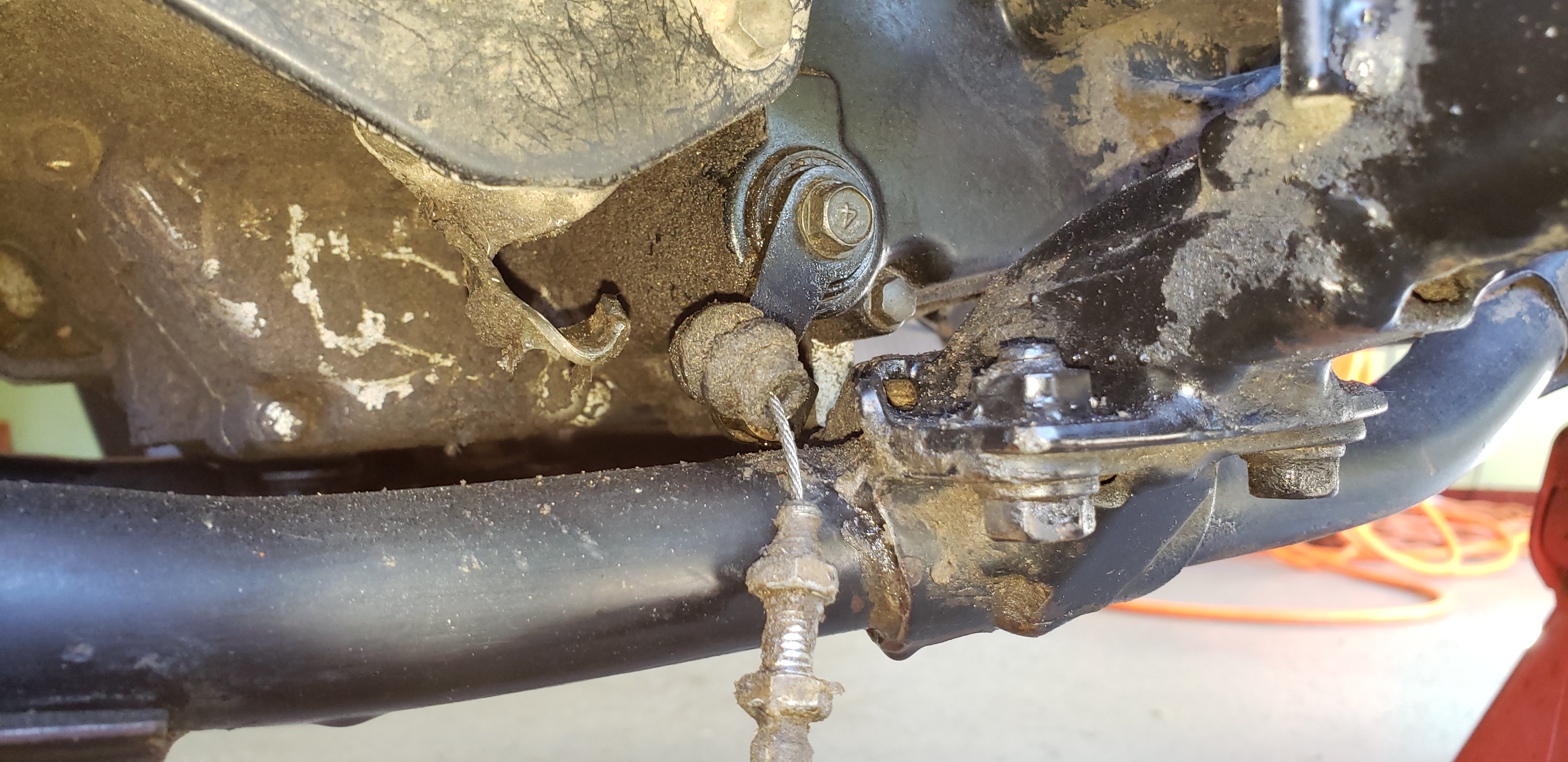

Here are the pics, if the seal in installed from the outside just a matter of

removing the reverse lever and popping it out and installing a new one.

If from the inside (hope not) it will be an ordeal. Any ideas where to

buy the seal? Were the ones on e/bay correct?



Share this post


Link to post
Share on other sites

Ok I know the part.  I am not 100% sure but I remember seeing from the inside when I had my cover off a rounded imprint where the seal sat so I’m going to say it comes off from the outside. Going to need a pick to get it out I would assume.    I can’t be sure though.   Worst case, buy the part and see what it looks like and go from there. If you have to pull the cover however later on then it’s a pain in the ass job.

https://rover.ebay.com/rover/0/0/0?mpre=https%3A%2F%2Fwww.ebay.com%2Fulk%2Fitm%2F181777079026

Share this post


Link to post
Share on other sites

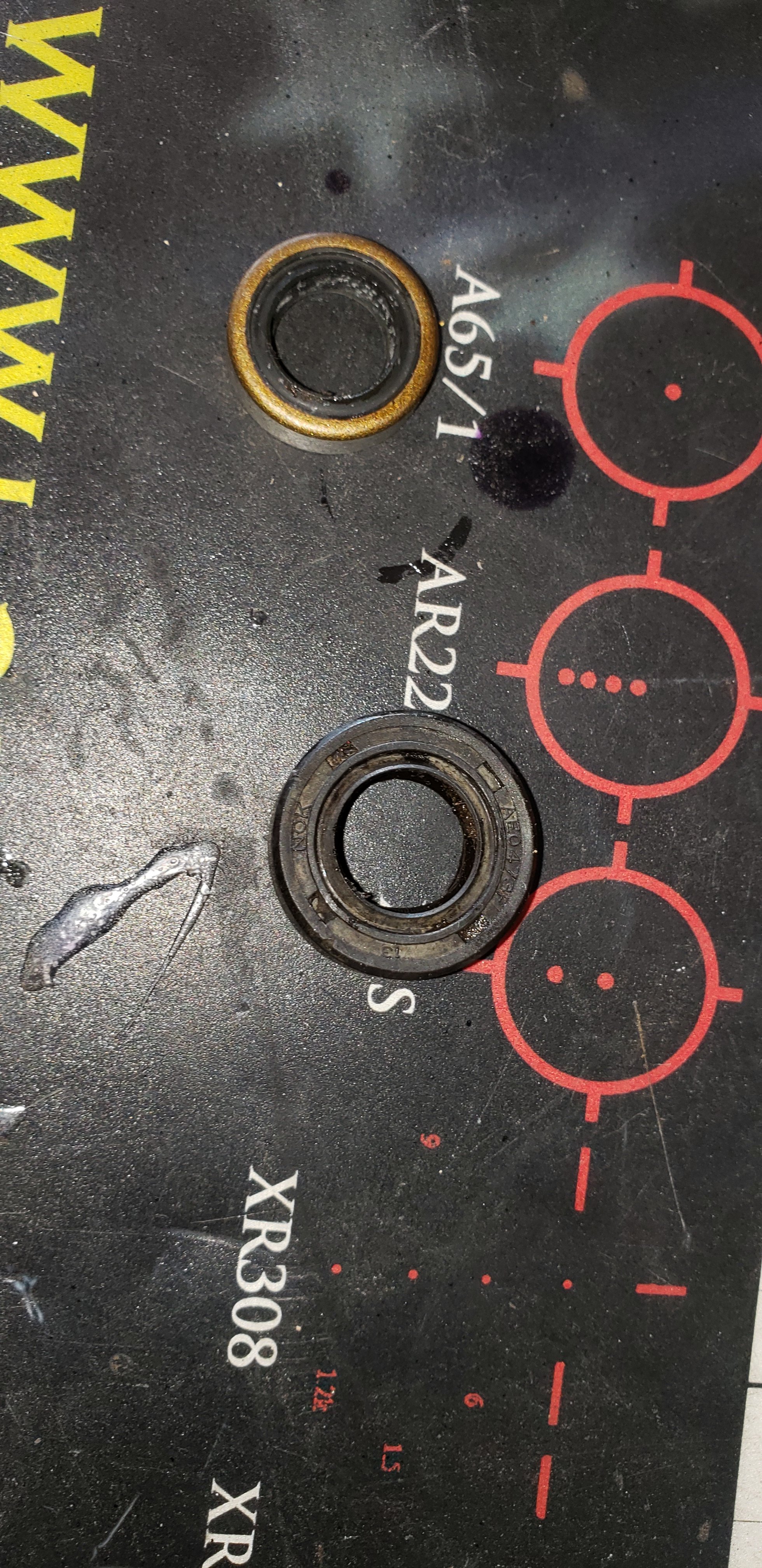

Great, ordered it. Looking at the new part it should be pressed in from the outside.

Thanks Az

Share this post


Link to post
Share on other sites


Good stuff.

Revisit that bolt that holds the lever on after a little riding and make sure it’s tight.   I actually put a drop of silicone on the bolt before a sent it back in.

 Let us know how it works out.



Share this post


Link to post
Share on other sites

Got the seal kit from ebay, looks good. Have a problem.

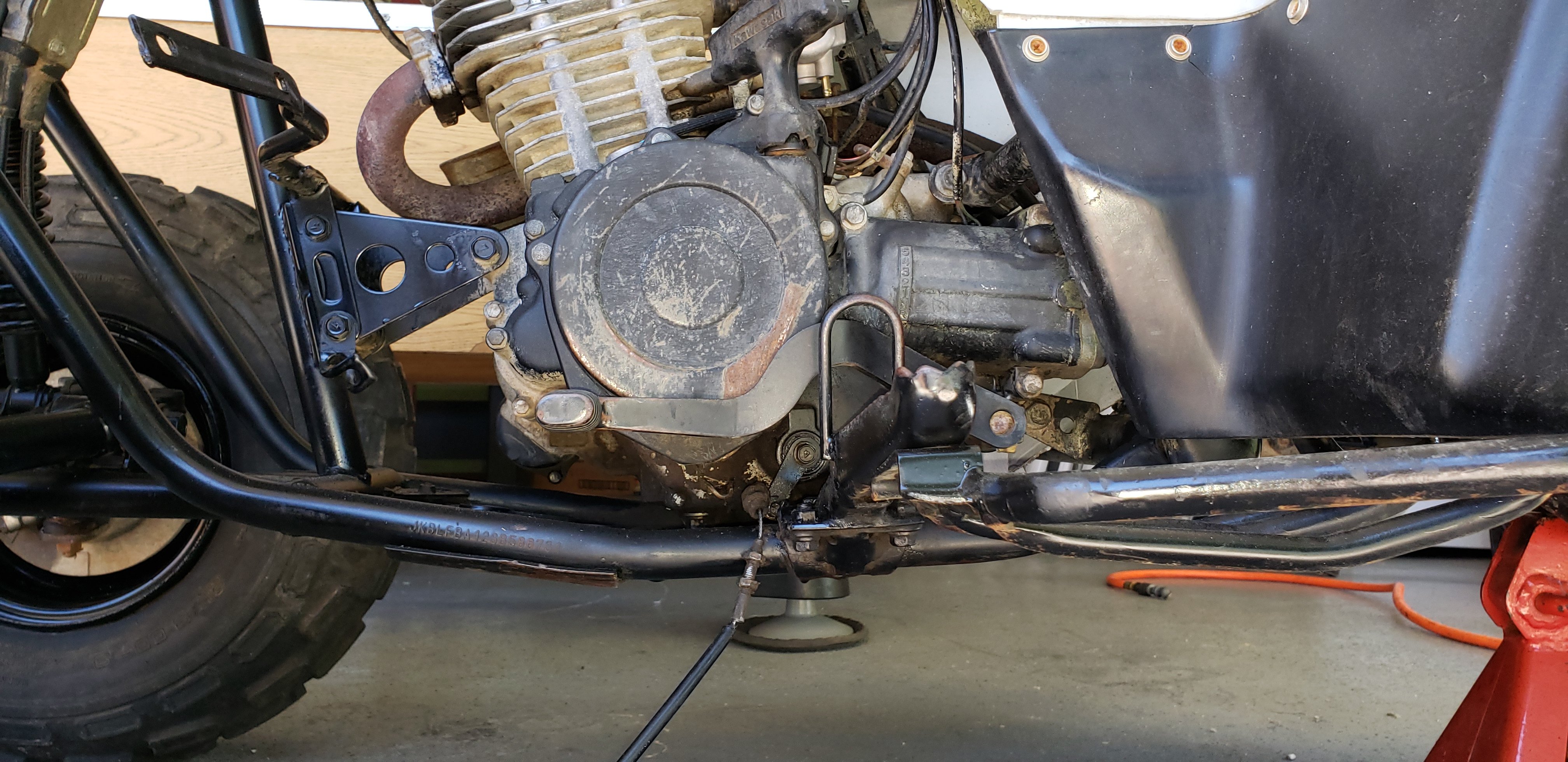

The clamp that holds the reverse cable by the reverse lever

is mangled. I cant find a pic that I can see well of the clamp.

Can you take a good pic of yours so I can see how I need to bend it back in

place so it holds the reverse cable to align it with the lever and hold it in place?

You can see mine in pic #2 it wont hold cable needs to be bent certain direction. Let me know

Thanks Az

Share this post


Link to post
Share on other sites

i am not home now I will send one later on today.   I’m sure you can look up images on line. I think the part number is G119 but I’m not 100 percent sure.   Look it up on YouTube also there should be a video showing an image of what it looks like.

Share this post
