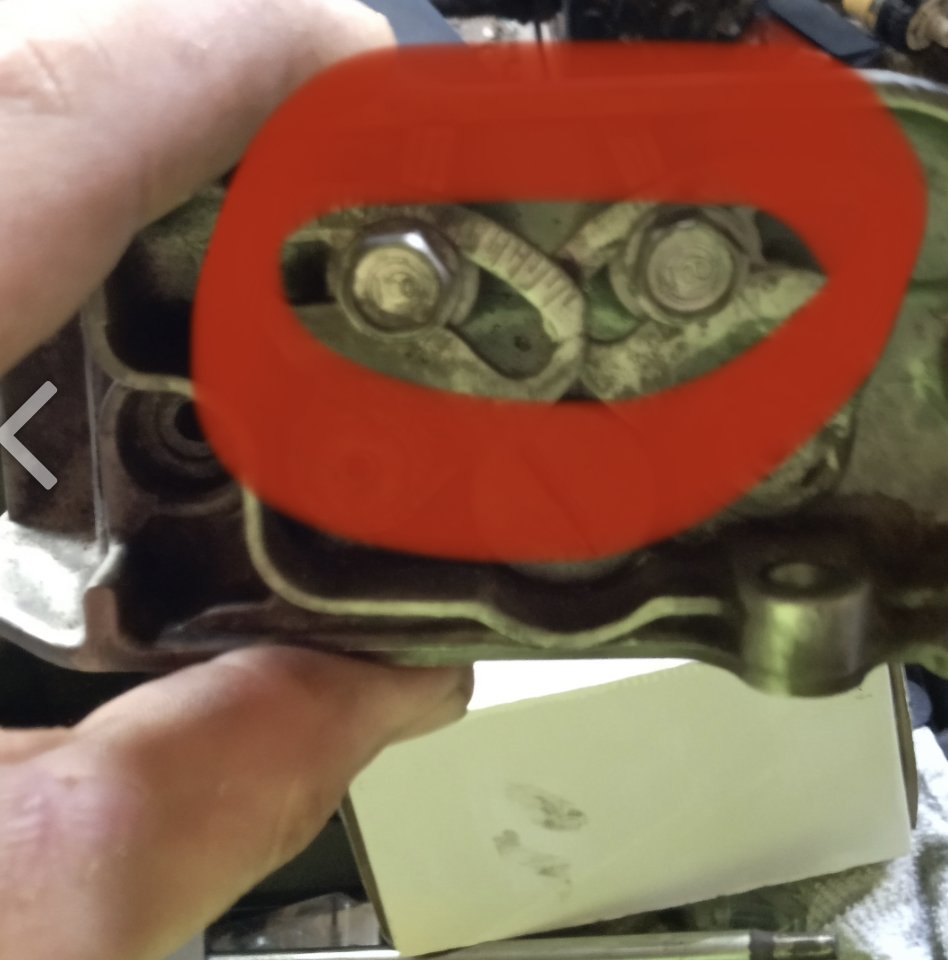

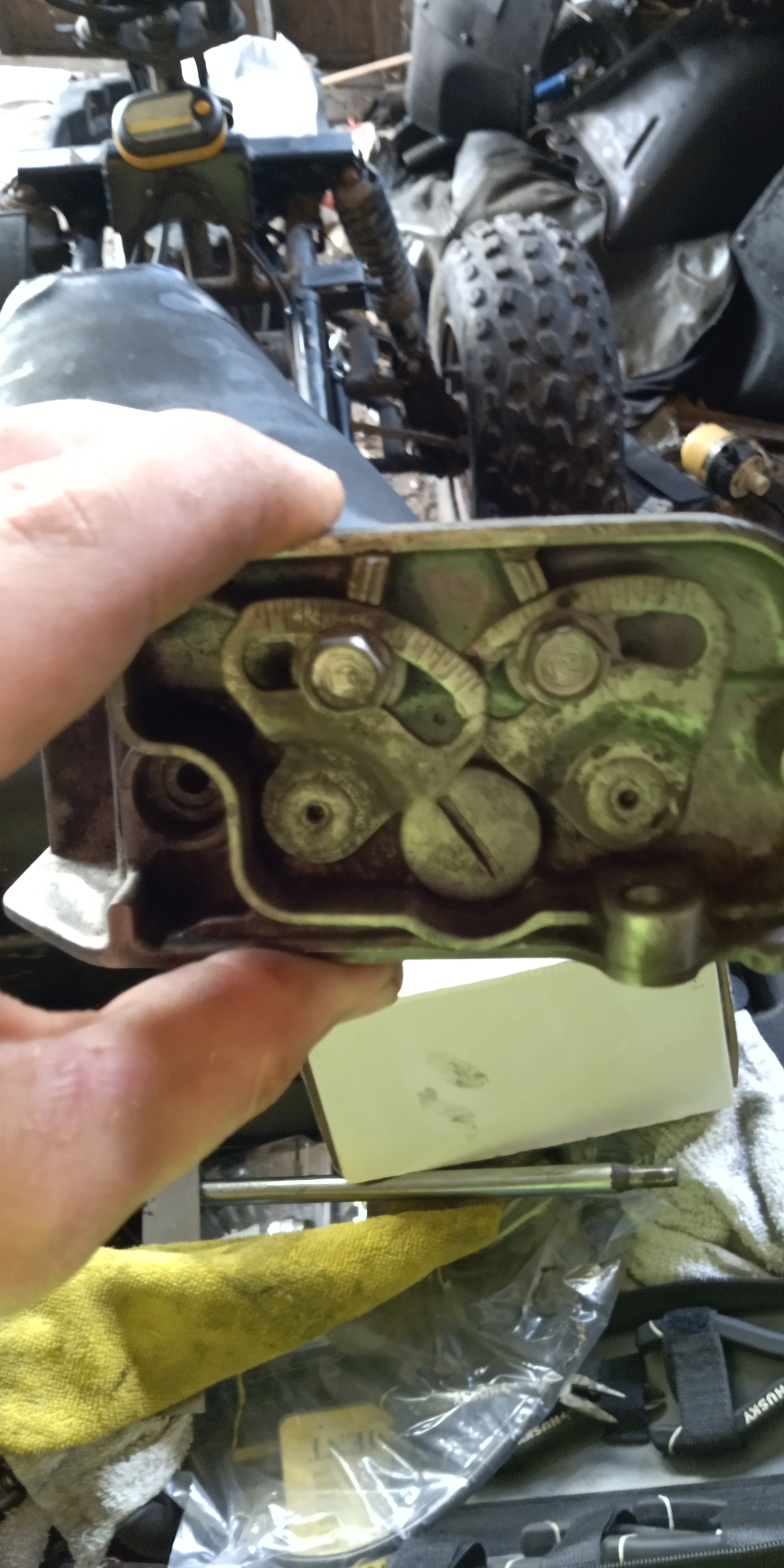

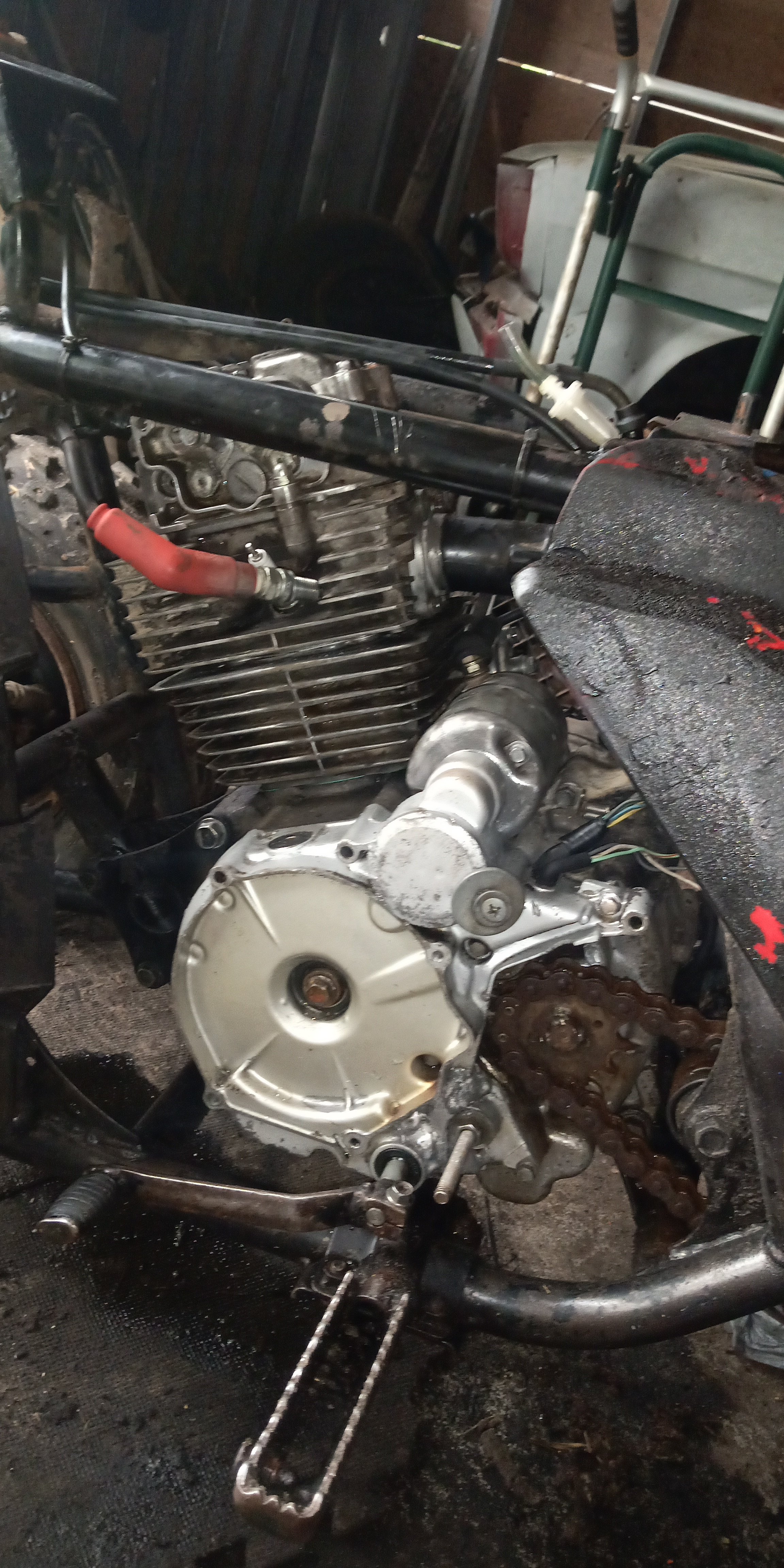

Hi I have a 1991 Honda trx200d type 2 ATV and need to know how to adjust the valves on there. The valve adjustments are on the side of the head and looked up videos in there is no videos at all on how to adjust them. I'm taking the head back off to adjust the timing because it's making good spark and getting gas but it's not firing, trying to start but I'm thinking it's because of the adjustments are way out of  line. And I didn't take a picture of how they were before I took the head off.

Link to post
Share on other sites


  • Replies 42
  • Created
  • Last Reply

Top Posters In This Topic

Top Posters In This Topic

Popular Posts

Hey chase, adjusting the timing ? The timing should be set in one spot only so check that your at TDC and your marks on the sprocket are good.   Once that's done then the timing is set and should not

Good idea and then you can adjust everything properly. Study the manual while your at work if you can.

No problem. Keep us posted and be sure to take and post progress photos.

Posted Images

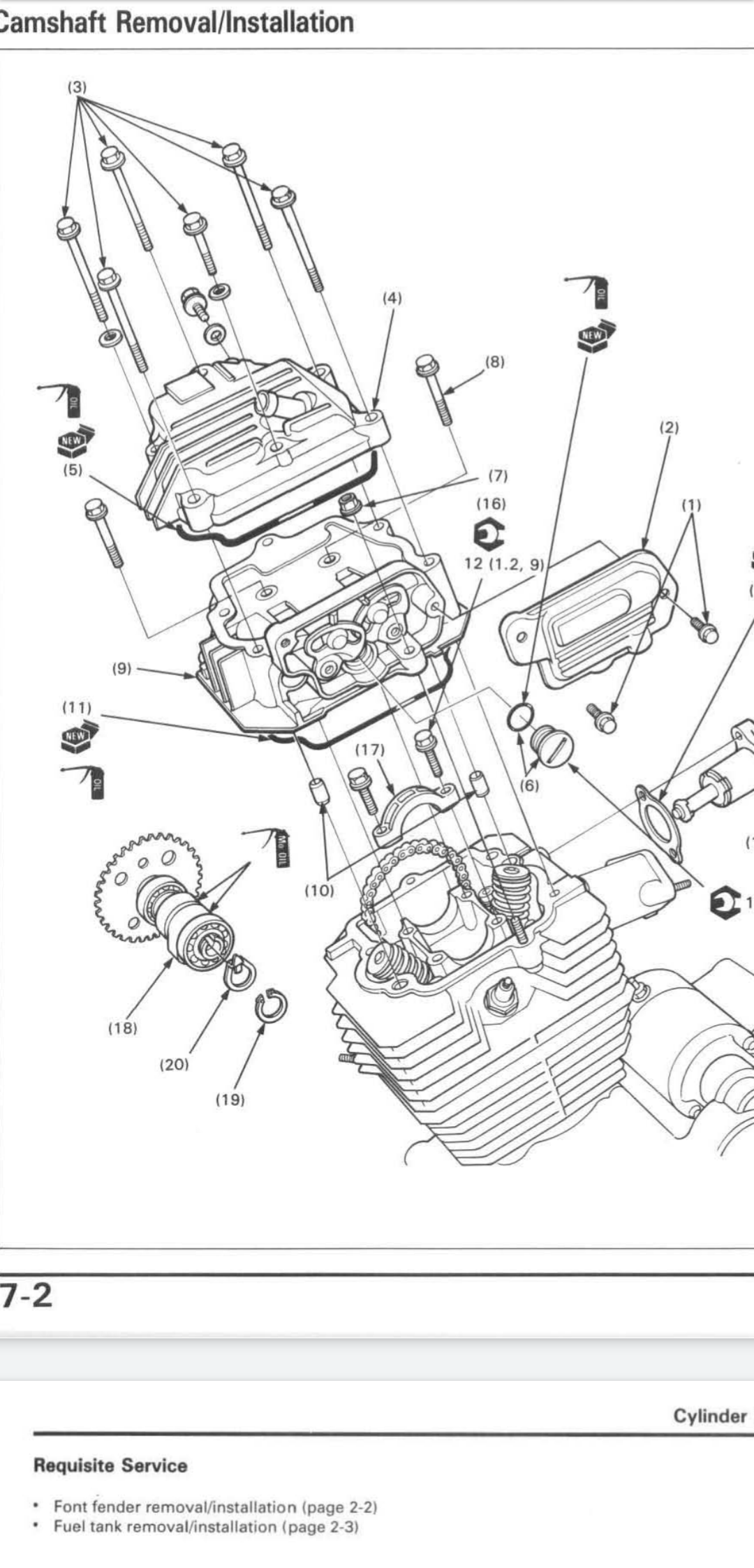

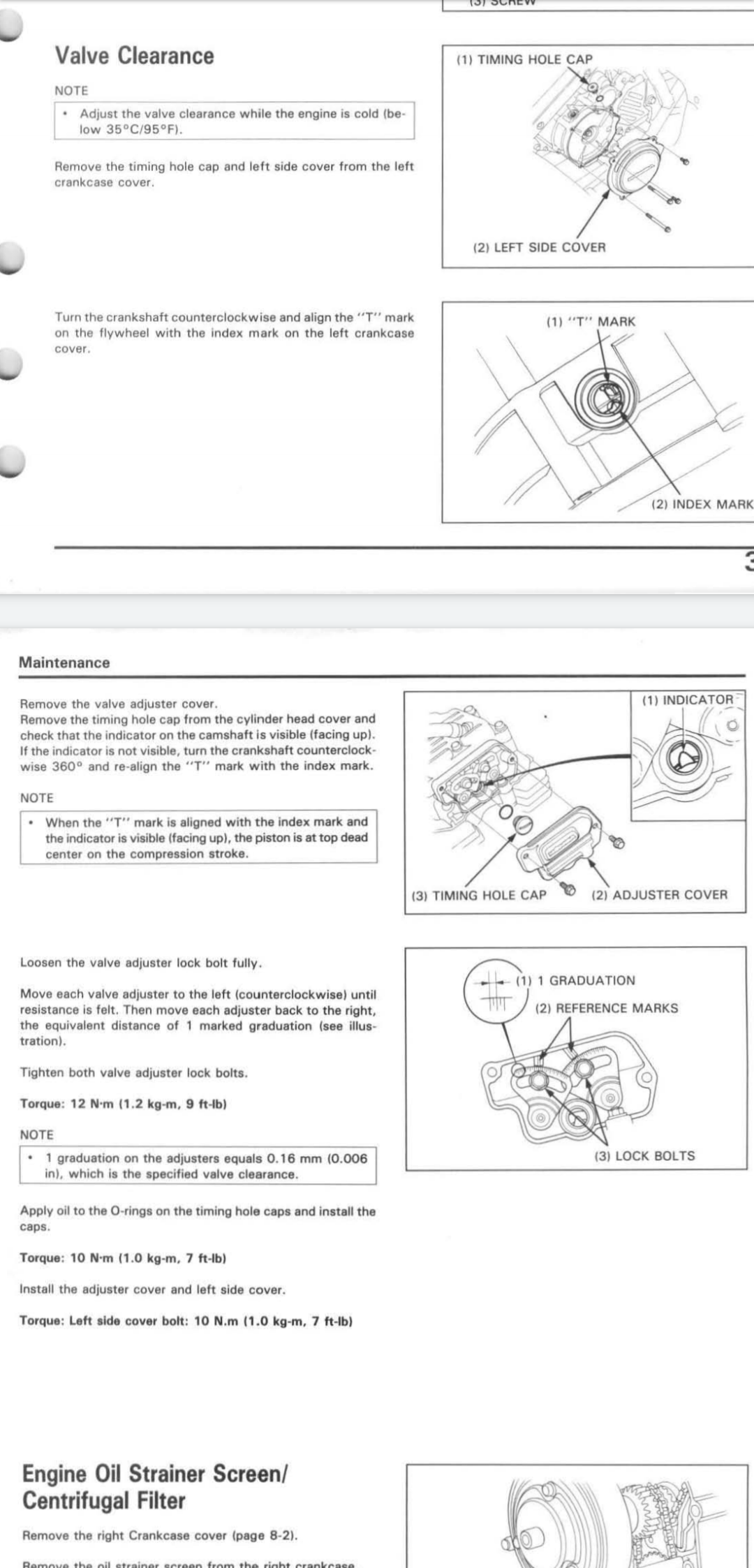

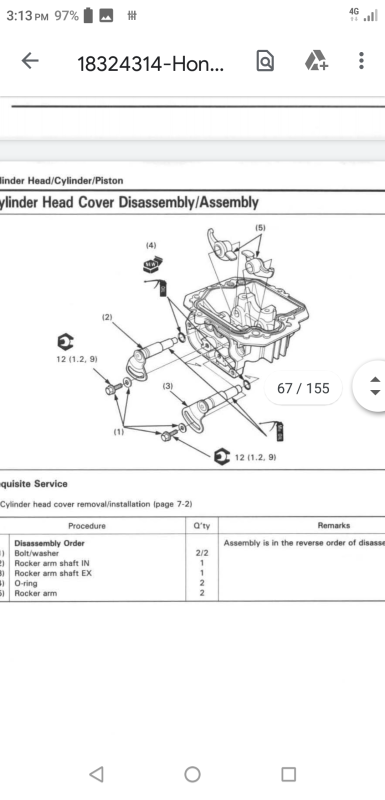

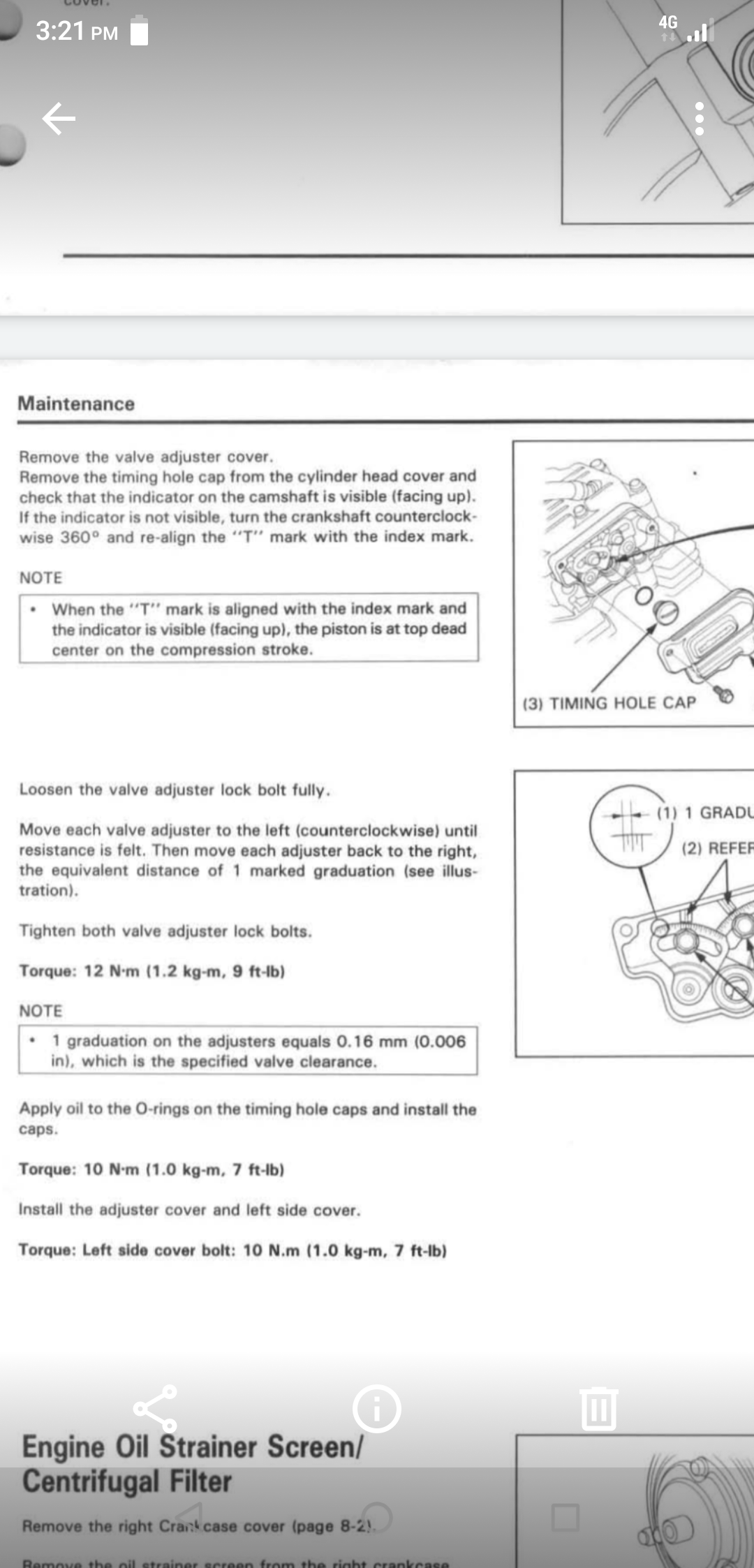

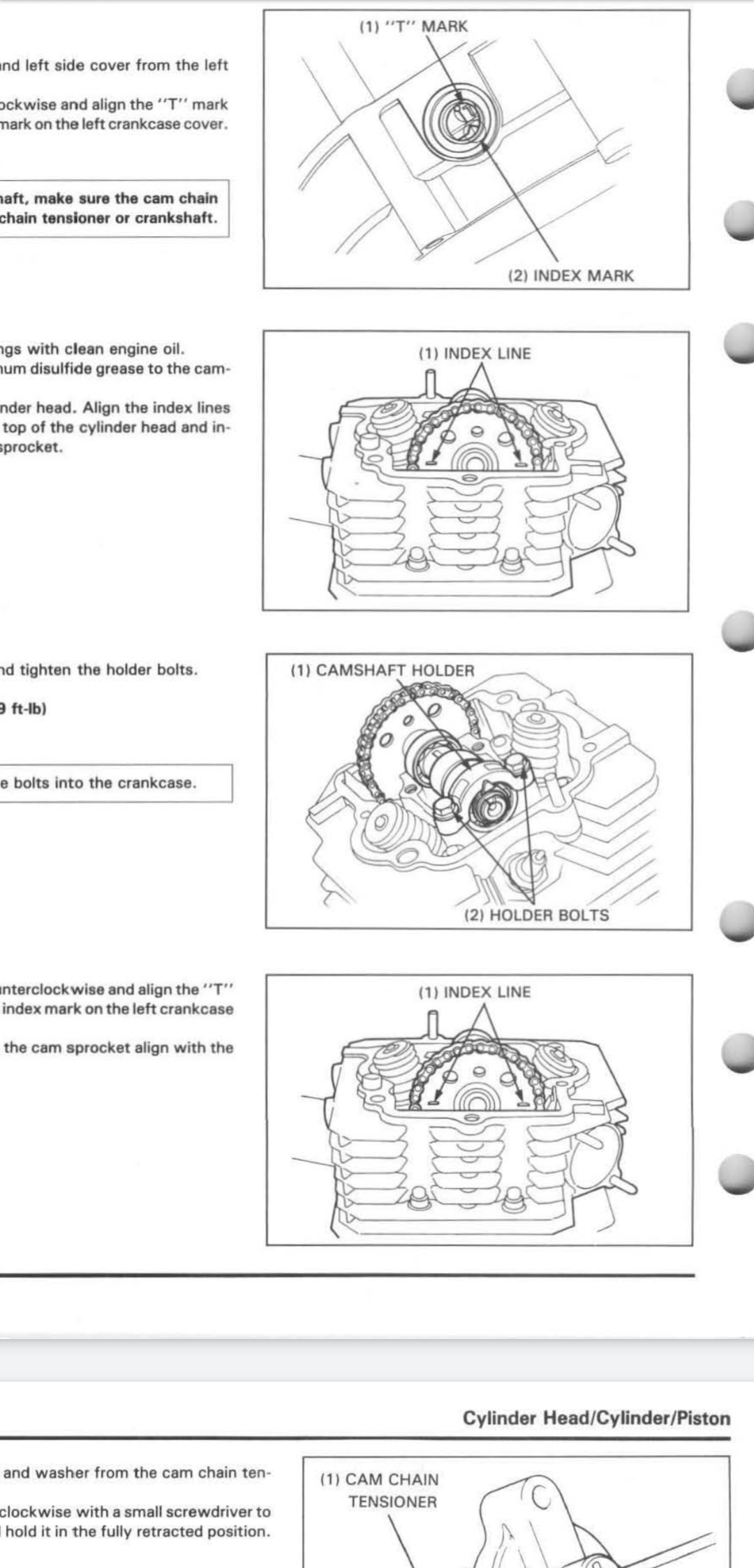

Hey chase, adjusting the timing ? The timing should be set in one spot only so check that your at TDC and your marks on the sprocket are good.   Once that's done then the timing is set and should not be moved.  After its all lined up the valves can be adjusted by loosening up the valve stem adjusters with a 10mm wrench. You basically stick the feeler gauge (size as per manual)  in between the valve and rocker arm and slowly tighten the adjuster until that feeler gauge slides out with a little bit of resistance. Then you tighten the 10mm nut good and try to stick the feeler gauge back in, It should go in with a slight push.  After that you should be set.

Keep in mind that intake and exhaust valves are different sizes on the feeler gauges.

All adjustments should be made in the TDC position.

  • Like 1
Link to post
Share on other sites

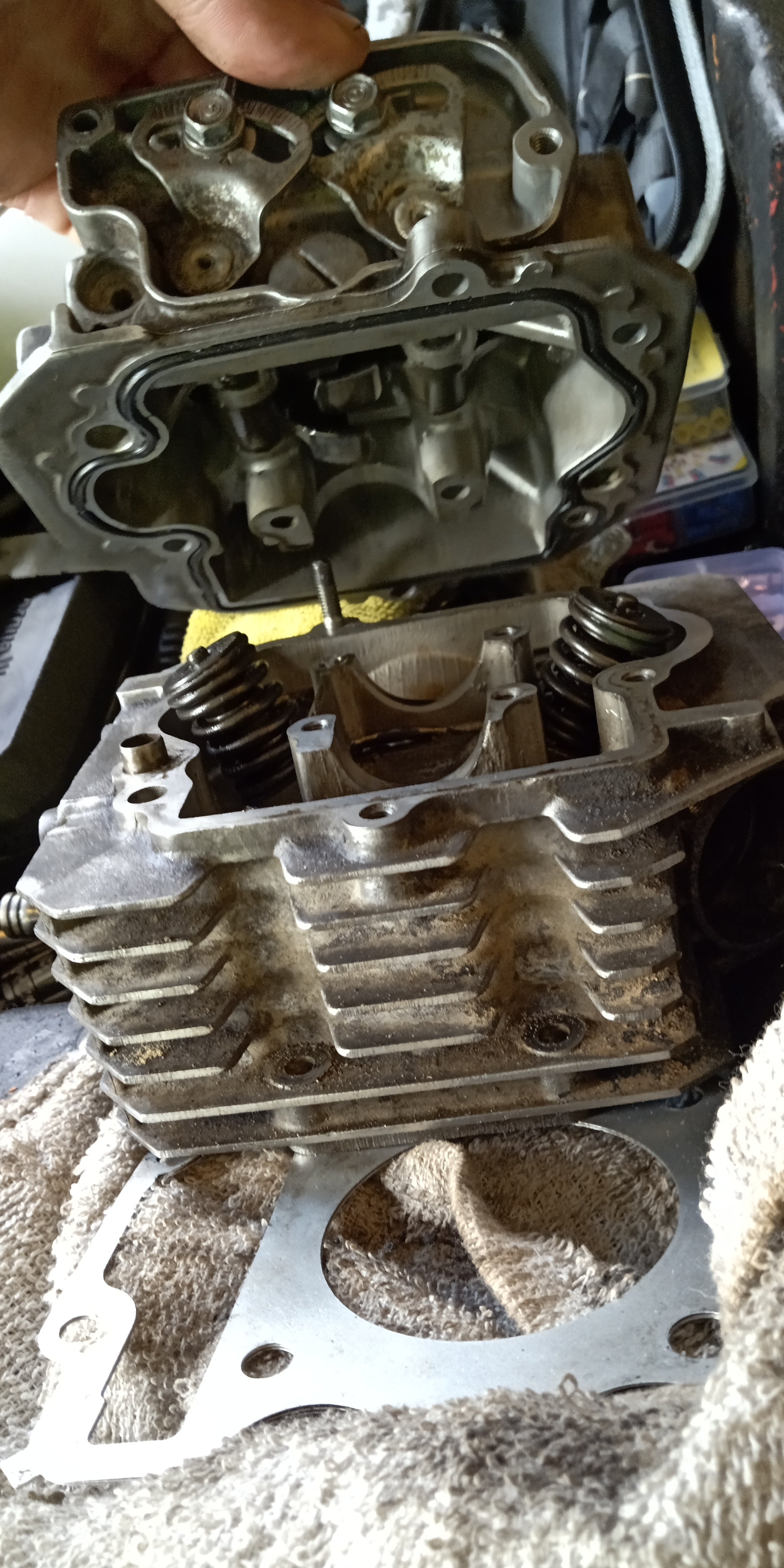

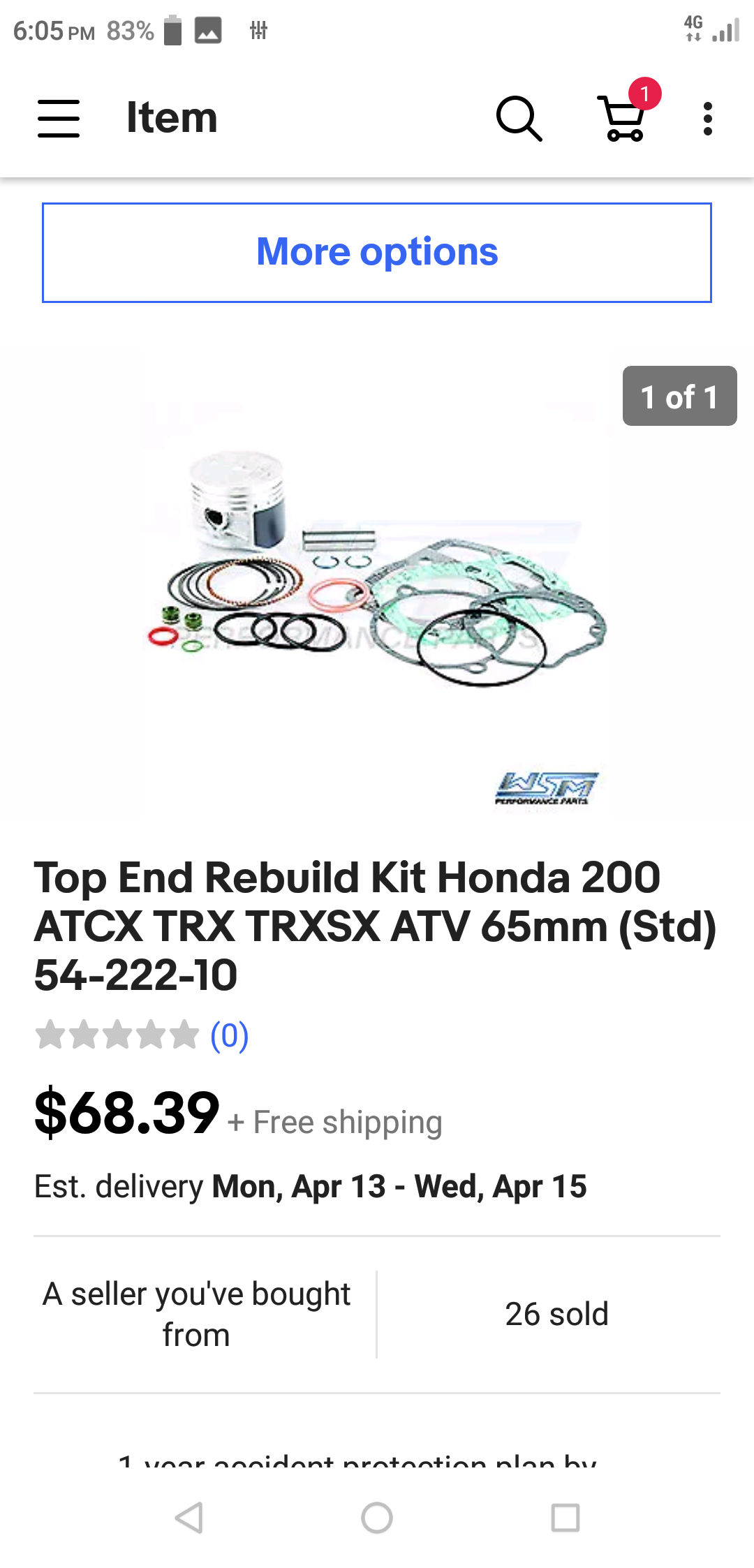

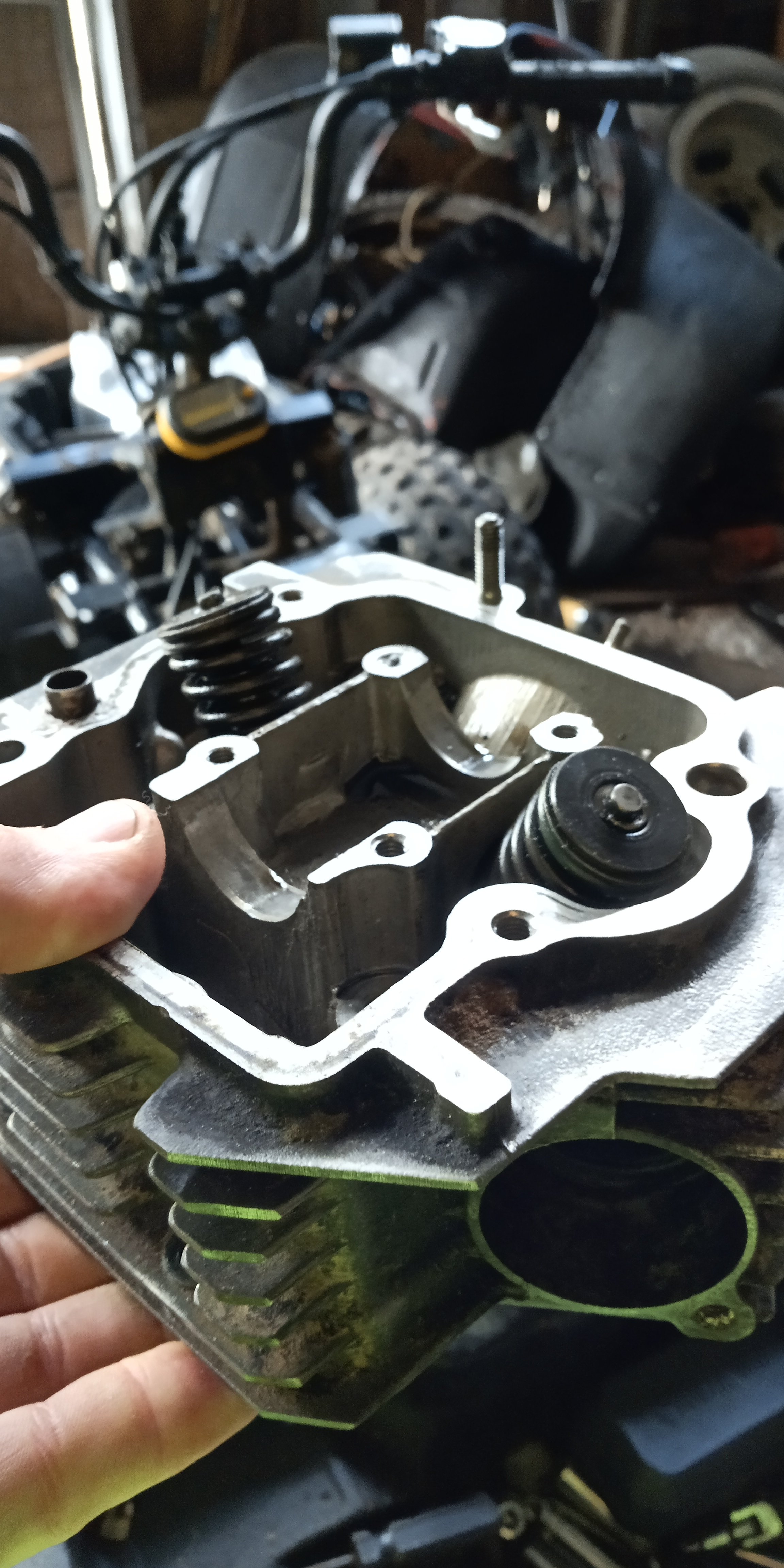

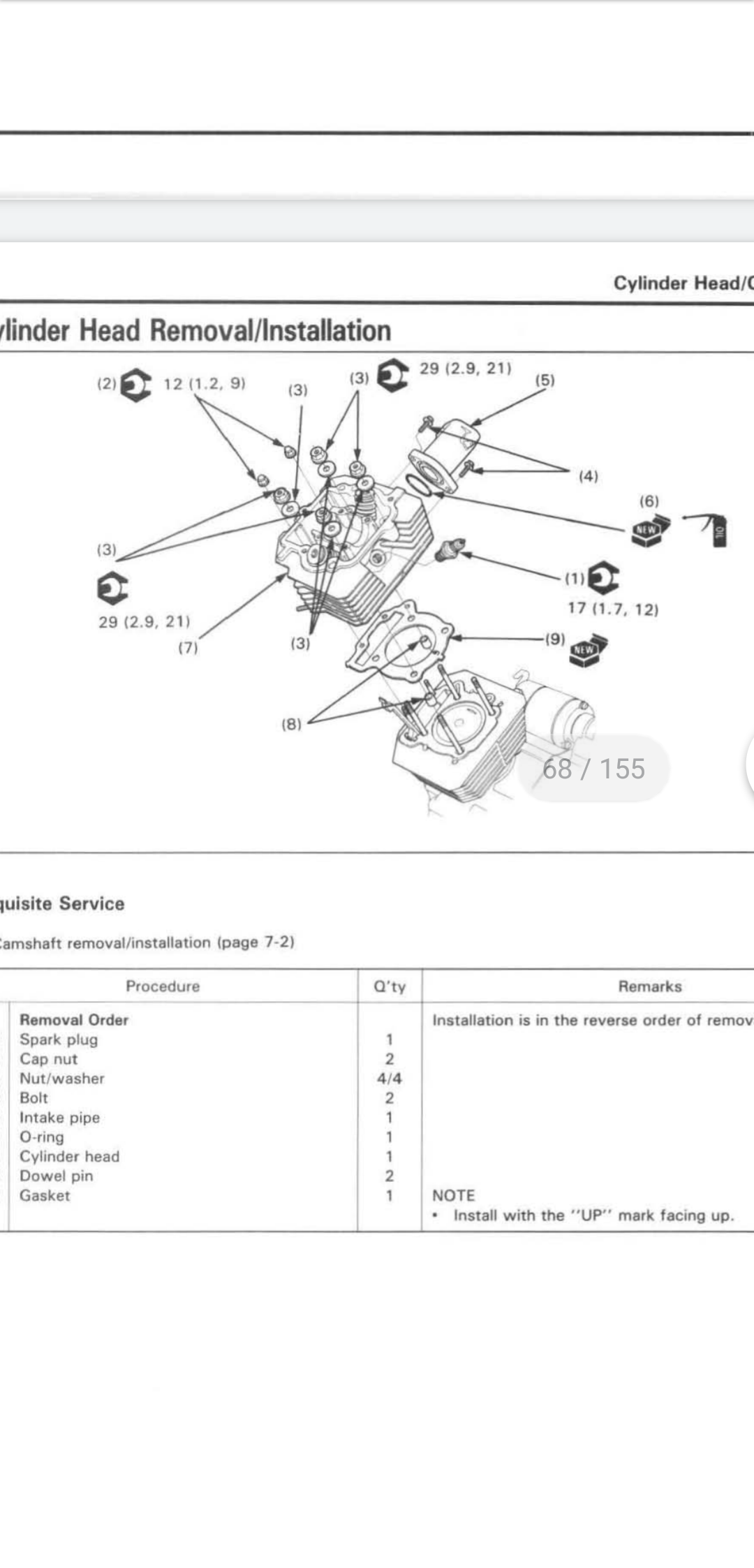

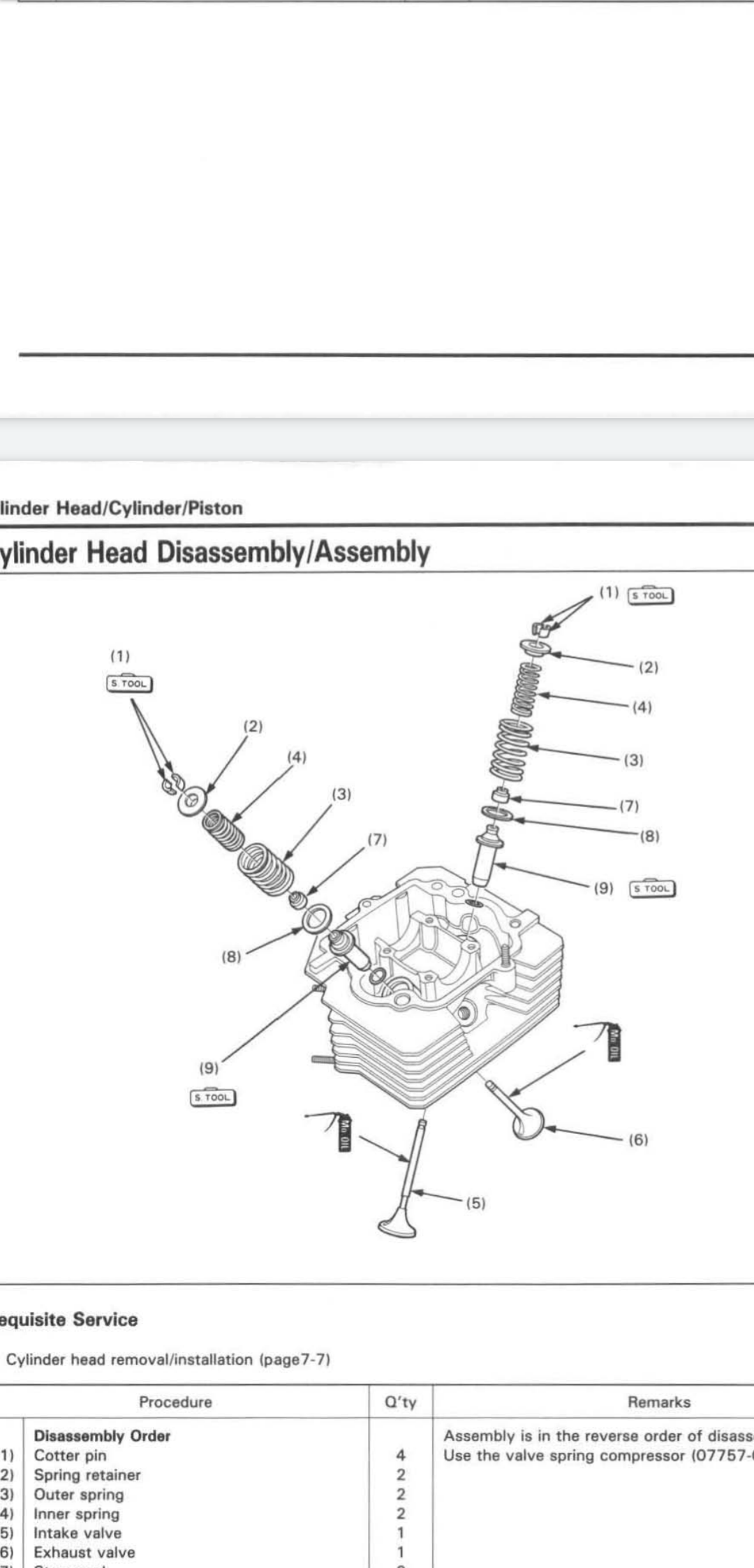

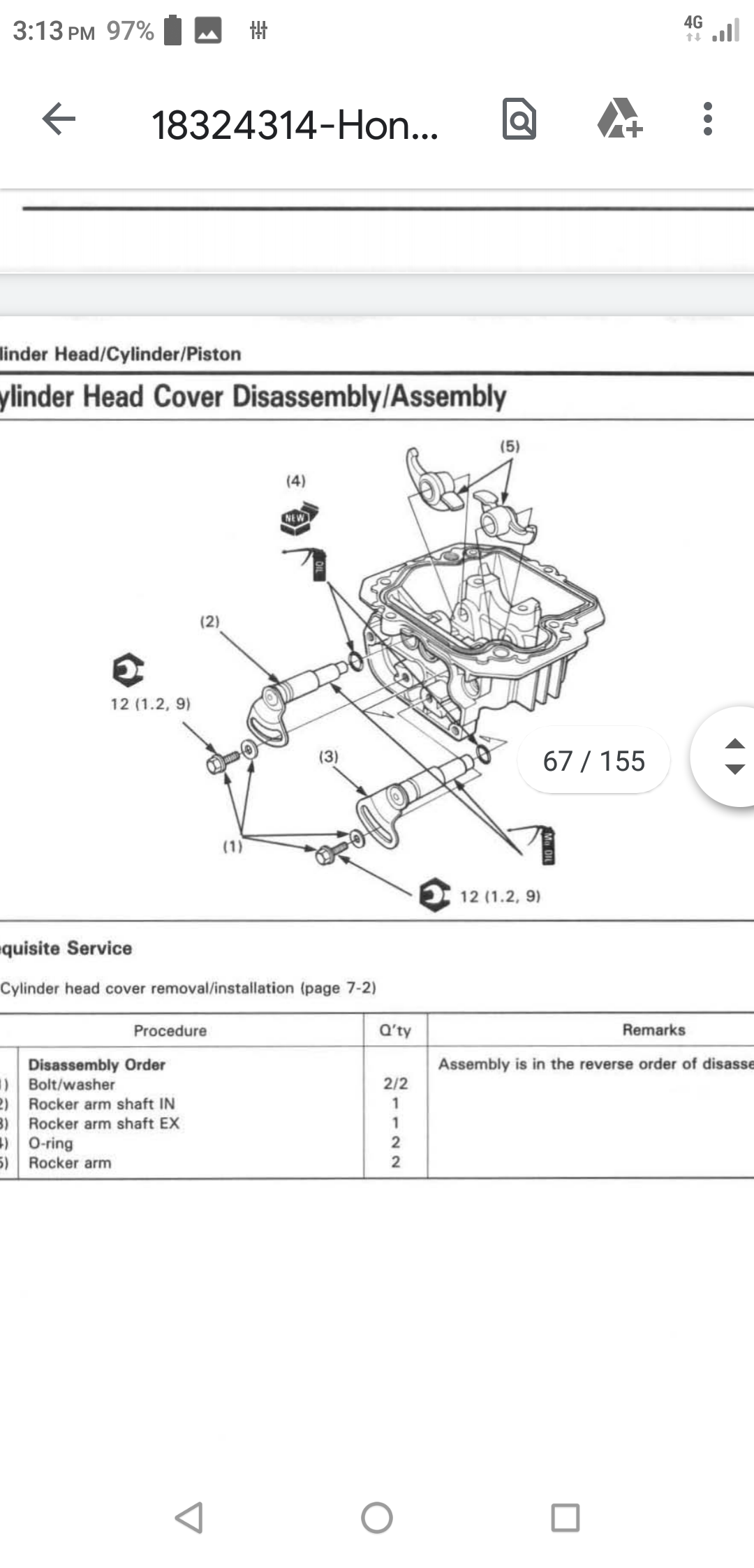

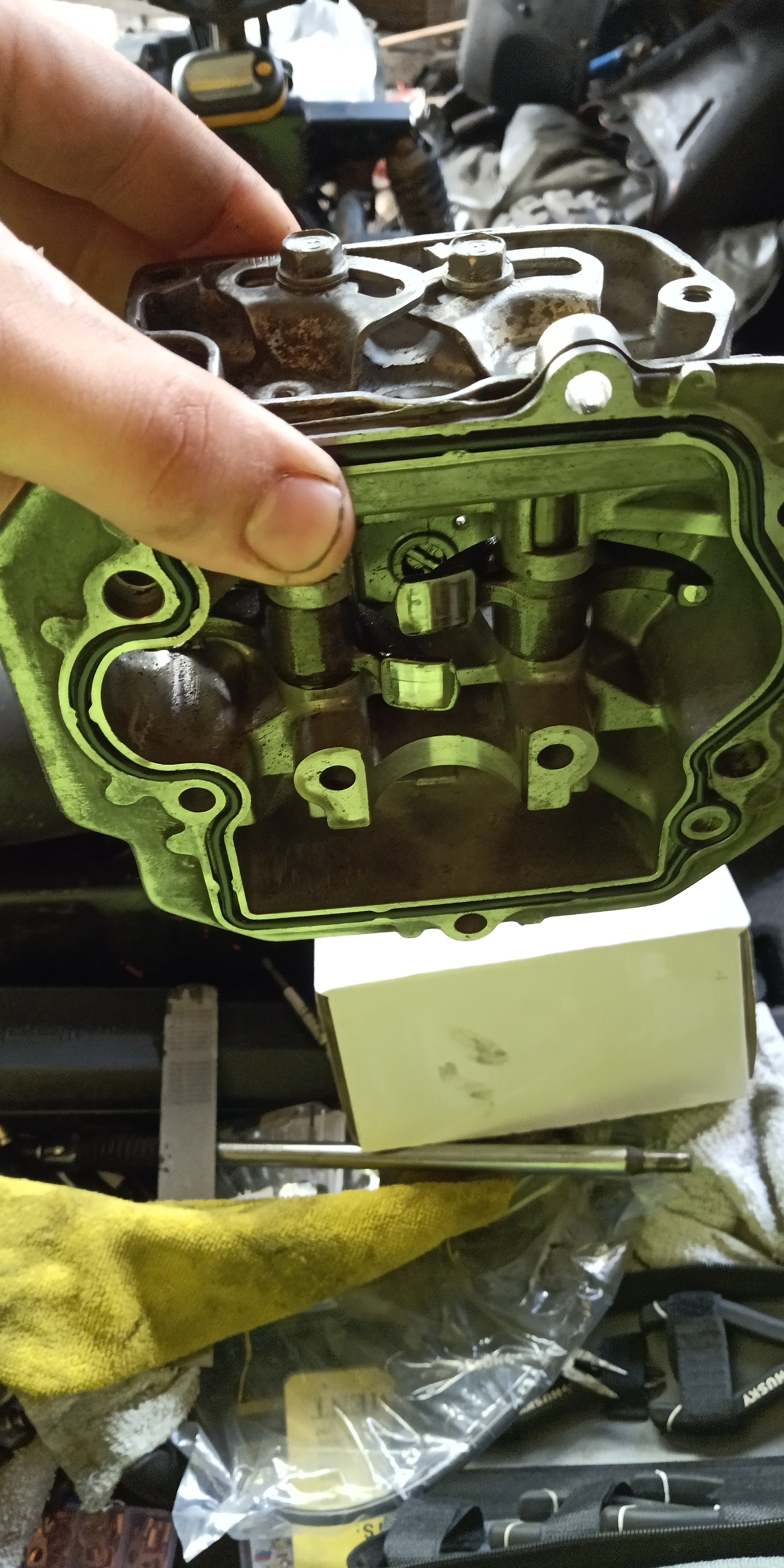

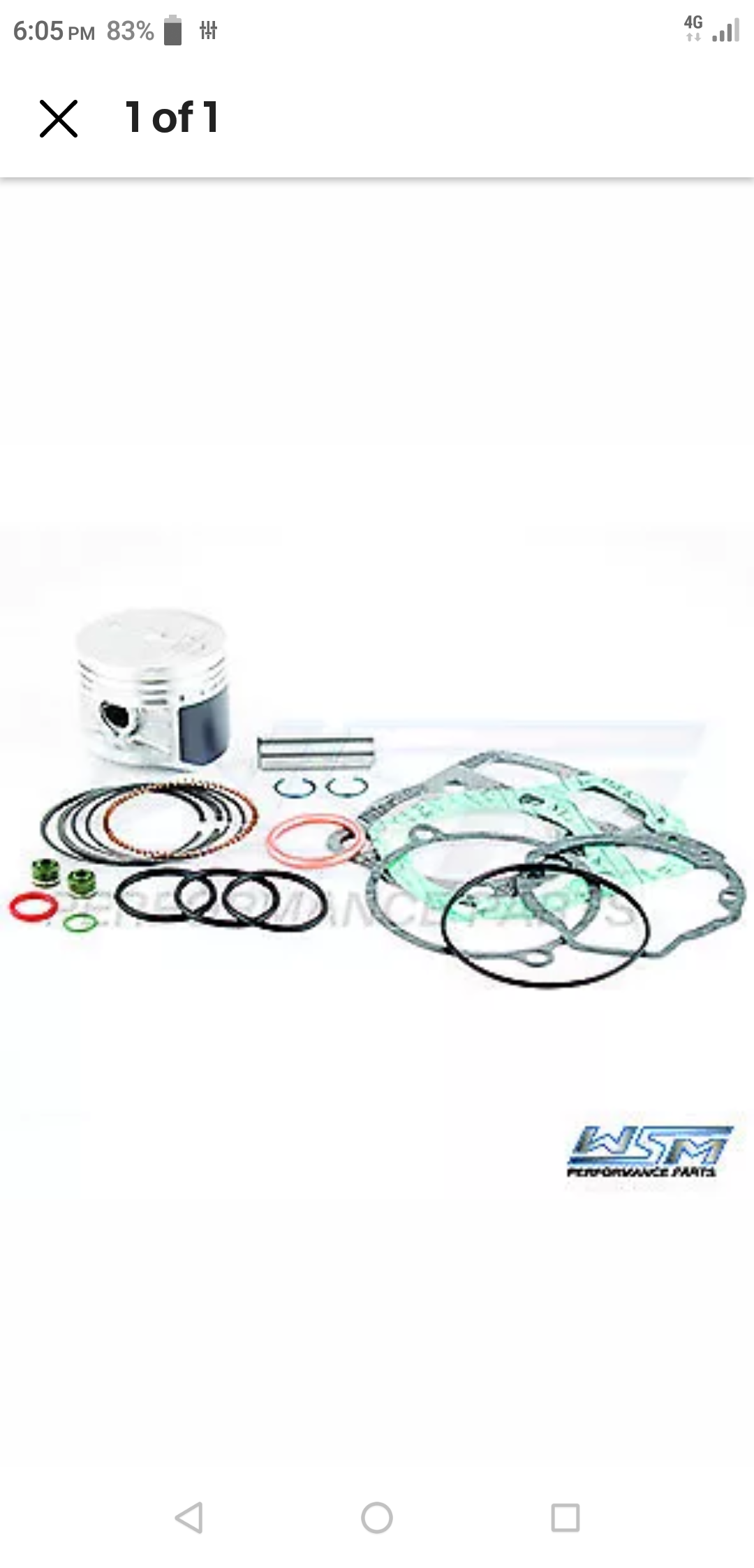

I will later. I'm going to work right now and won't be back until the morning.I did take them all off though but I forgot to take pictures of it. I need new piston rings because it's low on compression. So I just ordered a whole new top end kit. $70Screenshot_20200407-180555.thumb.png.832fc1be0c456e8b1f1e2dfacbe39a34.png
