reverse safety switch for 2000 honda trx300ex question


Recommended Posts

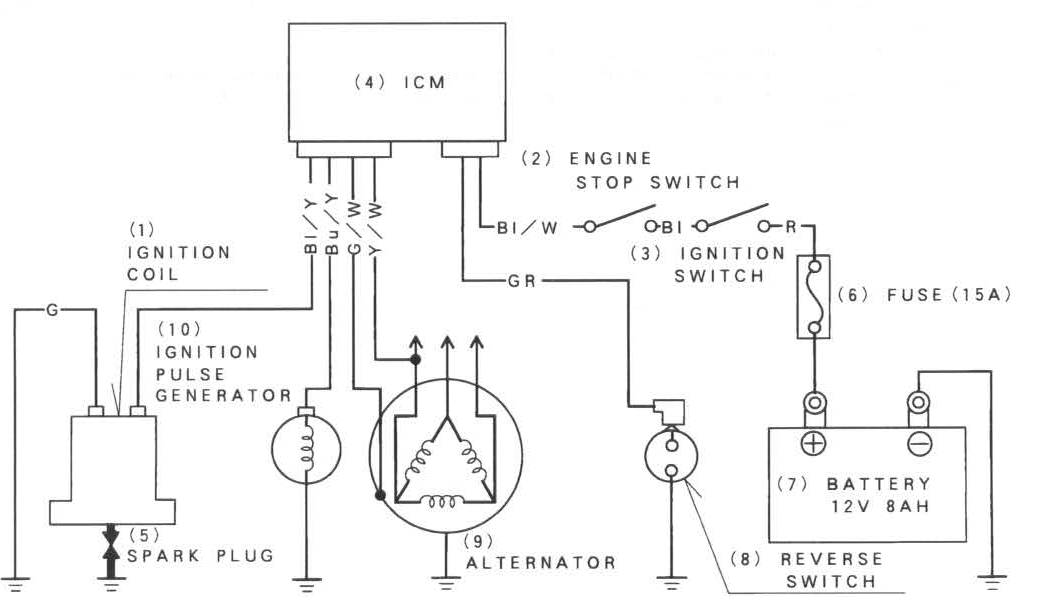

Looking at the schematic, it looks to me like if the switch were to go open/bad, it would break the ground connection to the CDI box? If that were to happen, that would cause a no spark condition Can anyone confirm this? At this time, no spark is my problem and measures 0 volts to the cdi box? Thanks 🙂

Link to comment
Share on other sites

I removed the wire from the switch, and grounded it. There's still no voltage to the ICM/CDI so I assume, there must be an open circuit in that ground wire. I'm going to run a bypass wire in the morning and see if I get spark/start. Hopefully, I can just do that. The reverse lever and cable were not on it anyway when I got it.

Link to comment
Share on other sites

If you are getting no power to CDI there is a fuse and 2 switches to stop power from getting there check from BL/W to battery neg and see if you get power there check continuity from reverse switch connector to CDI . If you said reverse switch is broken just replace it and cable or if you want to get it running first just ground the GR wire. Just my thoughts.

Link to comment
Share on other sites

The ICM is grounded by the G/W wire going to the stator's housing. The GR wire going to the reverse switch won't be needed to make it run.

It does need the Bl/W 12 volt wire, and he stator wire and the trigger wire.

Link to comment
Share on other sites

Yes, that's what that diagram is showing.

You should check the engine is connected to the battery's earth as well.. battery, frame and engine all need to be connected as a common earth. Then the ICM earths via the G/W wire to the engine through the stator's housing..

Edited by Mech
Link to comment
Share on other sites

The one labeled G/W. And yeah, going to the stator housing, that's what that circle is, the dot means there is a connection, and those stacks of short lines all along the bottom of the diagram are the symbol for earth.. so everything that has that earth sign all have to be connected, the engine, frame, battery negative, coil, reverse switch. If the reverse switch and the trigger coil only have one wire then they are earthed internally to the engine.

  • Like 1
Link to comment
Share on other sites

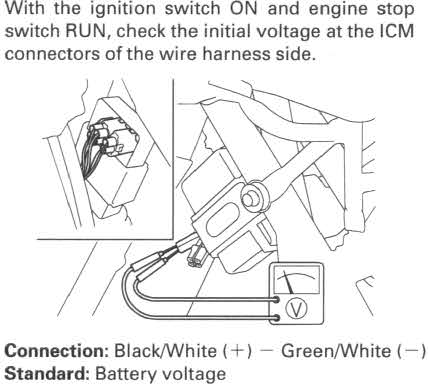

Ok, so test from the ICM black/white wire to a good earth on the engine first, and then on the battery's negative terminal, and see if you get 12 volts both places.. with both key and run switches on. If it doesn't get 12v on the engine, but it does on the battery negative, then the engine needs a wire connecting it to the negative. If you can't get 12v on the B/W wire using either earth, then you need to check the fuse and both switches are getting power through them.

If/when you do get 12 volt from the B/W wire using the engine for an earth, but the G/W wire still doesn't work as an earth, then the problem is that the green/white wire isn't getting to earth as it should down on the stator housing..

Edited by Mech
Link to comment
Share on other sites

If you have a test light with a bulb in it, use that looking for the power and the earths.. It can happen that a bad connection is letting a tiny mount of power through, or providing a tiny amount of earth, and that tiny amount of power is enough to make the gauge go, but as soon as the load comes on that bad connection it fails to let enough power through and so it looks dead..  The bulb in the test light draws enough power so we don't get tricked by the bad connection.

The starter needs a good supply and earth so the engine should have either a big earth cable, or the engine is mounted solidly to the frame..

If the starter operates, the engine is earthed..

Link to comment
Share on other sites

Good morning folks, I ran bypass wire for ground to CDI box. Well, I'm getting spark now but still no start. The engine for some reason seems to crank a lot faster than before it seemed like it struggled before like it had a lot more to turn over. any ideas what could be going on now?  Thanks! 😒

Link to comment
Share on other sites

Good work so far..

So, it could be that the engine is trying to run and that's why it's sounding fast..  Do you think it's firing at all ? Did it use to go, before the loss of spark ? Have you tried kick starting it ? Did it seem like it had compression ?

Probably you should try to check it has compression. If you don't have a gauge take the spark plug out, put your finger in the spark plug hole and crank the engine over. If you can keep your finger in the hole it doesn't have enough compression. If your finger gets lifted and the air escapes it's probably enough.. depending how tough or woosy your fingers are..haha.


Link to comment
Share on other sites

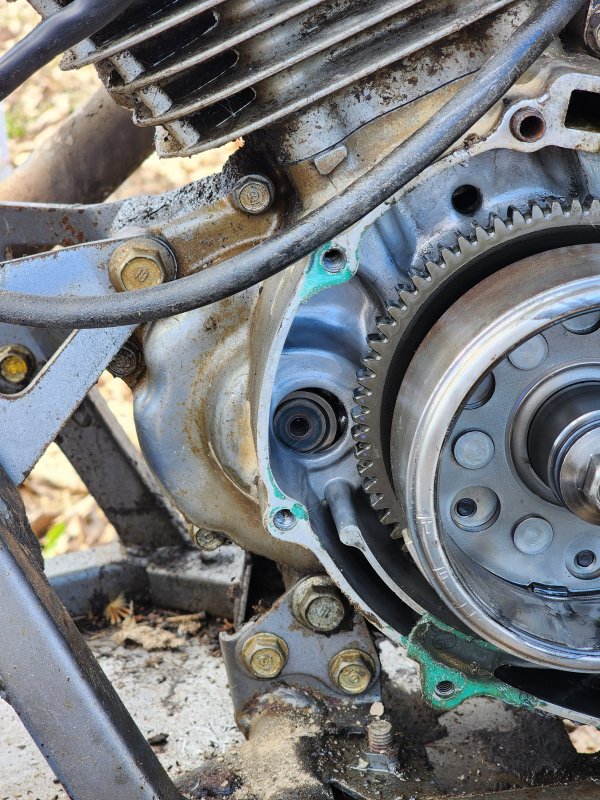

If it's a bad one way bearing, can it be push started? I checked for spark and it's good now. If the one way bearing couldn't cause this problem, I guess I'll have to check for compression.


I'll have to get a wrench of some kind for the spark plug any suggestions?



Link to comment
Share on other sites
