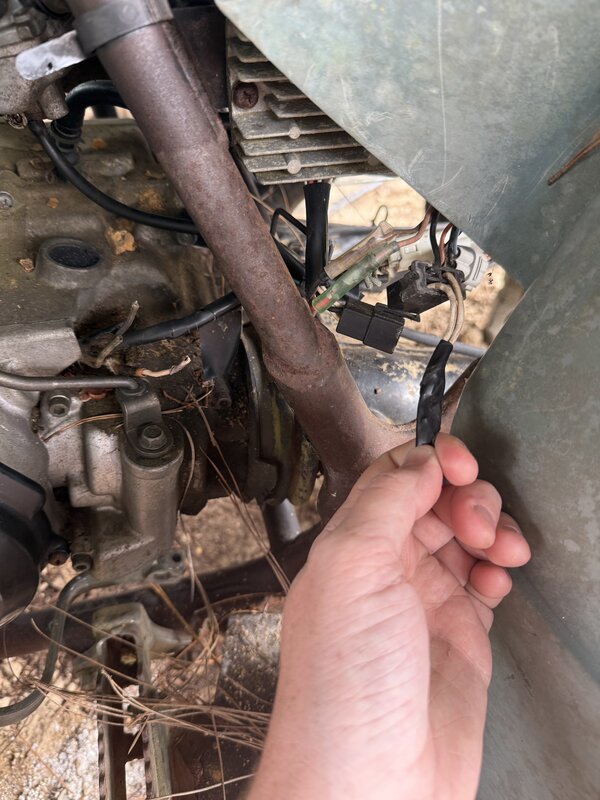

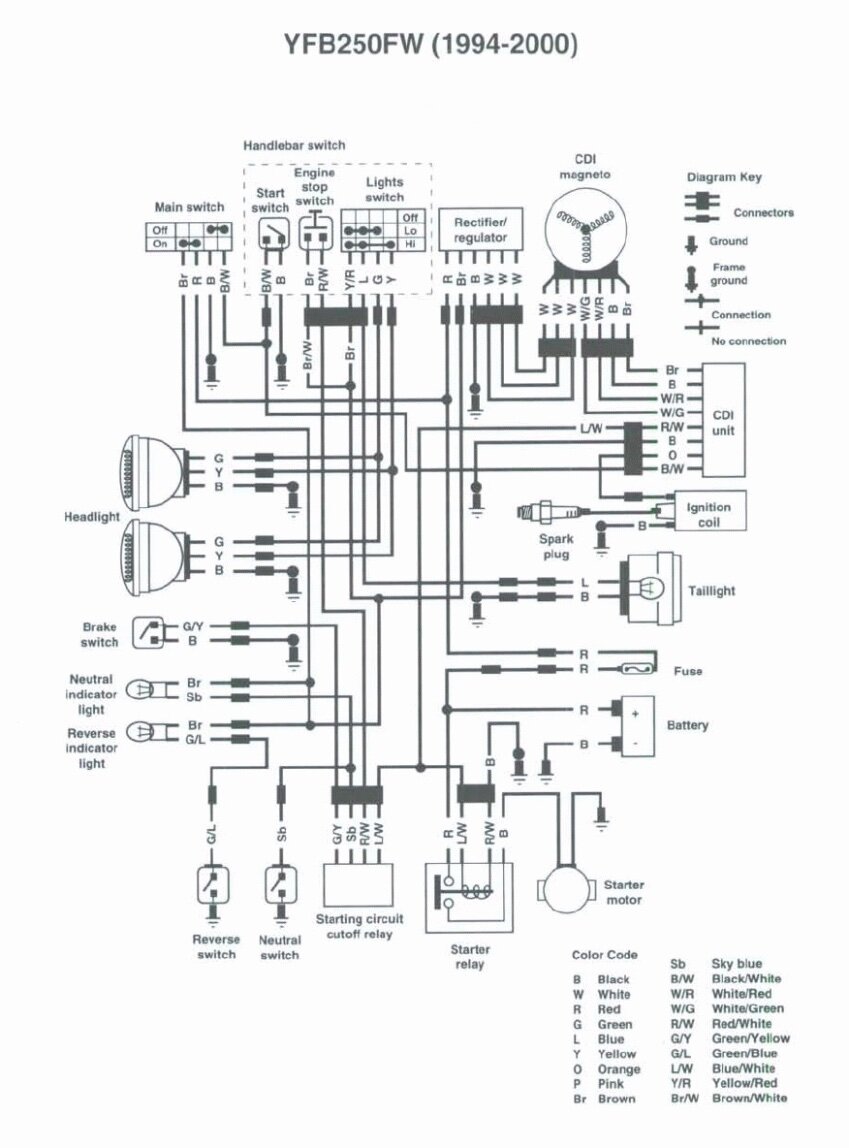

I'm repairing a 96 Timberwolf 2x4. Many years ago a dog chewed the wires that go from stator to the rectifier/regulator, and I've had to use the pull start ever since. Ive since lost the plug for the stator and on the wiring harness side. I'm ordering a new stator that will also come with the female plug that I need to fix it on the wiring harness side, but I have no clue in what position to put those 3 white wires(ones I'm holding with electrical tape on them) back into the new plug. Since they're all the same color, does it matter? Any info on this or pictures anyone has of their own will be very much appreciated.
