Michael Trinity

2007 xtreme typhoon 125cc Quad spark plug

Recommended Posts

Hey there.  I have a problem with finding the rite sparkplug for my 2007 xtreme typhoon 125cc.  No one or place has been able to find the right spark plug for it.  Im hoping someone here may have an idea or can point me in the right direction of where to find one.  The old one said ac 108 and one guy at an auto parts store said it was a 10mm spark plug.  Dont know if that was rite or not.  Also if anyone knows of a website i can download the manual for it, that would be very helpful as well.

Share this post


Link to post
Share on other sites

1 hour ago, Michael Trinity said:

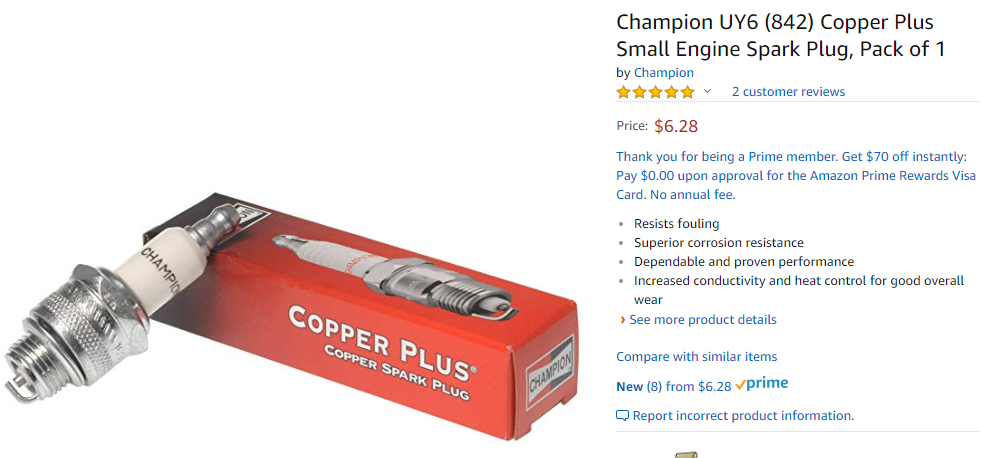

yes that be it.  Thanks so much.  Do u know where i could find a service manual for it.

No unfortunately, I looked online but didn't see one.

Share this post


Link to post
Share on other sites

The gap is important but usually its not adjustable on the type of atv you have. You can measure the resistance of the coil, if its infinite resistance then the coil is bad

  • Like 1

Share this post


Link to post
Share on other sites
