Eddie Rahm

1996 polaris sportsman 500 throttle body wires

Recommended Posts

whats up fellas....the white wire going from the throttle body came unplugged from the circuit  board and im not sure where it plugs back in to ? i see where the red wire goes but im not sure where the white wire goes...im not even sure what those wires do..any help would be appreciated..thanks. 1996 polaris sportsman 500 4x4 push button awd.

Share this post


Link to post
Share on other sites

Yes the red button is for the awd..the red and white wires are coming from the throddle body and they run to the circuit board under the black cover under the head light..

Share this post


Link to post
Share on other sites

Sorry I was working all day give me a little bit and I will try and help you sort it out.

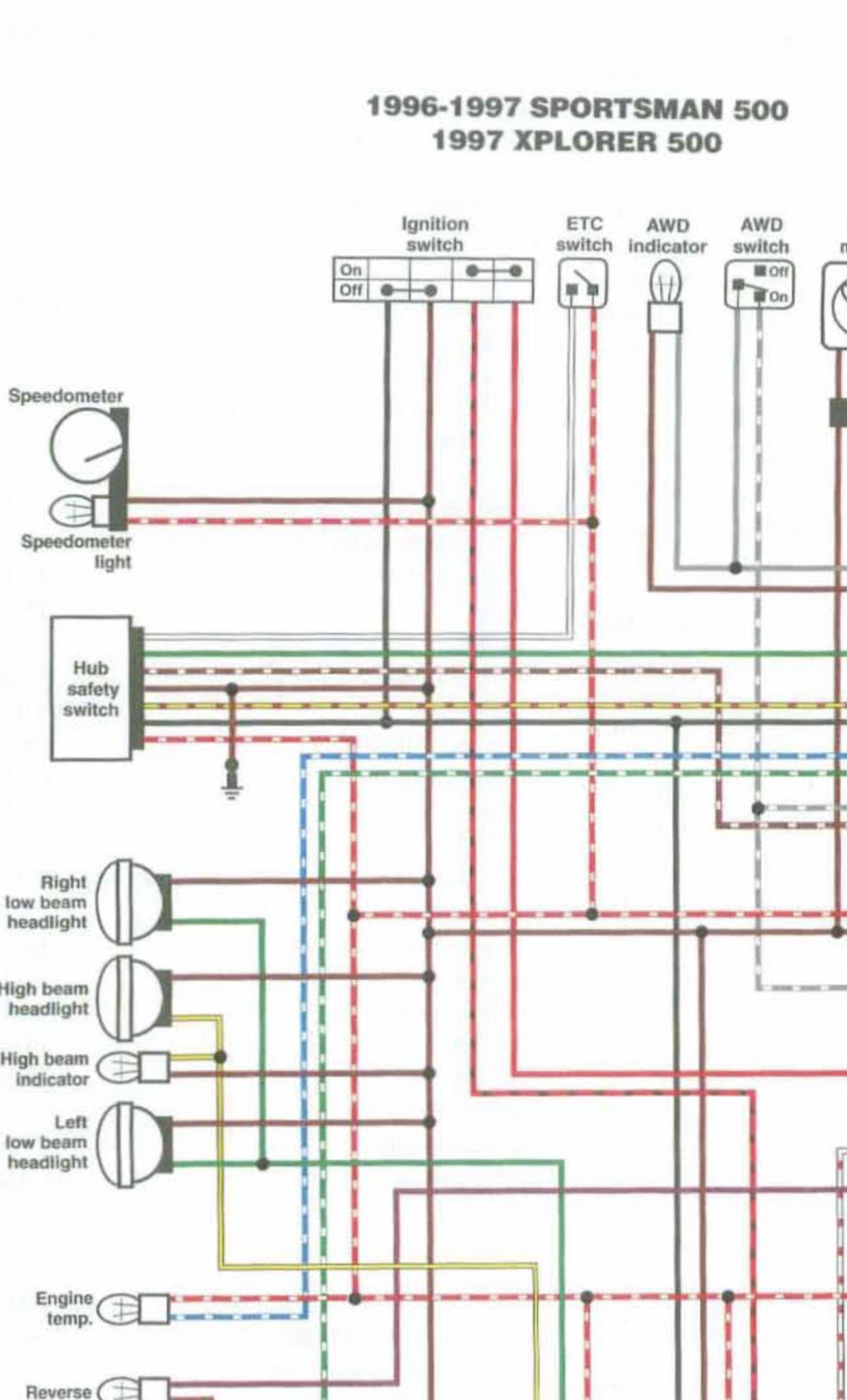

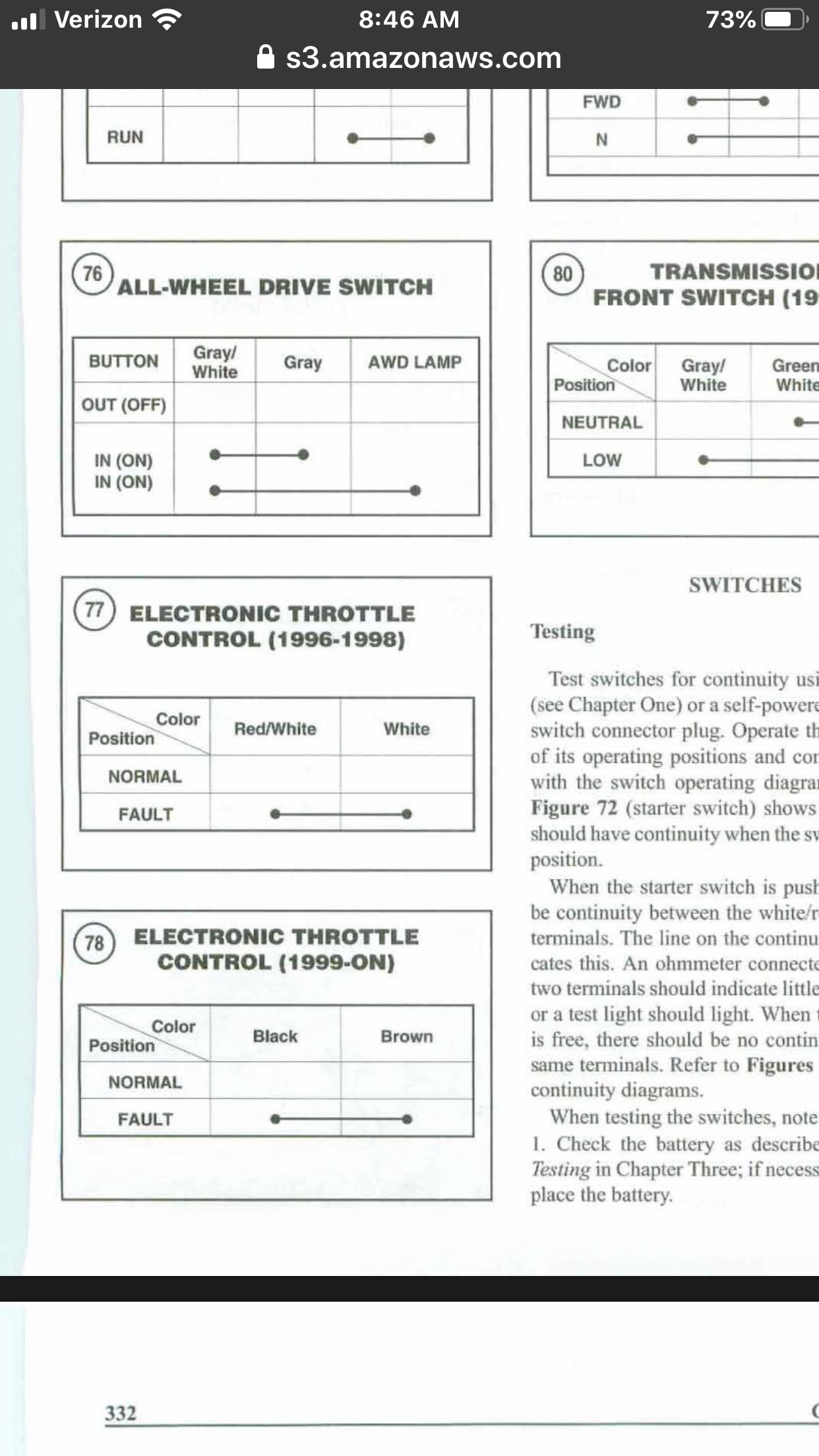

If you look at the photo with the diagram it shows a ETC switch and an AWD switch. The ETC matches the color code wires  you mentioned and goes back to the hub safety switch. I would start by tracing the wires from the handlebars and work your way down to the controller and the to the hub solenoids.



Share this post


Link to post
Share on other sites

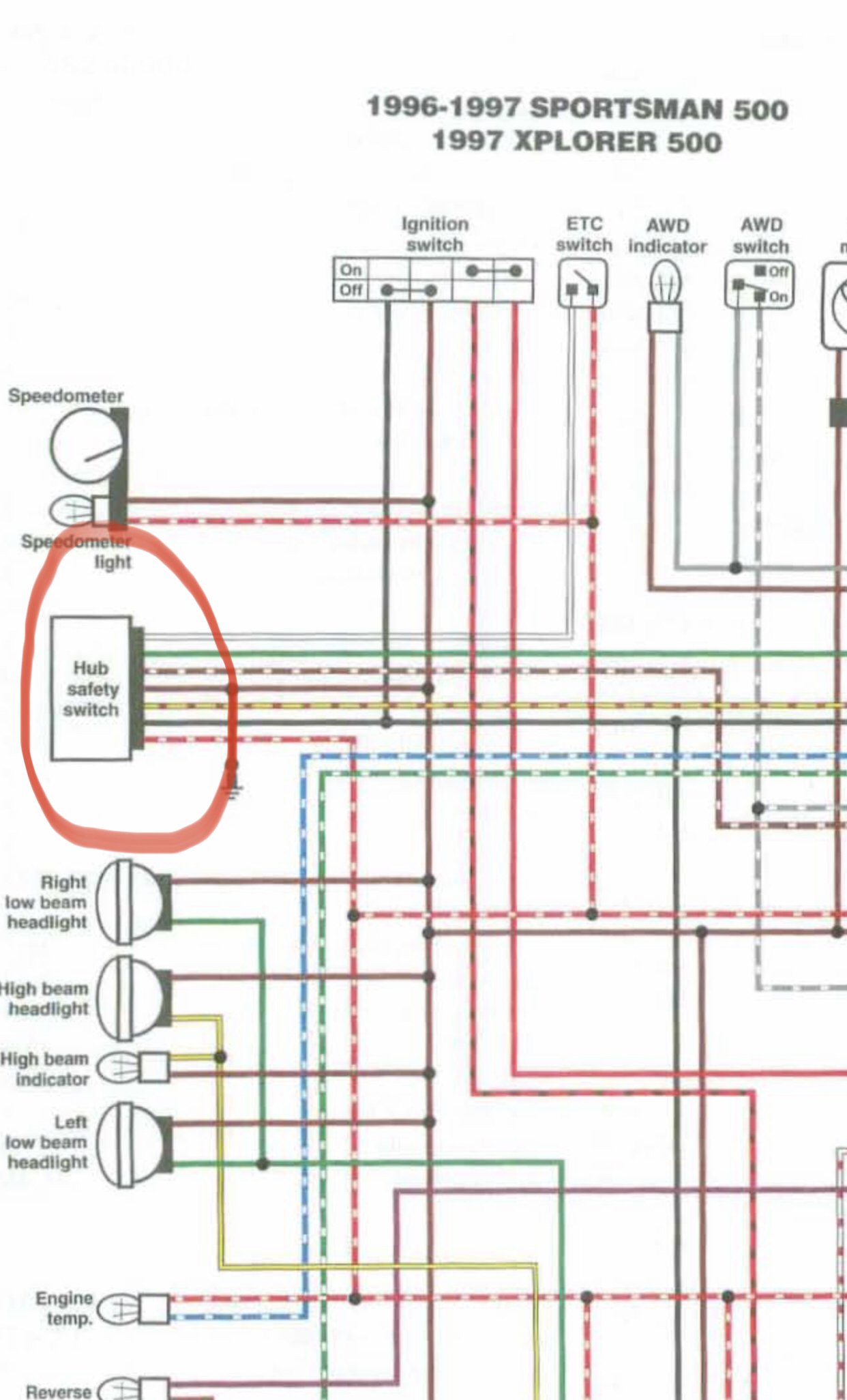

Locate that hub switch and there should be a white wire coming off of it. That white wire goes to the handle bar switch.


That white wire you are holding might be coming from the hub switch.   So start there and trace it back.


Share this post


Link to post
Share on other sites

The diagram is right...I found where the wire goes ! Thanks for taking the time to help me Frank... I really appreciate it

  • Thanks 1

Share this post


Link to post
Share on other sites

No worries brother that’s what makes Quadcrazy the best atv forum around.
Ride safe and be sure to stay in touch and post some pics of your rides!

Share this post


Link to post
Share on other sites
