Question for the masses that are (smarter than me)

Recommended Posts

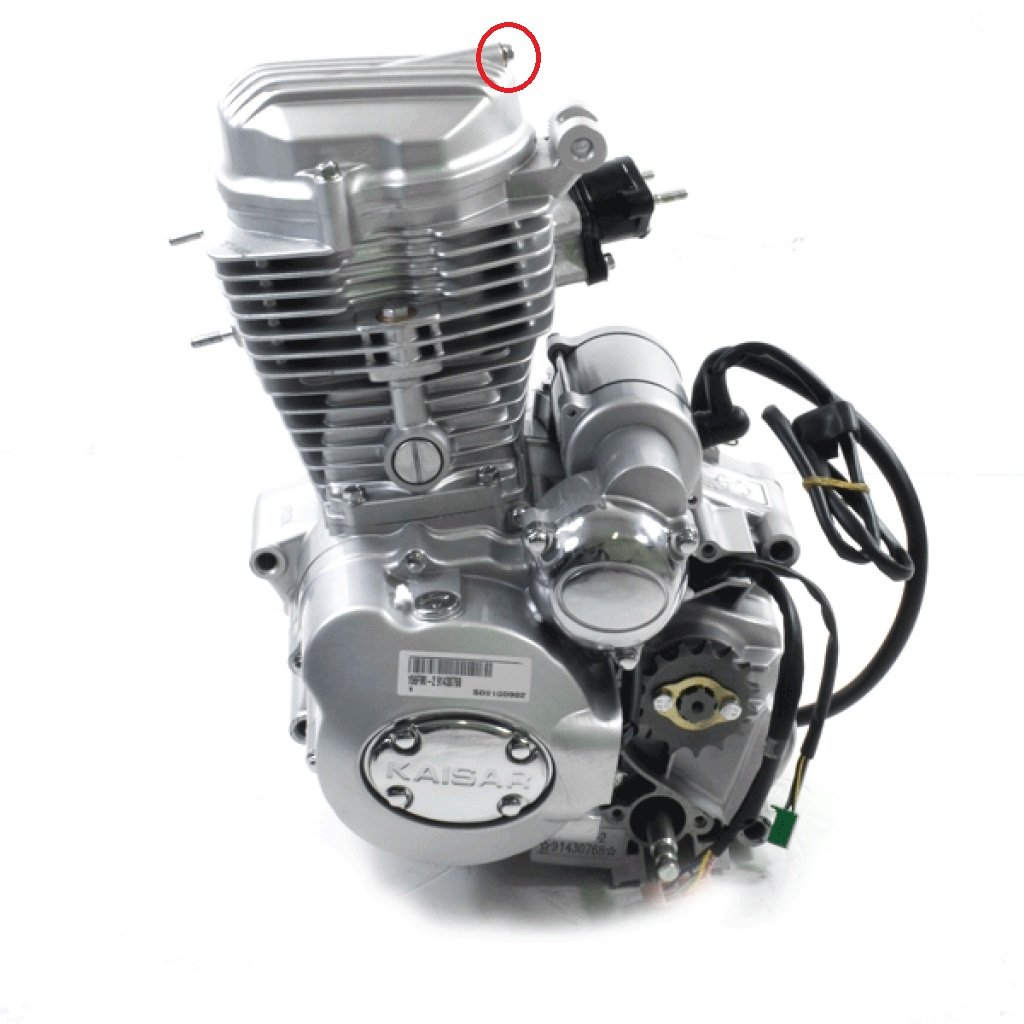

Quick question about bolt on valve cover (circled). Is this used for any type adjustment or connected to anything or is it a service vacuum port? Wanting to install a vacuum fuel pump and look like a good spot to connect vacuum. Thanks to all.


Link to comment
Share on other sites

The way it's angled in it could be a tacho drive option, blanked off, or it could be an oil feed/pressure check point..

It will pretty surely not be a place to get vacuum. You really want to draw vacuum straight off the manifold, that's the black bit on the back of the head, or a vacuum port off the carburetor.

If that make? has a part list online, you could look up the pictures and identify parts, and see if that bolt has anything under it.
