2005 Suzuki King Quad 700 - Fan Replacement

Recommended Posts

The saga of the fan continues.

The Pin attempt in the fan shaft failed.  I then moved on to trying to weld the fan hub to the fan shaft.  I took it for a run the weld broke.  Now it was truly F'ed.  To recap the dealer price, they want $400 + CND for a replacement fan assembly.

I searched all sorts of after market places and no one carried one.  Ebay had some used ones but they were $120 USD + Conversion rate for something as old as what I have.  I went to Amazon and eventually settled on this.

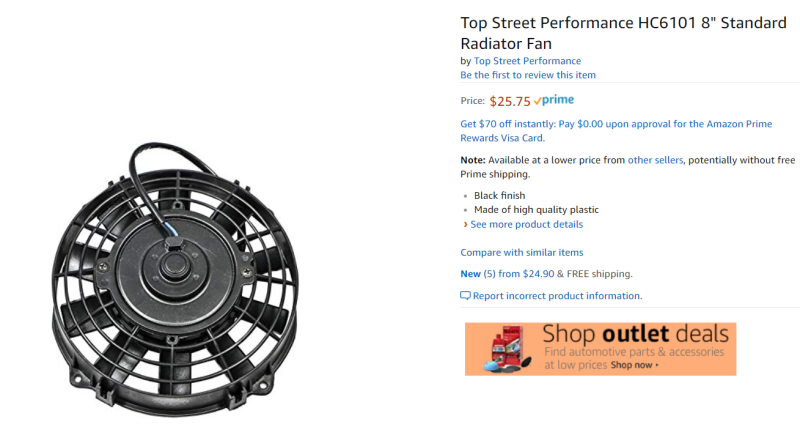

amazon link



What I found... and was amazed... was that the fan mounted to the Suzuki fan assembly bracket.  I was prepared to manufacture my own mount conversions...  It also came with "Harpoon mounts" (nylon zip tie like things that go straight through the rad.   Anyways it mounted to the original bracket. It fit perfectly.  Cut the electrical plug off replaced it with the Suzuki... all good.  Let the quad heat up, thermo coupler kicked in the fan circuit, polarity was right... all was good....  Fan is under the circuit fuse rating.



so I finally have a solid fan solution.  $34 CND vs $400+ CND

  • Like 1

Share this post


Link to post
Share on other sites


Speaking of fans, I just bought a 2005 king quad with some commander tracks in it. Can seems to be on most of the time. Is this normal or is she working harder with the tracks on it?

Share this post


Link to post
Share on other sites

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.
Note: Your post will require moderator approval before it will be visible.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.
