Been a motorsport guy for a long time and moved to the country a few months ago...got two quads- 2018 Yamaha 700 4x4 and Polaris 110 Outlaw for the kiddos.  Been great but that polaris has been a maintenance suck.  Brakes suck, electrical system suck.  Currently it is dead - I will say my son rides it just about every day and LOVES it.  Fuses are good and Key switch is ok, battery ok,

Going to start to dive into wiring but need a manual to start tracing wires... so this is one of n threads to start here...

  • Like 2

Share this post


Link to post
Share on other sites


Welcome to Quadcrazy mike! You will find what you need here to get your bike/bikes squared away and running again.  As a new member you are required to have at least 10 posts on the site before you can download a manual.   Which I’m sure if your into the quads like you say then it won’t  be a problem as this site/forum has a ton to offer in technical support as well as member support. Some of which  have had the same type or similar problems and can really help.









Share this post


Link to post
Share on other sites

sounds good, I've seen the wiring has been a problem and ignition switch- looking for some direction on components that go south - kids been in a ton of mud lately...



Share this post


Link to post
Share on other sites

So what’s going on as far as the wiring? Dead, crank but no spark, spark but not cranking with the starter ?

What year is the bike ?

Share this post


Link to post
Share on other sites

2016 and no lights/no power but battery, fuses and ignition switch are good... seems to be wiring but not sure of any other safety switches on these little ATV's... last time it was a fuse, but checked them all and all blocks have power.

Share this post


Link to post
Share on other sites


So here’s  a stupid question. That bike should have a tether switch on the back ? Have you checked that by any chance ?

1 to see if the switch is swamped and soaked

2 the wires going to it are not burnt up or corroded?

Share this post


Link to post
Share on other sites

Your ignition switch should have a red wire going to it ? If so is there 12v+ on that wire?The red wire when the ignition turns on should send 12 v + to the brown wire which goes to a splice of about 10 brown wires and that should distribute power to the rest of the bike.

Share this post


Link to post
Share on other sites

ground is fine, checked that- power to the ignition switch but then it goes back into the wire bundle from there... kind of where I need a schematic... will look at the teather switch - it's a 2016 and kept pretty clean except for this past week it was raining a ton and he got it really muddy...

teather switch is ok as well. that is by the ignition on the 110 outlaw.

Share this post


Link to post
Share on other sites


There are two I think.  One by handle bars and one in the rear I think?

On the ignition what color wires have power? Should only be the red coming in and the brown going  out when key is on.

Share this post


Link to post
Share on other sites

so is there a main relay/switch for the power distribution? I have power at the switch, safety teather is fine, fuses are fine and power there... checked power at a relay on the front and it has power but didn't check the relay - anyone know the resistance between connections? other ideas?

Share this post


Link to post
Share on other sites

would the starter relay cause the lights on the dash not to come on? I have a small amout of resistance on the secondary pins of the starter relay but infinate on the two large terminals.  I think it may be fried...

Share this post


Link to post
Share on other sites

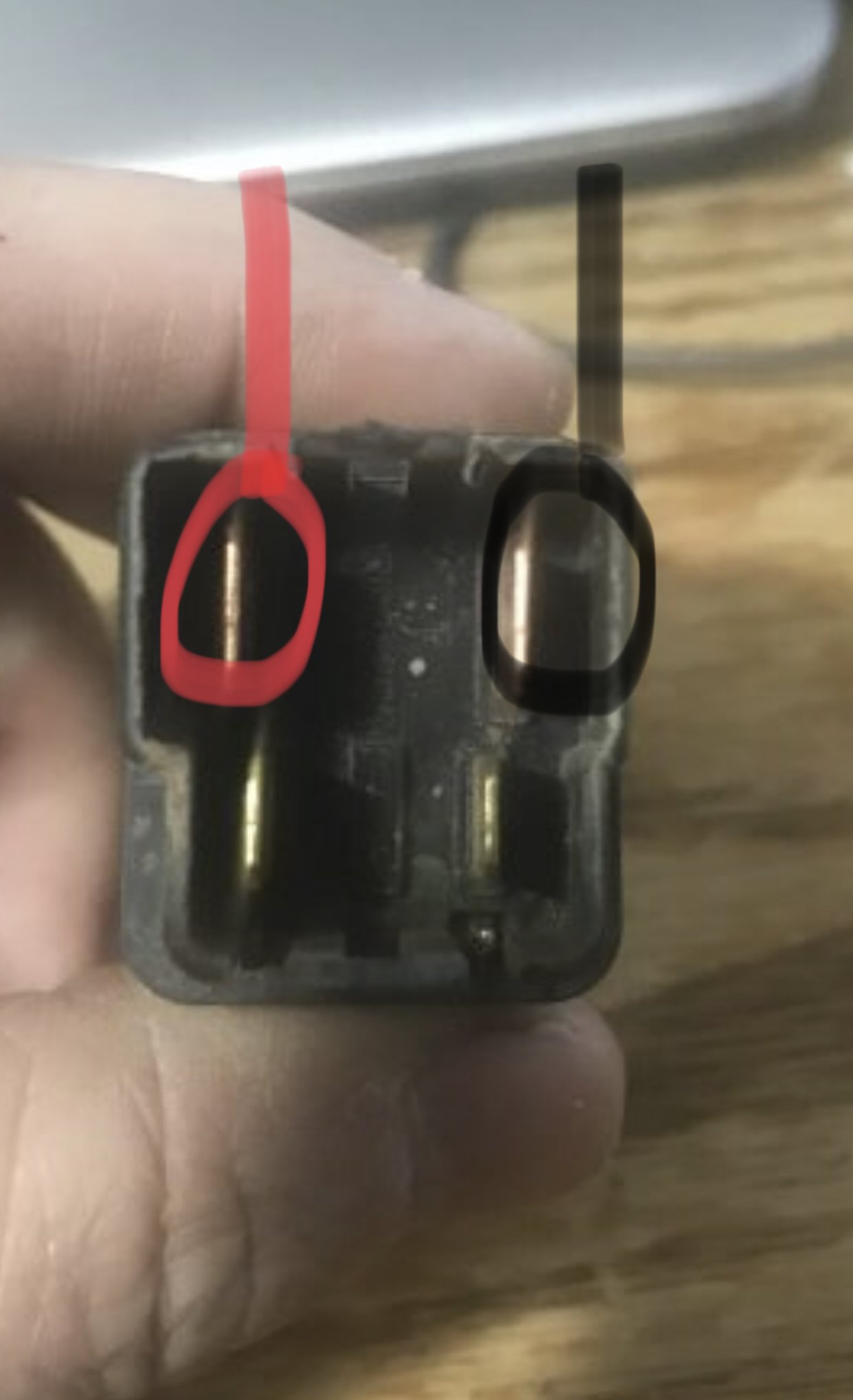

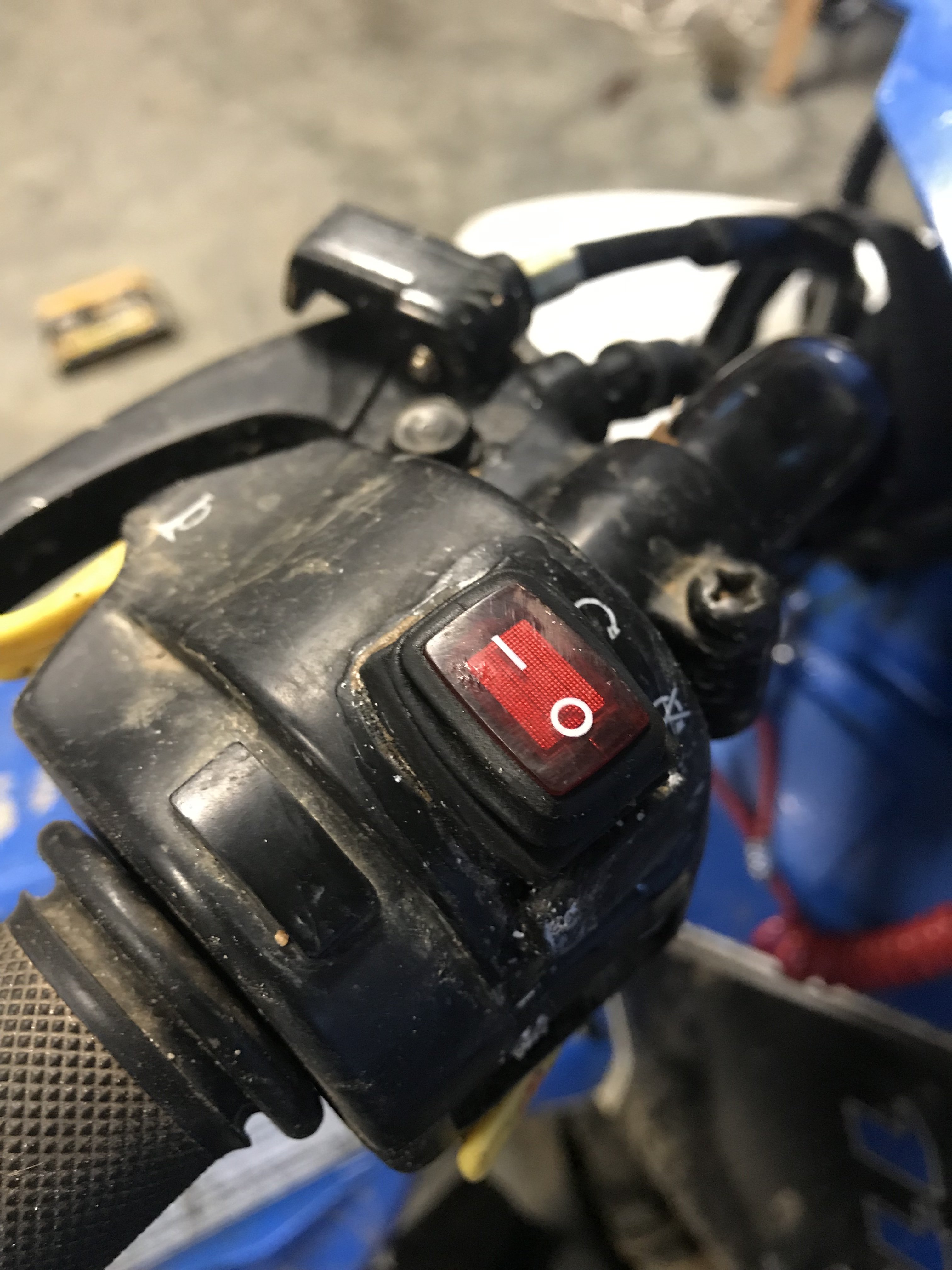

Off you can snap a few pics of the relay and any other connections ignition switch etc and post them.  What color wires are you looking at ?

My feeling is It’s a power failure someplace in a safety maybe ? Neutral safety switch or a soaked relay.

Yes the relay would stop the dash lights from coming on.

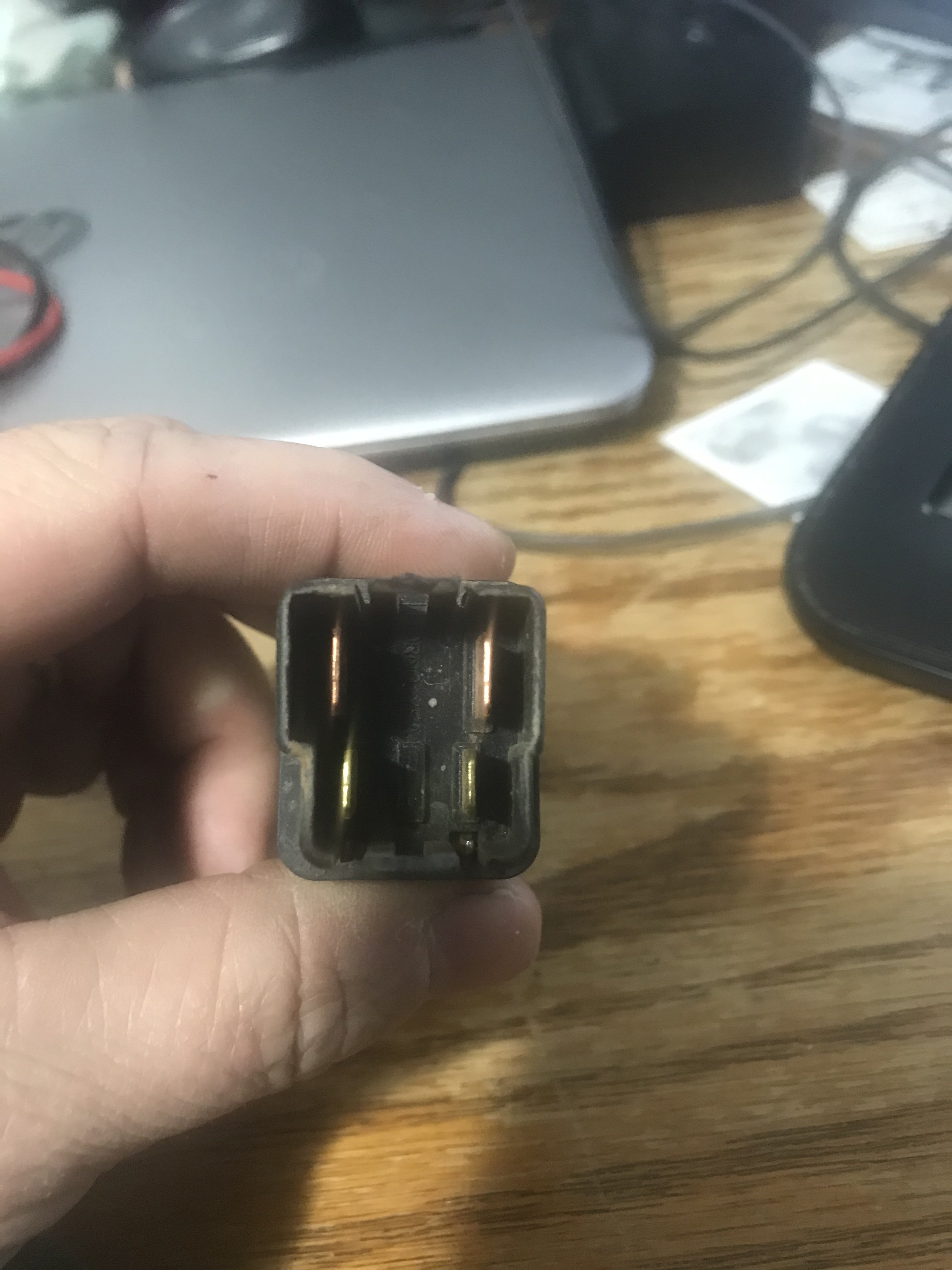

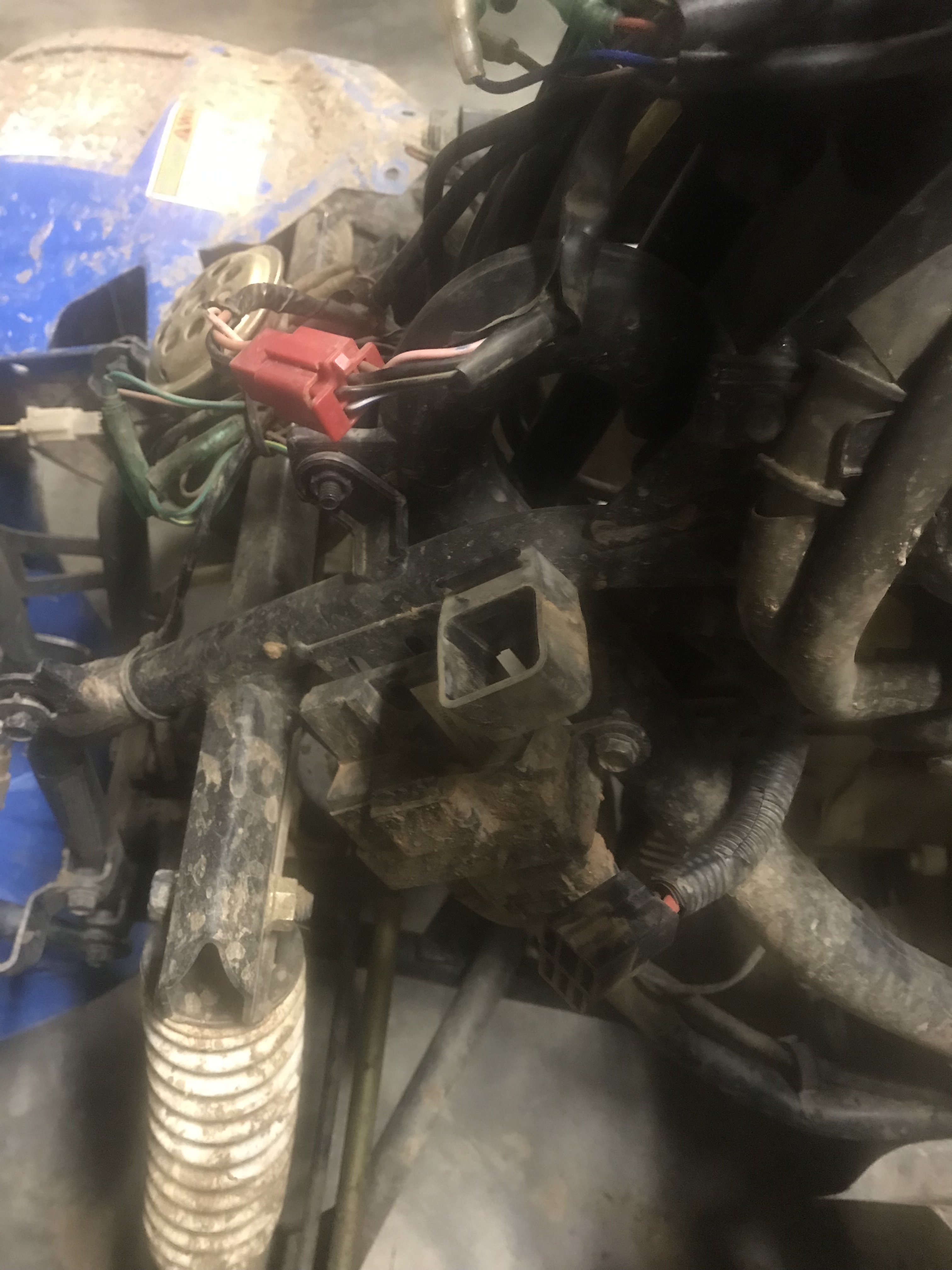

That relay has four wires on it ? Colors ?

Share this post


Link to post
Share on other sites


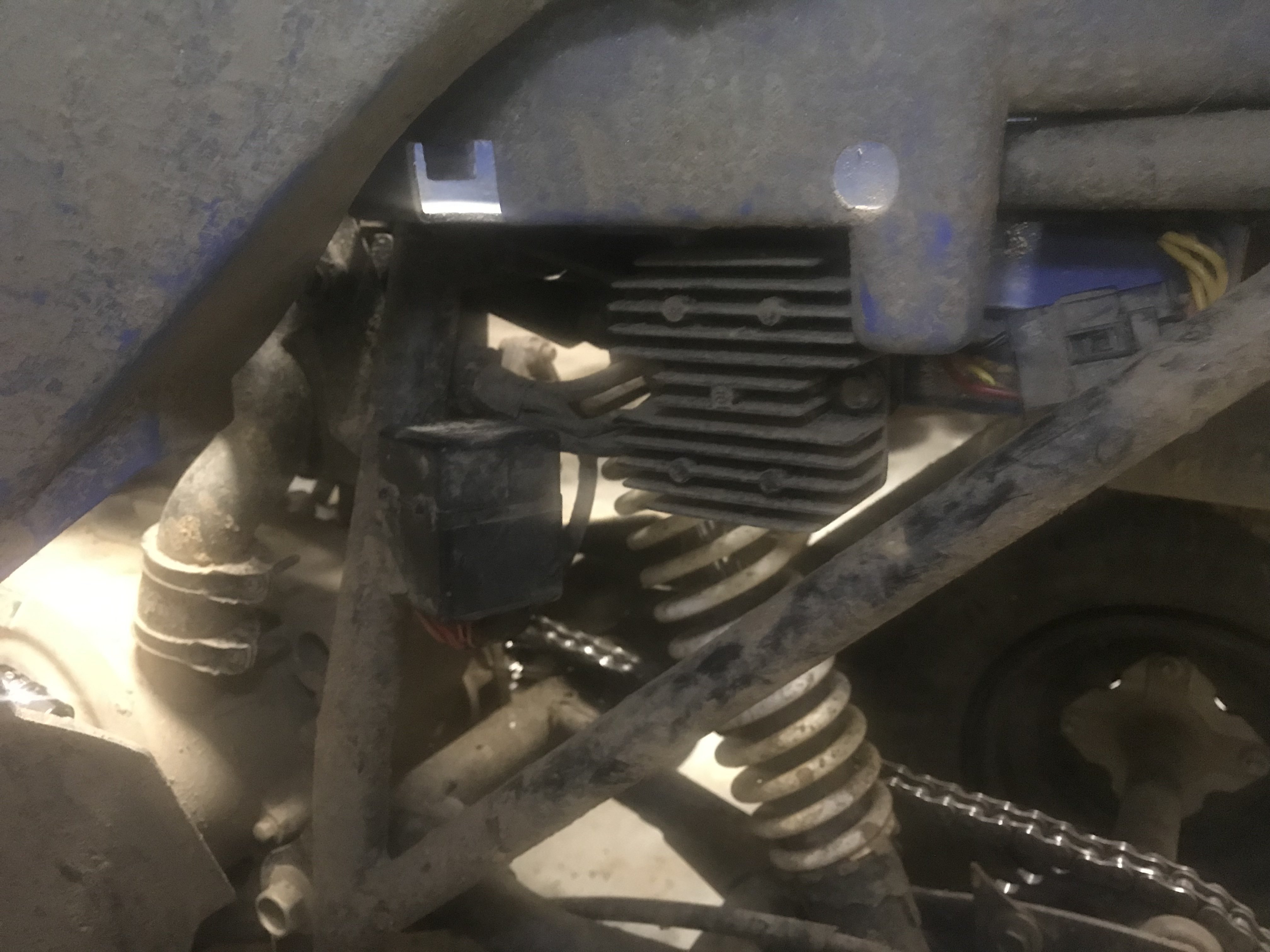

 looks like it.  4 pin battery hot on one side but not the other - .08 Ohms on the smaller pin between them.  Open on the larger (switch open)



I should be able to check across the L/W / G/Y when I press the starter switch right?

Share this post


Link to post
Share on other sites

Yes you can jump the two with the key on for a second and see if the dash lights come on

The brake handle has to be in and locked also as a safety I think ?

The two outer larger pins on that relay plug

Share this post


Link to post
Share on other sites

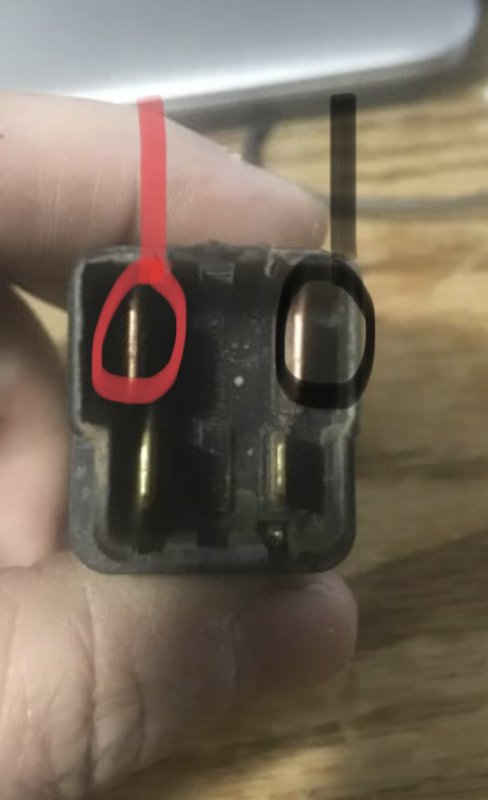

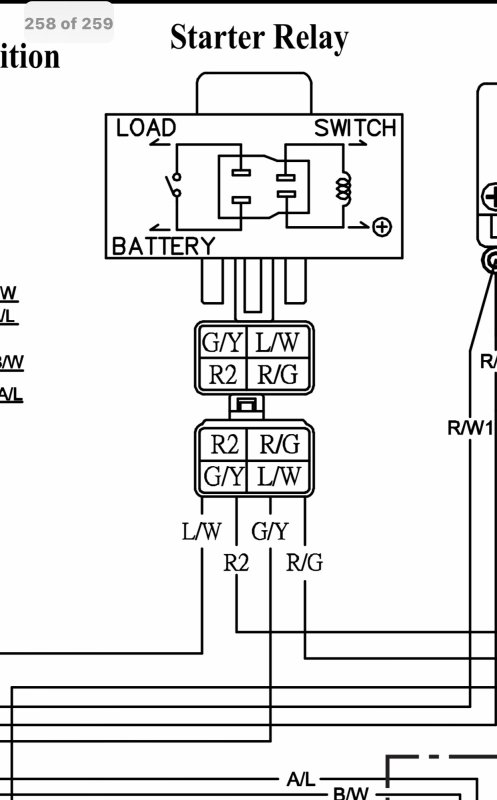

That R2 and L/W try to jump them out quickly and see what happens.  I’m thinking your dash will come on.

Share this post


Link to post
Share on other sites

So this relay. If you were to put 12 volts on these two tabs the relay should make a click sound.  Then with a tester the two smaller tabs should have continuity across them.

Power comes off the continuity will be lost.


I want you to be sure what your jumping out so you don’t blow any fuses.

When power is applied to that relay it closes the instrument/starting circuit so you have dash lights and a start circuit. The two smaller tabs that have continuity are the two wires you would jump to see if the bike fires.

Share this post


Link to post
Share on other sites


Seems like ignition switch is bad.  Banged on it and lights come on but not enough juice to turn it over but I have lights.  Then comes in and out.

Share this post


Link to post
Share on other sites

Awesome! Going to swap it out or going to open it up and try to it play with it ?

Amazon has it $20 !

Great find brother.  Nice work.

Share this post


Link to post
Share on other sites

yeah man, totally cracking it open this morning... it's a combo - lights, starter horn. haven't found any substitutes yet.. unless you know of a genric for it -0455150 is the PN...

Share this post


Link to post
Share on other sites


Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.
Note: Your post will require moderator approval before it will be visible.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.
