By Brent Wright
Are these motors the same?

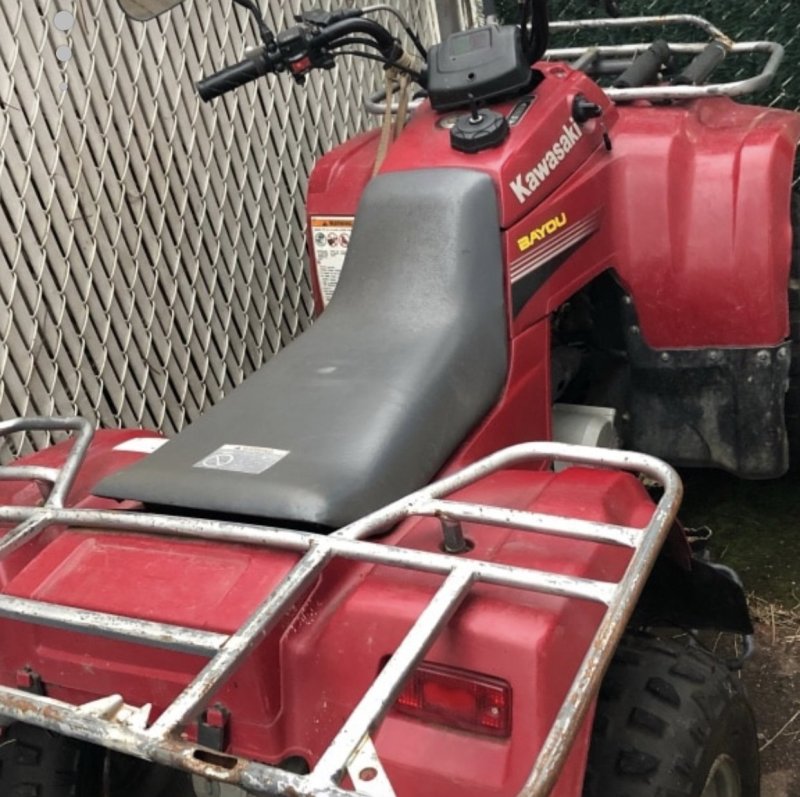

I had a quad fall in my lap a couple weeks ago. The only things I knew about it was it was a Kawasaki Bayou 220, was in pretty rough shape and was free. I couldn't say no to a fun little project. I've been looking a different ATV forums gathering quite a bit of info and decided this was the one I wanted to join.
Thanks to this forum, I found the VIN under about an inch of mud and cross referenced it to be a '98. It had been sitting outside for at least 5 years and was told it ran when parked, but had no brakes. Squirrels or mice had been chewing on the handlebar controls and it's generally just kind of beat up.
So far, I've gone through the carb (not near as bad as I expected), freed up the brakes (will probably need new cables), replaced the spark plug, air filter, petcock and put a new battery in it.
The gas tank had been empty and looked clean so I put some fresh gas in it and tried to crank it today. I got a neutral light, but the starter button did nothing. I tried pull-starting it and it wouldn't fire. I checked the plug and wasn't getting a spark. I started digging and found some potential issues and some definite problems.
I have a wiring diagram I found on here but it's just a picture or scan out of a book and hard to read. I don't see a reference to a black/yellow wire, which is my first problem.
First, it that a factory crimp? One of those wired looks like it goes to the connector in the 2nd pic. Is that just a spade lug type connector? I pulled on it with some needle nose pliers but it didn't seem to want to come off. In the 3rd pic, should there be a fourth wire?
I've read through and bookmarked the threads Andrew Baker and Arizona have going but I figured I needed to start with these obvious issues first. I have lots of pictures, so if there is something else you want to see, just ask. If I don't already have a pic, I'll take one.
By Mike Strayhorn
last year I bought led lights when I was riding my 4 wheeler the lights started getting dim shut off
now my 4 wheeler will not start the battery is hot everything is dead I checked the fuse and its good
would there be another fuse I am missing I'm took the led bulbs out and replaced them with the ones that was in there
wonder what meh problem is
By EoNe Frost Vortex
Hello i was wondering if someone could help me out iv recently got a Kawasaki klf 220 it needed big end bearing changing so i rebuilt the engine and the bike has compression starts first time every time but after i have been riding for about 10 minutes oil starts to leak from the head just below the exhaust so i replaced the gasket still done it so i took it to a shop he done the same and it is still doing it any information would be great thank you
I’m working on a Kawasaki Bayou KLF400 for a family member that doesn’t have spark. I’ve already replace the ignition switch and the stator which were defective. The stator had a melted connector and one of the phase had low resistance and low VAC output.
What I’ve figured out so far is that I’m not getting 12V to the ignition coil when I turn the key to the ON position. From what I understand, the 12V should come from the CDI. I’ve resistance tested both wires going from the CDI to the ignition coil (Green/white and black/yellow). They are fine. The only 12V coming from the ECU is on the yellow/red wire.
I don’t have the wiring diagram for the 400 but I’m working with the one for the Bayou 300 which looks pretty similar except for the wire color between the CDI and ignition coil. On the 300 diagram, the yellow/red wire goes to the ignition coil, not the black/yellow… All the other wires color match except for this one. Not sure if that’s normal?
Hi all, I was gifted this Bayou but she's been sitting quite some time. It won't crank using the factory start button but when I jumper the starter solenoid it cranks but there is no spark. The key has power coming in on the white wire and when turned on supplies power to the brown wire coming out.
I guess I should start with testing the pickup? I heard I may be able to jumper the wires coming from the pickup with an LED bulb and it will flash? I noticed in the manual that it should have around 110 ohms resistance so I'll check that as well. One thing I noticed was that the starter circuit relay has power on one of the black wires with the key on- this doesn't seem normal as I'm assuming the black wires are grounds? I think one of them comes from the start switch, travels through the starter circuit relay and then grounds the starter relay?
Mine is a 1991 so it has the 7 wire CDI (ignitor) and a 2 yellow wire alternator ( as opposed to the later 3 wire type ) with another 2 wires for the source coils (black & red wires ). The pickup wires are blue and black I do believe. Any help appreciated and yes I will test the pickup ASAP.
I'm trying to understand how the system works and I don't understand what the yellow / red wire from the kill switch does- I assume it gets grounded when the kill switch is "on" and therefore grounds the CDI so it can't activate the ignition coil? I noticed in the diagram that that yellow / red wire looks like it may be grounded by the ignition key switch when in the "off" position?
I also don't have 12v power at any of the wires going into the CDI- doesn't the CDI need to be powered? I also read on this forum that someone used a GM HEI module in place of the factory CDI just to test it for spark- does anyone have any info on that?
I hope I'm not missing something simple!
Here is a link to the diagram for my bike (which was posted by another user): https://www.quadcrazy.com/atvforum/topic/13742-1988-bayou-220-lost-spark/?tab=comments#comment-101193
Any help appreciated!
I like to ride in wooded and grassy areas. It takes my mind off the everyday routines and helps me deal with my father's cancer. Also gives me a reason to get involved with forums like this one.
Hows evryone feel about blasting around in snow ?
I love it usually after all plowing is done ill drop the plow and just go lut and have fun. From drifting all over lol to packing snow trails in woods its fun , never been into snow mobiles , where we live its very rural and our roads seem like an afterthought when it comes to plowing lol , usually last to get cleared , so we will hit the back roads to powerlknes and such , we have several people around here with side by siedes ,and the usually hit the powerlines , pack the trails and then we hit them good fun ....Anybody else ?
