2004 Arctic Cat 400 has high voltage at coil

Recommended Posts

I have been working on a 2004 arctic cat 400 that will run for a while with a new coil installed then after a few min start sputtering and quit. Checking the coil afterward it it is burned up. There is 350 Plus volts going to the coil and I'm not sure if I need a CDI or its something else? Flywheel magnets have been ruled out!

Share this post


Link to post
Share on other sites

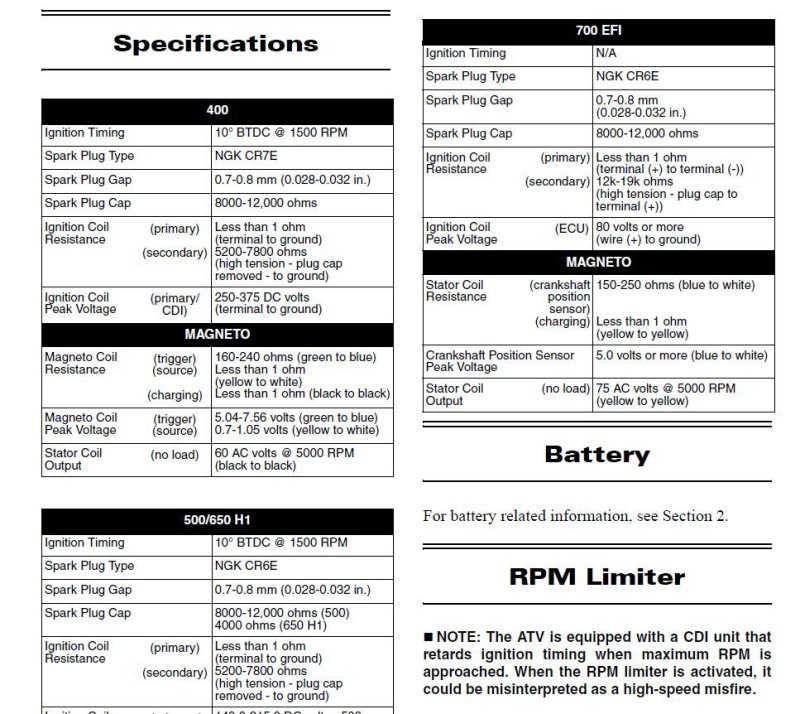

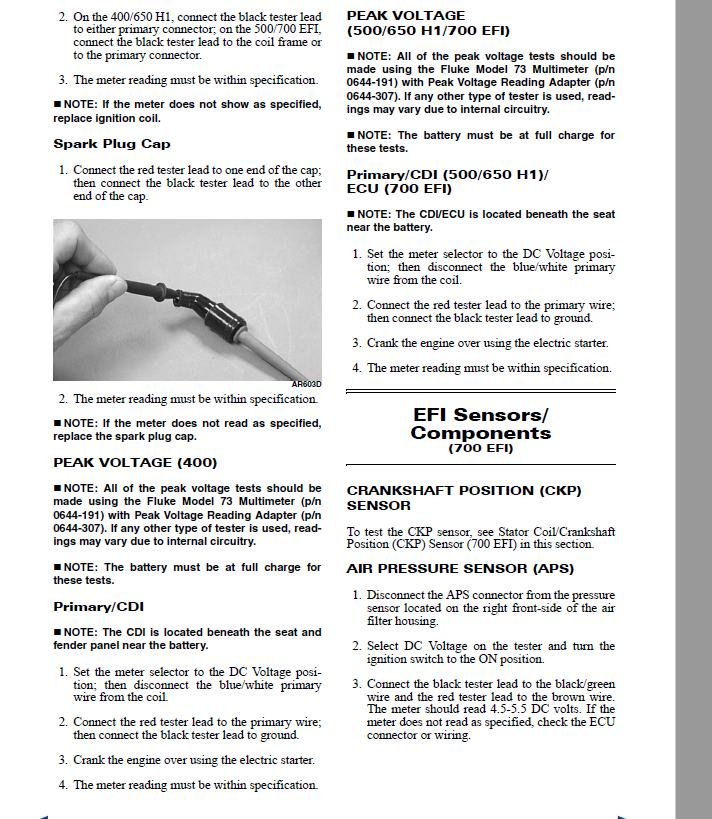

These are from a 2007 400 service manual, but I would think it would apply to your machine.

You need a meter that can measure peak voltage and hold it. If you are using a regular multimeter, your voltage reading is not valid.



Mike



coil specs.jpg

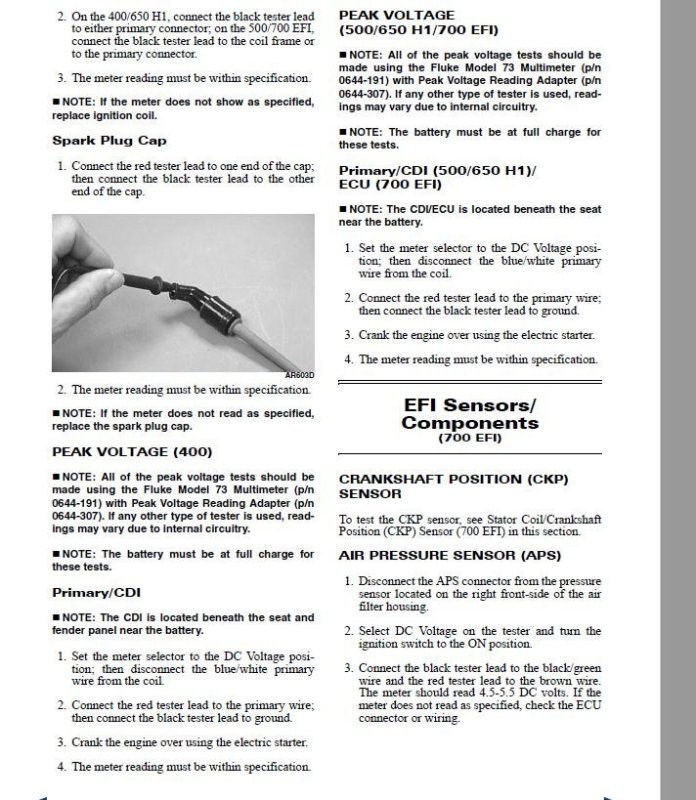

coil tests.jpg

  • Like 1

Share this post


Link to post
Share on other sites

Should it be reading this voltage without cranking the engine over?

Share this post


Link to post
Share on other sites

No it shouldn't, I would check your pickup coil, it tells the CDI when to fire a spark. If that is good, then the CDI is defective.



Mike



Share this post


Link to post
Share on other sites


20 hours ago, Ed Zeppeli said:

What about the regulator/rectifier?

Start the machine and measure the voltage at the battery, rev it up a bit, should not exceed 14.5 volts.
