Mike Johnson

2001 Quadmaster voltage regulator

Recommended Posts

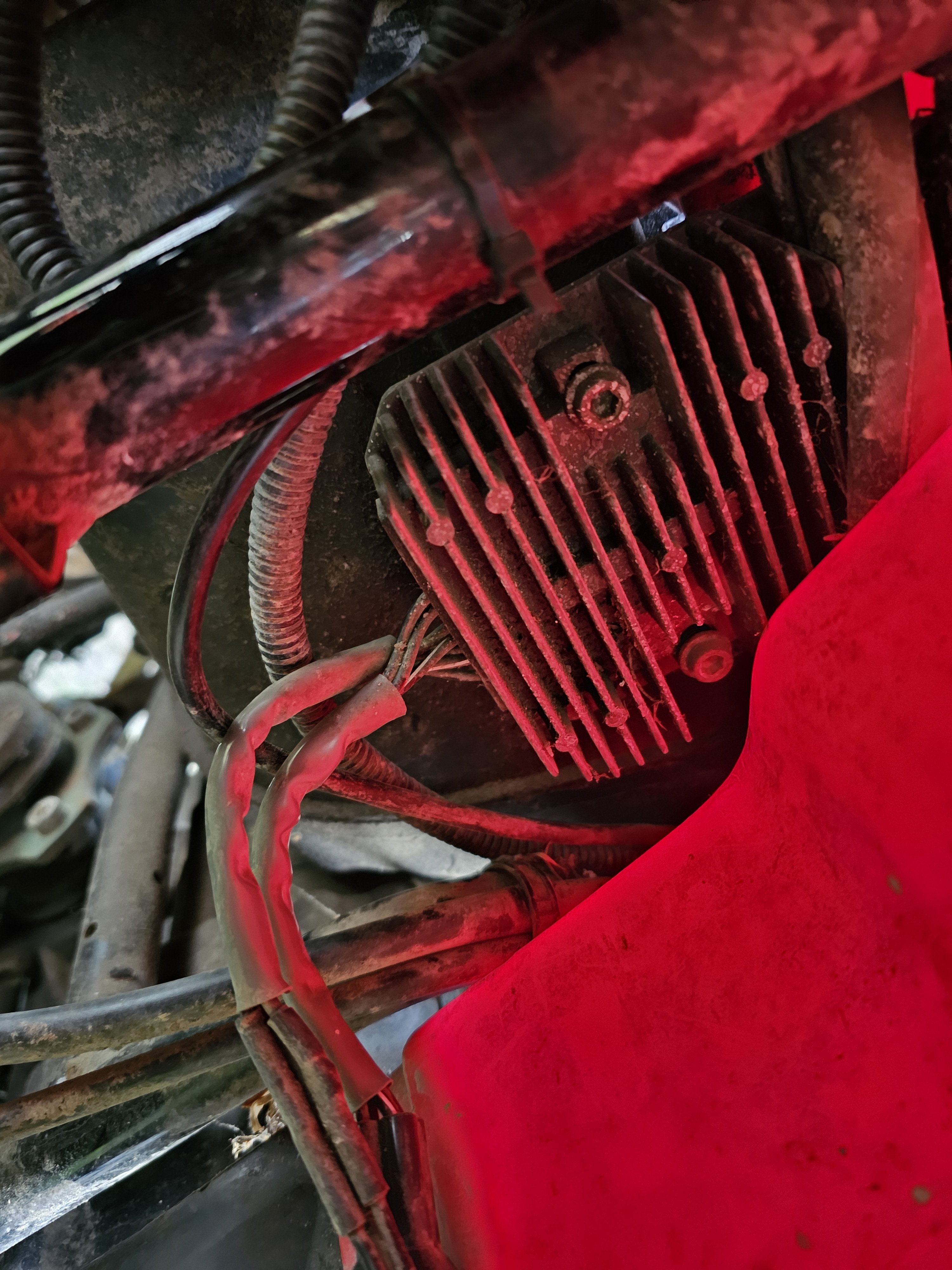

Hello Guys,  I'm new to the site, but have been reading about all the issues that I to  have had with my quad. I have rebuilt the carb a few times, once when I got it a few years ago and again a few weeks ago. Same problem, it cranks fine and idles well but when I take off it stumbles.  After looking at the site I saw all the posts about the rectifier/regulator so I grabbed one off eBay which came today. Once I found out where it went I saw that the original one wasn't there so I have no reference however I mounted it and began to connect it but one the plugs doesn't fit. The red/black plug connected fine but the yellow wire plug doesn't, and I don't see any other plugs available. Apparently the guy I bought it from had removed the original regulator and it wasn't with the ATV so I have no idea what it looks like. I will also say that I was surprised that it didn't have a rectifier on it but cranked and ran fine till the stumble.  My question is, do those yellow wires have to be hooked up ?  And my apologies for the rambling, I'm doing this on a phone and can't see the screen. Hahaha



Share this post


Link to post
Share on other sites


I just added the manual to the downloads section and it contains the wiring diagram






Share this post


Link to post
Share on other sites
