Jeff Wolf

kawasaki bayou 400 piston

Recommended Posts

Bought a nonrunning 1996 bayou 400. Tore down engine and found major problems. Piston is damaged and cylinder liner needs replacing. Looks like cause was a broken oil pump gear.



Question is can a piston from a prairie 400 be used? Is it the same engine? I assume the liner is replaceable?





Share this post


Link to post
Share on other sites


Welcome to quad crazy. The piston would probably fit but it’s not worth using it. There are two ways to go about it. You can bore the cylinder out and go with a bigger piston and rings and maybe have to re-jet the  carb.

Or you can buy a used one from eBay but I would buy a new piston since it’s all torn down.  I just looked and found a used jug in great condition for $166. I rebuilt one of the same bikes about a year ago. Water cooled bike was super strong.  I think I paid $45 bucks for a full gasket kit on amazon. I would also do the valve seals while your in there.

But this all depends on the condition of the bike and if it’s worthwhile. Also are you sure the oil pump gear was the problem? Because here’s my question.  The oil pump brings oil to the head to oil the top end valves, cams etc not the cylinder walls.  That’s done by the oil that’s in the lower end.  The piston could have just blown because it was beat on or the bike was ran out of oil.



  • Like 1

Share this post


Link to post
Share on other sites

When we took off the right side cover, the plastic oil pump gear was deformed and not attached to the keyed shaft that drives the oil pump, so that for sure needs to be replaced. Could have been run without oil though because the roller bearings on the connecting rod at crank are totally shot, with some of them in the bottom of engine.

The bottom of the piston sleeve has a chunk of metal out of it, half moon about .5 inch.  Piston is all busted up. One valve looks like it might need to be redone.

Trying to get the flywheel off now. We don't have the special puller. Does it take a 33mm puller? Tried the pry out with screwdriver and tap on slightly undone center bolt with no luck so far.

Share this post


Link to post
Share on other sites

Yes you will need a wheel puller to get that off. I’m honestly feeling like the engine is blown and may be beyond repair.  You really have to take a good look and see what happened.  The engine could have locked up and came to a complete stop and broke that oil pump gear.  Best bet is to take it all apart and see what the main bearing looks like.  Worst case is you lost time.

  • Like 1

Share this post


Link to post
Share on other sites

got it all apart. Bearings look good... in fact everything in bottom end look good except for connecting rod and bearings. There is a chunk out of rod and bearings blew up.

So... we have a used crank with connecting rod, and used cylinder and piston on the way. Also a used oil pump gear.

Plan on cleaning everything up real well and reassemble.

Will get some new seals for valves and clean up head well and reassemble. Also some new seals for side panels.  So far it has been a fun project for my son and I.

Any suggestions on what I may be missing?

Share this post


Link to post
Share on other sites


Awesome stuff.  I would recommend changing the water pump while your in there.  That bike was fun to work on. The valve cover bolts 8mm  there are quite a few different lengths that go on that cover so be sure about the way they go back.   Be super careful with the water temp sensor wire, they break off easy.  Use a lot of grease on the parts, cam, lobes etc  prior to start up and crank the engine without the spark plug in for a few seconds each time so you pump oil up to the head.  Other then that I think your  right on par.

Good luck.

Post some dam pics I love pics!!!!

Share this post


Link to post
Share on other sites

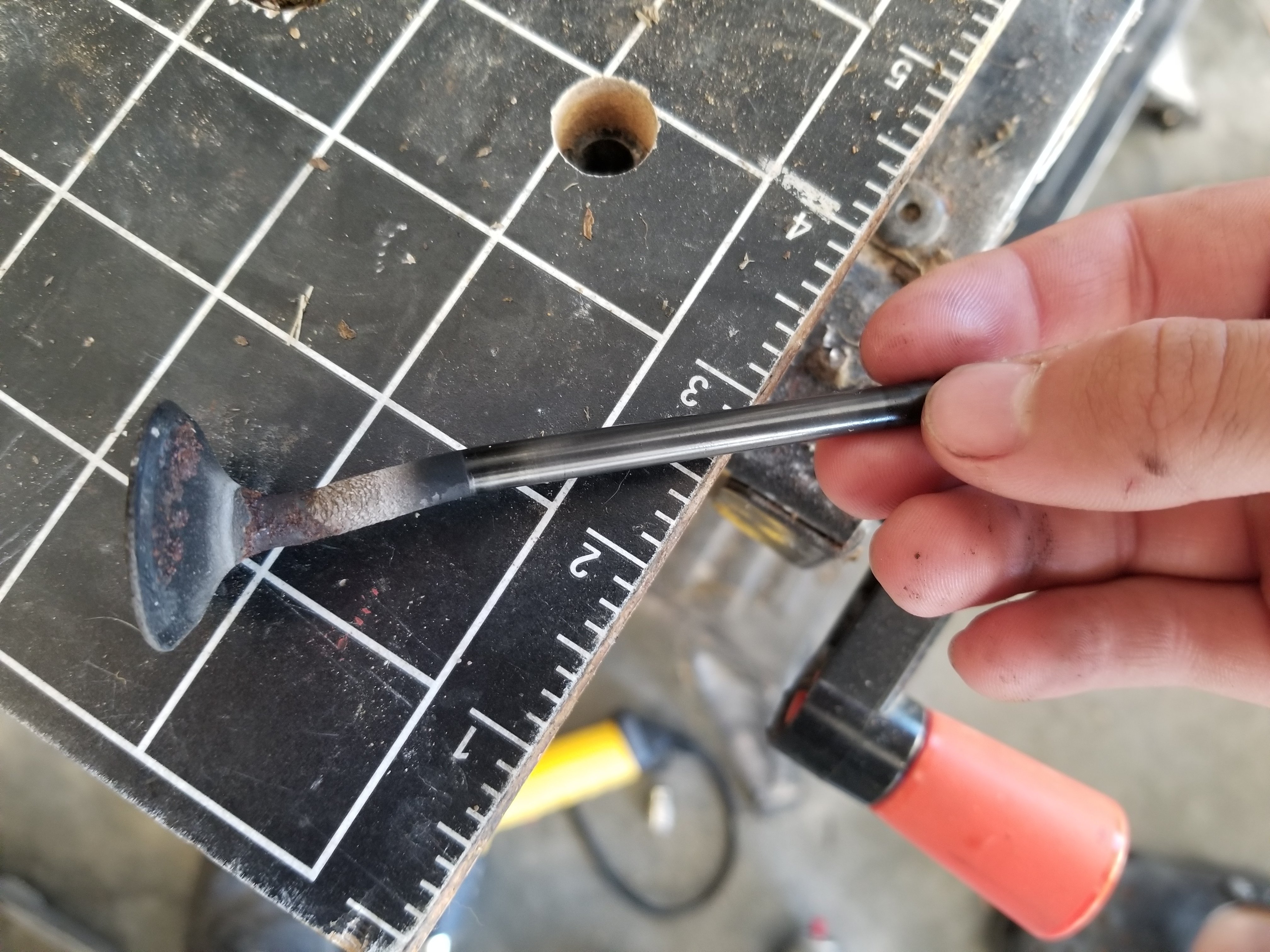

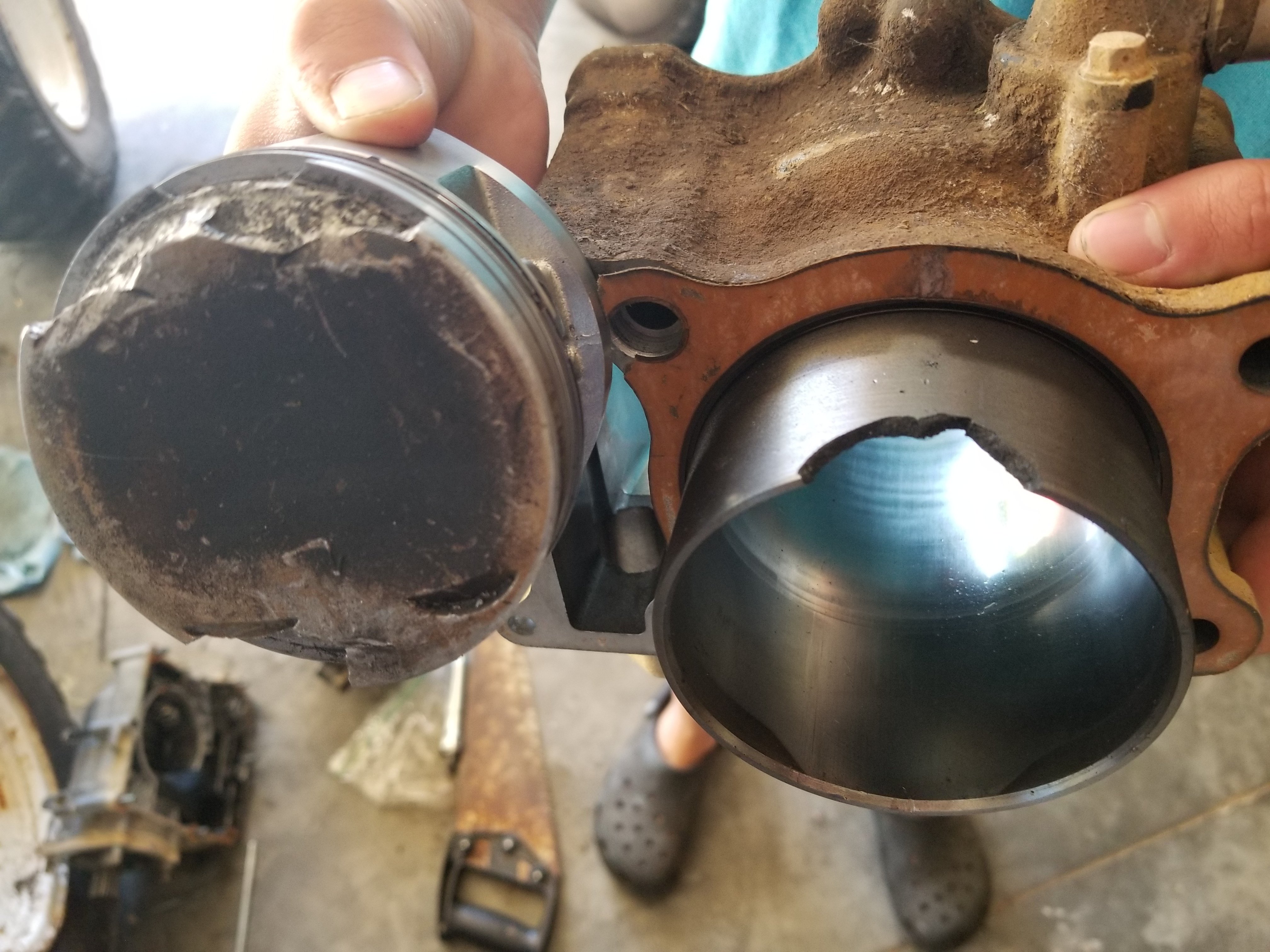

Worked on quad some more this weekend. I've included pics of damaged piston, jug, and connecting rod. Also a bent valve.

Have the case back together with replacement crank and connection ng rod in. Put crank in freezer for 4 hours and propane torch on case (225f) and it slipped right in. Pretty cool.

New valves should be here thursday and it will be back together.

Plan on turning it over by hand a few times before installing plug or spark.

Next will be electrical evaluation.




Share this post


Link to post
Share on other sites

I know right? Crazy damage... still not sure how it all happened.

Drive shaft and transmission gears look great and parts not strapped in engine look like they are new. Who knows.

Hopefully electrical stuff will work.

Share this post


Link to post
Share on other sites


Probably...I'm surprised these machines dont have low oil alert lights...(maybe they do and I dont see it yet). Would have prevented a lot of damage.

Picked up some cheap 10/40 oil for when we get finished.. was thinking run it a couple of hrs then change oil and filter just in case?

Share this post


Link to post
Share on other sites

Yes for sure. Always a good idea to do a secondary oil change after a job like that.   Plus I like to add grease to the lobes of the cam and valve rockers etc and run my finger around the cylinder with a little grease as well. This will relieve some initial start up friction.

Share this post


Link to post
Share on other sites

When the ignition key is on and transmission is in neutral the "neutral " light should come on whether the engine on/off switch is in either position right?

Need to find a wiring diagram I guess... anyone know if the bayou 300 wiring is the same?

Share this post


Link to post
Share on other sites


If so take the light green wire coming from the harness not from the wires coming out of the switch and add a ground to it and see if the bike cracks and the light comes on. If so there’s a problem within the neutral safety switch or contact point on the reverse cam.

Share this post


Link to post
Share on other sites

You are the MAN! After grounding the green the neutral light came on.. also with the starter disconnected we could hear the starter relay clicking on and off when pressing the start button.... so now to re-evaluate that switch... see how expensive to replace.

Share this post


Link to post
Share on other sites

Ok so what’s bad most likely is the reverse cam, not the neutral safety switch.

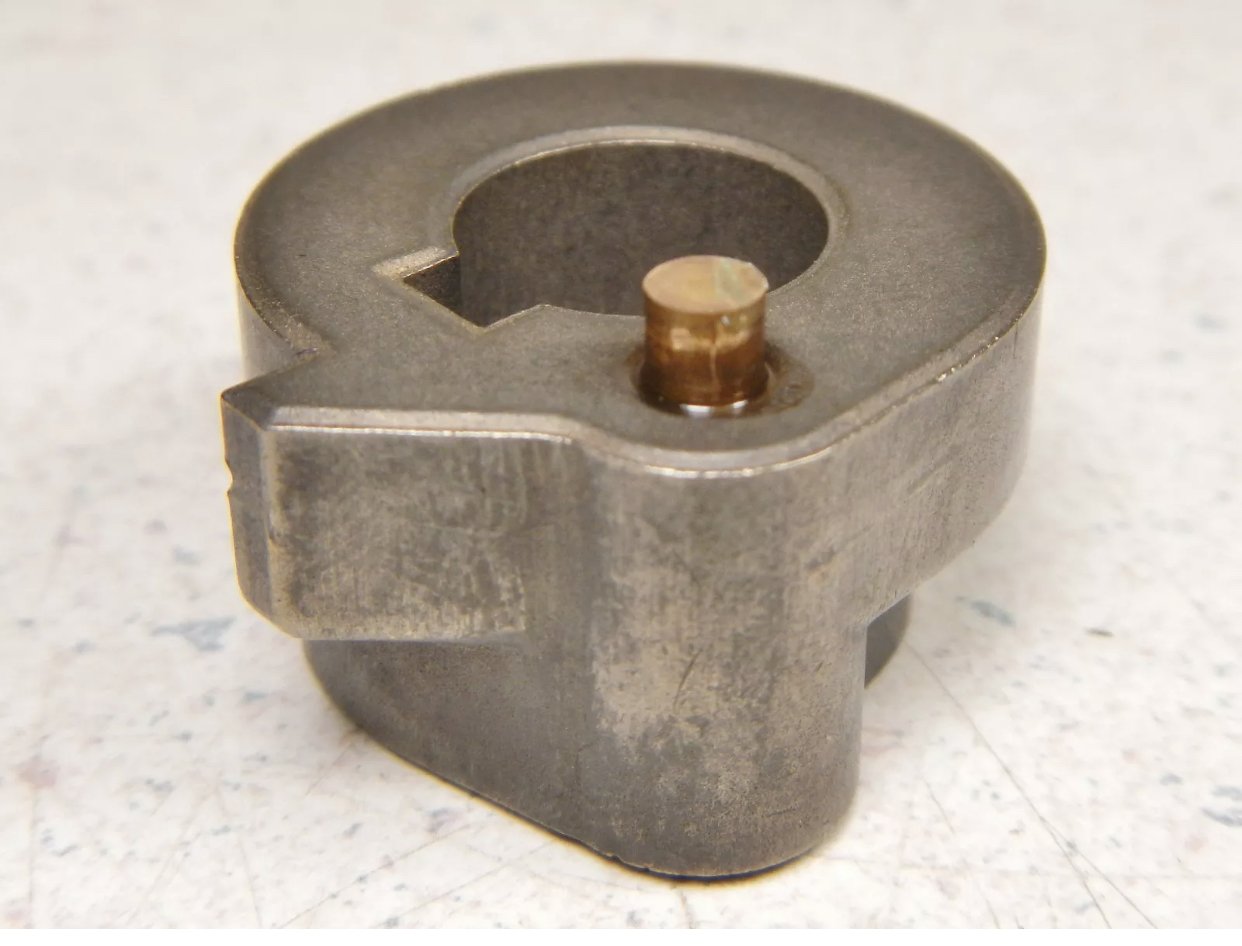

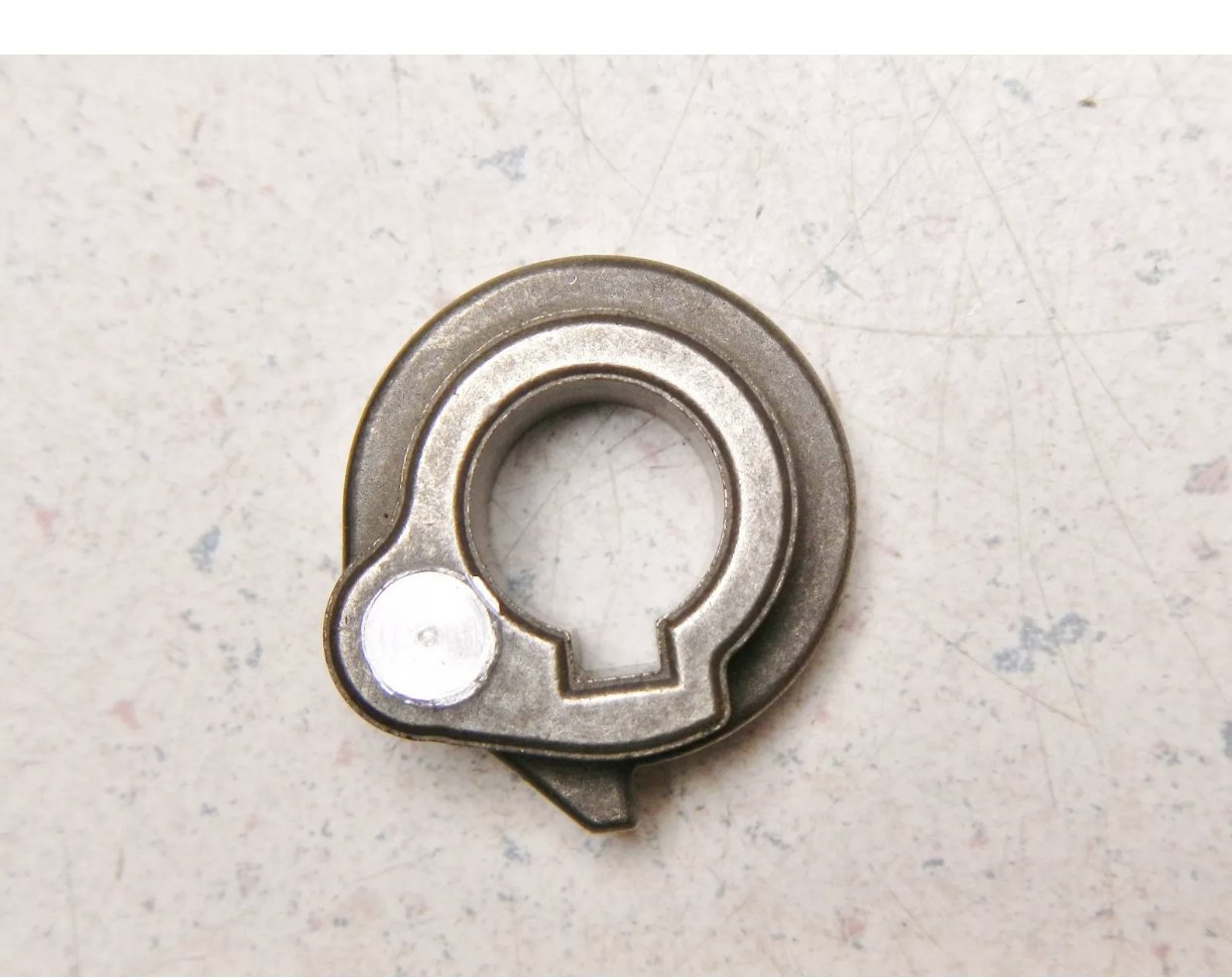

Ive attached pics of the reverse cam.  On that revers cam there is a small pin that’s spring loaded. That spring loaded pin is what touches the electrical tab on the neutral safety switch.  Over time the spring collapses and does not make contact.

Good news: it’s cheap to fix parts wise

bad news: the bevel gear housing that covers that switch can only be removed with the engine raised up off of the frame or the engine pulled.



Share this post


Link to post
Share on other sites


Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.
Note: Your post will require moderator approval before it will be visible.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.


  • Similar Topics

    • By Gsk1500
      The clutch cover goes on and fits, but the little L chapped arm that has gear slots is concerning me.  It appears it goes to wear the clutch adjust bolts are on the cover.
      Is there a specific way to tell how it mounts on the gears in relationship with the basket?
      I don't want to deal it up unless it's right
    • By oxidized_black
      View File 1988-2002 Kawasaki Bayou 220 Service Manual
      1988-2002 Kawasaki Bayou 220 Service Manual
      The Kawasaki Bayou 220 is one of the most common all-terrain vehicles on off-road trails that is geared toward novice riders and families. It’s also one of the smallest and most inexpensive ATVs on the market, with a retail price under $3,500, as of 2010. The Bayou 220 is Kawasaki’s only ATV of its size. The 220’s sibling is the larger Bayou 250 equipped with a 228cc engine.
      Engine
      The Bayou 220’s engine is a 215cc, four-stroke, shaft-driven, air-cooled model. Its bore measures 2.6 inches and the stroke is 2.4 inches. It features a relatively high 9.3:1 compression ratio with fuel delivered through a Mikuni VM24SS carburetor. The electronic ignition is Kawasaki’s DC-CDI. It also features a recoil backup as a starting system. The clutch is an automatic wet multidisc model with power delivered to the wheels via a five-speed transmission, according to ATV Source.
      Chassis
      The steel frame supports a front suspension with single A-arms and twin shock absorbers, with the rear suspension a Quad-Link system with two shocks. Front wheel travel is 4.5 inches, while the rear wheel travel measures at 4.9 inches. Front and rear brakes are drums.
      Size
      The front tire size is AT21X8-9 with the rear tires measuring AT22X10-10. The ATV’s wheelbase is 43.9 inches, with an overall length of 68.7 inches. Ground clearance is 6.1 inches with the seat height measuring 28.7 inches. It weighs 403 lbs. and can tow up to 450 lbs. Its fuel tank can carry 2.6 gallons.
      Basics
      The Kawasaki Bayou 220 is not the fastest ATV on the market, but one reason the Bayou 220 has kept its price low is the lack of amenities. It features a brake light and dual headlamps with high/low beam. There is an auxiliary lighting terminal inside the front cover of the ATV and electrical accessory terminals under the seat. The instrument cluster atop the fuel tank features a fuel gauge, but not much else. There are no speedometer, odometer, hourmeter, tripmeter, high-beam indication or high-temperature light. It does have a reverse/neutral indicator light. The Bayou comes in two colors: hunter green and firecracker red.
      Features
      The front A-arm, twin shock and rear Quad-Link twin-shock suspension system is not a true fully independent system, but it allows for a comfortable ride over rough terrain without employing a complex and expensive, fully independent suspension system. The ATV features front and rear steel cargo racks. The ATV is rider-friendly with a limited adjustable throttle to help novices practice their riding skills without twisting the throttle too far and losing control of the vehicle.
      Submitter oxidized_black Submitted 12/14/2016 Category Kawasaki ATV
    • By Arizona
      Back again with another headache, maybe you guys can help me out.
      Picked up a 87 Bayou 300 not running of course, all stator wires melted
      on the motor and also no spark. I checked the pick up coil ohmed out good.
      traced the wires and led to no cdi box, yes missing. So ordered it and while waited
      fixed the stator wires, had to wire direct to harness. Get the cdi installed and after a lot
      of other things started it up. Battery dead so used a batt charger to start it. Now when i shut
      off the charger the motor died. So i check charging voltage...nada. I see voltage regulator is
      old and catalist leaking so i replaced it. Same thing no charge. I check stator and no voltage
      with it unpluged from harness while running. Soooooo i replace stator. Now Stator wires have
      23v and up to over 50v at higher rpms. So i know its charging now. Connect everything back up and
      no charge voltage at battery! Still dies when i shut off charger. All 3 yellow stator wires have good voltage, checked
      harness from stator to regulator and is good. The white wire has battery voltage at regulator, the brown wire has battery
      voltage at regulator when key on. The Black/yellow stripe has good ground. I get 3 volts at battery when i shut off charger.
      If i connect old regulator i get 7 volts when i shut off charger. Do i have a defective new regulator? Im stumped. when i
      figure this one out i have a big wiring problem on another one ill let you in on.  Az
    • By JCA

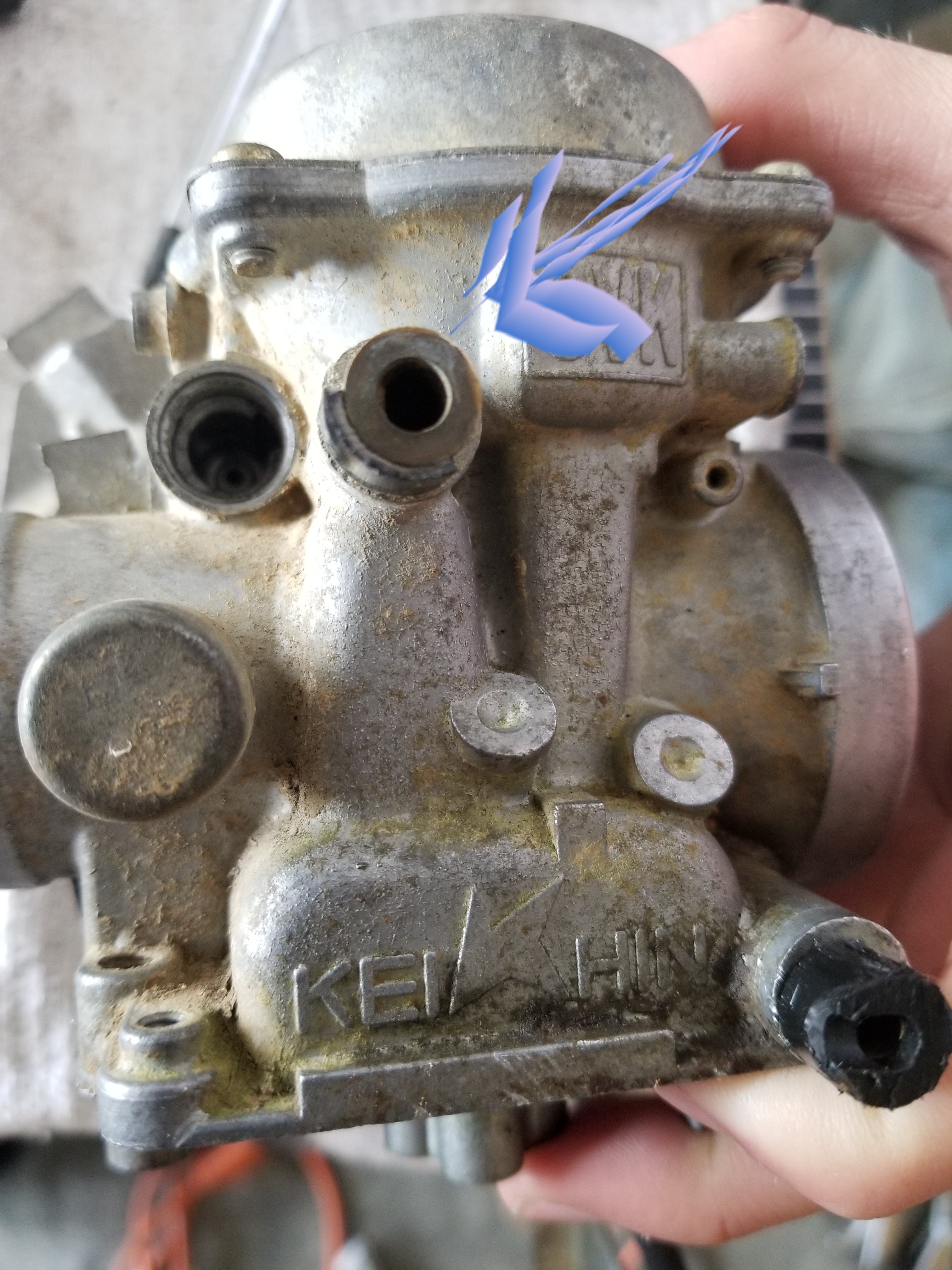

      I recently acquired 1994 Bayou 220 (leaks oil, leaks gas).  Beginning by cleaning carb.  When I took the float bowl off, the brass overflow tube is not straight (see image).  I am not sure if this is "right" or was damaged/modified at some point (although I can't image why).  I have looked for an image or drawing that would show this clearly with no luck.  Should this tube be straight vertical; and if so, should I attempt to straighten it, replace it, or leave it be (not sure if this would effect the required float level setting as the end of the tube sits just a little lower at the angle).  Prob putting too much thought into this, but any info would help!
