By hengstserepair
Howdy ya'll. I am working ona 2000 Yamaha Breeze 125. It was in rought shape when I received it and I am working through issues as they pop up. The quad had been sitting for years. I was able to get her running again, but I need your help with the following issue:
I don't trust the transmission yet and I don't want to make problems any worse. So, I haven't pushed things hard at all. Low rpms, less than 5mph in reverse.
Nuetral: Runs as expected
Reverse: She seems to be driving fine at slow speeds. Going into reverse at idle is fine, coming out of reverse back into neutral won't work (the shifter is just stuck). As soon as I turn off the quad, I am able to shift around without any issue.
Forward: It slips. It seems to only transfer power to the wheels on a smooth surface and going slightly downhill. When shifting into forward at idle, there is a clacking sounds during the transition. Shifting back to nuetral works just fine.
Other Notable Symptoms: There was old oil in the vbelt and when I was tuning the carb, it starting blowing out of the CVT cooling vent at the front of the quad. Made quite a mess. There is positive crankcase pressure due to piston blowby, that I have not decided whether or not I am going to fix (customer budget dependant). Since the oil was old, much darker than the new oil that is in the crankcase, I am thinking it seeped past a bad seal while it was sitting for years. The oil that was in it when I first got it had gas in it.
Thoughts: I am thinking maybe there is an issue with the clutch. I worry about the old oil intermingling with the dry centrifugal clutch. I was thinking my next step would be to take the cover off of the clutch and inspect it.
Let me know what you all think. Any advice and ideas is greatly appreciated. This is only the 3rd quad I have worked on and I have a lot to learn.
Lorne
-
By Rockbottom
2008 400 big bear was running now will not start
have power to relay, in neutral, press start have power to starter but nothing happens starter does not turn
i have good ground at battery to frame and added ground from wire harness to frame beside batter/ frame ground
blue white wire to cdi has power with key on
I believe the neutral lock out is working since is was before i shut it down
if i put it in gear and hit the start button with key on the relay does not click or send power the starter
The 3 wires at the relay have power with key on
What should i test next?
thanks ahead
-
By Mister907
Hi guys, I have a 2004 big bear 400. Last winter while plowing the driveway, I heard a loud pop from the left side of the engine. It continued to run as I looked for leaky fluid, but then died shortly after backing it up and won’t start now. The oil light comes on when I try to start it, no noise or anything else.
No blown fuses that I can find.
-
By LMI
Hi all. New to the forum & quads. Seems like a great place full of info.

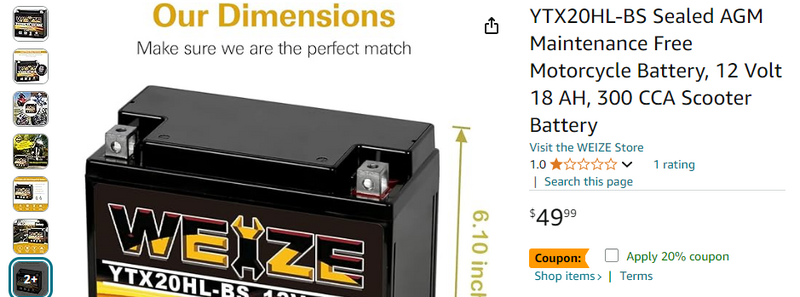

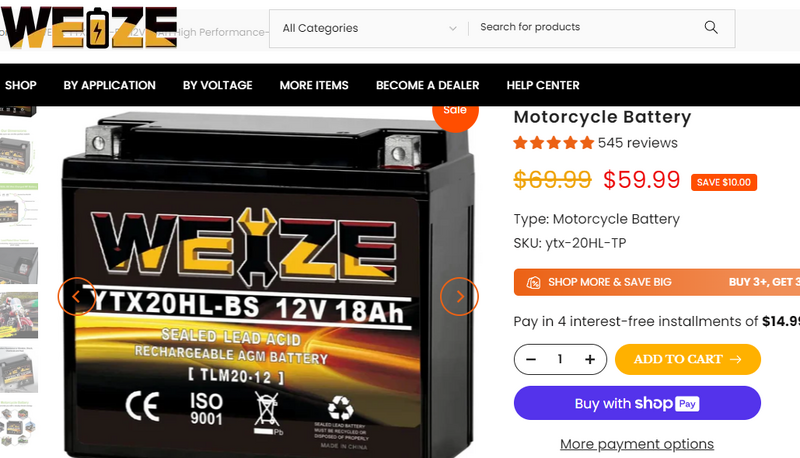

I just recently picked up a 2005 Suzuki KingQuad LTA700. I need a battery. I've been reading up on conventional vs AGM types. I have a Royal Distributing and Canadian Tire. RD has 2 types avail for my year/Model a battery YTX16-BS CRANK $75, and BATTERY YTX20CH-BS YUASA $140. Neither of these is the type from the manual FTZ16-BS.
from what I can tell... I think the only difference is the capacity with the $75 unit rated at 14 AH/10HR and the $140 unit rated at 18 AH/10HR ... which is the rating in the manual for the FTZ16-BS. How much does this make a difference for nearly x2 the cost?
And about the models/type numbers.... what is important to know ... they all end in "-BS" but are the other details relevant or just manufacturer naming?
-
By jeffinotown
Hey guys and gals. I've been working on my friends 2007 big bear IRS. Unfortunately after 3 different people got their hands on it and only made things worse every time. After months of finding just crazy problems everywhere. I'm finally at the point we're its almost 100% !!! But I'm getting a short somewhere between the 4xW switch I believe. I managed to by searching the internet like a fiend, got my hands on an official Yamaha wire harness for the year and make. But I don't have the numbered component list and to be honest. After hours of going through and making everything so it's easy to reference. If anyone has a picture of the referenced components. I would be forever in your debt. I've spent hours marking up the blown up diagram so it will be easy, for any possible future repairs. Please and thank you. Here's a picture of what i have so far. Unsealed it in plastic so oil and crap won't spill or get smudged. This damn things worth it's weight in gold. Thanks Jeff 2007 Yamaha big bear 400 IRS. YFM40FBW
-
