  1. flyinbrian365

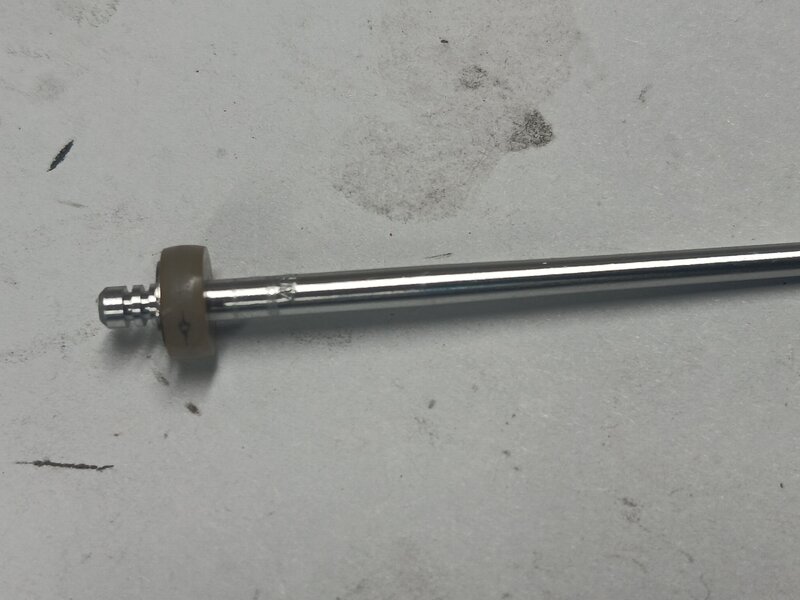

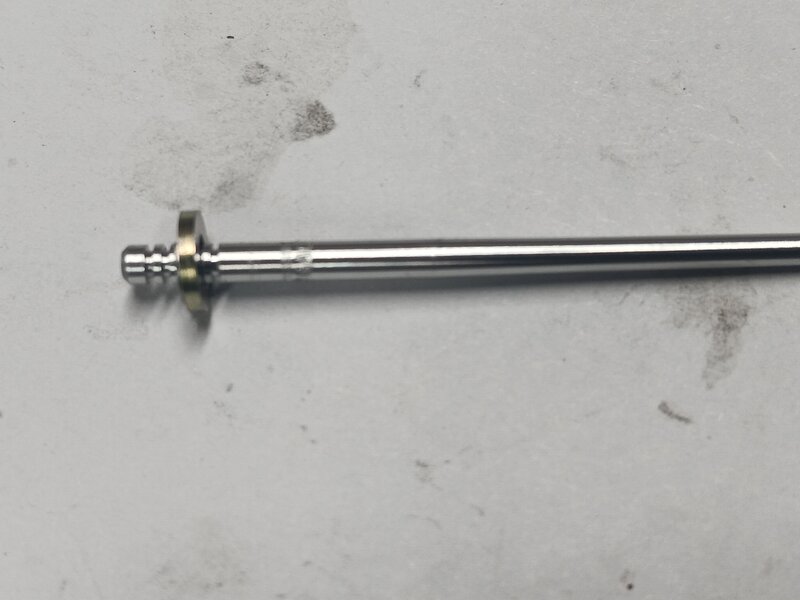

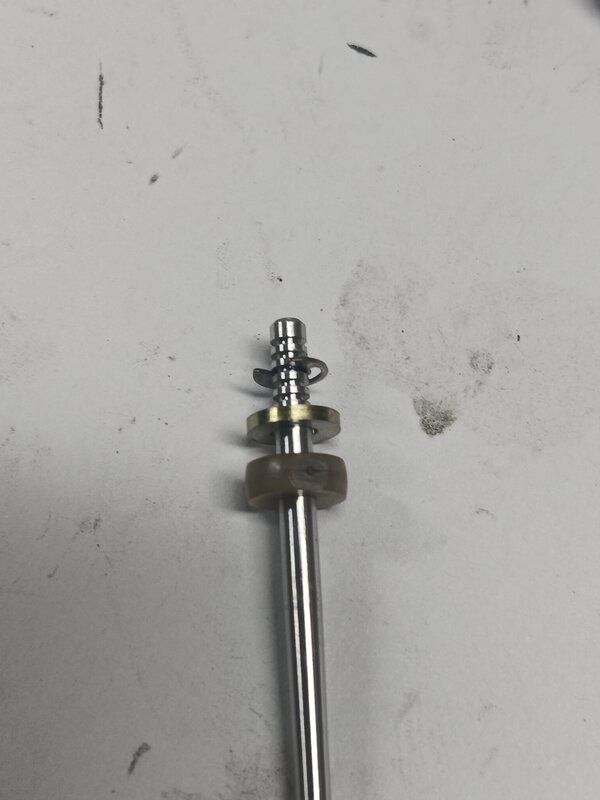

    Ok update on the running issues. What's causing this problem is the needle jet gets worn oblong from wear of the needle going up and down and the forward and back pulse of the engine. I removed the needle jet and put a scratch awl up through the bottom and shined a flashlight underneath and you can see the oblong wear of the needle jet. On my customers machine the needle jet is obsolete so I shimmed the needle down with a washer half the thickness of the original and dropped the main 2 sizes and it now runs perfectly. The plastic washer is the oem and the metal washer is the new replacement.
  2. flyinbrian365
    I've been working on a customers 2004 with the same issue and found the intake rubber boot is leaking air causing the issue. Spray contact cleaner around the boot while it's running and see if it stalls. Alot of 400 and 500 machines seem to be having the same issue all of a sudden.
  3. flyinbrian365
    Check and see what bulb size it has, sometimes you can get the same style in an automotive LED.
  4. flyinbrian365
    Hi, They are located in the UTV section of the repair manuals. Are you looking for anything in particular?
  5. flyinbrian365
    Great Thank you!!!
  6. flyinbrian365
    View File 2016-20 SXS Pioneer 1000 M3-M3P-M3LE-M5P-M5D-M5LE Service Manual 2016-20 SXS Pioneer 1000 M3-M3P-M3LE-M5P-M5D-M5LE Service Manual Submitter flyinbrian365 Submitted 12/15/2024 Category Honda UTV
  7. flyinbrian365
    View File 2015 SXS 500M2 Pioneer Service Manual 2015 SXS 500M2 Pioneer Service Manual Submitter flyinbrian365 Submitted 12/15/2024 Category Honda UTV
  8. flyinbrian365
    More information about "2016-20 SXS Pioneer 1000 M3-M3P-M3LE-M5P-M5D-M5LE Service Manual"

    10 downloads

    2016-20 SXS Pioneer 1000 M3-M3P-M3LE-M5P-M5D-M5LE Service Manual
  9. flyinbrian365
    More information about "2015 SXS 500M2 Pioneer Service Manual"

    10 downloads

    2015 SXS 500M2 Pioneer Service Manual
  10. flyinbrian365
    How were the valves, guides and seats when doing the top end? Did you adjust the valve lash to spec?
  11. flyinbrian365
    I just rebuilt a 96 Kodiak carb for a customer which is almost identical. Did you remove the plastic center block the slide glides on? There is an O-ring in there that gets deteriorated and won't allow the venturi pull the correct amount of fuel up from the jets. The All Balls Racing kit I used came with that O-ring. Also did you adjust the linkage arm so when the buttery starts to open it's lifting the slide at the same time?
  12. flyinbrian365
    View File 2011 John Deere XUV Gator 825i Service Manual 2011 John Deere XUV Gator 825i Service Manual Complete service manual TM107119 Submitter flyinbrian365 Submitted 01/25/2024 Category John Deere UTV
  13. flyinbrian365
    More information about "2011 John Deere XUV Gator 825i Service Manual"

    16 downloads

    2011 John Deere XUV Gator 825i Service Manual Complete service manual TM107119
  14. flyinbrian365
    Make sure you don't use automotive motor oils where you have a wet clutch system or a transmission gear box. Automotive oils have friction modifiers that will eventually make your clutch plates slip. Also automotive oils don't have shear stabilizers that ATV and motorcycle oils do and the gear box will shear the automotive oil and break it down quickly.
  15. flyinbrian365
    If the throttle cable isn't adjusted correctly the ignition will be shut off when the throttle is released and the machine won't idle. People install the zip tie so the contacts won't shut the ignition off. Adjust the throttle free play to factory specs and remove the zip tie.
  16. flyinbrian365
    View File 2016 Yamaha YXZ 1000R Rhino Service Manual 2016 Yamaha YXZ 1000R Rhino Service Manual Full service manual Submitter flyinbrian365 Submitted 12/18/2023 Category Yamaha UTV
  17. flyinbrian365
    View File 2016 Yamaha YXE 700E Wolverine Service Manual 2016 Yamaha YXE 700E Wolverine Service Manual Full service manual Submitter flyinbrian365 Submitted 12/18/2023 Category Yamaha UTV
  18. flyinbrian365
    More information about "2016 Yamaha YXZ 1000R Rhino Service Manual"

    10 downloads

    2016 Yamaha YXZ 1000R Rhino Service Manual Full service manual
  19. flyinbrian365
    More information about "2016 Yamaha YXE 700E Wolverine Service Manual"

    10 downloads

    2016 Yamaha YXE 700E Wolverine Service Manual Full service manual
  20. flyinbrian365
    View File 1997-2004 Kawasaki Mule 500 550 KAF300 Service Manual 1997-2004 Kawasaki Mule 500 550 KAF300 Service Manual Full service manual Submitter flyinbrian365 Submitted 12/18/2023 Category Kawasaki UTV
  21. flyinbrian365
    Check the valve clearance, I've had very similar issues with customers machines. Also check the fuel pressure is at spec and make sure the injector is clean I've had them varnish up like carbs and not spray correctly.
  22. flyinbrian365
    More information about "1997-2004 Kawasaki Mule 500 550 KAF300 Service Manual"

    15 downloads

    1997-2004 Kawasaki Mule 500 550 KAF300 Service Manual Full service manual
  23. flyinbrian365
    View File 2002-03 Series 11 Polaris Ranger Service Manual 2002-03 Series 11 Polaris Ranger Service Manual 9918071 Full service manual Submitter flyinbrian365 Submitted 10/18/2023 Category Polaris UTV
  24. flyinbrian365
    More information about "2002-03 Series 11 Polaris Ranger Service Manual"

    10 downloads

    2002-03 Series 11 Polaris Ranger Service Manual 9918071 Full service manual
  25. flyinbrian365
    That would be the manual for the Series 11 Rangers.
