Arby911

2000 Yamaha Big Bear 400 VIN 5Y4AH06W015216

Recommended Posts

I can't for the life of me find the correct service manual for this unit. It's air cooled, not liquid (oil cooler tho) and every manual I find has the wrong front differential diagram (it does NOT have a 2wd/4wd shifter).

I'd be eternally grateful if someone could point me in the right direction. I can probably slog it out from some of the exploded diagrams I've found, but a good "do this, do NOT do that" manual would be a godsend.

Regards,

Ross

Share this post


Link to post
Share on other sites

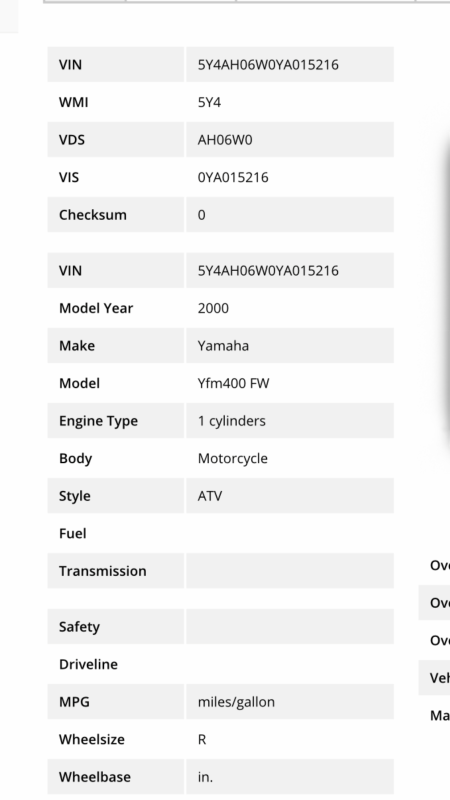

I appreciate that but yeah, I’ve run the decoder as well, my problem is that all the manuals I find show a liquid cooled engine and a shiftable front differential for that year and model.

Parts sites show the right parts/diagrams, but thus far finding an appropriate service manual has been impossible.

Share this post


Link to post
Share on other sites


Pretty interesting, found another topic on the same that went unanswered...



Share this post


Link to post
Share on other sites

I have a couple of 2001 Big Bear 400 YFM40FWN(C) full time 4X4 that is not air cooled but has oil cooler and haven't been able to find the correct service manual either.

Share this post


Link to post
Share on other sites

I uploaded the Yamaha service manual for your Big Bear.  Covers 2000 & 2001.  First time I've done this so I hope it downloads correctly.

  • Like 3

Share this post


Link to post
Share on other sites
2 hours ago, wanrep said:

I uploaded the Yamaha service manual for your Big Bear.  Covers 2000 & 2001.  First time I've done this so I hope it downloads correctly.

Its all set:



  • Like 4

Share this post


Link to post
Share on other sites


It did download correctly.  You sir are a saint (but we won't let that get out😀).

  • Like 1

Share this post


Link to post
Share on other sites
