2001 Kawasaki 300 bayou shifter shaft

Recommended Posts

Just got a 2001 300 2x4 Bayou that needs a shifter shaft. Is this a very hard replacement to do? What do I need to watch for? Is there a video on this repair?

Share this post


Link to post
Share on other sites


Not that hard to do.  You'll need to remove the right hand engine cover and the 2 clutches in order to pull it out.  There's a few washers and springs you need to watch for so a service manual is needed to make sure everything goes back together correctly.  An air impact is helpful getting those clutch nuts off.  The shaft and a new cover gasket should be all the parts you'll need.  A Kawasaki or Clymer manual walks you through the process.

  • Like 1

Share this post


Link to post
Share on other sites


@JacobSlabach if you ever come across and old bike laying around that’s shot. Pull the motor and split it open.   I did this with my son on a beat up xr80 we found. He split the engine just to see how things work.   I explained as much as I knew and in addition he learned how the clutch worked etc. It was a great learning experience.

  • Thanks 1

Share this post


Link to post
Share on other sites

Are you sure you put everything back correct ? The shifter has a reverse cam. Have you reinstalled that correctly? It’s a lever that’s got a notch in it on the same side under the same cover.



Share this post


Link to post
Share on other sites

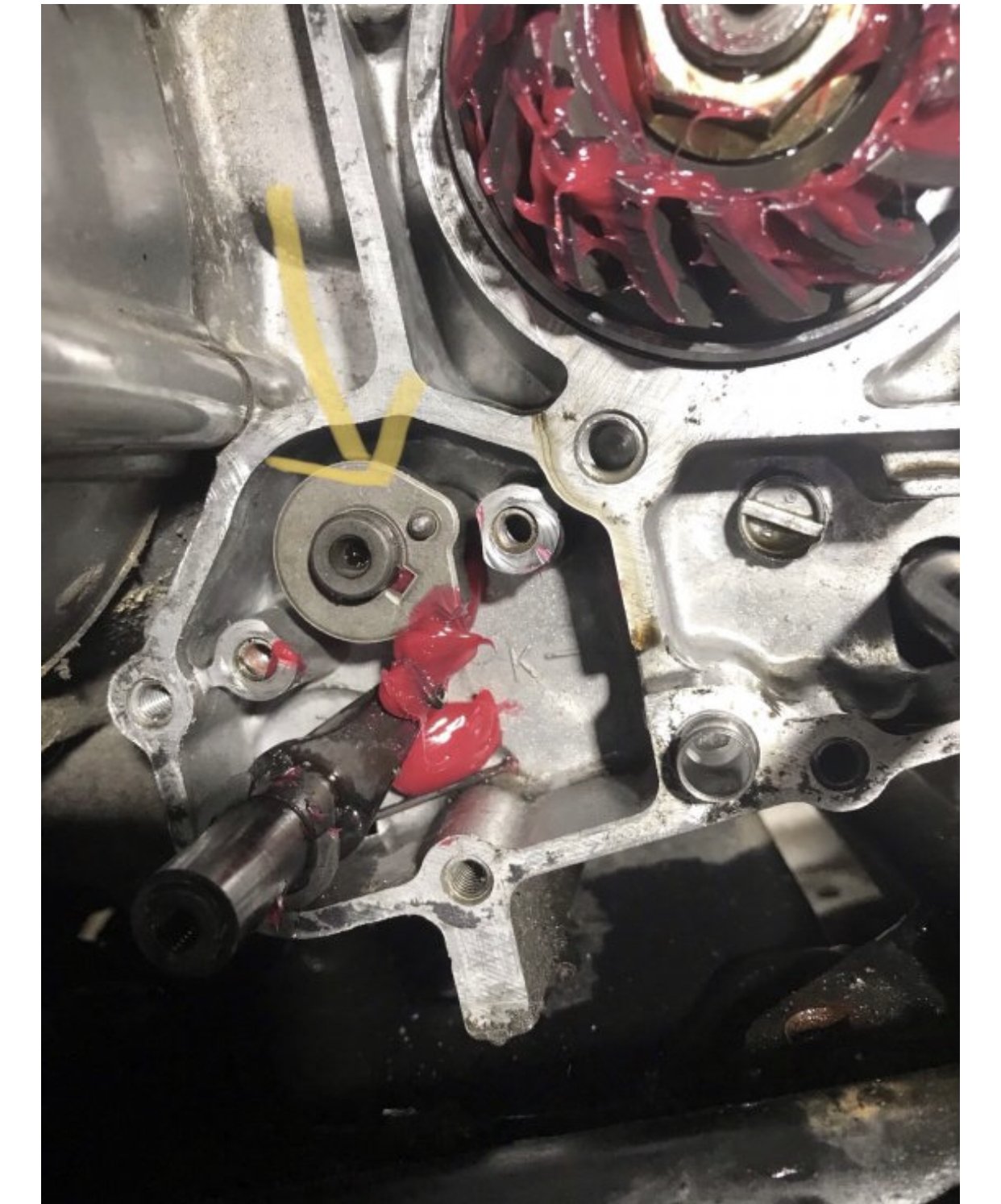

This is a picture of the bayou I just worked on.  The part that has the arrow has a notch that allows the shifter to go into reverse when you pull the reverse spring lever.  Did that get messed with during your repair ?


Share this post


Link to post
Share on other sites


Is this on the left side by the rev lockout lever?If it is I didn't have it off,just the right side. Is that the neutral/reverse switch

Edited by ronwv48

Share this post


Link to post
Share on other sites

I don't remember seeing that when I had it apart .Ill look tomorrow Is that the shifter shaft in the pic?

Share this post


Link to post
Share on other sites

Yes that’s the reverse lock out lever. I was wondering if you re installed the lock out properly ? And yes that’s the shifter and neutral safety switch.

Share this post


Link to post
Share on other sites


update grounded green wire to bypass neutral switch. starter works ,sarted up was in reverse so i'm happy. thanks a lot frank for the help    now waiting on gasket to finish putting it back together.

Share this post


Link to post
Share on other sites

That’s great glad to help. What parts are you going to order?  That reverse cam was bad not my switch.   But I lightly sanded that switch while I replaced that reverse cam just to clean up the contacts.

The neutral safety topic will help you out.

Maybe @Admin can help combine all your topics to one so it’s essier to respond and keep one topic going.





Btw that part was $12 bucks oem on eBay.

Gasket kit entire kit amazon $38. Might as well get the whole kit.   Never know

Share this post


Link to post
Share on other sites

If you know how to combine the posts that would be great. Not sure what parts to get now  until I tear the left side down ,just got the right side gasket, should have got the set

ready to put right side back together so I can try it out. I will work on the neutral switch later..I want to make sure every thing else is ok .I just bought it and don't know its history

Share this post


Link to post
Share on other sites

If every thing checks out ok i'll probably order parts and do the switch next week. I have tried to download the manual 1986 - 2006 Kawasaki KLF 300 Bayou Service Manual several times and it comes back corrupt. Is there a trick to download it.

Share this post


Link to post
Share on other sites
