Removing Seat on Kawasaki Bayou 220

Recommended Posts

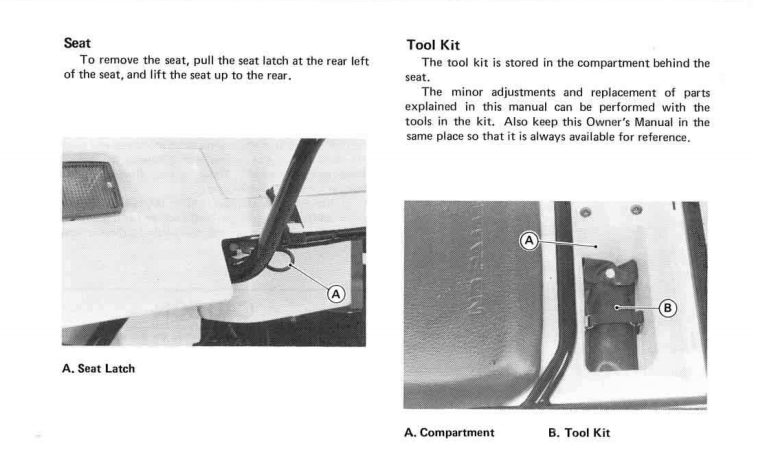

On page 38 of the owners manual ...says to pull the latch at the rear left of the seat.




Share this post


Link to post
Share on other sites

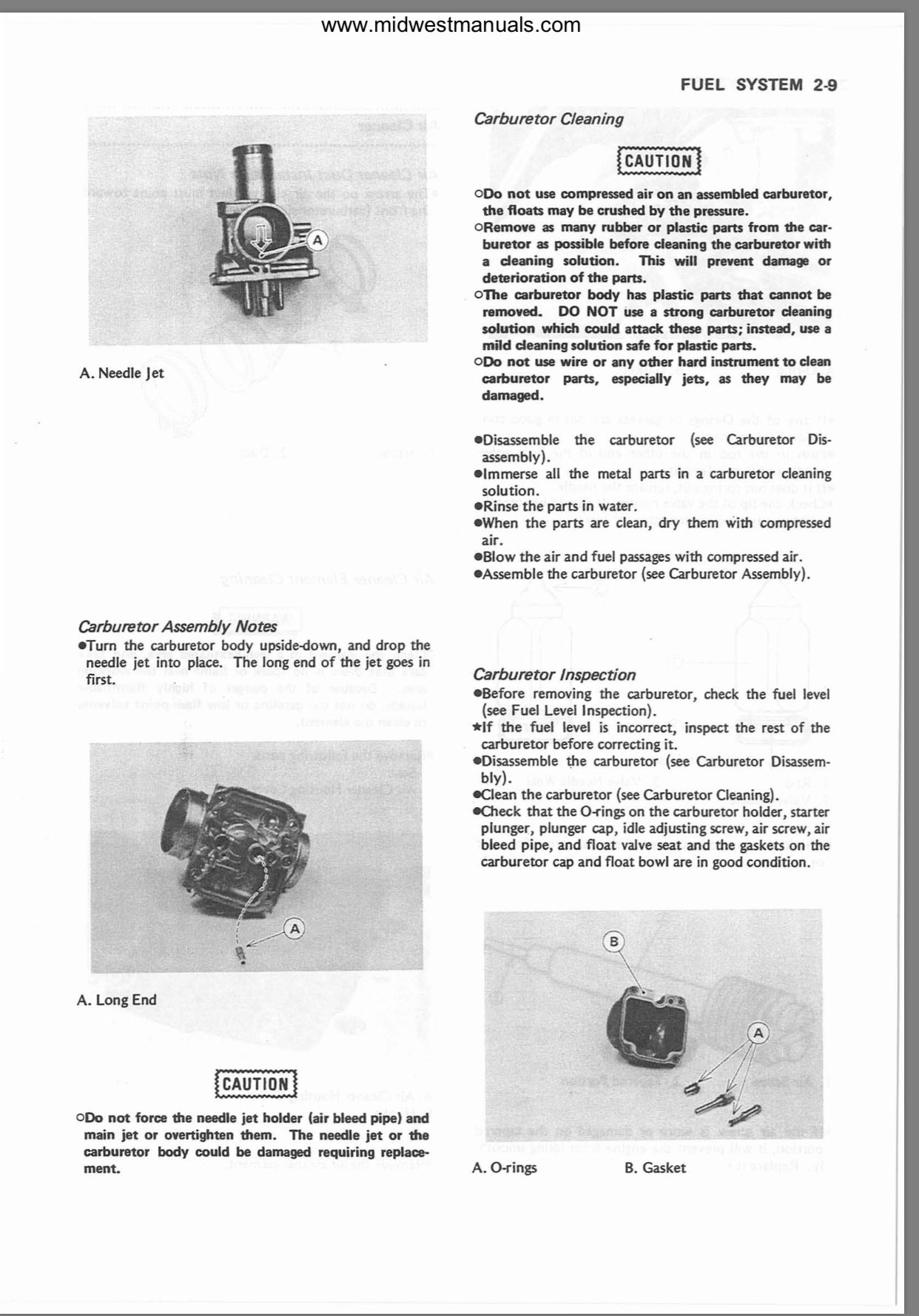

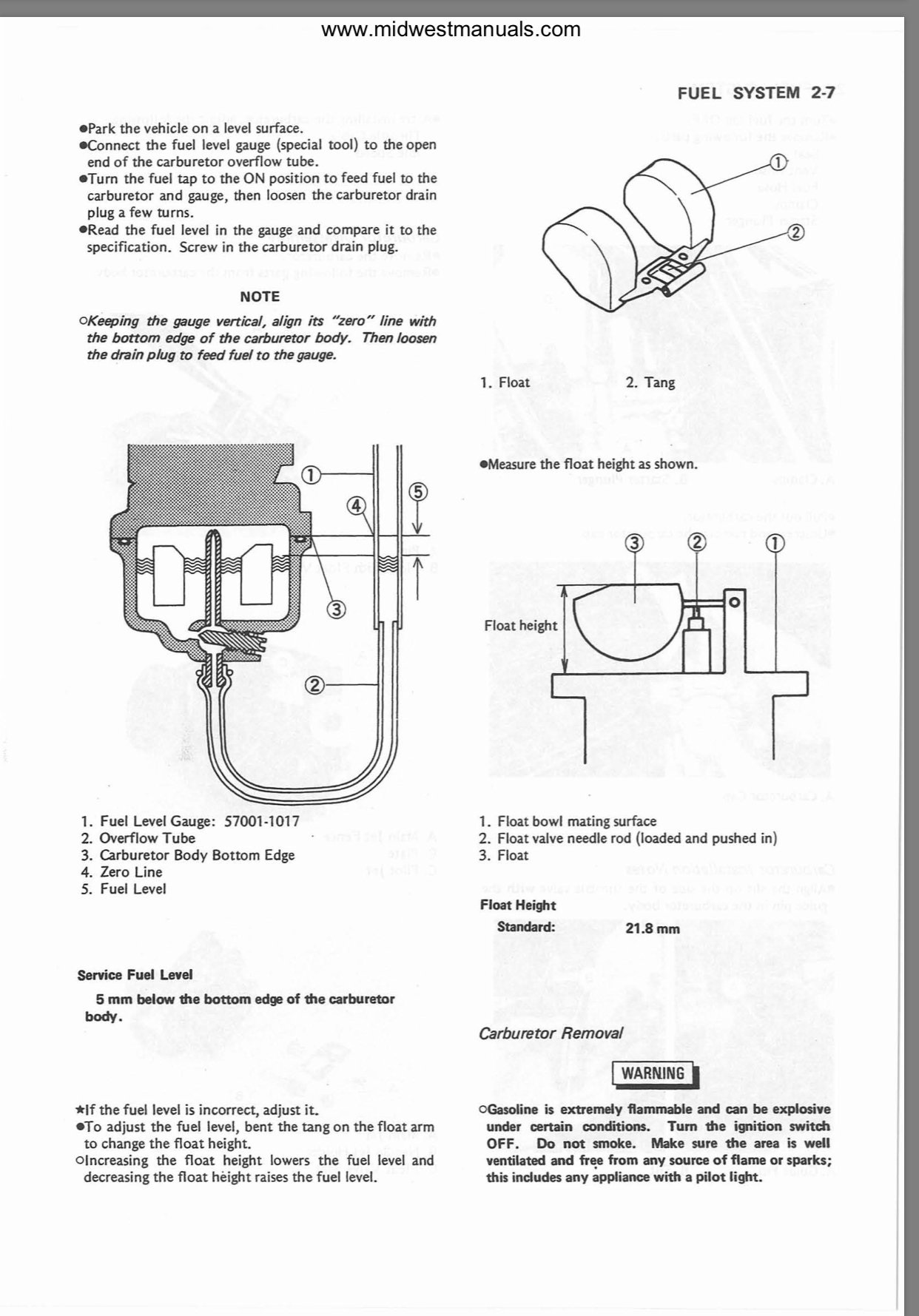

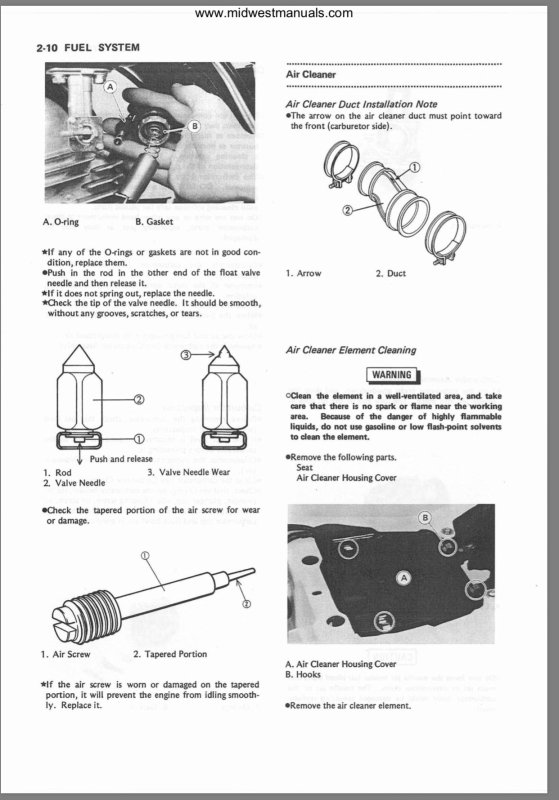

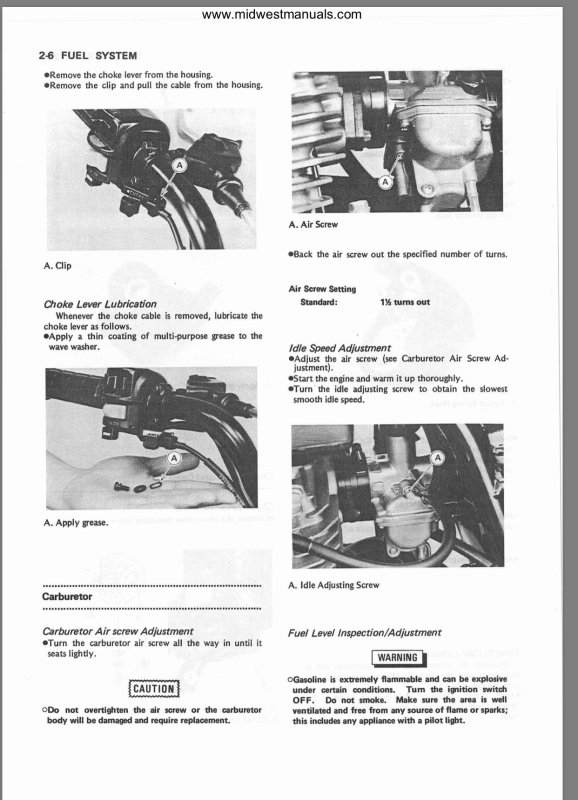

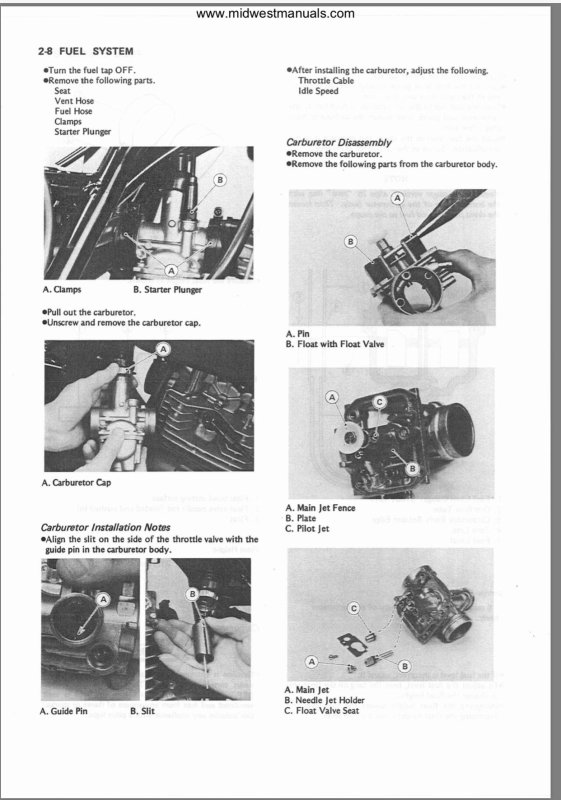

Thanks Frank.  This was at my brother's cabin and wasn't working, so he told my husband if he could fix it he could have it.  So we brought it home, but the key could not be located so he will be having to replace the ignition switch.  He has taken out the carburetor and can see that needs to be replaced - he's "never seen a carburetor so junked up".  So if you had any tips on those or could post those sections of the manual that would be great - won't let me download it yet.

Edited by Curtiosity

Share this post


Link to post
Share on other sites

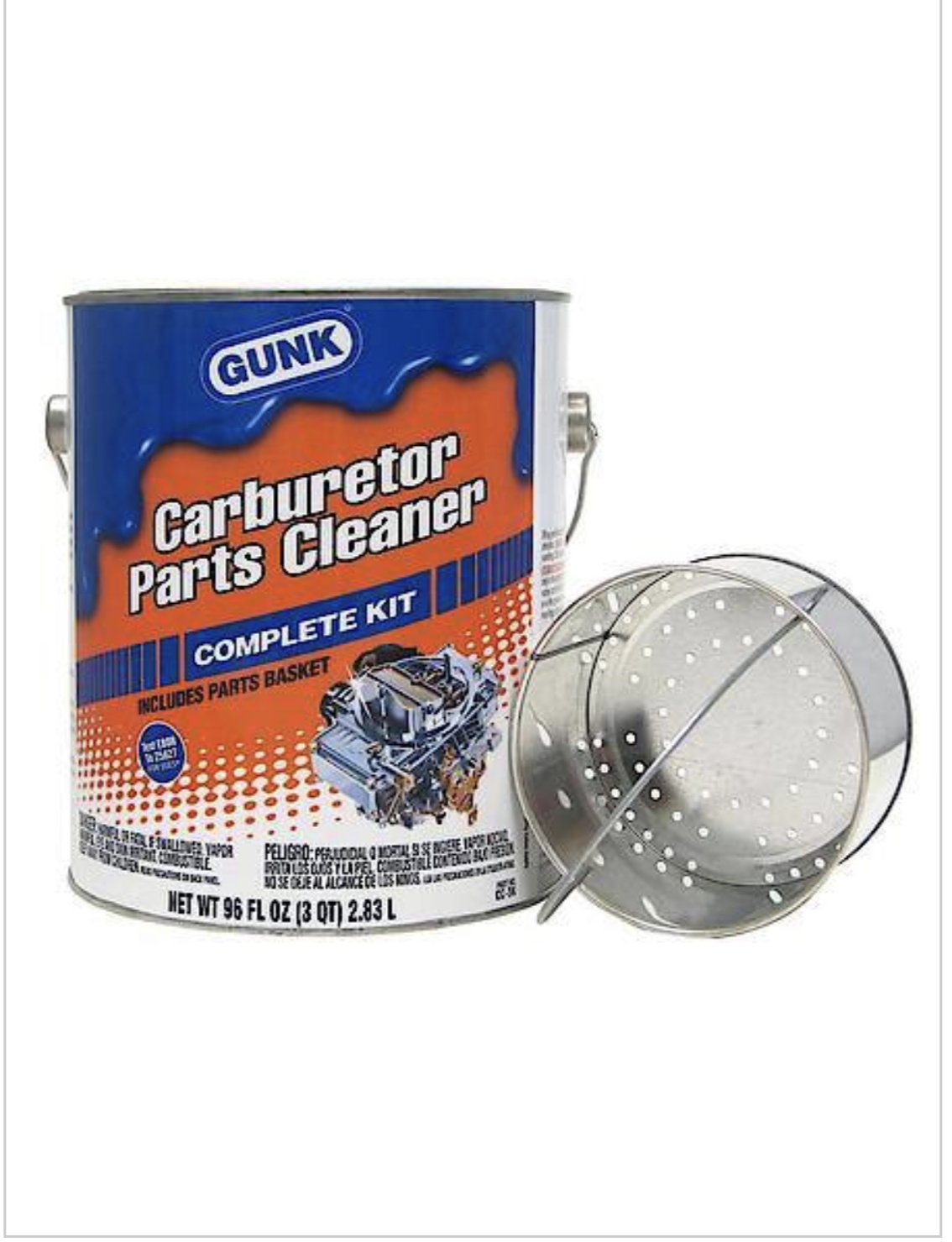

I’m sure a good soaking and some work I bet that carb can be saved.  When they are that bad I don’t even try to take them apart without a one day soak.  Here is a pic of of a soaking process.  It comes with the basket inside etc. let it soak for a day and then try to take the carb apart. Put parts back in the basket and soak again.  After that some compressed air small piece of wire to clean the jets and it should be fine.




Share this post


Link to post
Share on other sites


I had a bayou 220 that I was working on that had a junked, and leaking carb- replaced with an aftermarket for $20 off amazon- works great, but aftermarket carbs are hit/miss.

btw, does anyone know if the plunger carbs on atvs have compatible butterfly carbs that can replace them?  Every atv that I've worked on so far with a plunger carb has/had a idling issue where it wont idle cold, but idle speed increases with engine temp and races when warm....?  Anyone know why?

(by plunger carbs, I mean the carbs where the throttle cable hooks up to a 'plunger' that slides up and down to adjust flow into the engine vs the butterfly carbs where the throttle cable attaches to a butterfly gate that opens flow into engine...)
