HeWasRidinDirty

2003 quadsport z400

Recommended Posts

Yes I got the pics. What I meant to say was have you tried to line up the cam lobes as per the image (also the key ways on cams) I sent and see if the flywheel is near at TDC.   If the cam lobes are no where near the image on the manual then there clearly a problem with timing.

Share this post


Link to post
Share on other sites


12 hours ago, Frank Angerano said:



Oh, ya, the lobes. They seem to be in about the same location. If they are aftermarket cams, then, the keyway is probably irrelevant.

Edited by HeWasRidinDirty

Share this post


Link to post
Share on other sites

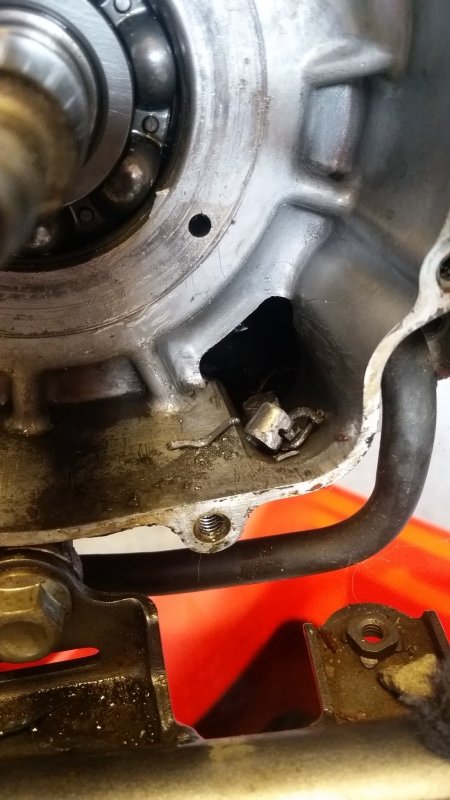

I pulled the stator cover and stator off today. It looks like the key on the flywheel is ok. Is there a way to check the timing with a timing light? I really don't know. If it was an old car or truck, then.....LOL.

I'll post up some pics of what I found inside the stator cover a bit later.

Share this post


Link to post
Share on other sites

Believe it or not you can do that but it has to be a running bike Un fortunately.  I’ve seen and tried after watching.  When the bike is running up to par I’ve seen a person put marks on the flywheel and on the engine casing. After hitting it with the timing light it worked. Crazy stuff but yes.  I have to try to find the video.  It wa s a good idea.

I honestly think your cams are off, hope I’m wrong. But I think you have to go back and look at what was done and try to locate some information on the cams you have or replace with oem cams and sprockets.



Share this post


Link to post
Share on other sites

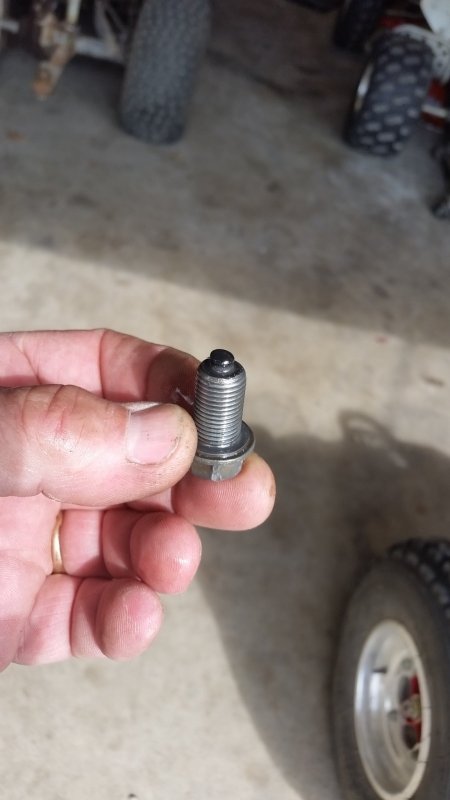

Yes, exactly. That round pc was stuck on the drain plug.

What kind of seals are in this engine? It doesn't have crank seals like a 2 stroke does it? Water pump seals come to mind, but, there's no water in the oil or oil inthe water. It hasn't leaked any oil either.

Share this post


Link to post
Share on other sites

I’m thinking possibly a compression relief spring ? Not sure if the engine has that. But based on the short history of the cam replacement and top end work  that would be my guess.

See that small spring on the cam ? It’s possible that it has come off prior to the last owner rebuilding the top end.


Share this post


Link to post
Share on other sites

Most 4 strokes have a compression releif mechanism on the exhaust cam right? This doesn't have anything on the ex cam. Nothing. It looks exactly the same as the IN cam. ANd if there was a spring on the ex cam, how would it get to the stator? IDK. I'm about to light this thing on fire!  LOL

Share this post


Link to post
Share on other sites

Lol take a deep breath and maybe a step back. To much time at it will make you crazy. My feeling is that spring is exactly what I think it is. But I could be wrong.   If it fell down Into the cylinder it could have easily been mangled up in the cam chain into pieces and basically been pumped through the engine.  I’m thinking along these lines like I said earlier based on the top end work.  I would change the oil a few more times with cheap oil to make sure you get it all out.  You can use paint strainers to catch any debris as you drain the oil and re use the oil over to keep flushing the system.   Once it’s all clear put a better grade oil in.

If it’s just the small spring chances are it’s not going to do much.   Go through all the gears to make sure it’s shifting, you can do that just by rocking the bike back and forth and go through the gears.

Stick with the timing to make sure it’s correct  and get it fired and listen to it run. Take it from there.   That pic I sent you is a cam  that’s for your machine.

The only other option is to pull the engine off the frame and set it on a bench and tare it down.   Not sure how far you want to go but it is what it is.

Lastly is the previous owner: did he or she give you any background on this machine ? It seems like you don’t have much background history with it as to what was done etc?

  • Like 1

Share this post


Link to post
Share on other sites


Reading this  thread rang a bell  for  me.  In page one Hewas mentioned the  keyways are  opposite of what the videos show when the  marks are all  lined up...  I  suspect the  previous owner lined the  marks up   as per Frank's diagram , but instead of  using the  exhaust  cam to  start  (  #1 lined up  with head gasket ) he  used the intake cam. All  3  would be lined up as illustrated ,  but 180 degrees out of time .



  • Like 1

Share this post


Link to post
Share on other sites

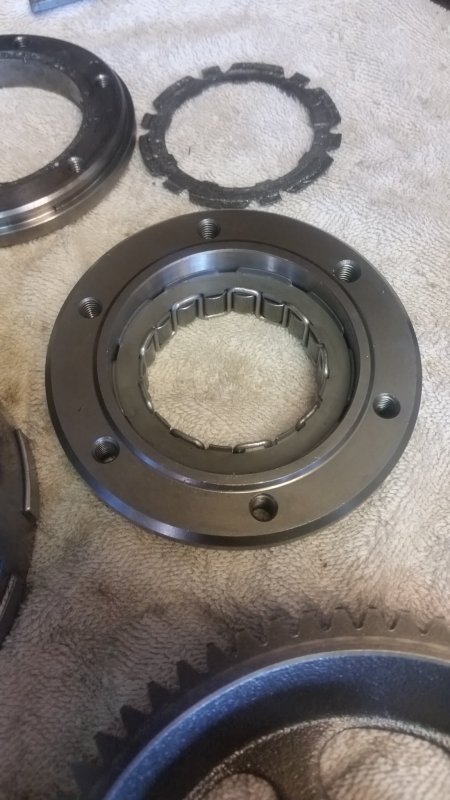

So, the update.... The camshafts are old Stage 2 HotCams. I sent them off to H.C and they are going to put some marks on them so I can time them properly. In the old days. H.C's put paint marks on the camshafts for timing purposes. They wear off over time. They're doing this at no charge. Just shipping. I think it's $15 total. ANyway, the pcs of metal debris that came out of the engine is the starter sprague or starter  clutch. Ya.Came out in many many pcs. Not good. However, I have removed the head and the valves look good and piston and cylinder look great.

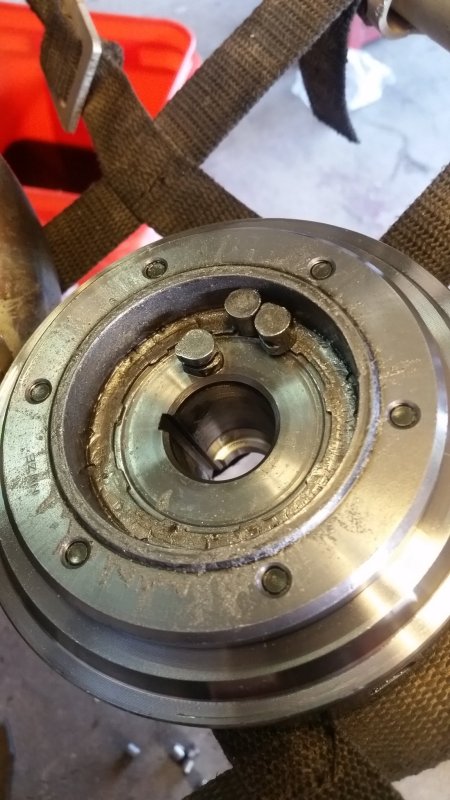

This thing right here is what is broken.

https://www.ebay.com/itm/New-LTZ-400-Quadsport-Starter-Clutch-for-Suzuki-LT-Z400-03-14-LTZ-400Z/231436719164?hash=item35e2b4143c:g:gvoAAOSwwTlUnK5g

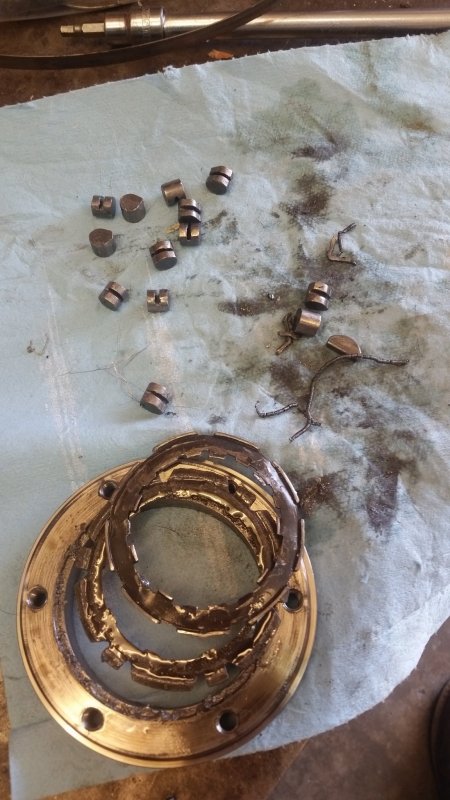

This is what's left!




Edited by HeWasRidinDirty

Share this post


Link to post
Share on other sites

Wow that’s a lot of parts.  Great work on the research! Happy to hear the top end is in good shape. Hopefully all else is well and you can slam that thing back together when you get the cams back.

Great update.  Let us know how it all turns out!

  • Like 1

Share this post


Link to post
Share on other sites
On 9/11/2019 at 4:12 PM, Frank Angerano said:

Wow that’s a lot of parts.  Great work on the research! Happy to hear the top end is in good shape. Hopefully all else is well and you can slam that thing back together when you get the cams back.

Great update.  Let us know how it all turns out!

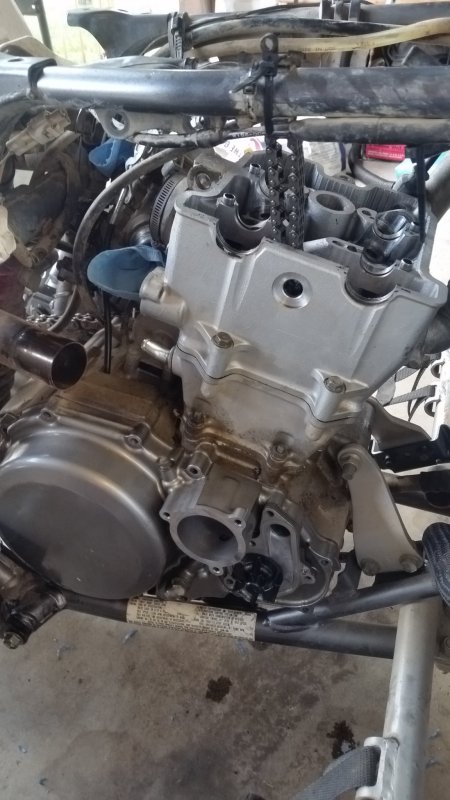

Welp, it's going back together. I did my best to flush out any remaining debris. I spoke to HotCams yesterday and the cams are on their way.



Inspector Woof says my work is a bit ruff, but, he signed it off! Lol


Edited by HeWasRidinDirty

Share this post


Link to post
Share on other sites


15 hours ago, Frank Angerano said:

It’s not all it’s barked up to be this ATV thing!

Looks like your well into it, how’s it going ?

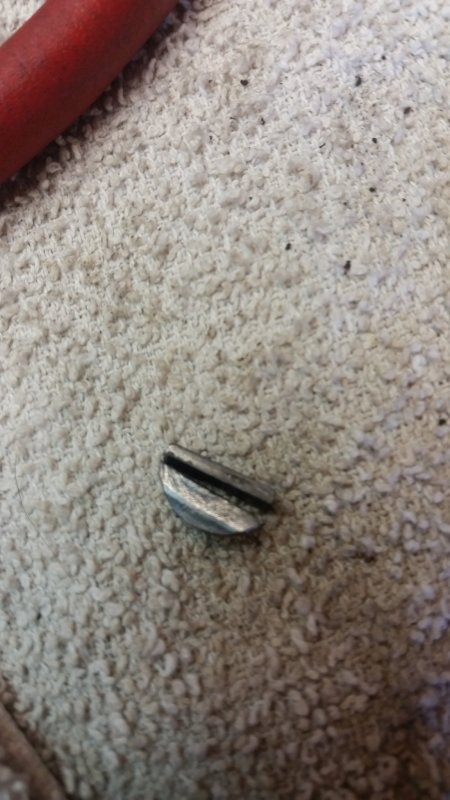

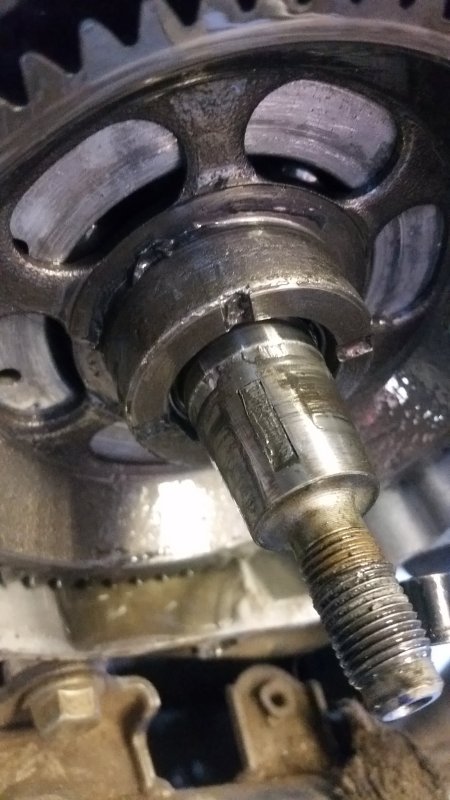

I had to order a new woodruff key yesterday........so, I'm stuck until tomorrow. Tomorrow is riding day!!!! So, it'll have to wait until saturday.

Edited by HeWasRidinDirty

Share this post


Link to post
Share on other sites
7 hours ago, Frank Angerano said:

You need to get you a spare bike. Just a fixer up to have around.   At least it’s something to ride. Nothing worse then waiting on parts.

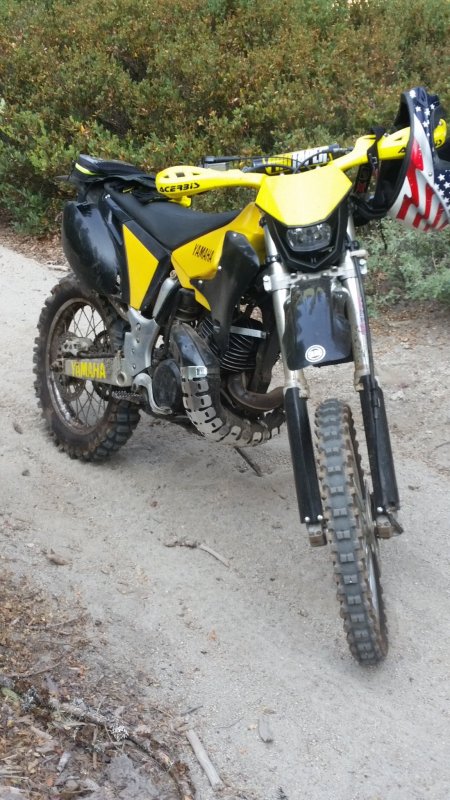

No,no,no, I'm riding tomorrow! I prefer 2 wheels, but,  I do it on all 4 sometimes!


Edited by HeWasRidinDirty

Share this post


Link to post
Share on other sites
