Dra O

1999 suzuki king quad fuel pump/petcock/carb advice

Recommended Posts



"The tube that's threaded for the main jet can be removed, it needs to be pushed upward and may require a small punch to loosen it. There are small holes in it that I believe davefrombc referred to." -- I tried to lightly tap that main jet sheath out (downward) but it didn't budge - I COULD squirt some lubricant down beside it and put a slot head screw driver on the sides (see pic) and try to knock it out but, with my luck, the carb would snap in half - or i'd scratch something up real bad ---- but if there are holes in that area (in the jet sheath), it does need to come out, huh?

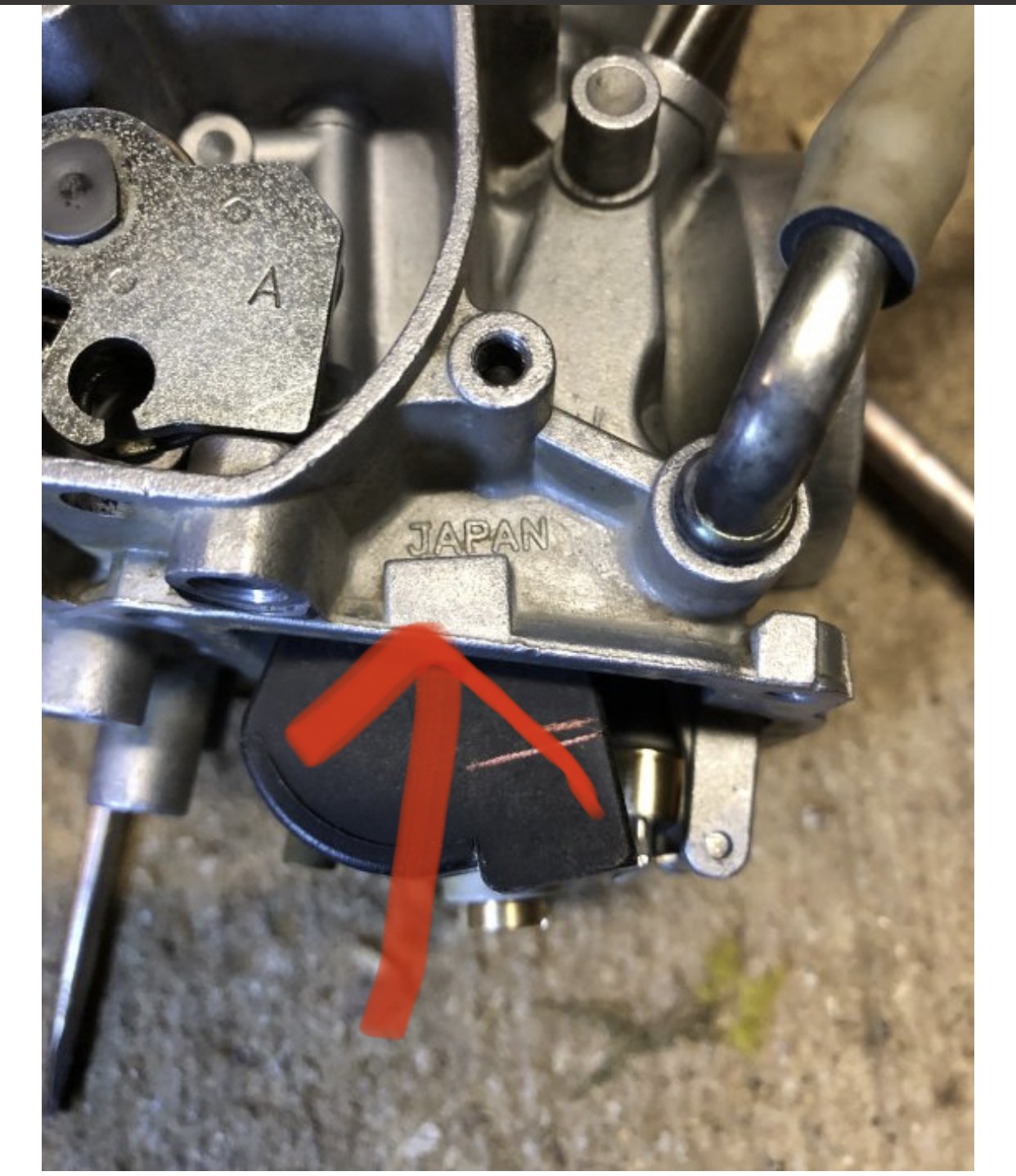

pics below of main jet: looks like there'd be a tool that "unscrews" this piece - see needle pointing to area in question

the weird thing is that I've not had any small holes in ANY of the pieces to unplug w/ a wire... almost all of the videos I watch on carb rebuilds show them unplugging holes.  my pieces have holes straight through them - see pieces on cardboard paper - the ONLY piece that is too tiny to clean w/ wire I have is #5 - but I can blow through it - and i can blow through the old #5 piece

"I didn't see any pictures of the needle & seat (aka float valve) that is retained by the phillips screw - did you replace the o-ring on it already?" -- yessir, it was replaced - the o-ring was REALLY flat on the old one - the new one is nice and plump and fits perfectly (an entirely new float was included w/ carb rebuild kit)

Frank, the float bowl gasket DOES fit back in the groove - gotta press it down evenly from all sides - i'd have been up a creek had I cut the thing

gold jets - haaa!  that's how I roll, brothers! :D    I've no idea why they're gold - if they'd been green or pink i'd not have known the difference






Share this post


Link to post
Share on other sites

https://www.ronniesmailorder.com/oemparts/a/suz/50d0a5aff870022c2c534c07/carburetor-model-x

If you refer to the parts diagram, the piece you're trying to remove is #6 - the needle jet. These often wear out and the inside diameter increases causing  a rich condition.

Carb kits don't include this part but it may be required to get the carb working properly.

Share this post


Link to post
Share on other sites

I'm not familiar with that particular  carb, but the diagram does show  the tiny  holes I mentioned that  are in  many  tubes in different  carbs .. one thing  not mentioned is the direction that  jet tube  comes out  of the  carb  body . . Down towards the  float  bowl  or  up towards the  top?  trying to drive it the wrong direction   can screw up the works .



Edited by davefrombc

Share this post


Link to post
Share on other sites


It goes up to the top, the main jet screws into it from below which keeps it in place.

Share this post


Link to post
Share on other sites

but does it punch down or up?  I'd think downward from float.  but that's what i'd THINK - i'm no mechanic.

both ends sit flush - I have oil soaking them now - if punch toward float it might break / chip the plastic housing



Share this post


Link to post
Share on other sites

The needle jet is removed toward the slide, just like it's shown in the parts diagram. When you say "downward from float" I assume you mean with the carb turned upside down.

Share this post


Link to post
Share on other sites

I would recommend removing it to clean/inspect/replace if worn. They usually pop out with very little effort.

Share this post


Link to post
Share on other sites


I've not removed anything at this point - afraid i'll damage things w/out the right tool(s)

"When you say "downward from float" I assume you mean with the carb turned upside down"  -- I mean away from the float bowl toward the center of the carb

i'm not so sure about taking that piece out - the idling had improved per adjusting the air fuel screw - although I can see where the need would be to clean out the holes



Share this post


Link to post
Share on other sites

Sounds like you've done your best to get it out but if it's that stuck you'd better leave it be. Normally they're not that bad to pull, that's why I wouldn't be surprised if there's corrosion involved.

I've worked on many King Quads over the years and this part often needs replacing. Once the needle wears into it enough, they will run rich and make the sparkplug get black. You will know if that's the case pretty quick.

Share this post


Link to post
Share on other sites

There are small brushes that get inside that port to clean it.
If you crack that carburetor body its over!
It looks like you rotated the brass sleeve a little already.

AUTOLA Carburetors Carbon Dirt Jet Remove Cleaner, 13 Cleaning Wires Set + 10 Cleaning Needles + 5 Nylon Brushes Tool Kit for Welder Carb Chainsaw Spray Guns Torch Tips Firing Hole Stove Burner Holes https://www.amazon.com/dp/B07D8LZ2PG/ref=cm_sw_r_cp_api_i_9O89DbEV5TQ90

Share this post


Link to post
Share on other sites

Good eye Frank! It looks like it's twisted alright....screwing the main jet back in will hopefully get in back in alignment.



Share this post


Link to post
Share on other sites


yessir - post w/ pics from 22 hours ago show it in the same position - I tapped it LIGHTLY once, fearing i'd break the housing - and haven't tapped it since - and it was tapped straight down, not at an angle as to rotate the piece - it always had that little gap as far as I can remember - looks like it needs to be rotated just a hair but i'm not doing it - it's not moving around any

i'm letting it stay the way it is

Share this post


Link to post
Share on other sites

Agreed not to keep messing with it but just have to hope that its not allowing any fuel or vacuum issues if that alignment issue now created a gap of any kind.


Share this post


Link to post
Share on other sites

here we go: I put the main screw back in and tightened it down to SNUG - then put a bit more bite on screwing it in and it moved an extra 16th of an inch, likely seating it back into the original position w/out any gaps.  I can't see this happen but can feel it.  As I take the screw back out, it "gives" a bit and then loosens out without issues.  I'm SURE that's it - it seats once fully in.

Share this post


Link to post
Share on other sites

Yes it most likely did and leave it be !!
I'm confident that Mr. Gold jet has cleaned all parts of the carburetor and shes ready to roll. Double check your float level, slap that puppy back together and fire this thing up!
Where are you going to set the air/fuel screw at ?

Share this post


Link to post
Share on other sites

I am CONFIDENT that extra little push sets everything back in alignment - it HAS to be.

going with between 2 and 2 1/4 for now - trying to fashion a tool to let me adjust air/fuel screw while carb is mounted

here's a pic of float - at rest see the top line - blowing into fuel pipe it only comes up to the second mark - looks like i'm way off

will adjust and repost pic in a few




Share this post


Link to post
Share on other sites
