Right hand crankshaft (stator side), spinning freely on Apache Tomahawk 50


Recommended Posts

Hi guys -

Working on my daughters Apache Tomahawk 50cc (GY6 engine I believe).

Wouldn’t start, noticed that the stator Magneto wasn’t turning with the engine.

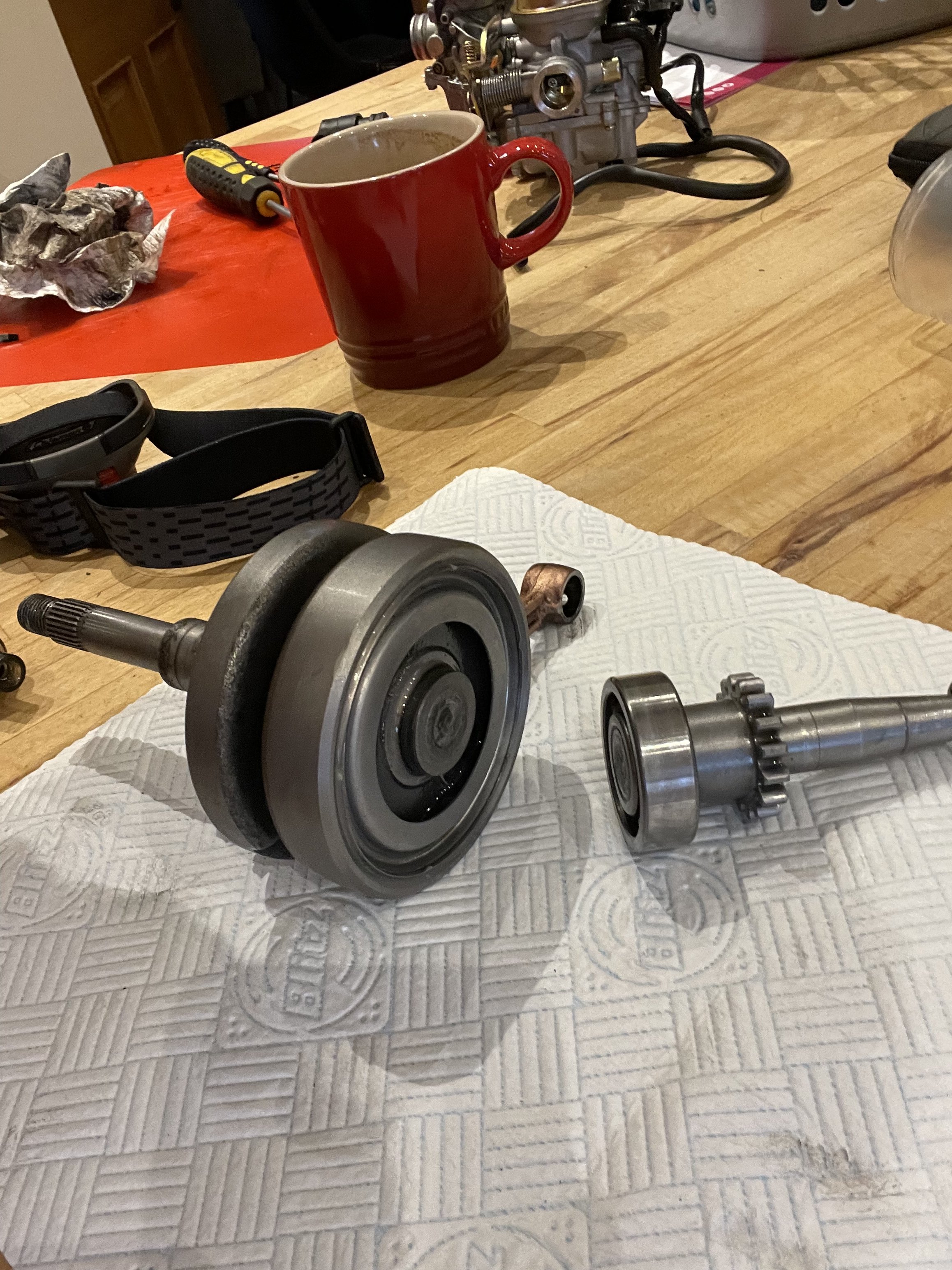

Stripped it down fully expecting the woodruff key to be sheered/moved however this wasn’t  the case.

It appears instead that the shaft itself isn’t engaging and/or is engaging intermittently as the engine turns over which is effecting spark timing.

Any ideas on what could be the problem - I’m at a loss!!


Edited by MikeyC85
Clarity
Link to comment
Share on other sites

😂

It’s a 4 stroke, from what I can see everything else is exactly as it should be … engine turns smoothly and easily, bearings all spinning freely and everything in its place.

absolutely puzzled. @Mechmentioned there may have been an existing fault in the steel which may explain it but other than that …. Very surprised.

It was running absolutely fine as well then whilst sat idling just slowly died … I presume from the flywheel stopping.

Link to comment
Share on other sites

I thought the GY6 was 4 stroke, but the larger engine, wasn't sure about the 50cc, i have a GY6 style engine on a Chinese scooter that's 50cc and its 2 stroke. Good thing I think parts are fairly cheap for those. I think Mech is right just plain metal fatigue I have had it happen on other parts but not a crank. Sorry for your loss, but got to keep the daughter happy, I know I have 3.

Link to comment
Share on other sites

The cheaply made bikes seem a bit prone to snapping things, like gearbox shafts, and kick shafts, and it seems, crankshafts too..

In that particular case I'd suspect the radius in the corner between shaft and throw is a bit to small, and perhaps a badly balanced flywheel and it could happen.  And that's ignoring the fact it's probably poor grade steel..

Link to comment
Share on other sites
