I thought I would make a quick "How-to" on setting wheel alignment since I was flipping my tie rod ends and I was going to have to re-align the wheels anyways.
Here's some of the tools you will need...
1.) Start with the ATV on a smooth and level surface, like a cement garage floor or driveway.
2.)Center up (Eyeball It) the handle bars and lock them into place with 2 ratchet straps, one on each side of handle bars. This of course prevents them from moving when your adjusting the tie-rods.
3.) Place two Jack Stands approximately 2 feet in front of the atv even with the outside edge of the two front wheels.
4.) Wrap a length of string all the way around the ATV and Jack Stands, Start and end at the rear hitch. Make sure the string is the same height from the ground on all 4 wheels. I like to attach a few elastic bands to both ends of the string before attaching the string to the hitch. This makes it easier to adjust the strings when moving the Jack Stands.
4.) Break lose the inner and outer tie-rod nuts. NOTE! Make sure you use 2 wrenches, one on the nut and one on the ball joint. Damage can occur by only using one wrench.
5.) Adjust the string by moving the Jack Stands in or out untill the string just touches both of the side surfaces of the rear tires on each side of the ATV. This will take some time to get it right but it needs to be done!
Check manufacturers wheel alignment specifications on your specific make and model before you adjust any components.
For this wheel alignment I'm using the Polaris Specs which seems to be a common setting.
Polaris - The recommended toe alignment is 1/8″ to 1/4″ toe out. This is a total amount, not per wheel.
6.) On the front rim, measure the distance from the string to the rim at the front and rear edges of the rim. The rear measurement should be 1/16″ - 1/8″ (.2 to .3 cm) more than the front measurement.
7.) If an adjustment is necessary, Turn the tie rod itself with a wrench or your hand in small increments. It doesn't take much to move the tire a long way, so go slow. Keep re-checking your measurement's until you have a 1/16″ - 1/8″ differance to the string.
6.) Once your satisfied that you have the correct "Toe Out" measurements you can tighten up the inner and outter tie-rod nuts on both sides. AGAIN...make sure to use 2 wrenches.
7.) Now take your ATV for a test drive to test your adjustments. If it still pulls one way or the other, just repeat the above steps to tweek the adjustments again utill your happy.
The whole process only takes about 15-20 min.
I don't have a ton of electrical experience, but I think the basic workings of a regulator/rectifier are pretty straight forward. 3 diodes, so 2 power wires and 3 diode wires. Symptom is relays click on/off, more or less no power, sometimes will work, mostly no electric to switch, can jump solenoid and it runs.
If i understand a reg/rect correctly, i should have constant resistance one way on each power wire. So in a total of 12 ohm tests (3 per power wire, one way positive, one neg so 6 for one wire, 6 for the other), i should have 3 resistances one way on each power wire, am I correct? And they should all be reasonably close in resistance?
If i understand the way the reg/rect works correctly, then I have one bad diode as it doesn't read the same as the other 2 and this would be the cause of my issue?
All testing performed on the reg/rect unplugged on workbench, with a Fluke.
Similar Tagged Content
Looking to get some tires for my old quad, but the tires are getting rarer. Paying near 100 for tires seems a lot when that is what I just paid for tires for my car and i only ride four or five times a year
Anyone have any leads on good used or closeouts in 23x10/12 and 23x8/12?
Additionally, what other sizes can I run that might be easier to find and not muck with the 4x4?
My village has now made golf carts and atv's legal on the street and now that the wife and i can go cruise around i'm considering putting on street tires to save my knobbies. Thinking on the route of saving costs and using car rims i'm sure i will have to get adapters but has anyone had experiences doing this? Down falls? We dont mud or anything and they would be used for summer only.

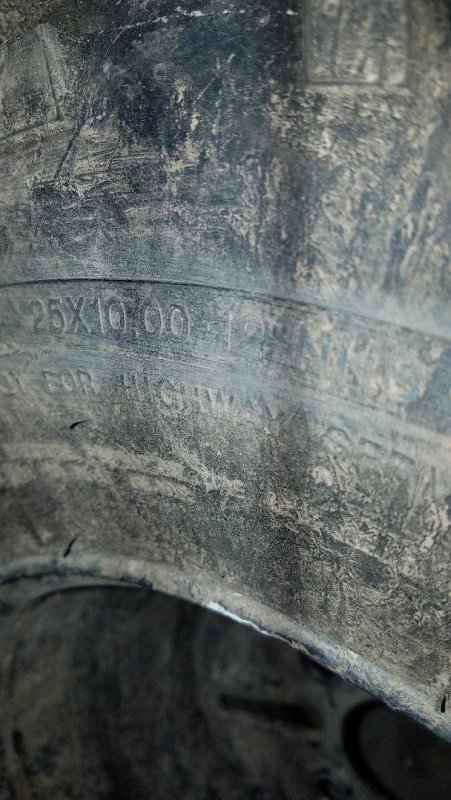

Hello first time posting here. I have just brought a KVF 300 and the tyres need replacing. i was wondering about the sizes do you have to use the same as what are on it or can you change them a bit. the sixes are 25 x 8 - 12 front and 25 x 11 - 10
