Building a street legal 6x6"

Recommended Posts

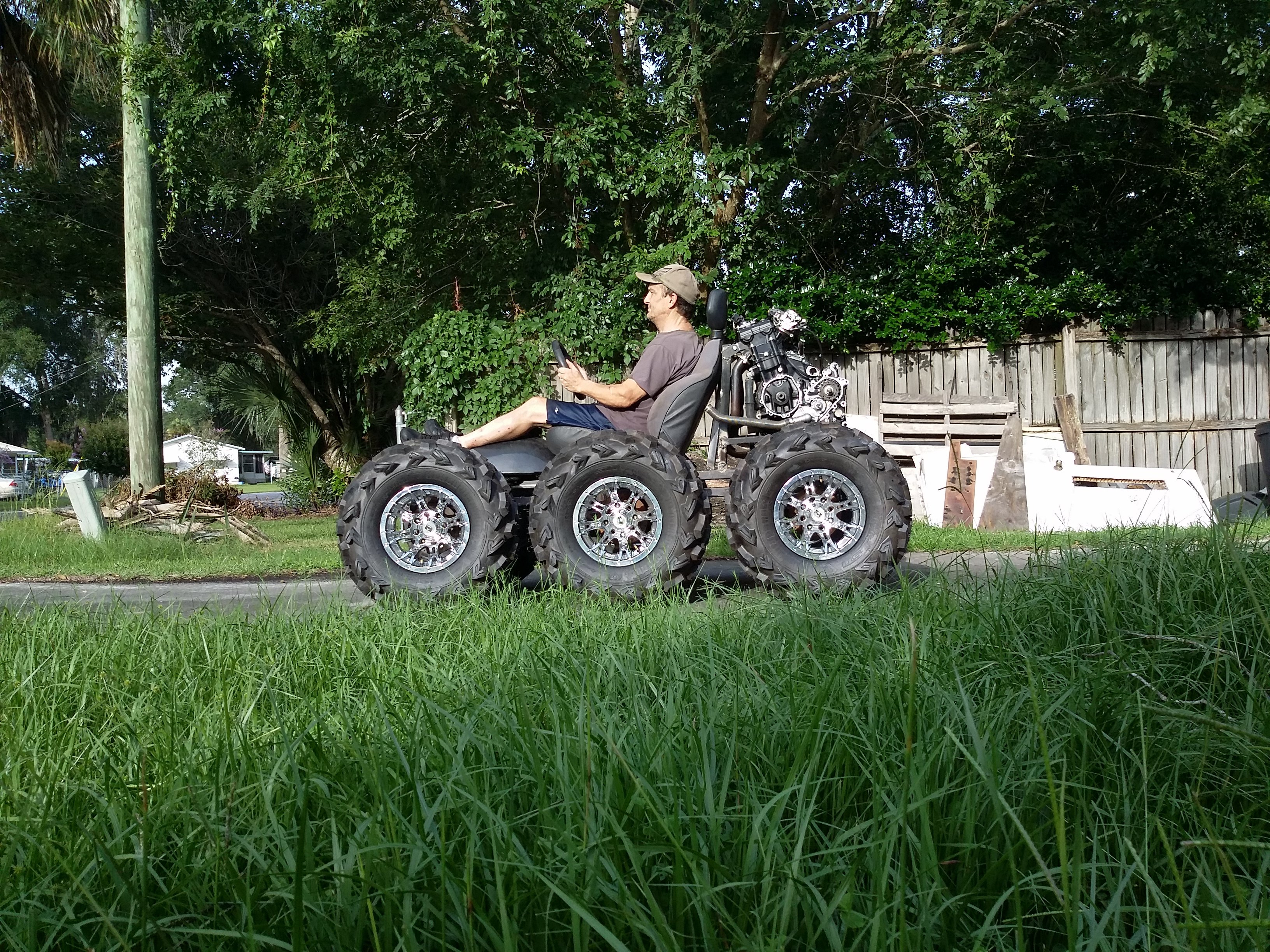

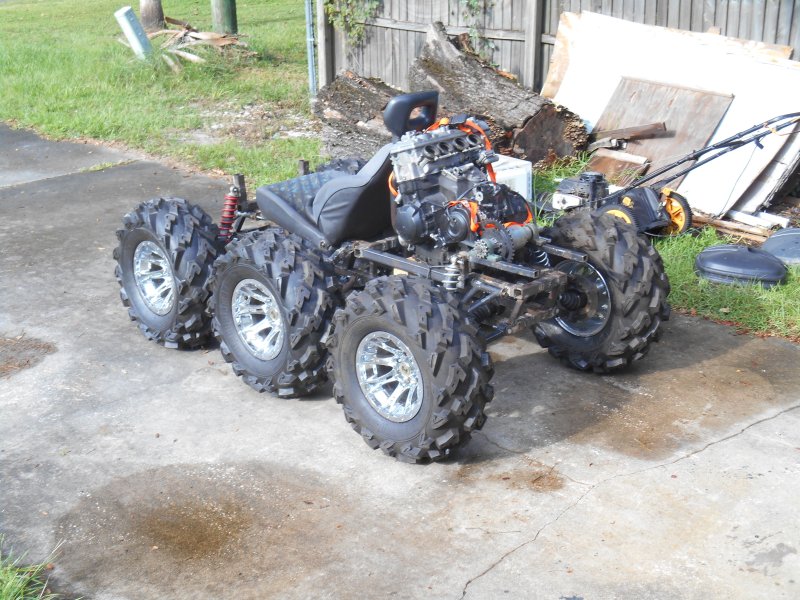

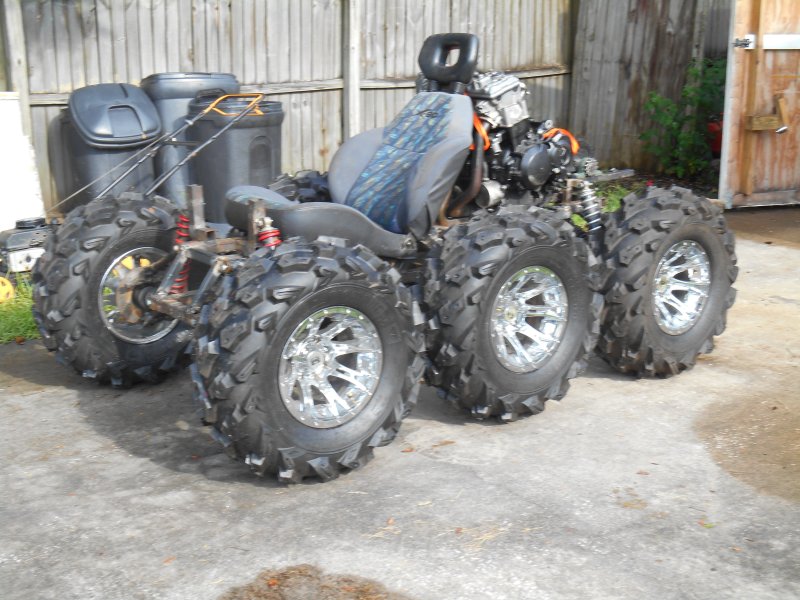

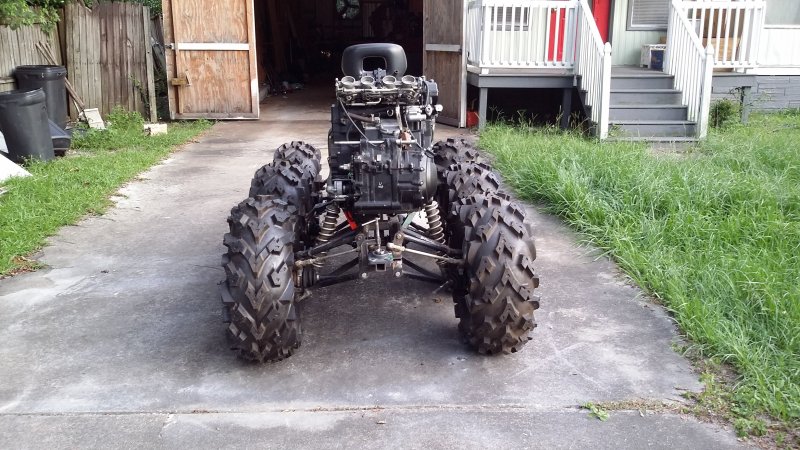

No, it is not done by any means. I am still fabricating the frame, steering, exhaust, throttle, brakes, etc. When the chassis is done, l will then fabricate a fiberglass body for it. The 2 real pictures that l posted were of my first prototype chassis. I have made a few changes since then. As far as operating it, it will be driven more like a manual shifting car, than a quad. It steers by the front and rear wheels. The front, and rear turn in opposite directions.  When turning left, for example, the front wheels are turned left, and the rear are turned right. The center wheels are fixed, and don't turn left or right. I have added two updated chassis pictures.



  • Like 1

Share this post


Link to post
Share on other sites



Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.
Note: Your post will require moderator approval before it will be visible.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.


  • Similar Tagged Content

  • Similar Topics

    • By Frank Angerano
      So I decided to pick up a small trailer if I could get one for the right price.  I found this one for a few hundred bucks on Craig’s list.  It is  a galvanized trailer which is exactly what I was looking for. The wood was shot and needed some minor repairs which I could care less about as long as the chassis was good.
      I striped it down and put a new deck on. I had some vinyl realtree graphics that I had laying around so I added them to the fenders which I think worked out well. Very happy with this little guy.
      I'm having the iron workers at my jobmake me up a few lightweight side rails that will have a 22 degree bend in them to accommodate the tires that slightly hang over the edge and will incorporate some tie down points as well.








    • By PolarisRich
      I thought I would make a quick "How-to" on setting wheel alignment since I was flipping my tie rod ends and I was going to have to re-align the wheels anyways.
      Here's some of the tools you will need...

      1.) Start with the ATV on a smooth and level surface, like a cement garage floor or driveway.

      2.)Center up (Eyeball It) the handle bars and lock them into place with 2 ratchet straps, one on each side of handle bars. This of course prevents them from moving when your adjusting the tie-rods.

      3.) Place two Jack Stands approximately 2 feet in front of the atv even with the outside edge of the two front wheels.

      4.) Wrap a length of string all the way around the ATV and Jack Stands, Start and end at the rear hitch. Make sure the string is the same height from the ground on all 4 wheels. I like to attach a few elastic bands to both ends of the string before attaching the string to the hitch. This makes it easier to adjust the strings when moving the Jack Stands.

      4.) Break lose the inner and outer tie-rod nuts. NOTE! Make sure you use 2 wrenches, one on the nut and one on the ball joint. Damage can occur by only using one wrench.

      5.) Adjust the string by moving the Jack Stands in or out untill the string just touches both of the side surfaces of the rear tires on each side of the ATV. This will take some time to get it right but it needs to be done!

      Check manufacturers wheel alignment specifications on your specific make and model before you adjust any components.
      For this wheel alignment I'm using the Polaris Specs which seems to be a common setting.
      Polaris - The recommended toe alignment is 1/8″ to 1/4″ toe out. This is a total amount, not per wheel.
      6.) On the front rim, measure the distance from the string to the rim at the front and rear edges of the rim. The rear measurement should be 1/16″ - 1/8″ (.2 to .3 cm) more than the front measurement.


      7.) If an adjustment is necessary, Turn the tie rod itself with a wrench or your hand in small increments. It doesn't take much to move the tire a long way, so go slow. Keep re-checking your measurement's until you have a 1/16″ - 1/8″ differance to the string.

      6.) Once your satisfied that you have the correct "Toe Out" measurements you can tighten up the inner and outter tie-rod nuts on both sides. AGAIN...make sure to use 2 wrenches.
      7.) Now take your ATV for a test drive to test your adjustments. If it still pulls one way or the other, just repeat the above steps to tweek the adjustments again utill your happy.
      The whole process only takes about 15-20 min.
    • By Frank Angerano
      So i have a friend at work who was recently diagnosed with a small but very manageable heart problem.  He is in good shape but doc says he shouldn't be shoveling snow or anything crazy for a while until they figure this out. So he asked me to see what i can find him to plow since he has a good size piece of property.  So i spent the last two weeks scouring the local states to find him a good atv with a plow!

      Found  him a big bear 400 4x4 with a plow for a steal!   Going to go through it good and put my touch on it and deliver it next week.

      As much fun as we have with this quad thing its just as much fun helping others out!







    • By MarkinAR
      Picked this beauty up for zero dollars this weekend. It has been passed around several of my son's friends and the last kid was just tired of tinkering with it.  Mostly complete 96 300FW. The pic is my boy robbing the swing arm and rear diff for his 300 for a big memorial weekend ride. Wiring is garbage at the battery, kick start doesnt work, no coil, smoked like cheech and chong when it ran last. I figure a couple hundred and a few hours and this will be ready to ride. Journey will be documented on Instagram at @martincyclellc if ya wanna follow along.

    • By mkibbe
      My 2014 750 king quad stalls sometimes when I touch or turn the handlebars,the problem has gotten worse,my machine has 475 miles and is only trail ridden,I have a new factory battery and i have 14.2 volts when the quad is running and 13.3 on the battery when not running,also using a multimeter there is no change in volts when turning the bars until it does stall,If I pull the 40 amp power steering fuse it will not stall.......I've been told its the ECU,Hate to buy one if thats not the problem,but its kinda leaning towards that,,,,,need some opinions.
