KLF 300 neutral and reverse issue


Recommended Posts

Hey Richard, welcome to Quadcrazy.  What year is the bike?

That lock out knob, when you turn it, is there spring  loaded pressure that returns it back?

On the left side of the engine where the shifter is there is the reverse cam lock out that the cable leads to.  Follow that down and see if anything is jamming it up the cable.   If not the problem may be under that cover where the actual reverse cam is. But I don’t know the year and some vary.   The cover that houses that part is called  the bevel gear cover. It’s a bi*** to get off but doable. Unfortunately the engine bolts all need to come off and the left foot rest  as well.

Its possible the spring is bad or worse the shaft inside is broke.

But before you get into all that do some simple testing first and go through all the gears etc and see if anything else is not right.







  • Thanks 1
Link to comment
Share on other sites

Wow, thanks Frank for taking the time to post such a detailed reply that is really going to help me out a lot.

I am not 100% on the year but I think it's around '95.

The knob still feels spring loaded but possibly not as strong as it was.

I will have a look at the things you have suggested tomorrow and post back with what I find.

Thanks again for your help.

Link to comment
Share on other sites

My guess is that shaft on the reverse cam is broken leaving the neutral light on. If I’m correct that means the engine gets split.

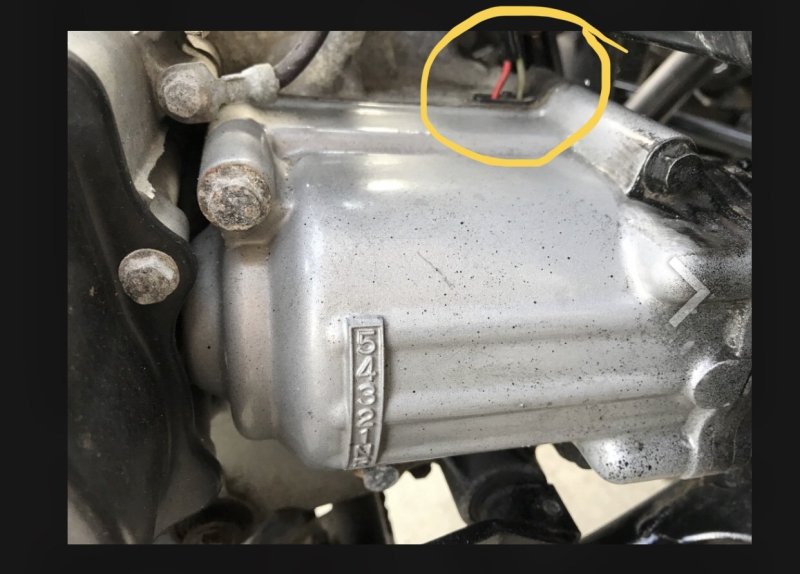

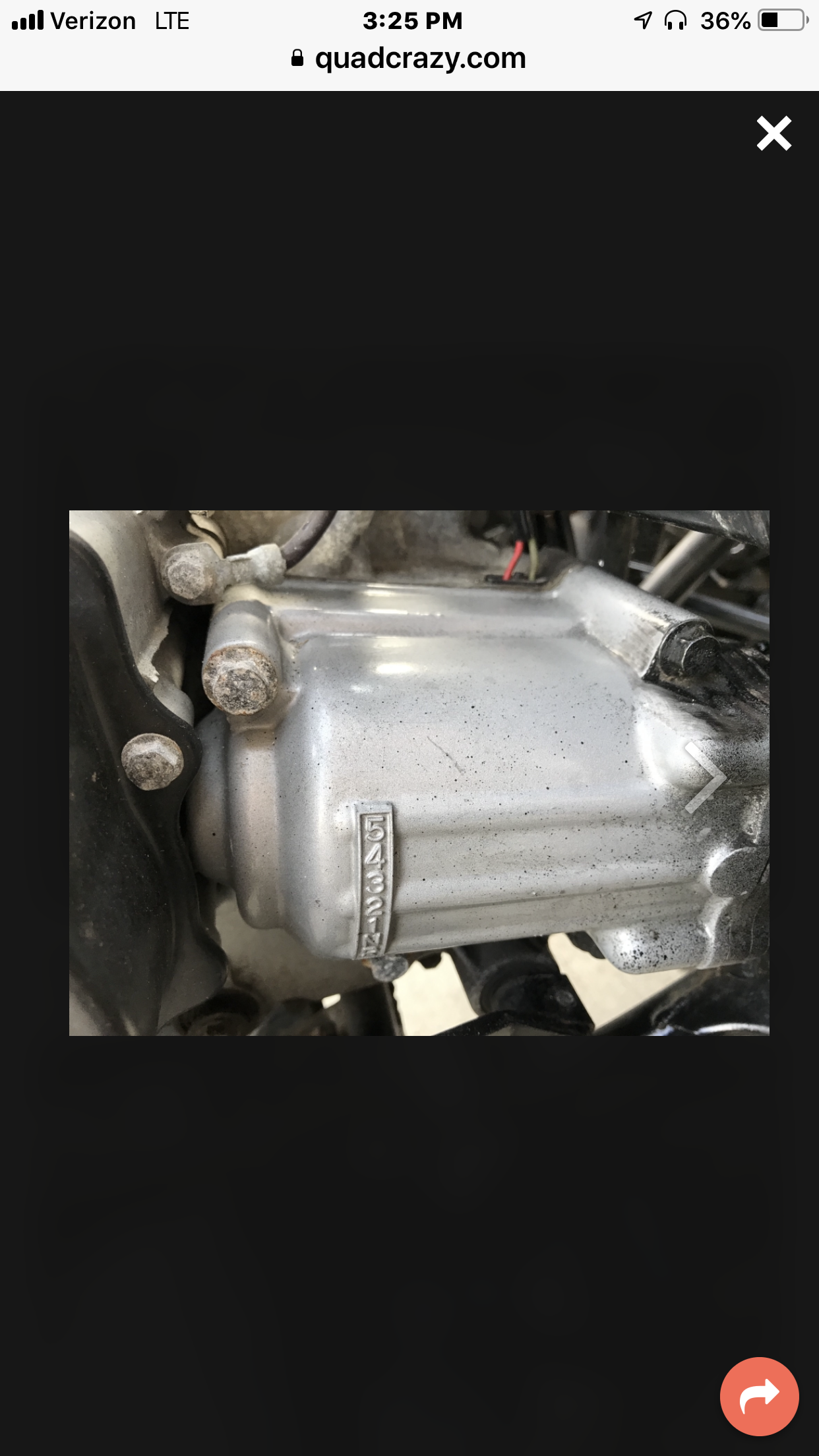

I would start by locating that light green wire over that bevel gear cover and unplug it.  If the neutral light goes off then the problem is under that cover.




When your ready to pull that cover let me know I will walk you through it.

  • Thanks 1
Link to comment
Share on other sites

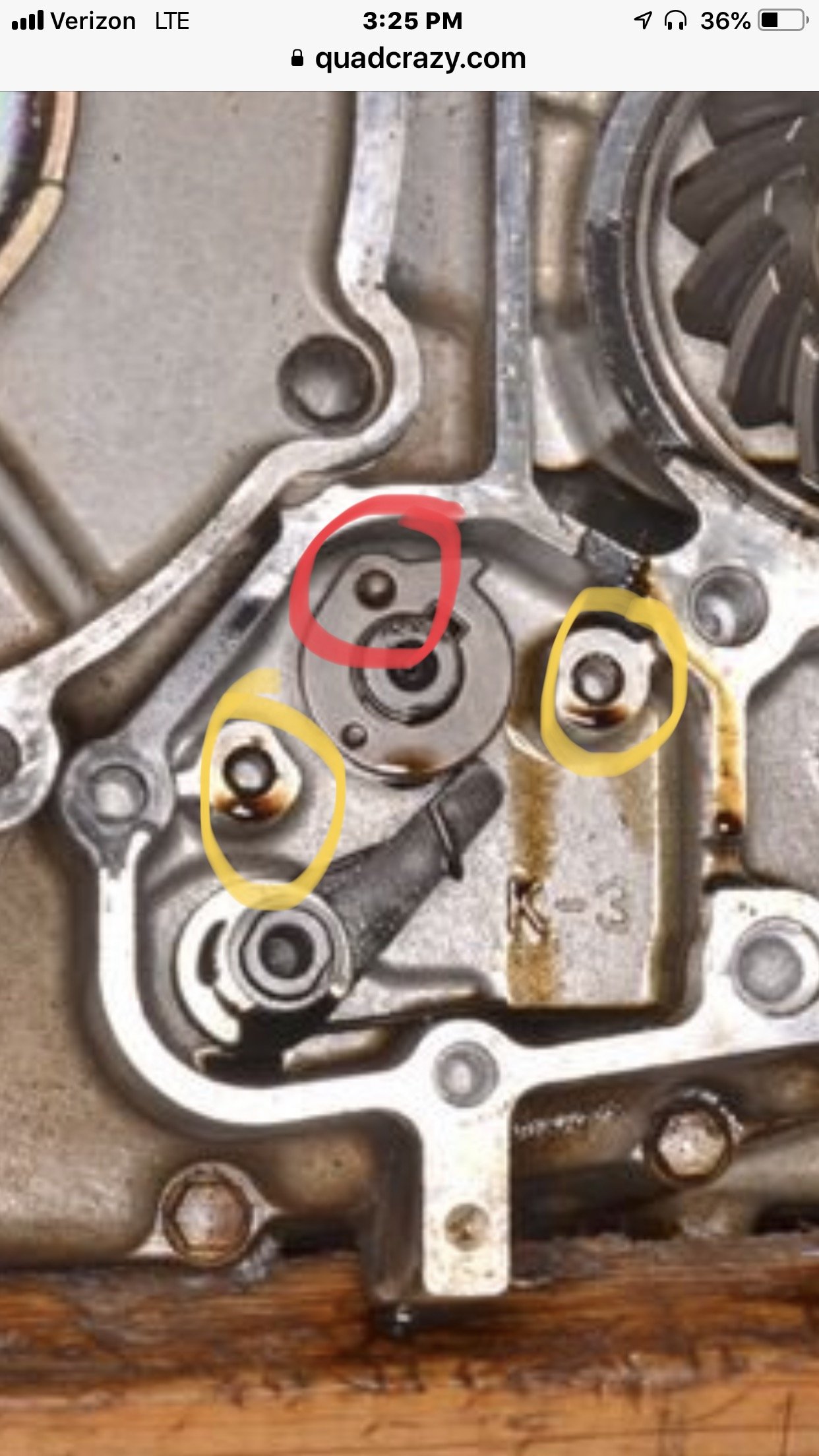

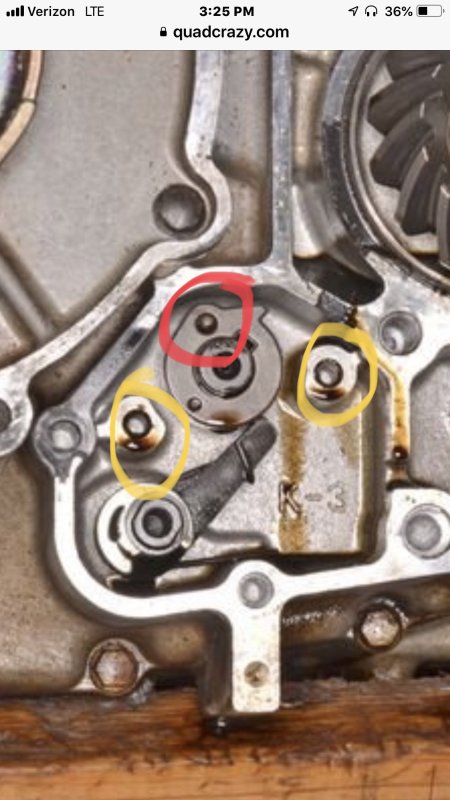

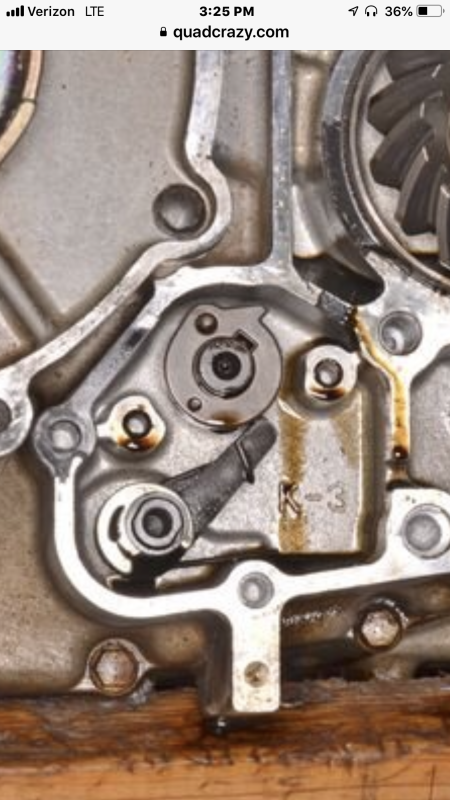

The picture here is the reverse cam.   The neutral safety switch sits right over it. It’s held in by two Philips screws circled in yellow. The red circle is the spring loaded contact on the reverse cam.  The back side of neutral safety switch has two copper circles under it. That tab on the reverse cam touches the copper circles turning the neutral light on (green wire) and the reverse light (red wire) that’s all done by shifting which happens when you shift gears that shaft rotates and turns the cam into position.  So I’m thinking that that shaft is not rotating.


  • Thanks 1
Link to comment
Share on other sites

Yes the relay should have clicked. That completes the starting circuit.

The bevel gear cover when unbolted will not slide off because the shifter shaft prevents it from sliding off due to the close proximity to the frame.  So two ways to do this. One way is to pull the engine out of the bike and make the repair. This may be the best way to go for you since the problem may be deeper inside the engine.

Second way: The oil does get drained, the engine mount bolts all need to be taken out including the bolt/brackets on the top and front of the engine. These are triangular shaped brackets that are bolted to the frame and the engine.  They both have to come out for clearance. The left foot rest needs to come off as well.  The exhaust silencer gets taken off so when you raise the engine it does not twist the exhaust or put pressure on the pipe coming from the engine. There are four nuts 12mm holding the rear axle shaft to the engine they  come off as well but not until the last minute  and see if the engine moves up without taking them out. If not then take them off.

Once thats all done the engine should be pried up gently, have some wood wedges ready to stick in between the engine and frame to keep it up.  Just don’t force it. The engine should move up freely and only need to go up about two inches max.

After thats done you should be able to take that cover off.

Make sure all the bolts are off the bevel gear cover and tap it with a rubber mallet to loosen it.

Lastly I want to mention one important thing. Take a big piece of cardboard, as you remove bolts put a hole in the cardboard, stick the bolt in and write on the cardboard with a  marker where it came from.

Good luck. I will be checking in to see how your doing.  Take pics.

  • Thanks 1
Link to comment
Share on other sites

Thank you yet again Frank for taking the time to help.

I will have to tear into this as soon as I have enough time to dedicate to it, it sounds like one of those jobs where if you stop and come back to it later you will have forgotten where things go.

I am sure I will be back with more questions to get me through this process.

I cant thank you enough for your assistance buddy.

Link to comment
Share on other sites

So I pulled the cover off that exposes the lever at the end of the reverse cable and it was all caked with hard mud, dry grass and all sorts of junk, cleaned all that stuff out and made a small adjustment to the reverse cable and now it seems to be working! 😁

I am happy that it was an easy fix... for now at least.

Thank you both for making the effort to help me out!

Link to comment
Share on other sites

  • 1 year later...

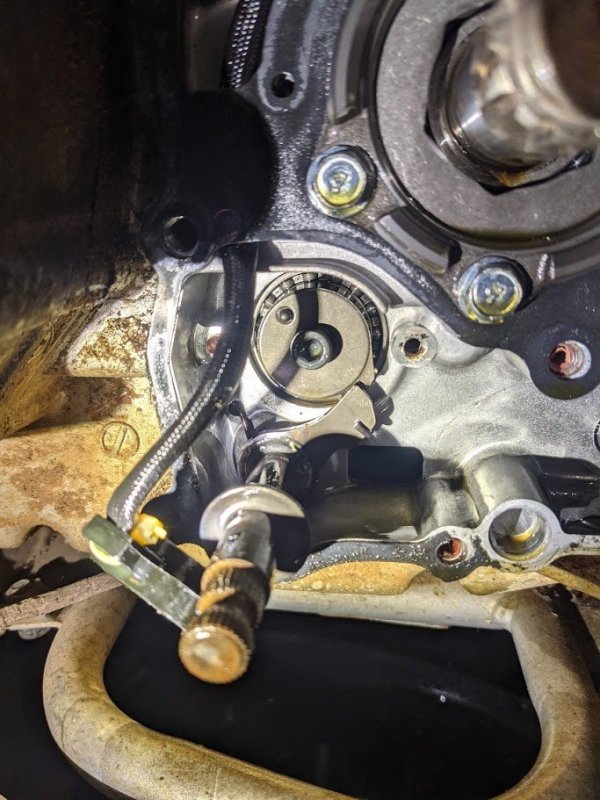

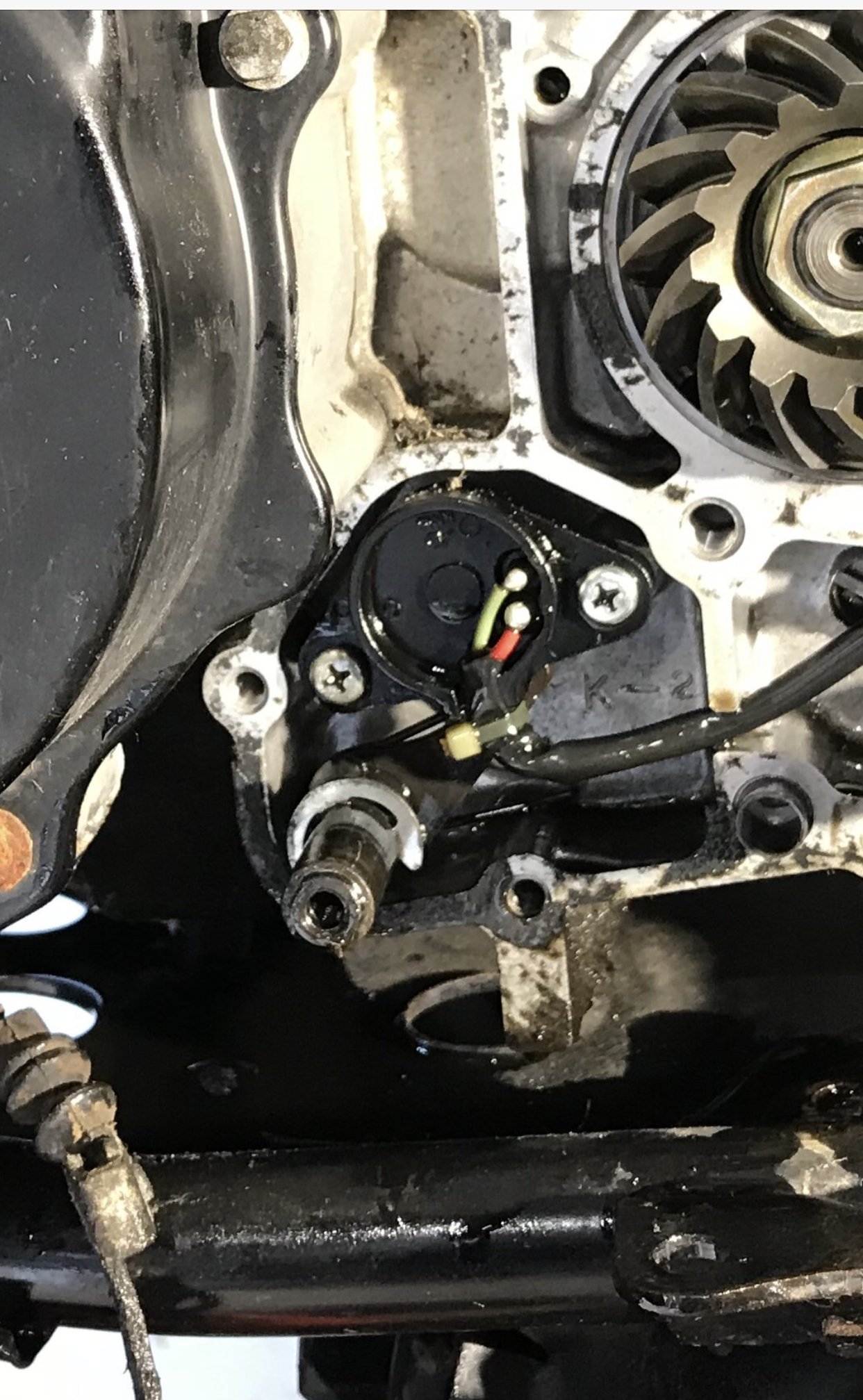

So I'm having a similar problem on my KEF300 ('95 Lakota)... it will shift right past neutral and into reverse without touching the reverse knob. both the neutral and reverse indicator lights illuminate as they should, there is just no lockout. My reverse knob still has spring tension and will snap back. I've removed the left side crank cover and as able to locate the switch, spring, cam, and pin thats been discussed in this thread... but all looks a-ok, the cam is intact, the spring is good, the pin behind the switch. yet, with all this apart, I can actuate the gear shifter by hand and go straight from neutral into reverse (lights reports this) and never touching the reverse knob/lever (and with no cable tension attached)

What does this mean? I'm afraid the next steps involve removing the motor and splitting the case.



PXL_20210109_175529523.thumb.jpg.210a9d27b97265a15038b7cd635090b1.jpg.







Edited by Hodadical
Link to comment
Share on other sites

  • 1 year later...
On 1/10/2021 at 6:38 AM, Hodadical said:

So I'm having a similar problem on my KEF300 ('95 Lakota)... it will shift right past neutral and into reverse without touching the reverse knob. both the neutral and reverse indicator lights illuminate as they should, there is just no lockout. My reverse knob still has spring tension and will snap back. I've removed the left side crank cover and as able to locate the switch, spring, cam, and pin thats been discussed in this thread... but all looks a-ok, the cam is intact, the spring is good, the pin behind the switch. yet, with all this apart, I can actuate the gear shifter by hand and go straight from neutral into reverse (lights reports this) and never touching the reverse knob/lever (and with no cable tension attached)

What does this mean? I'm afraid the next steps involve removing the motor and splitting the case.



PXL_20210109_175529523.thumb.jpg.210a9d27b97265a15038b7cd635090b1.jpg.







Hi mate, Did you end up figuring out what was wrong? I just got a KLF300 and the initially shifting gears was extremely hard and stiff, then it started doing exactly what you have described. It will shift into reverse straight past neutral without using the reverse lever. Also the neutral light and reverse light stopped working so perhaps the switch is faulty so i bridged out the green wire to ground so it will start now.



When the bike is off i am able to get it into neutral but when it is running it just goes straight past neutral into reverse.



Thanks.

Link to comment
Share on other sites

  • 3 weeks later...
On 9/7/2022 at 1:58 PM, Quadman11 said:

Hi mate, Did you end up figuring out what was wrong? I just got a KLF300 and the initially shifting gears was extremely hard and stiff, then it started doing exactly what you have described. It will shift into reverse straight past neutral without using the reverse lever. Also the neutral light and reverse light stopped working so perhaps the switch is faulty so i bridged out the green wire to ground so it will start now.



When the bike is off i am able to get it into neutral but when it is running it just goes straight past neutral into reverse.



Thanks.

Hi mate did you sort this out? Mine is doing the same thing.

Link to comment
Share on other sites

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.
Note: Your post will require moderator approval before it will be visible.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.
